Topcom ATA 1110 Manual de usuario
ATA 1110
User guide
Handleiding
Manuel d’utilisateur
Bedienungsanleitung
v 1.1
This product is in compliance with the essential requirements and
other relevant provisions of the R&TTE directive 1999/5/EC.
The Declaration of conformity can be found on:
http://www.topcom.net/support/cedeclarations.php
UK The features described in this manual are published with
reservation to modifications.
NL De in deze handleiding beschreven mogelijkheden
worden gepubliceerd onder voorbehoud van wijzigingen.
FR Les possibilités décrites dans ce manuel sont publiées
sous réserve de modifications.
DE Die in dieser Bedienungsanleitung umschriebenen
Möglichkeiten, werden vorbehaltlich Änderungen
publiziert.
UK The CE symbol indicates that the unit complies with the
essential requirements of the R&TTE directive.
NL Het toestel voldoet aan de basiseisen van de R&TTE-
richtlijn. Dit wordt bevestigd door de CE-markering.
FR La conformité de l’appareil avec les exigences
fondamentales de la directive européenne R&TTE
relative aux terminaux, est confirmée par le label CE.
DE Die Übereinstimmung des Gerätes mit den
grundlegenden Anforderungen der R&TTE-Directive ist
durch das CE-Kennzeichen bestätigt.
En
g
lish
1
Step 1 : Hardware Installation
1 Step 1 : Hardware Installation
Installation:
Connect the Topcom ATA 1110 as shown in the picture below:
2 Step 2 : Configuration
2.1 Enter the WEB page
Set your computer's IP to the network 192.168.10.x or setup
your network card to obtain an IP address automatically.
Open your web browser and type in http://192.168.10.1.
2
Step 2 : Configuration
The logon page of ATA 1110 will appear:
• Enter the default username and password admin/admin for
administrator and guest/guest for guest.
• Click Logon to enter the configuration page.
2.2 WAN Configuration
Enter Network - WAN Config to set the WAN setting:
The ATA 1110 supports three different IP types: Static IP,
Dynamic obtain IP (DHCP) and PPPoE.
En
g
lish
3
Step 2 : Configuration
Static IP:
• Select "Static"
• Enter the ATA 1110's IP address in the "IP address" field.
• Set the "Net mask", default 255.255.255.0
• Enter the ATA 1110's gateway IP address (this will be your
router's IP address) in the "Gateway" field
• Enter the DNS information in the "Primary DNS" and "Alter
DNS" fields.
DHCP (default setting) : In case you are connected to a
Cable/ADSL router
• Select DHCP
If you have a DHCP server in your network (for example your
Cable/ADSL router), the ATA 1110 will automatically obtain
the network information from your DHCP server.
PPPoE : In case you are connected to an Ethernet ADSL
modem.
• Select PPPoE
• Type your PPPoE dialup information in the PPPoE setting
fields: PPPoE server (optional), Username and password.
The ATA 1110 will connect to the internet through PPPoE and
will automatically obtain the IP address , Netmask, Gateway,
Primary DNS and Alter DNS information.
The ATA 1110 can also be configured via the WAN IP
address. You can hear the WAN IP address in the ATA
1110 from your handset:
• pick up the handset;
• enter #*111#;
Then your handset will prompt ATA 1110 IP address.
4
Step 2 : Configuration

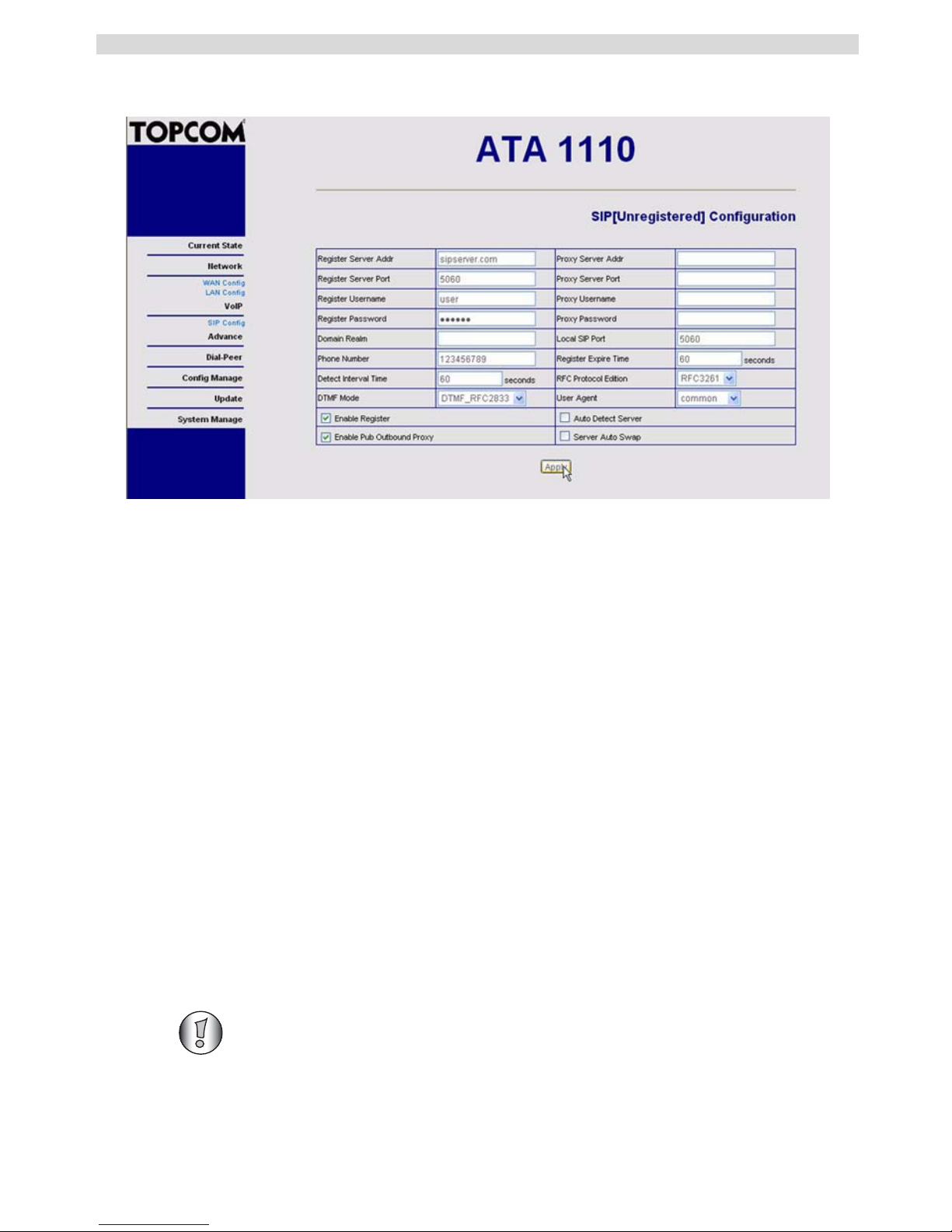

2.3 SIP Configuration
Enter the VoIP - SIP Config setting page to setup the sip
information:
•Register Server Addr:enter the SIP provider server address
•Register Server Port:enter the SIP server register port
(typical 5060)
•Register Username:enter the username of your SIP account
•Register Password:enter the password of your SIP account
•Phone Number: enter phone number of your SIP account.
(if there is no phone number available, just
enter the username).
•CheckEnable Register
•CheckEnable Pub Outbound Proxy
Click Apply to confirm the settings.
Go to the Config Manage - Save Config page and
click "save" to save the configuration, otherwise you
will lose the setting after the ATA reboots.
En
g
lish
5
Step 2 : Configuration
2.4 NAT Traversal
If the ATA 1110 is connected behind a router it is
recommended to enable the STUN settings.
Your SIP provider should be able to provide this information.
Enter the Advance - SIP setting page.
•STUN Server Addr:enter the STUN server addres
•STUN Server Port:enter the STUN server port number
•Check "Enable SIP Stun"
Click Apply to confirm the settings.
Go to the Config Manage - Save Config page and
click "save" to save the configuration, otherwise you
will lose the setting after the ATA reboots.
6
Step 3 : Reboot
3 Step 3 : Reboot
When all settings are done it is recommended to reboot the
ATA.
Go to System manage - Reboot and choose "Reboot" to restart
the ATA.
4 Warranty
4.1 Warranty period
The Topcom units have a 24-month warranty period. The
warranty period starts on the day the new unit is purchased.
The warranty on batteries is limited to 6 months after purchase.
Consumables or defects causing a negligible effect on
operation or value of the equipment are not covered.
The warranty has to be proven by presentation of the original
purchase receipt, on which the date of purchase and the unit-
model are indicated.
After the reboot the Server LED will go on when the
ATA is successfully registered.
You should be able to make VOIP calls now.
for advanced settings, please read the full English
user guide on the provided CD.
En
g
lish
7
Warranty
4.2 Warranty handling
A faulty unit needs to be returned to a Topcom service centre
including a valid purchase note.
If the unit develops a fault during the warranty period, Topcom
or its officially appointed service centre will repair any defects
caused by material or manufacturing faults free of charge.
Topcom will at its discretion fulfil its warranty obligations by
either repairing or exchanging the faulty units or parts of the
faulty units. In case of replacement, colour and model can be
different from the original purchased unit.
The initial purchase date shall determine the start of the
warranty period. The warranty period is not extended if the unit
is exchanged or repaired by Topcom or its appointed service
centres.
4.3 Warranty exclusions
Damage or defects caused by incorrect treatment or operation
and damage resulting from use of non-original parts or
accessories not recommended by Topcom are not covered by
the warranty.
The warranty does not cover damage caused by outside factors,
such as lightning, water and fire, nor any damage caused
during transportation.
No warranty can be claimed if the serial number on the units
has been changed, removed or rendered illegible.
Any warranty claims will be invalid if the unit has been
repaired, altered or modified by the buyer or by unqualified,
non-officially appointed Topcom service centres.
8
Disposal of the device (environment)
5 Disposal of the device (environment)
At the end of the product lifecycle, you should not
throw this product into the normal household garbage
but bring the product to a collection point for the
recycling of electrical and electronic equipments. The
symbol on the product, user guide and/or box indicate this.
Some of the product materials can be re-used if you bring them
to a recycling point. By re-using some parts or raw materials
from used products you make an important contribution to the
protection of the environment.
Please contact your local authorities in case you need more
information on the collection points in your area.
6 Cleaning
Clean the device with a slightly damp cloth or with an anti-
static cloth. Never use cleaning agents or abrasive solvents.
