TOORX CSX70 Manual de usuario

Ed : 09/17 Rev : 00

INSTRUCTION

- 2 -

2 2

1 F 1 F

1 1

1212 4

20 20

2627

29 3030

- 3 -

PARTS LIST

NUMBER

DESCRIPTION

QUANTITY

JOINT BASE

JOINT TUBE

RIGHT BASE

UPRIGHT FRAME

ADJUSTMENT TUBE

AXES

STRAIGHT BEAM

GUIDE ROD

TOP JOINT TUBE

TOP CROSS BEAM

JOINT BEAM

JOINT ROD

ADJUSTABLE PULLEY BLOCK

PULLEY BLOCK

SWIVEL PULLEY BLOCK (I)

SWIVEL PULLEY BLOCK (II)

SWIVEL PULLEY BLOCK (III)

SWIVEL PULLEY BLOCK (IV)

TOP PLATE

WEIGHT PLATE

SELECTOR ROD

SECURE BUSHING

CLOTH SUPPORT

STIRTUP CABLE HANDLE (NT0450)

BUSHING

CLOTH SHELL

LEFT BASE

BIG PULLEY

SMALL PULLEY

RUBBER DONUT

BUSHING

PULLEY PROTECTION

FAST PIN

HOOK

CABLE (I)

CABLE (II)

CABLE (III)

HEX HEAD BOLT M8*16

HEX HEAD BOLT M10*16

HEX HEAD BOLT M8*30

HEX HEAD BOLT M10*50

NUT M12

HEX HEAD BOLT M10*55

- 4 -

HEX HEAD BOLT M10*60

HEX HEAD BOLT M10*70

HEX HEAD BOLT M10*75

HEX HEAD BOLT M10*80

HEX HEAD BOLT M10*85

HEX HEAD BOLT M10*70

SQUARE NECK BOLT M10*95

HEX HEAD BOLT M10*95

R-WASHER 8

BIG WASHER 8

R-WASHER 10

WASHER 10

100

LOCK NUT M10

LOCK NUT M8

BIG WASHER-12

LARGEST PULLEY

SQUARE NECK BOLT M10*90

HEX HEAD BOLT M10*140

CHAIN

FOOT RING

- 5 -

ASSEMBLY INSTRUCTIONS

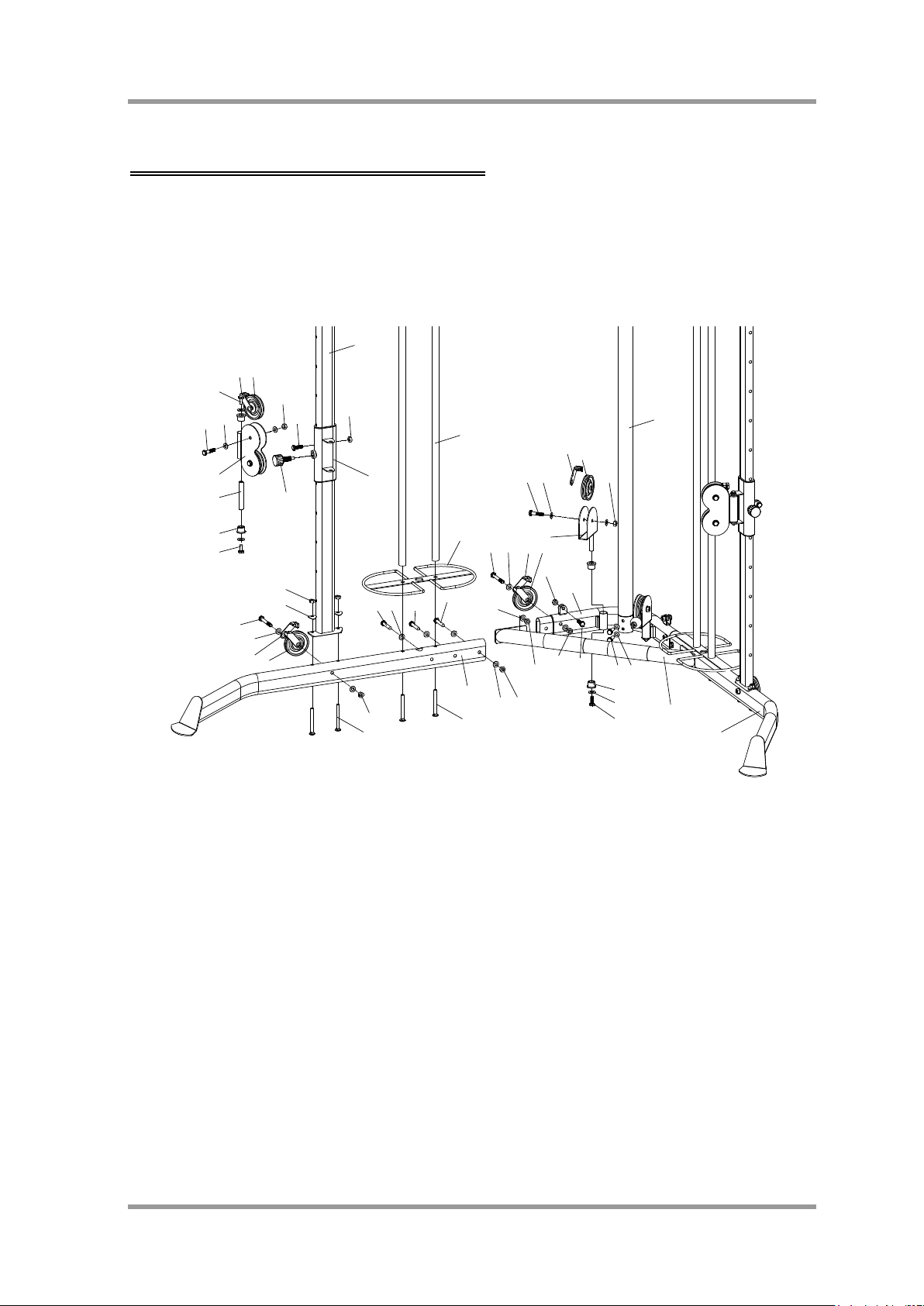

STEP 1

29 30

17 18 29

15 29 30

15 29

14 31

2129

21 29

12 26

1. Attach right base (C) and left base (AA) to joint base (A) with (17), (29) and (30).

2. Attach joint tube (B) to right base (C) and left base (AA) with (17), (18), (29) and (30).

3. Attach swivel pulley block I (O) to joint base (A) with (4), (12) and (27).

4. Attach upright frame (D) to right base (C) and left base (AA) with (34), (28) and (30), and attach

guide rod (H) and cloth support (W) to right base (C) and left base (AA) with (24).

5. Attach swivel pulley block II (P) to adjustment tube (E) with axes (F), (4), (29) and (13), then slide

adjustment tube (E) down upright fame (D), secure it with (6).

6. Attach joint rod (L) to joint base (A) with (12) and (26).

NOTE: The pulley with pulley protection don’t install temporarily, until the cable to wear.

- 6 -

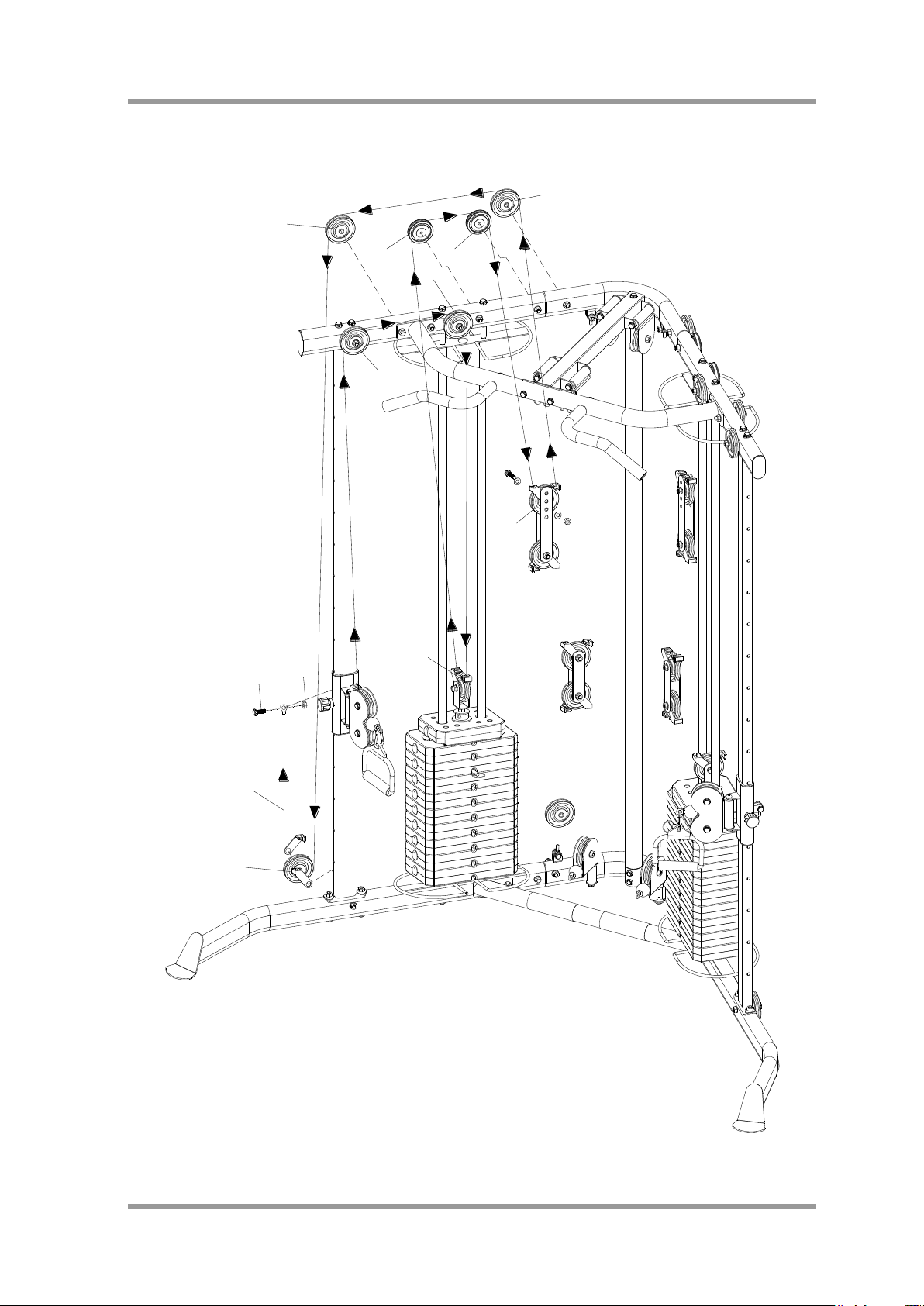

STEP 2

21 30

134FQ 30

14 31

1729

19 28

2122

182120

111

15 29 1

7. Slide rubber donut (3) onto guide rod (H).

8. Slide weight plate (T) onto guide rod (H), insert selector rod (U) into weight plate (T) with pin (8).

9. Slide top plate (S) onto guide rod (H), attach secure bushing (V) to selector rod (U), and attach swivel

pulley block IV (R) with (16) and big washer (32) to selector rod (U) as shown.

10. Attach joint beam (K) to straight beam (G) with big pulley (1) and (21), (29) and (30).

11. Attach straight beam (G) to upright frame (D) and bushing(Y), cloth support (W), guide rod (H) with

(25), (35) and (28).

12. Attach top joint tube (I), big pulley (1), largest pulley (33) and small pulley (2) to straight beam (G)

with (18), (20), (21), (22), (29) and (30) as shown.

13. Attach swivel pulley block III (Q) to top cross beam (J) with axes (F), bushing (4), (29) and (13).

14. Attach top cross beam (J) to top joint tube (I) and joint beam (K) with (17), (19), (28) and (29) as

shown.

15. Attach joint rod (L) to top cross beam (J) with (23) and (29).

- 7 -

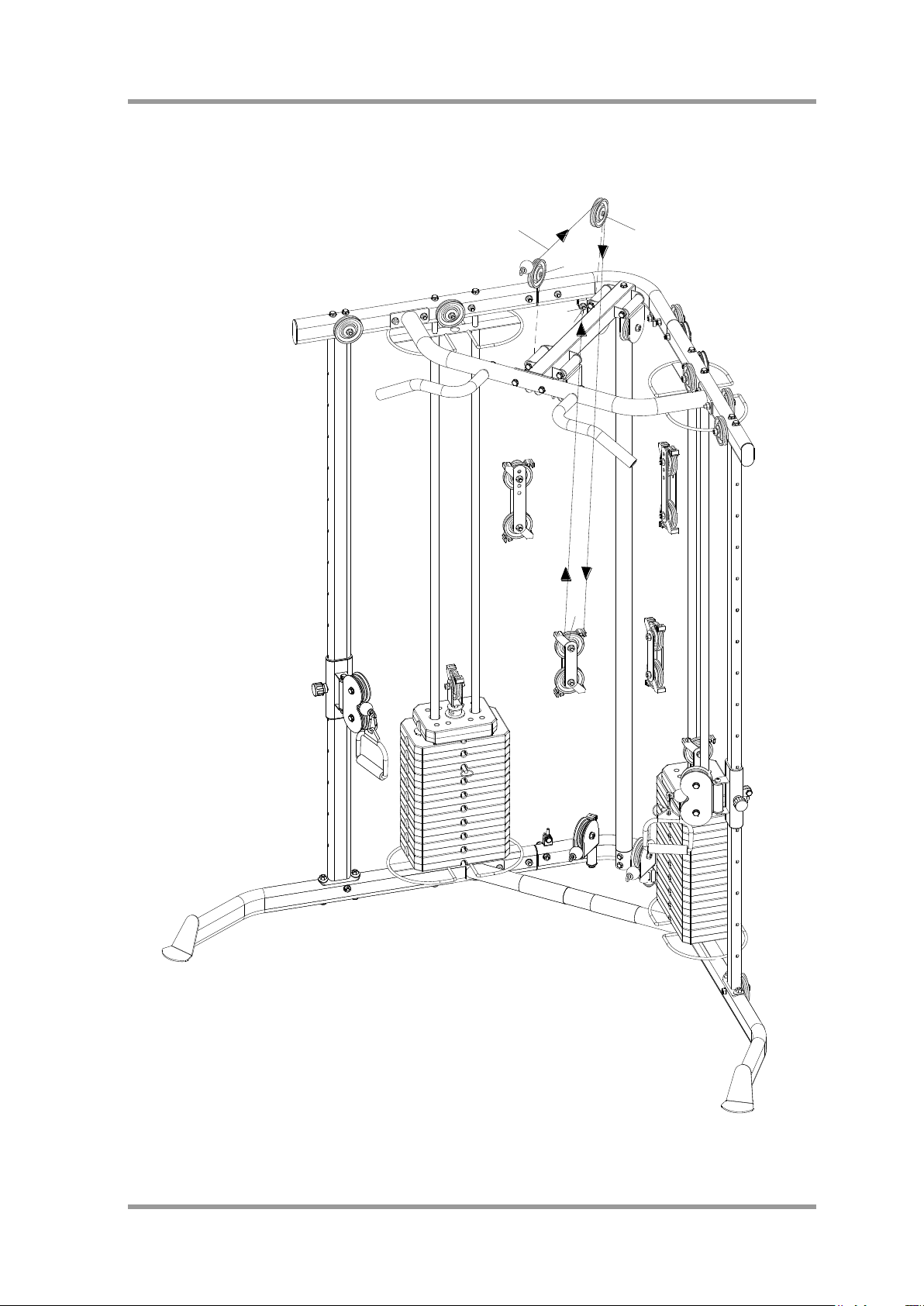

CABLE 1

14 31 1

2 2

#9 cable: from a→b→c→d→e→f→g→h→i→j→k

- 8 -

CABLE 2

1431

10 1

#10 cable: from l→m→n→o

- 9 -

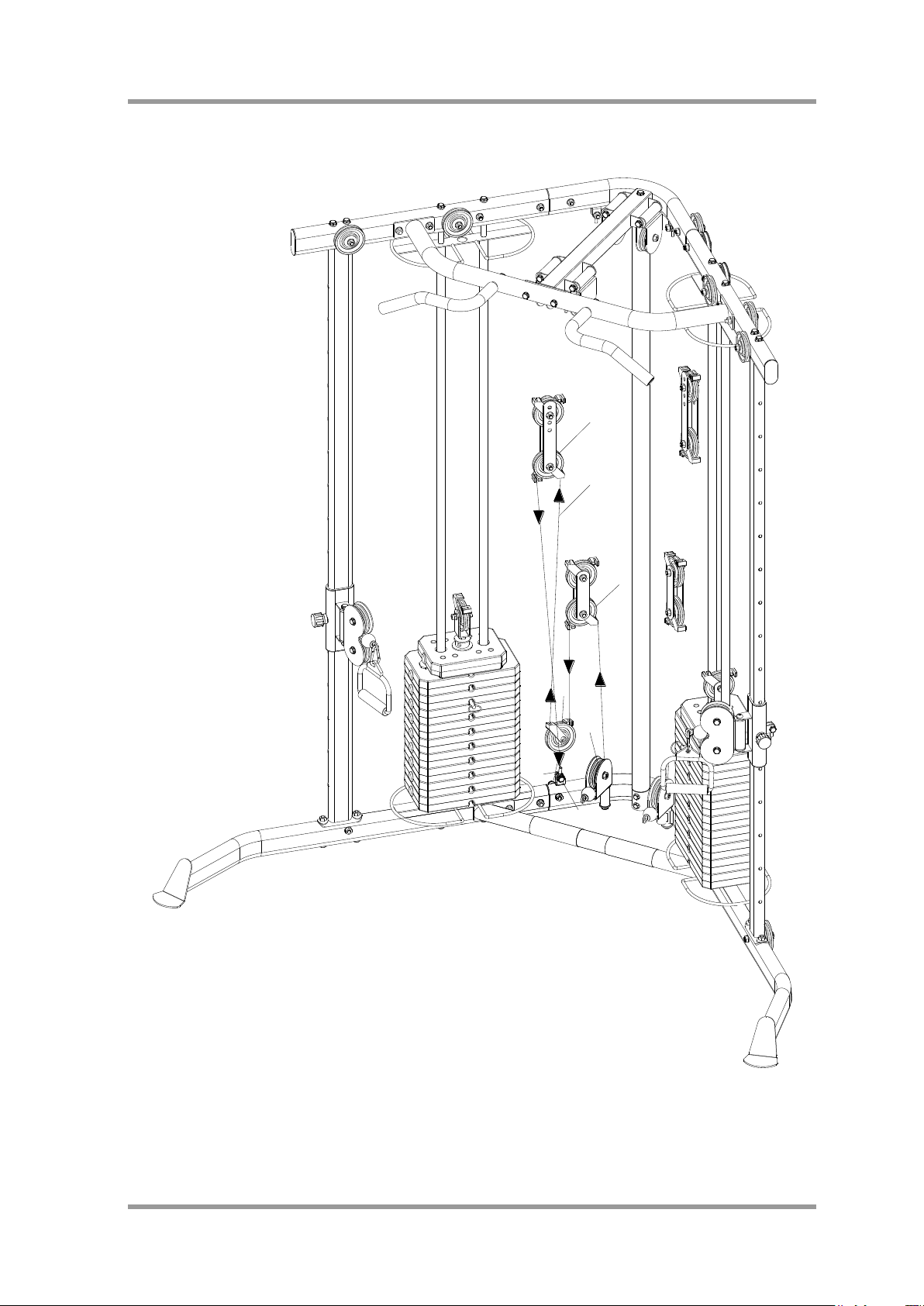

CABLE 3

31 p

#11 cable: from p→q→r→s→t
