TomTom XXL 530S Manual de usuario

TomTom XXL

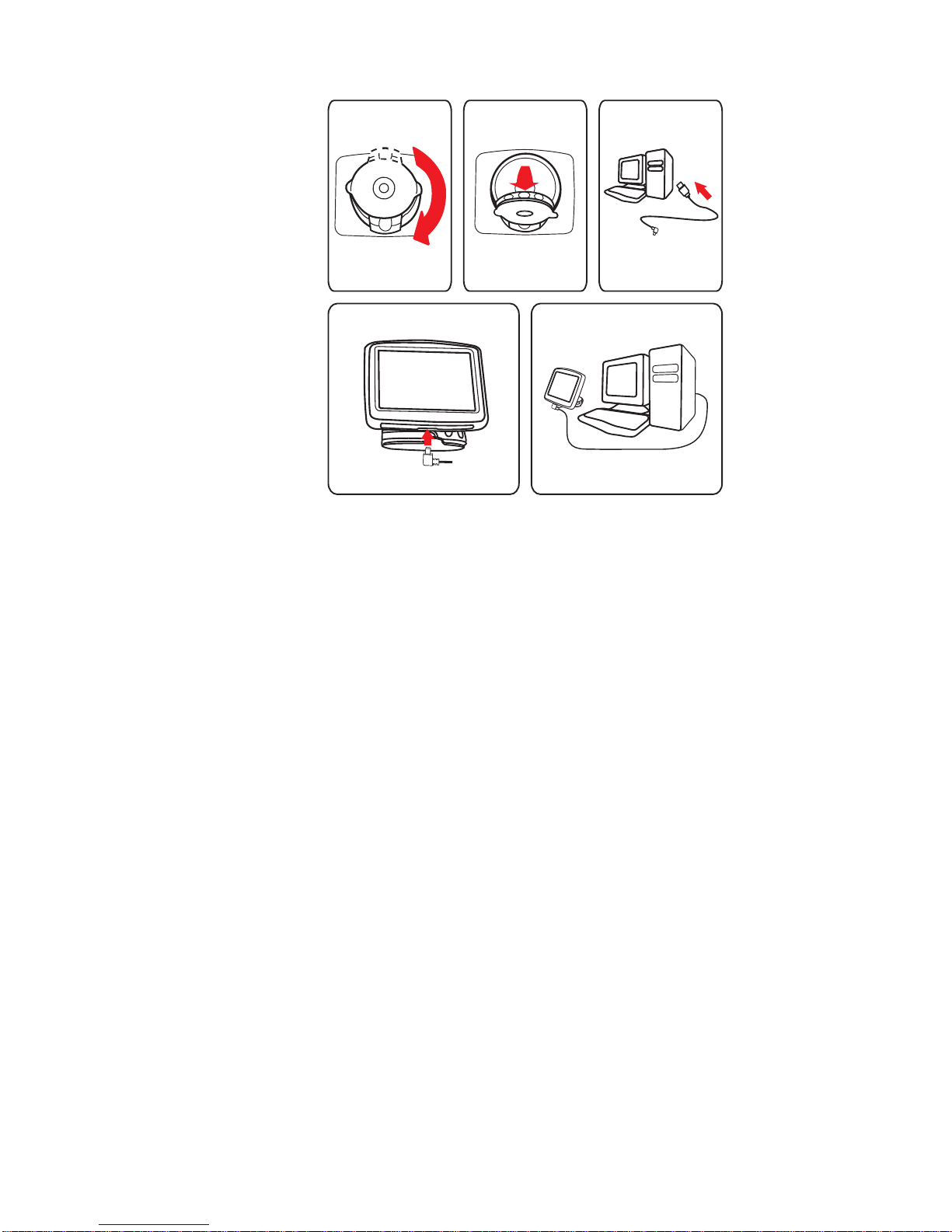

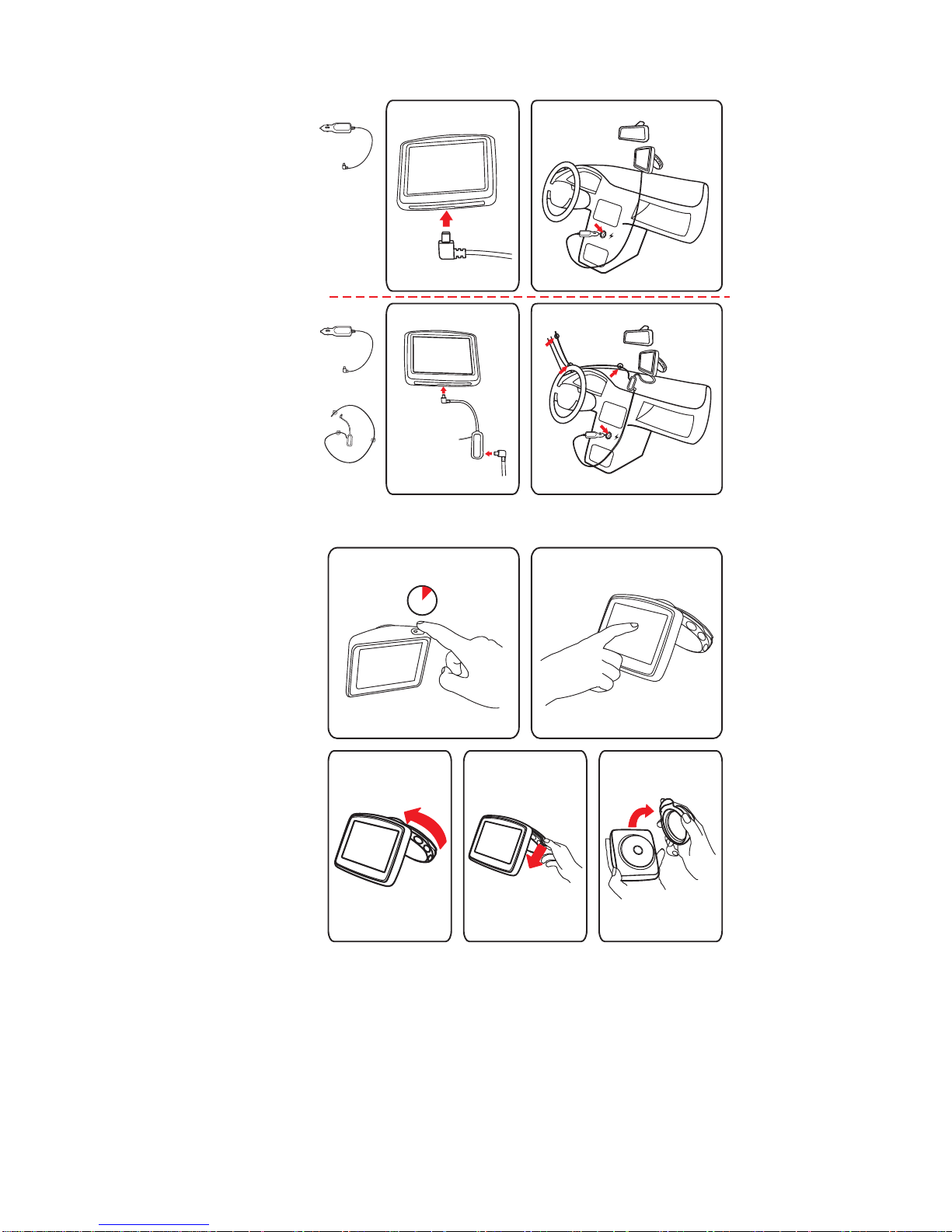

Installation1.

Installation

2 SEC

1 2

180°

What’s in the box2.

What’s in the box aYour TomTom XXL bEasyPortTM mount

cCar charger dUSB cable

eDocumentation

pack

Before you start3.

Before you start

Switching on and off

Install your TomTom XXL navigation device in your car following the instruc-

tions in the installation section at the start of this book.

To switch on your navigation device, press and hold the On/Off button until

you see the start-up screen. The first time you switch on your device, it may

take a short time to start.

To set up your device you need to answer a few questions by tapping the

screen.

Device not starting

In rare cases, your TomTom XXL navigation device may not start correctly or

may stop responding to your taps.

First, check that the battery is properly charged. To charge the battery, con-

nect your device to the car charger. It can take up to 2 hoursto fully charge the

battery.

If this does not solve the problem, you can reset the device. To do this, press

and hold the On/Off button for 15 seconds and release the button when your

device begins to restart.

Charging your TomTom XXL

Before you use your XXL for the first time, it’s a good idea to charge it fully.

The battery in your TomTom XXL navigation device charges when you con-

nect it to the car charger or to your computer.

There is no charging light on your XXL. To check the battery status and see

when your XXL is charging, switch on your device and tap the bottom right-

hand corner of the screen in the Driving View. The battery status is shown on

the next page.

When you connect your device to a computer, you are asked if you want to

connect to the computer. If you select No and then do not tap the screen

within three minutes, the devicewill automatically switch off. This happens so

that the battery can charge faster.

Note: You should plug the USB connector directly into a USB port on your

computer and not into a USB hub or USB port on a keyboard or monitor.

GPS reception

When you first start your TomTom XXL navigation device, the device may

need a few minutes to determine your GPS position and show your current

position on the map. In the future, your position will be found much faster,

usually within a few seconds.

To ensure good GPS reception, you should use your device outdoors. Large

objects such as tall buildings can sometimes interfere with reception.

Take care of your device

Never leave your TomTom XXL navigation device or accessories on view

when you leave the car as they may become an easy target for thieves.

You can set a password which must be entered every time you start your

device.

It is important to take care of your device.

• Your device is not designed for use in extreme temperatures and any such

exposure may cause permanent damage.

• Do not open the casing of your device under any circumstances. Doing so

may be dangerous and will void the warranty.

• Wipe or dry the screen of your device using a soft cloth. Do not use any liq-

uid cleaners.

Safety4.

Safety

Positioning the dock

Consider carefully where to attach the dock in your car. The dock should not

block or interfere with any of the following:

• Your view of the road

• Any of the controls in your car

• Any of your mirrors

• The airbag

When your navigation device is in the dock, you should be able to reach the

deviceeasilywithout leaningor stretching.Thediagramsshow where youcan

safely attach the dock.

You can attach the dock to the windshield, side window or use an Adhesive

Disk to attach the dock to your dashboard. TomTom also offers alternative

mounting solutions for your TomTom navigation device. For more informa-

tion about Dashboard Mount Disks and alternative mounting solutions, go to

tomtom.com/accessories.

Installing the dock

Make sure that both the holder and your window are clean and dry.

1. Press the suction cup firmly against the window onan area where the glass

is flat.

2. Twist the base of the EasyPort holder in a clockwise direction to lock the

holder in place.

For detailed instructions, check the installation section at the start of this man-

ual.

Safety preferences

We recommend using the safety preferences to make your driving as safe as

possible. The safety preferences include, for example, the following options:

• Hide most menu options when driving

• Show safety reminders

• Warn when driving faster than allowed

Making your first journey5.

Making your first journey Planning a route with your TomTom XXL navigation device is easy. To plan a

route, follow the steps below.

Important: For safety reasons, you should always plan a route before you

start your journey.

1. Tap the screen to bring up the Main Menu.

Note: The buttons on your navigation device are shown in full color unless a

button is currently unavailable. For example, the button named Find alterna-

tive in the Main Menu is not available until you have planned a route.

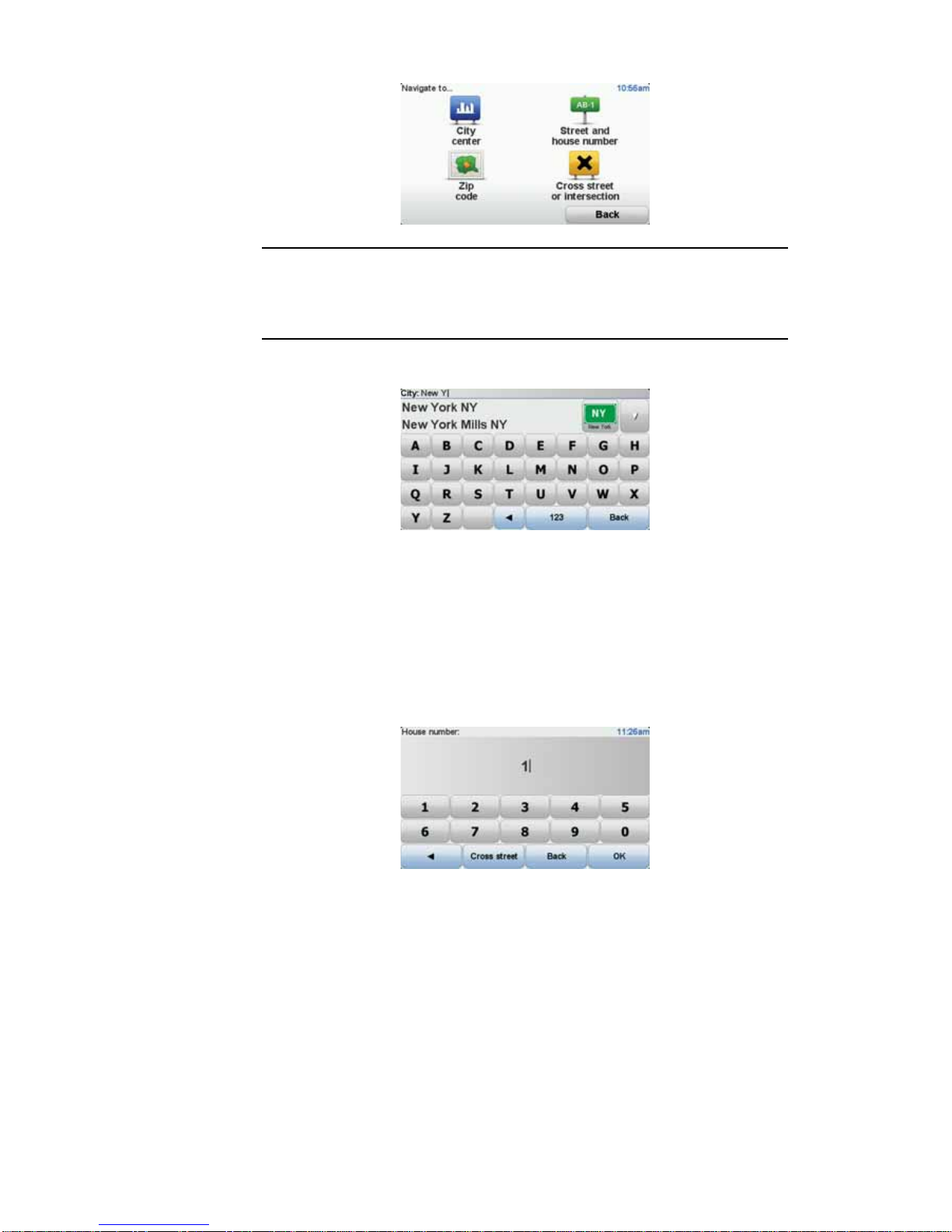

2. Tap Navigate to...

3. Tap Address.

When you enter an address, you can choose from the following options:

•City center - tap this button to set your destination as the center of a city

or town.

•Street and house number -tapthisbuttonto setanexact address asyour

destination.

•Zip code - tap this button to enter a zip code as your destination.

•Crossing or intersection - tap this button to set your destination as the

point where two streets meet.

In this example, we will enter an address.

4. Tap Street and house number.

Note: When planning a trip for the first time your navigation device asks you

to choose a state or country. Your choice is saved and used for all routes you

plan.

You can change this setting at any time by tapping the flag.

5. Start to type the name of the town where you want to go.

As you type, the names of the towns that match what you have typed are

shown. When your destination appears in the list, tap the name of the town

to set the destination.

6. Start to type the street name. Tap the name when it is shown in the list.

As with the name of the town, the names of the streetsthat match what you

have typed are shown. When your destination appears in the list, tap the

name of the street to set the destination.

7. Enter the house number and then tap Done.

8. Your navigation device asks if you need to arrive at a particular time. For this

exercise, tap NO.

The route is calculated by your device using IQ RoutesTM.

IQ Routes is used to plan the best possible route using information about

the average speeds measured on the roads.

When the route has been calculated, tap Done.

Your TomTom XXL navigation device begins to guide you to your destination.
