Thule Sidearm 594XT Manual de usuario

part description part number qty.

A 85370205602 1

B 8535972 2

C 8535973 2

D 7533579 1

E 7533710 1

F 853147704 2

G 7533704 1

H 8535976 2

I 919061211 2

J 8537557 2

K 951061211 2

L 8535960 2

M 7533591 1

N 8537006 1

O 8537026 1

P 8535513 3

Q 7530745 2

R 915065554 6

S 8530333 2

T 8536395 1

U7533236 2

V8533160 2

W 8530930 1

X 8537024 1

Y 853597602 2

Z 951081611 2

AA 938080011 2

BB 8537021 4

CC 915066554 6

DD 7530783 4

EE 8537441 3

FF 8537442 4

GG 915068054 6

wheel tray 56" silver

screw phillips 10-32 x 1.5

10-32 nylon insert locknut

locking ratchet arm assembly

hook assembly

tube cap

base plate

M8 x 1.25 x 25mm

allen bolt M6 x 12

square nut

washer 6mm ID /

rql arm bearing half

bearing clamp

wheel strap assembly

lock cover 594

metal bracket

knob 3 wing high M6 x 1 nut

carriage bolt 6 x 55

plate square for wheel tray

lock cover plug

tray end cap with logo

lock plug

hex key M5

wheel loop coated 594

M8 x 1.25 x 20mm zinc II black

washer 8mm id 16mm od

lock nut M8

flat nylon washer M8

carriage bolt 6 x 65

knob 3-wing low M6x1 nut

plastic spacer mount

rubber leveling gasket

carriage bolt 6 x 80

road bike adapter 8535426 1

SIDEARM™594XT

PARTS INCLUDED

L G AA

Z H

EN O U P

GG CC WFF QDD

REE J

T S HH

NOTE: The 594 SidearmTM comes assembled for passenger side application.

Follow steps for driver side application before continuing.

Please refer to the fit guide at the back of these instructions to determine if your vehicle requires

the 55mm, 65mm or 80mm carriage bolts for fitting the carrier to your vehicle’s factory rack.

TOOLS REQUIRED

• 13mm wrench or adjustable wrench.

• #2 phillips screw driver.

• 1 - Tape measure

CARRIER INSTALLATION /

• Turn carrier over and loosen both bolts using 5mm hex wrench provided.

• Slide base plate in channel to the end of the tray. Separate the bracket from the tray.

• Install 2 carriage bolts into square holes in base

plate, closest to ratchet arm assembly, as illustrated.

CARRIER INSTALLATION

• Slide tray onto base plate. The edge of the base plate should be 16" from the

front edge of the wheel tray.

• Turn carrier over and tighten bolts with 5mm hex wrench provided.

CARRIER INSTALLATION /

CAUTION: Tray may have sharp edges.

• Drop 1 carriage bolt into 2 washer plates and

insert into tray channel on bottom of tray

as shown.

• Slide strap into tray channel.

• Buckle on same side of rachet arm.

• Flex tab up.

• Slide end cap on.

16"

• Attach rubber leveling gasket to bottom of rubber risers as shown. If you’re attaching to a

factory rack and it slopes, you should add a second rubber leveling gasket underneath the

first one on side closest to the vehicle door to level the bike carrier.

FRONT HARDWARE

•Place carrier on roof rack load bars with ratchet arm pivot centered over load bar.

• Install plastic spacer mount, rubber leveling gasket, metal bracket and 3-wing low knobs

onto bolts in that order around the load bar as illustrated.

• Tighten 3-wing knobs firmly.

FRONT HARDWARE

• Install 3-wing high knobs, plastic spacer mount, rubber leveling gasket, metal bracket

and bolts in that order around the load bar as illustrated.

• Tighten 3-wing knobs firmly.

REAR HARDWARE

• Install plastic spacer mount, rubber leveling gasket, metal bracket and 3-wing low knobs

onto bolts in that order around the load bar as illustrated.

• Tighten 3-wing knobs firmly.

NOTE: If not installing lock cylinders, please insert plastic lock

plugs into lock cylinder holes as shown.

LOCK PLUG INSTALLATION

•Insert change key into lock cylinder.

•Remove change key, insert key to lock and unlock.

•Insert lock plug on opposite side of grip, into the lock cylinder.

WARNING: Ensure ratchet arm is fully engaged to bicycle wheel before locking.

LOCKING FEATURES: BIKE TO CARRIER (LOCKS SOLD SEPARATELY)

NOTE: To secure cover with out lock core, use lock plug (853-6395)

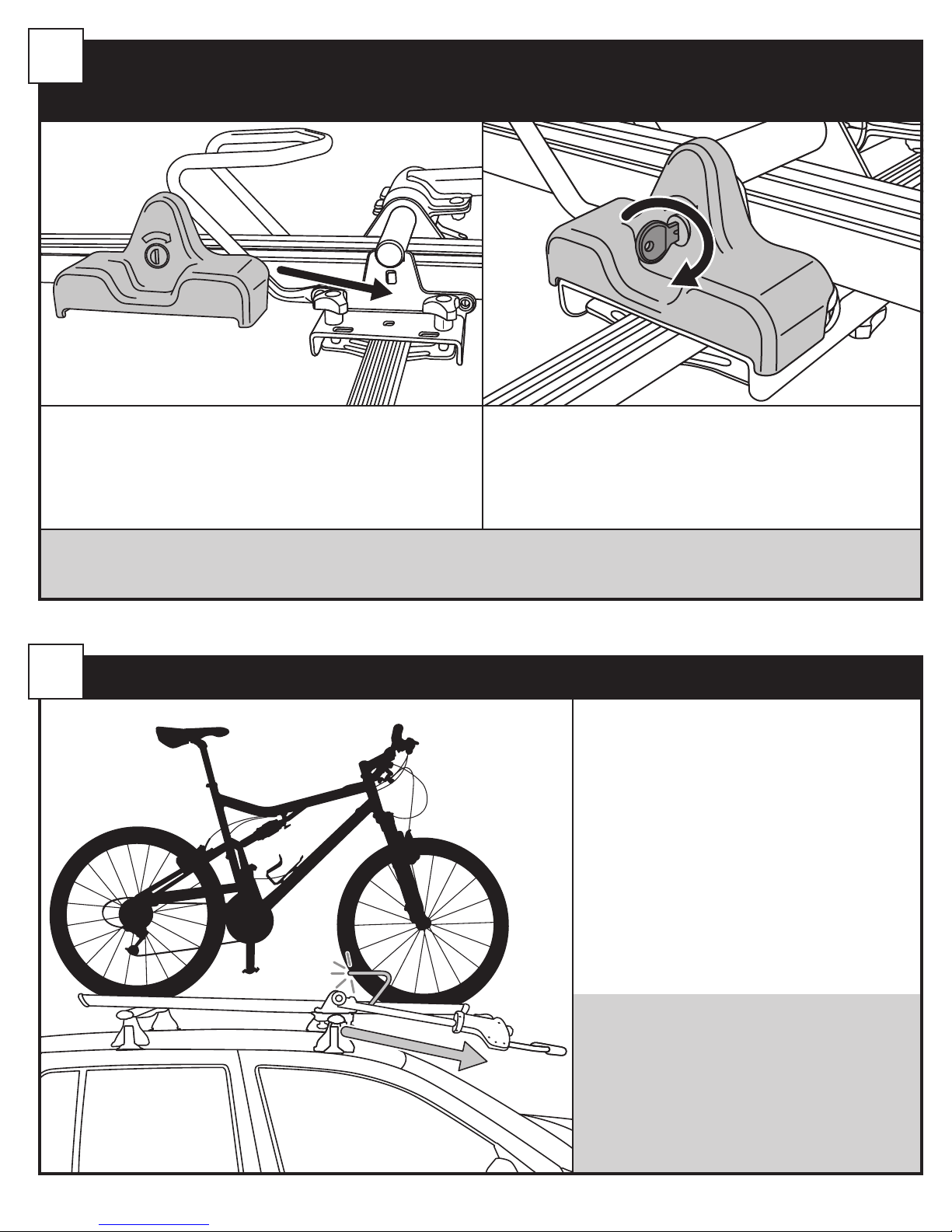

LOCKING FEATURE: CARRIER TO VEHICLE (LOCKS SOLD SEPARATELY)

•Follow Lock core installation procedure above for lock cover. • Snap cover onto base plate. Turn key to lock.

LOADING BICYCLE

Position Ratcheting Arm in forward position.

• Press gray trigger on grip and hook assembly and slide

to fully extended position.

• Place bike in wheel tray with front wheel in contact with

wheel loop.

NOTE: Minimum bar spread spacing is 18"

(eighteen inches) and Maximum bar

spread is 36" (thirty-six inches).

WARNING: The support arm V-notch must be firmly seated against the tire and brake or fork. Failure to do so may result in bike instability. Always shake your bike to

ensure the hook is fully seated.

LOADING BIKE

• While holding the bike with one hand rotate the support arm, until it sits within 1" of the

bicycle brake or fork crown.

• Ratchet the arm tightly against the wheel. You should hear a minimum of 2 clicks past

initial contact with the tire.

SECURE REAR TIRE

Road bike only.

• Slide on adapter.

Mountain bike only.

• Invert or remove for

mountain bikes.

LOADING BIKE /

• Feed the strap throught the ratcheting cam.

• Close the cam handle.

NOTE: Cam strap should be tight against the rim of the bicycle.

DRIVERSIDE INSTALLATION

• Follow step 1 for Installation.

• Remove wheel loop using 13mm wrench and 5mm hex wrench.

DRIVERSIDE INSTALLATION

• Position wheel loop on opposite side of base plate.

• Install bolts, washers and lock nut and tighten firmly.

DRIVERSIDE INSTALLATION

• Loosen bolts on support arm pivot using 5mm hex wrench.

• Remove support arm and bracket from pivot tube..

NOTE Lock core in grip handle can be reversed using change key.

• Loosen and remove both screws on hook-grip assembly.

• Rotate hook 180°

• Re-install screws and nuts and tighten firmly.

• Repeat steps 3-7 of Installation for completion.

DRIVERSIDE INSTALLATION

• Remove bearing halves from

pivot tube.

• Rotate both bearing halves on

pivot tube.

• Re-install support arm, bracket

and fasteners with trigger on

grip handle facing down.

DRIVERSIDE INSTALLATION

ACURA

MDX '07-14 ü

RDX '07-14 ü

TSX Sport Wagon '11-14 ü

ZDX '10-13 ü

AUDI

Allroad '13-14 ü

A4 (Avant) Wagon '02-12 ü

A6 Wagon '06-11 ü

Q5 '09-14 ü

Q7 '07-14 ü

S4 Wagon '01-08 ü

BMW

X6 '09-14 ü

BUICK

Enclave '08-14 ü

Encore '13-14 ü

Ranier '04-07 ü

Rendezvous '02-07 ü

CADILLAC

CTS Sport Wagon 5DR '10-14 ü

Escalade / Escalade ESV '99-15 ü

Escalade EXT Pickup '02-15 ü

SRX (Except "Sport Models") '04-14 ü

CHEVROLET

Astro Van (Cargo & Passenger) '94-05 ü

Avalanche '02-13 ü

Blazer '95-05 ü

Captiva '11-14 ü

Equinox '05-14 ü

CHEVROLET (continued)

HHR '06-11 ü

Spark 5DR '13-14 ü

Suburban / Suburban Z71 '92-15 ü

Tahoe / Tahoe Z71 '95-15 ü

Tracker '02-04 ü

Trax '13-14 ü

Traverse '09-14 ü

Venture '97-04 ü

CHRYSLER

Paciﬁca '04-08 ü

PT Cruiser '01-10 ü

Town & Country '96-14 ü

Voyager / Grand Voyager '01-03 ü

DODGE

Caliber / SRT4 / SXT '07-12 ü

Caravan / Grand Caravan '96-14 ü

Durango / Durango Sport '98-14 ü

Journey '08-14 ü

Nitro '07-11 ü

FORD

Edge / Edge Sport '07-14 ü

Escape '01-14 ü

Escape (Glass Roof) '13-14 ü

Expedition / Expedition EL '97-14 ü

Explorer '91-14 ü

Explorer Sport '01-03 ü

Explorer Sport Trac '01-10 ü

Flex '08-14 ü

Freestar '04-07 ü

Taurus Wagon '96-06 ü

Windstar '98-03 ü

GMC

Acadia '07-14 ü

Denali '98-06 ü

Denali XL '00-06 ü

Envoy '98-01 ü

Jimmy '95-01 ü

Safari Van (Cargo & Passenger) '90-05 ü

Suburban '92-99 ü

Terrain '10-14 ü

Terrain Denali '12-14 ü

Yukon / Yukon XL '92-15 ü

Yukon Denali / Yukon Denali XL '07-15 ü

HONDA

Crosstour '10-14 ü

CR-V '02-14 ü

Element / Element SC '03-11 ü

Odyssey '01-14 ü

Passport '98-02 ü

Pilot '03-14 ü

Ridgeline / Ridgeline Sport '06-14 ü

LOAD BARS

RECOMMENDED

BOLT SIZE (mm)

55 65 80

THULE

AEROBLADE (ARB) BARS ü

RAPID AERO (RB) BARS ü

STEEL (LB) BARS ü

422 XSPORTER BARS ü

500 XSPORTER PRO BARS ü

PRO BARS ü

INNO

LOAD BAR ü

SPORTRACK

LOAD BAR ü

YAKIMA

ROUND BAR ü

WHISPBAR ü

VEHICLE MAKE, MODEL, AND YEAR

RECOMMENDED

BOLT SIZE (mm)

55 65 80

VEHICLE MAKE, MODEL, AND YEAR

RECOMMENDED

BOLT SIZE (mm)

55 65 80

2014 ACCESSORY TO FACTORY RACK FIT GUIDE

Circuit™526, Paceline™527 and Sidearm™594XT

NOTE: If your vehicle is not listed below, it may be a no ﬁt. Please refer to www.thule.com for the most up-to-date ﬁt information.
