THOMSON TG784n Manual de usuario
RESIDENTIAL
GATEWAY
Model TG784n
USER MANUAL
version 2011
CONTENTS
TECHINICAL SPECIFICATIONS
HARDWARE SETUP
LED BEHAVIOR
INSTALLATION REQUIREMENTS
EASY SETUP
MANUAL SETUP
WIRELESS CONFIGURATION
PORT FORWARDING CONFIGURATION
USB FILE SHARING
USB PRINTER SHARING
TROUBLESHOOTING
RESET TO FACTORY DEFAULT
3
4
5
7
7
11
13
15
16
20
23
24
RESIDENTIAL GATEWAY MODEL TG784N USER MANUAL | 2
TECHNICAL SPECIFICATIONS
Hardware Specifications
• Interfaces WAN RJ11 DSL line port
1 XO POTS port (optional)
Ethernet WAN 10/100 Base-T
• Interfaces LAN 4-port autosensing 10/100 Base-T
auto-MDI/MDI-X Ethernet switch
2 XS POTS ports
2 USB 2.0 masters
Wi- i IEEE 802.11b/g/n on board
• Extras Reset button
WPS button
Dual memory bank for TR-069
Remote upgrade
• Dimensions (h x d x w) 41 x 167 x 223 mm (1.6 x 6.6 x 8.8 in.)
• AC Voltage 100-240 VAC (switched mode power supply)
• Temparature 0º - 40º C (32 - 104 )
• Humidity 20% to 80%
Management
• User riendly GUI via HTTP and HTTPS
• GUI-embedded Easy Setup wizard
• On demand Remote GUI assistence (helpdesk)
• Web-browsing Intercept (install/diagnostics)
• PC (wireless) Technicolor Gateway Setup Wizard
• TR-069 CPE WAN Management Protocol
• TR-104 Voice Service Provisioning
• TR-098 Internet Gateway Device Management
• TR-111 Home Network Device Management
• TR-104 Storage Service Provisioning
• TR-064 LAN Side Configuration
• Zero-Touch Auto-Provisioning
Services
• Printer sharing
• Content sharing Samba + NT S (optional) ile Server
UPnP™ Media Server
DLNA®DMS
Metadata support
• Remote HDD file access
• USB 3G dongle support
• Dynamic DNS
• Open architecture for 3rd party application development
Firewall Security
• Stateful Packet Inspection irewall (SPI )
• Customizable firewall security levels
• Intrusion detection and prevention (DoS, SYN lood, Ping of Death, raggle, LAND, teardrop, etc.)
• Website URL and Content-based filtering
• DMZ
RESIDENTIAL GATEWAY MODEL TG784N USER MANUAL | 3
BACK TOP
RESIDENTIAL GATEWAY MODEL TG784N USER MANUAL | 4
HARDWARE SETUP
Wireless Performance and Security
• Wi- i IEEE 802.11b/g/n access point
• Wi- i CERTI IED®
• WPA™-Personal/WPA2™-Personal, WEP™
• Wi- i Multimedia (WMM®)
• Wi- i Protected Setup (WPS™)
• Up to 4 vitual SSID APs support
• Security and service segregation per SSID
• Dynamic rates switching for optimal wireless rates
• Manual/auto radio channel support
BACK TOP
LED BEHAVIOR
Power ED
Colour
Green
Red
Orange
Off
State
Solid on
Solid on
Blinking
Description
Power on, normal operation
Power on, self-test failed, indicating device malfunction
Bootloader active (during upgrade)
Power off
RESIDENTIAL GATEWAY MODEL TG784N USER MANUAL | 5
Ethernet ED
Colour
Green
Off
State
Solid on
Blinking
Description
Ethernet connection, no activity
Ethernet activity
No Ethernet connection
Wireless ED
Colour
Green
Orange
Red
Red/green
Off
State
Solid on
Blinking
Solid on
Blinking
Solid on
Blinking
Toggling
Description
No wireless activity, WPA(2) encryption
Wireless activity, WPA(2) encryption
No wireless activity, WEP encryption
Wirless activity, WEP encryption
No wireless activity, no security
Wireless activity, no security
Wireless client registration phase
WLAN disabled
BACK TOP
RESIDENTIAL GATEWAY MODEL TG784N USER MANUAL | 6
Phone ED
Colour
Green
Off
State
Solid on
Blinking
Description
VoIP service up
VoIP activity
VoIP service down
Broadband ED
Colour
Green
Off
State
Solid on
Blinking
Description
DSL line synchronised
Pending DSL line synchronisation
No DSL line
Internet ED
Colour
Green
Red
Off
State
Solid on
Blinking
Solid on
Description
Internet connectivity, no activity
Internet activity
Internet connection setup failed
No Internet connection
WPS Button ED
Colour
Green
Orange
Red
State
Solid on
Blinking
Blinking
Description
Client successfully registered via WPS
WPS registration ongoing
Error occured
BACK TOP
INSTALLATION REQUIREMENTS
Requirements
• Your computer must run one of the following operating systems:
Microsoft Window 7 or higher
Microsoft Window 7 x 64 or higher
Microsoft Window Vista (SP1) or higher
Microsoft Window Vista x 64 (SP1) or higher
Microsoft Window XP SP2 or higher
Microsoft Window XP x 64 SP1 or higher
Microsoft Window 2000 SP4
Mac OS X 10.4 (Tiger)
Mac OS X 10.5 (Leopard)
EASY SETUP
Proceed as follows:
1. Connect the TG784n to your broadband service.
2. Power on the TG784n.
3. Connect your computer to the TG784n.
4. Launch your Internet Browser.
5. Your Internet Browser will automatically redirect to TG784n welcome page. (ref. **Note)
6. Click on Setup my Residential Gateway.
RESIDENTIAL GATEWAY MODEL TG784N USER MANUAL | 7
**Note:
If the TG784n welcome page does not appear
automatically on the browser, key in the following
URL in your Internet browser, http://dsldevice.lan or,
192.168.1.254
BACK TOP

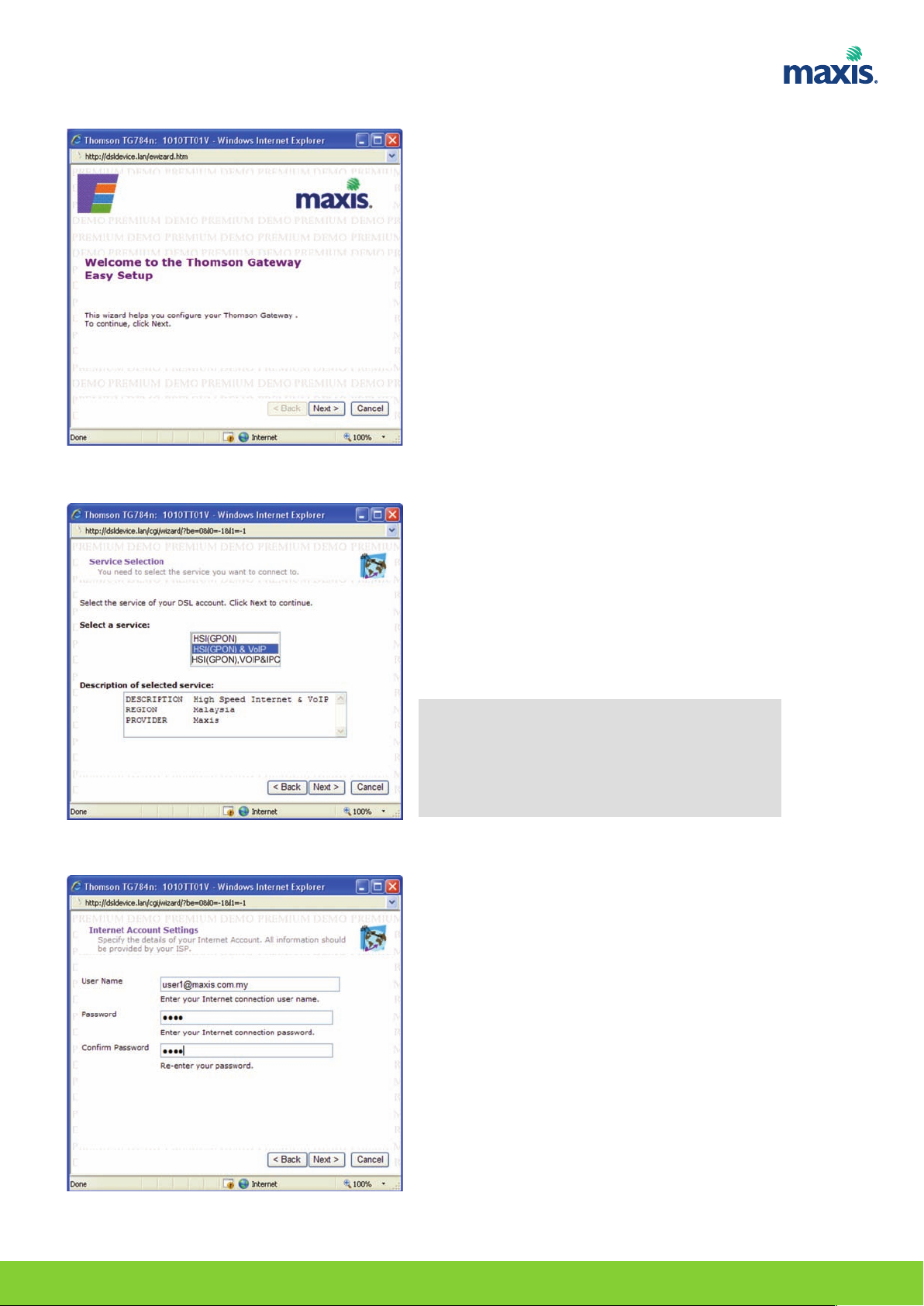

7. Easy Setup will appear, click Next to proceed.
8. Service Selection will appear, select your desired service and click Next.
9. Input your Internet Account User Name and Password, click Next to proceed.
RESIDENTIAL GATEWAY MODEL TG784N USER MANUAL | 8
*Note:
HSI(GPON) - Internet with No VoIP
HSI(GPON) & VoIP - Internet with VoIP
HIS(GPON), VoIP & IP Cam - Internet with VoIP
and Static IP for Camera service.
BACK TOP
10. Input your Voice Account Telephone Number, User Name and Password. Click Next to proceed.
11. If you wish to change TG784n Access Control, please input new User Name and Password. Click Next to proceed.
12. Verify your configuration and click Start to apply.
RESIDENTIAL GATEWAY MODEL TG784N USER MANUAL | 9
Note:
TG784n is configured with 2 level access:
1. User mode
default user name: MaxisBB
password: (blank)
2. Administrator mode
default user name: Administrator
password: (modem access Key)
BACK TOP
13. Please wait for the wizard to complete the configuration.
14. Done! You have successfully setup TG784n. Click inish to close the wizard.
RESIDENTIAL GATEWAY MODEL TG784N USER MANUAL | 10
BACK TOP
