thomann Millenium HD-120 Manual de usuario
HD-120
e-drum set
assembly instructions
Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
E-mail: [email protected]
Internet: www.thomann.de
09.04.2019, ID: 461227
Table of contents
1 Safety instructions.......................................................................................................................................................................................................... 4
2 Scope of delivery.............................................................................................................................................................................................................. 5
3 Assembly.............................................................................................................................................................................................................................. 7
4 Protecting the environment.................................................................................................................................................................................... 14
Table of contents
HD-120
3
1 Safety instructions
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children.
Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke!
Never let children unattended use electrical devices.
Safety instructions
e-drum set
4
2 Scope of delivery
Before you assemble your drum set, make sure the contents of package is complete according to the following list and gure.
Item Qty.
1 2 Rack foot
2 1 Lateral support tube on the left
3 1 Lateral support tube on the right
4 1 Lower horizontal connection tube
5 2 Side arm left and right
6 1 Upper horizontal connection tube
7 2 Cymbal holder (Crash and Ride)
8 1 Hi-hat holder
9 3 Joint for the cymbals and the Hi-hat
10 2 Clamp for horizontal upper connection tube
11 3 Fixation for the multi-cable
12 3 Tom pad 1 (7 inch), Tom pad 2 (7 inch), Tom pad 3 (7 inch)
13 1 Snare pad (7 inch)
14 3 Crash (9 inch), Ride (9 inch), Hi-hat (9 inch)
15 1 Hi-hat pedal
16 1 Bass drum pedal
17 1 e-drum module Millenium HD-120
18 1 Multi-cable for connecting the pads, cymbals, and pedals to the e-Drum module
19 1 Drum stick holder
20 1 Set of drum sticks
21 1 Drum key
22 22 Fixing screws, designed as square-head bolts
23 1 User manual e-drum module
24 1 Assembly instructions e-drum set
25 2 Plug-in power supply
26 1 Headphones
Scope of delivery
HD-120
5
Item Qty.
27 1 Seat
28 1 3.5 mm stereo jack cable
29 1 Headphone adapter from 3.5 mm stereo jack to 6.3 mm stereo jack
Scope of delivery
e-drum set
6
3 Assembly
Overview
Loosen the xing screws (22) of the clamps before sticking the tubes together. Mount the various elements in the specied
sequence. The nal positions of the components are shown in the illustration below.
12 Tom pad 1 (7 inch), Tom pad 2 (7 inch), Tom pad 3 (7 inch)
13 Snare pad (7 inch)
14 Crash (9 inch), Ride (9 inch), Hi-hat (9 inch)
15 Hi-hat pedal
16 Bass drum pedal
17 e-drum module Millenium HD-120
20 Drum stick holder
27 Seat
Assembly
HD-120
7
Assembling the rack
CAUTION!
Danger of cuts on hands and ngers
When connecting the parts, take care for sharp edges on the metal tubes, screws etc.
1. Attach the lateral support tubes (2, 3) to the rack foots (1).
2. Then tighten the xing screws (22) with the drum key (21).
1. Attach the horizontal connection tube (4) to the xing clamps provided on the lateral support tubes (2, 3).
2. Then tighten the xing screws (22) with the drum key (21).
Assembly
e-drum set
8
1. Attach the side arms (5) in the provided mounting clamps on the rack.
2. Then tighten the xing screws (22) with the drum key (21).
3. Attach the hi-hat hinge (9) to the side arm.
4. Slide the hinge for the Hi-hat (9) in the desired position and then tighten the xing screws (22) with the drum key (21).
1. Loosen the xing screws (22) of the mounting clamps on the lateral support tubes with the drum key (21).
2. Turn the side arms in the desired position and then re-tighten the xing screws (22) with the drum key (21).
Assembly
HD-120
9

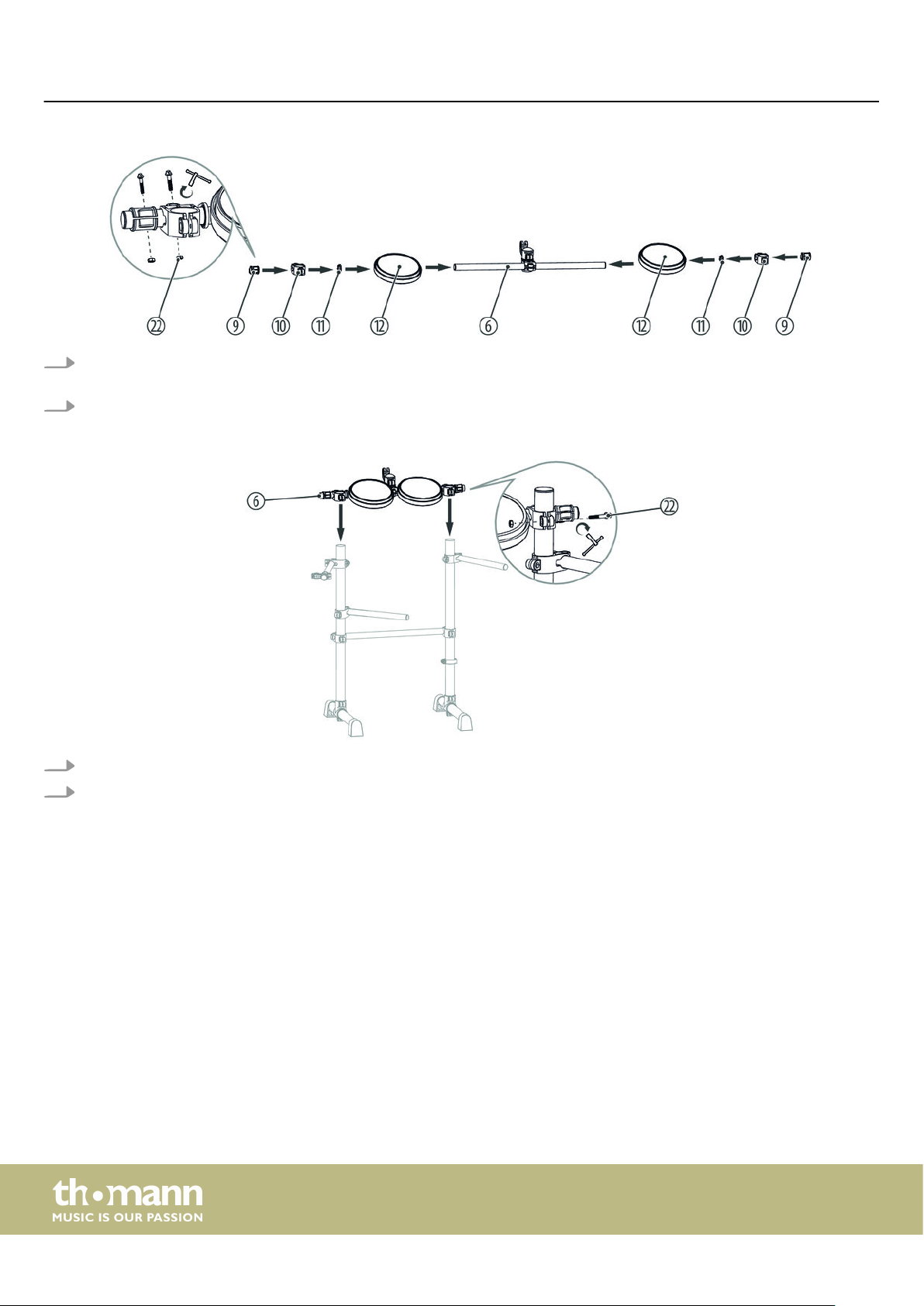

1. Attach the Tom pads (12), the multi-cable xings (11), the horizontal connecting tube clamps (10), and the cymbal joints (9)
in the order shown to the horizontal connecting tube (6).
2. Then tighten the xing screws (22) of the individual components with the drum key (21).
1. Attach the horizontal connecting tube (5) to the lateral support tubes (2, 3).
2. Then tighten the xing screws (22) with the drum key (21).
Assembly
e-drum set
10
