Millenium Transformer Bundle
Instruction Manual
2
Taking Care of Your Digital Drum Set
Thank you for purchasing this digital drum module. The drum module has been
developed to act and play like a drum set but with greater ease. Before you use
the instrument, we recommend you read through this manual.
Location
•Do not expose the unit to any of the following conditions :-
•Direct sunlight.
•High temperature (near a heat source or direct sunlight).
•Excessive humidity.
Power Supply
•Make sure a suitable AC-Adaptor is used and that the input voltage specified
on the AC-Adaptor`s label corresponds with your country’s AC-Outlet voltage.
•Turn the power switch to OFF when the instrument is not in use.
•An AC adaptor should be unplugged from the AC outlet if the instrument is not
being used for an extended period of time.
•Unplug the AC adaptor during electric storms.
•Avoid plugging the AC adaptor into the same AC outlet as an appliance with
high power consumption, such as electric heaters or ovens. Also avoid using
multi-plug adaptors since these can result in reducing the sound quality,
operation errors, and possible damage.
Turn power OFF when altering connections
•To avoid damage to the instrument and other connected devices, turn OFF the
power switches of all related devices prior to connecting or disconnecting
cables.
Handling and Transport
•Never apply excessive force to the controls, connectors or other parts of the
instrument.
•Always unplug cables by gripping the plug firmly, but not pulling on the cable.
•Disconnect all cables before moving the instrument.
•Physical shocks caused by dropping, bumping, or placing heavy objects on
the instrument can result in scratches and more serious damage.
Cleaning
•Clean the unit with a dry soft cloth.
•A slightly damp cloth may be used to remove stubborn grime and dirt.
•Never use cleaners such as alcohol or thinners.
•Avoid placing vinyl objects on top of the unit (vinyl can stick to and discolour
the surface).
Electrical interference
•This instrument contains digital circuitry and may cause interference if placed
too close to radio or television receivers. If this occurs, move the instrument
further away from the affected equipment.
3

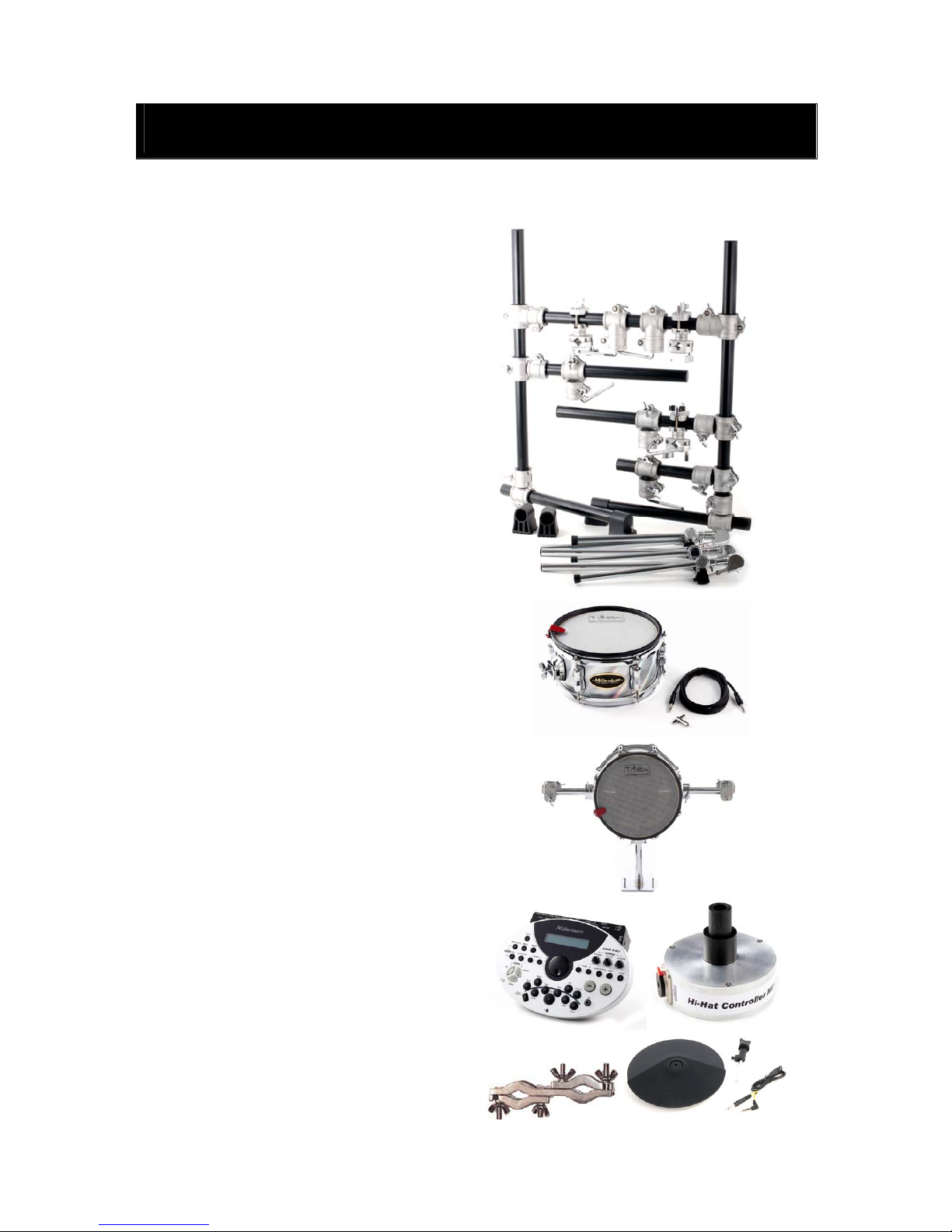

What’s in the box
The Millenium Transformer Set is packed in three packages:
The slightly thinner package contains the
complete rack system as well as 3 boom
arms and two rubber feet.
In the second package, you will find:
•2 Transformer 10“ Pads
•2 Transformer 12“ Pads
•1 Transformer 12“ Kickpad
All of the necessary cables and clamps
are included as well.
In the third package you will find
•Drum module (MPS-600)
•Hi-Hat Controller Mine
•4x Millenium cymbal pads
•Multiclamp to connect the module
to the rack
•Drum throne, sticks and
headphones.
4
Part 1 – The rack system
Please be aware that this is just a guideline. You can adjust the height or width
as required.
The rack is already partially set up.
The two rubber feet should be attached to the pipes on the bottom of the rack.
.
Turn the bottom pipes to you so that you get more stability as shown on the right side
here.
Now you can turn all of the horizontal pipes to the side and mount the boom arms
onto the rack clamps.
5
Next, put all of the L-pieces upwards and adjust the height of the horizontal pipes.
Recommendation: Put all horizontal rack pipes a little higher so that it will become
easier for adults to use this drum kit properly.
6
Part 2 – The Pads
All of the pads are packed in the second parcel and include the cables needed.
Bass drum pad:
Here is included:
•The Pad
•One short and two longer pipes
•Foot plate
•Two rack joints.
The Millenium Transformer Kickpad contains three brackets for the different pipes:
The smaller pipe should be connected to the footplate with the screw, on the other
end it should be connected with the centre bracket of the pad.
7
The two longer pipes should be connected to the other two brackets. On the other
end of the pipes, you connect the rack clamps.
After setting everything up, it should look like this here:
Now you can connect the rack clamps
onto the vertical pipes of the rack, just
as shown on the picture here.
.
The tom pads and the snare pad are simply put onto the L-rods of the rack.
Now, the set should look like this here:
8
The cymbal pads are mounted
onto the boom arms just as you
mount acoustic cymbals onto
boom stands.
Put the cymbal right between
the two felts right under the
screw as you can see here and
tighten the screw slightly.
Now it’s nearly complete, but one thing is still missing: the module!
9
It can get a bit tricky here:
You need to turn around the
metal part of the multi clamp as
you can see here on the
picture: Then you can simply
connect the clamp to the tom
holder on the left side of the
rack. On the other end, you can
connect the module.
10
Part 3 – Millenium Hi-Hat Controller Mine
The Millenium Hi-Hat controller mine can be
mounted onto ANY Hi-Hat stand and can
be used as a normal Hi-Hat controller with
the feeling of a real acoustic Hi-Hat.
Put the Hi-Hat controller mine onto the Hi-
Hat stand as you can see here:
The e-cymbal is then placed in between the
Hi-Hat clutch as you can see here:
