Thomann Millenium MPS-600 Manual de usuario

MPS-600

e-drum set

assembly instructions

Musikhaus Thomann

Thomann GmbH

Hans-Thomann-Straße 1

96138 Burgebrach

Germany

Telephone: +49 (0) 9546 9223-0

E-mail: [email protected]

Internet: www.thomann.de

20.07.2015, ID: 230833

Table of contents

1 Safety instructions.......................................................................................................................................................................................................... 4

2 Contents of package....................................................................................................................................................................................................... 5

3 Assembly.............................................................................................................................................................................................................................. 7

4 Protecting the environment.................................................................................................................................................................................... 13

Table of contents

MPS-600

1 Safety instructions

DANGER!

Danger for children

Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children.

Choking hazard!

Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and

choke!

Never let children unattended use electrical devices.

Safety instructions

e-drum set

2 Contents of package

Rack components

Before you assemble your kit, make sure the contents of package is complete according to the following illustrations.

Content of the box ‘Accessory’

Content of the boxes ‘Drum Module’ and ‘11''-Drum Pads’

Contents of package

MPS-600

Content of the box ‘Kick Pad and 9''-Drum Pads’

Content of the boxes ‘Bass Drum Pedal’ and ‘Hi-Hat Pedal’

Content of the boxes ‘Cymbal 14''’ and ‘Cymbal 12''-Crash, 12''-Hi-Hat’

‘Pillar Box’

Without illustration. This box contains the little left side arm of the rack.

The boxes ‘Empty Box A/B/C’ are empty and just serve as packaging material.

The rack components are located in individual compartments at the bottom of the packaging carton.

Contents of package

e-drum set

3 Assembly

Assembling the rack

Loosen the screws of each terminal with the drum key before inserting the pipes. The positions of the pads, cymbals, etc. are

shown in the table below.

CAUTION!

Danger of cuts on hands and fingers

When plugging the connections, take care for sharp edges on the metal pipes.

Assembly

MPS-600

1. Connect the centre pipe (1) with the upper terminal and the centre pipe (2) with the lower terminal of the (L1).

2. Roughly align the height of the terminals on pipe (L2) according to the height of their counter-terminals on pipe (L1). Con‐

nect the centre pipe (1) to the upper terminal and connect the centre pipe (2) to the lower terminal on pipe (L2).

3. Tighten the screws of the four terminals with the drum key evenly hand-tight.

4. Connect the side arm (L1) with the terminal on pipe (L2) and tighten the screws of the terminal with the drum key evenly

hand-tight.

5. Connect the side arm (R) with the terminal on pipe (R2) and tighten the screws of the terminal with the drum key evenly

hand-tight.

Assembly

e-drum set

6. Connect the side arm (L1) with the terminal on pipe (L1) and tighten the screws of the terminal with the drum key firmly

and evenly hand-tight.

7. Connect the side arm (R) with the terminal on pipe (R1) and tighten the screws of the terminal with the drum key firmly and

evenly.

8. Connect the short side arm (L2) with the terminal on pipe (L1) and tighten the screws of the terminal with the drum key

firmly and evenly.

9. Position the rack horizontally and vertically to suit your needs and tighten all terminal screws with the drum key evenly.

Assembly

MPS-600

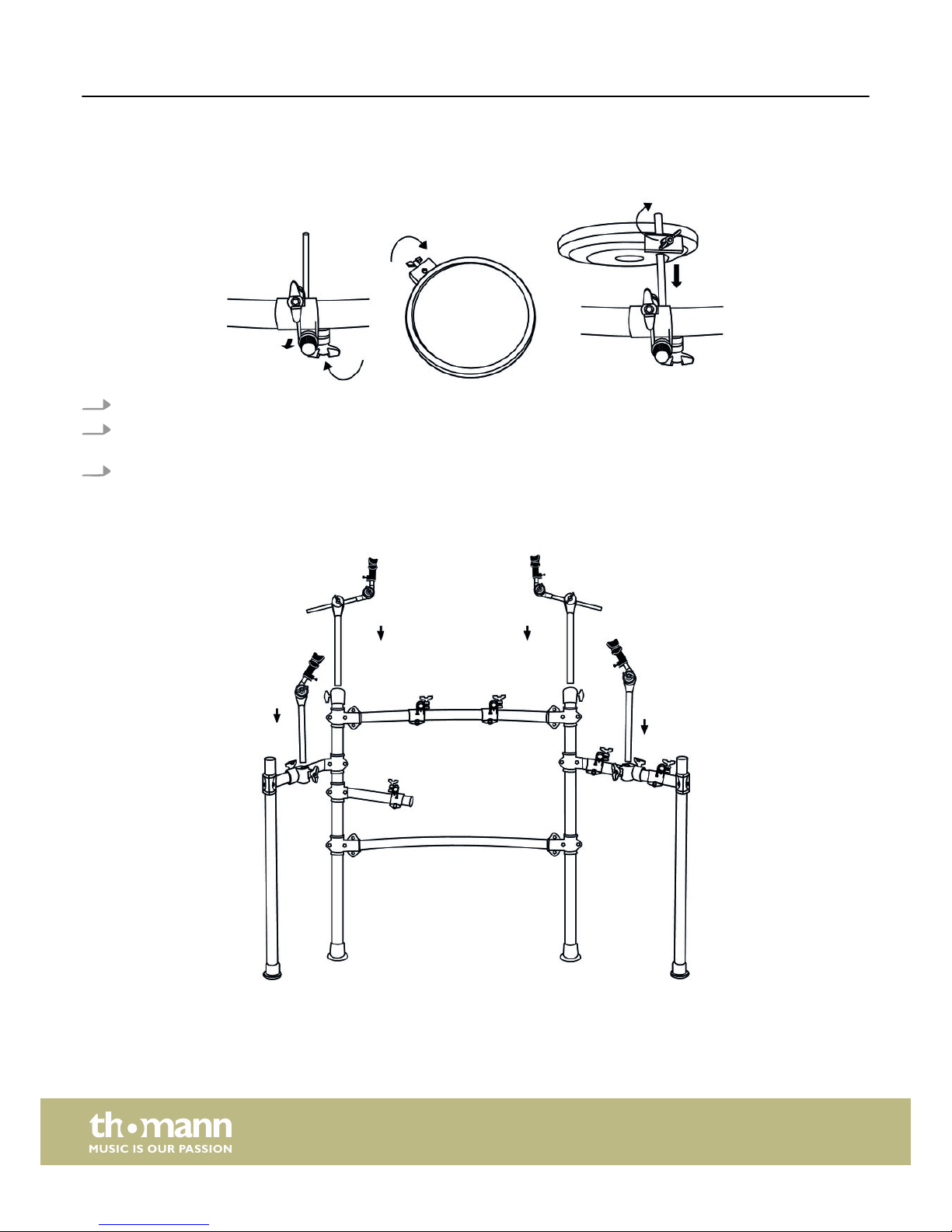

Mounting pads on the rack

1. Attach the supplied L-pieces (box "Accessory") to the five pads. First, tighten the wing nuts on the pads by hand.

2. Then slide the plastic ends of the L-pieces up to the stop into the designated terminals on the rack, see

‘Assembling the

rack’ on page 7.

3. Align the pads on the rack to meet your needs, then tighten the wing nuts of the pad brackets and the bolts of the pad

terminals on the rack evenly.

Mounting cymbals on the rack

Assembly

e-drum set
