ThermoWorks PTR Manual de usuario

PTR

Printing Temperature Recorder

Operating Instructions

(226-275)

CONTENTS

Introduction 4

Probes 4

Functions 4

Display 4

PTR overview 5

PTR operation 6

Switching the PTR on or off 6

Changing input 6

Displaying limits 6

Feeding paper 6

Modes of operation 6

'On demand' mode 6

'Summary' mode 6

'Log mode' 7

Batteries 8

Recharging the PTR 8

Connecting device to the PC 8

Reset 8

Cleaning 8

Paper loading procedure 9-10

Speciﬁcations 11

INTRODUCTION

The PTR (Printing Temperature Recorder) is a hand held temperature measuring

device that prints and logs temperature readings.

The PTR measures temperature across the range of -148 to 2501°F (-100 to 1372°C),

with a resolution 0.1°C above 1999.9°F/C.

When the PTR is fully charged, up to 500 prints can be achieved. Up to 8000 readings

can be stored in memory.

PROBES

The PTR can be used with the standard range of ThermoWorks thermocouple

probes ﬁtted with a miniature thermocouple plug. The probes are connected via the

4 miniature thermocouple sockets at the top of the instrument.

FUNCTIONS

The PTR control panel consists of ﬁve buttons:

ON/OFF - Switches the PTR On/Off.

INPUT - Changes selected input.

LIMITS/START STOP - Displays High or Low Limit in ‘on demand’ mode. Starts and

stops logging in ‘log’ and ‘summary’ modes

FEED - Feeds the paper.

PRINT - Takes a reading, prints a ticket and logs the reading, date and time in memory.

DISPLAY

The display consists of a 12 character alphanumeric section and a four and a half

digit temperature section. A low battery is indicated with 'Lo Bat'.

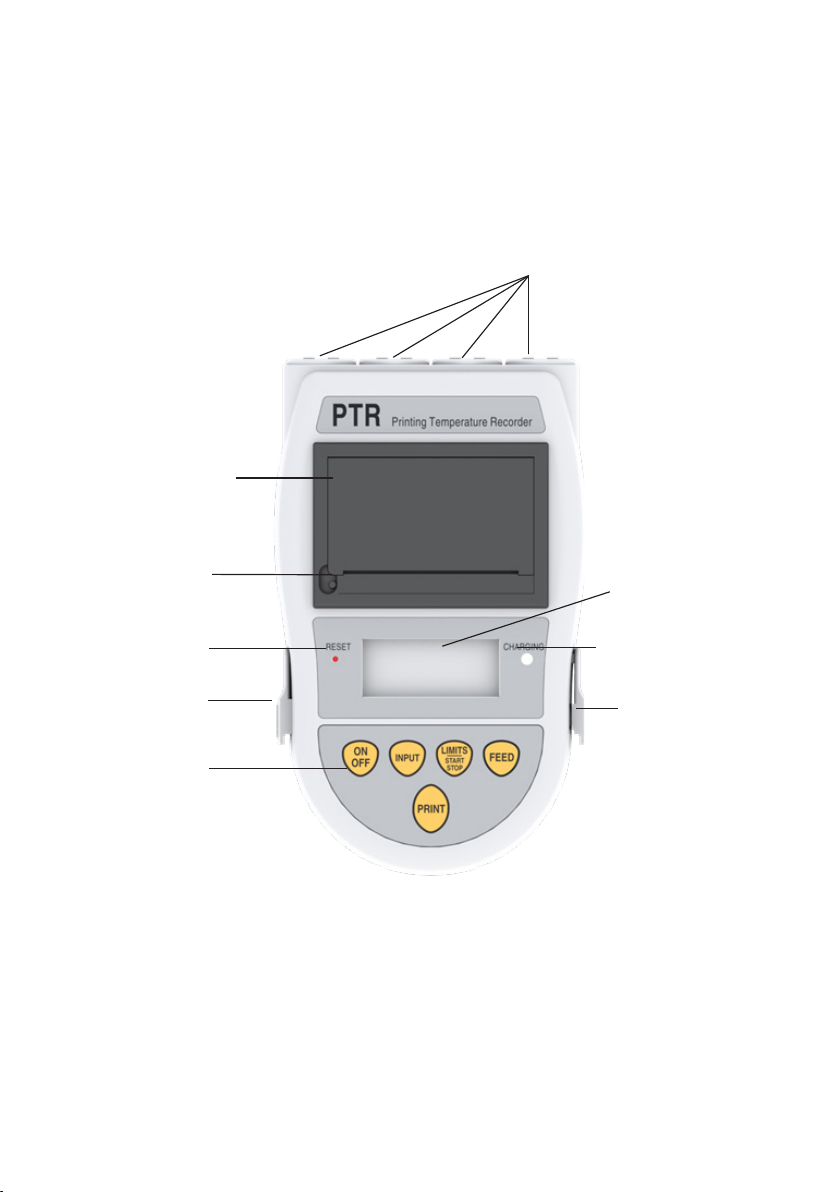

PTR OVERVIEW

probe sockets

printer cover

'reset' button

control panel

USB socket

charge indicator

power socket

cover handle LCD

PTR OPERATION

SWITCHING THE PTR ON OR OFF

The 'On/Off' button switches the PTR on or off. 'Switch off' will be displayed for two

seconds before shut down is complete. The unit cannot be switched off using the

'On/Off' button during a log. The log must be stopped ﬁrst.

CHANGING INPUT

To scroll through the four inputs, press the 'Input' button. The selected input will be

displayed on the screen. Inputs change in a continuous loop. Up to four inputs can

be selected using the PC software.

DISPLAYING LIMITS

In 'on demand' printing mode the high or low limit for the selected input can be

viewed by pressing the 'Limits' button. When the high or low limit is selected the

temperature value displayed represents the corresponding limit and the name of the

input alternates with 'High Limit:' or 'Low Limit:' respectively.

FEEDING PAPER

Press the Feed button to feed the paper. If there is no paper loaded or the printer

cover is open, 'Paper out' will be displayed for ﬁve seconds.

MODES OF OPERATION

The instrument has 3 modes of operation. 'on demand', 'summary' and 'log' modes.

'ON DEMAND' MODE

When the print button is pressed a temperature measurement will be taken from all

selected inputs and a ticket containing the current temperature values will be printed.

If there is no paper loaded or printer cover is open, 'Paper out' will be displayed for

ﬁve seconds, but the reading will still be stored. After a ticket has been printed, the

display will show 'Copy' for ﬁve seconds. Pressing the 'Print' button during this time

prints a copy of the last ticket. In ‘on demand’ mode all button functions are retained.

'SUMMARY' MODE

When the print button is pressed the alarm limits and the number of alarm activations

per input will be printed. If there is no paper loaded or printer cover is open, 'Paper

out' will be displayed for ﬁve seconds, but the reading will still be stored. In 'summary'

mode, all button functions are retained except the 'on/off' button. The LIMITS/START

STOP button is used to start and stop logging. To start logging, press the START

STOP button once. To stop logging, press the START STOP button, 'Stop Log?' will be

displayed. Press the START STOP button again to conﬁrm the log is to be stopped.

The log MUST be stopped before the instrument can be switched off.

'LOG' MODE

The print button is disabled and the printing is automatically timed at set intervals

selected by the user. If there is no paper loaded or printer cover is open, 'Paper out'

will be displayed, but the reading will still be stored. When a roll of paper is placed

in the instrument and the printer cover is closed the stored readings will be retrieved

and printed in sequence.

When 'log mode' is ﬁrst set-up with the PC software the instrument will display

'ready'. All button functions are retained. The LIMITS/START STOP button is used

to start and stop logging. To start logging, press the START STOP button once. To

stop logging, press the START STOP button, 'Stop Log?' will be displayed. Press

the START STOP button again to conﬁrm the log is to be stopped. Once a log has

been started, the log MUST be stopped before the instrument can be switched off.

All stored readings can be retrieved later using the printing thermometer PC software.

BATTERIES

The PTR is ﬁtted with a 3 cell rechargeable 3.6V NiMh battery pack. It is NOT user

replaceable. Please return to ThermoWorks for battery replacement. When the PTR

power is low, the 'Lo Bat' segment of the LCD is lit. Print and feed operations are

inhibited when 'Lo Bat' is indicated. Pressing the 'Print' or 'Feed' buttons will result

in 'Recharge' being displayed for a short time in the display.

RECHARGING THE PTR

To recharge the PTR, remove the rubber cap and plug the power cable into the

socket on the right of the instrument. A ﬂashing 'Charging' LED indicates that the

device is being charged.

A slow ﬂashing LED (once/second) indicates normal charging. A fast ﬂash rate

(four times/second) indicates a charging fault (probably the batteries are too cold

to charge). The PTR should only be recharged in an ambient temperature between

41 to 104°F (5 and 40°C).

Charge only with an ThermoWorks PTR power supply - 12V, 3.3A (40 Watt).

Damage may occur if other power supplies are used.

CONNECTING DEVICE TO THE PC

To connect the PTR to a PC, remove the rubber cap and plug the USB cable into the

socket on the left side of the instrument. Use the Printing Thermometer PC software

to customize PTR settings and ticket layout and to download stored reading.

RESET

If the PTR fails to respond, press the 'reset' button on the front of the instrument

which is situated to the left of the display.

CLEANING

Clean only the outside of the instrument with a damp cloth or anti-bacterial wipe.

PAPER LOADING PROCEDURE

To reload the printer with a new paper roll, follow the steps below:

1. Un-clip the printer cover handle (Fig 1).

2. Pull the printer cover handle until the cover un-clips. To avoid

damage to the handle do not use excessive force (Fig 2).

3. Lift the lid until completely open (Fig 3).

4. Remove any existing paper or the plastic tube from the previous roll.

The easiest way to do that is to turn the PTR upside down, so the

printer contents fall out (Fig 4).

5. Prepare a new paper roll – remove the outer packaging and the

holding sticker. Place into printer as shown in Fig 5. The glossy side

of the paper should be against the printing mechanism

6. Push the paper fully into the printer housing (Fig 6).

7. Close the lid, leaving a short strip of the paper roll protruding from

the printer (Fig 7).

8. Lock the cover by pressing shut. Push the printer cover handle shut (Fig 8).

Fig 1 Fig 2

Fig 3 Fig 4

Fig 5 Fig 6

Fig 7 Fig 8
