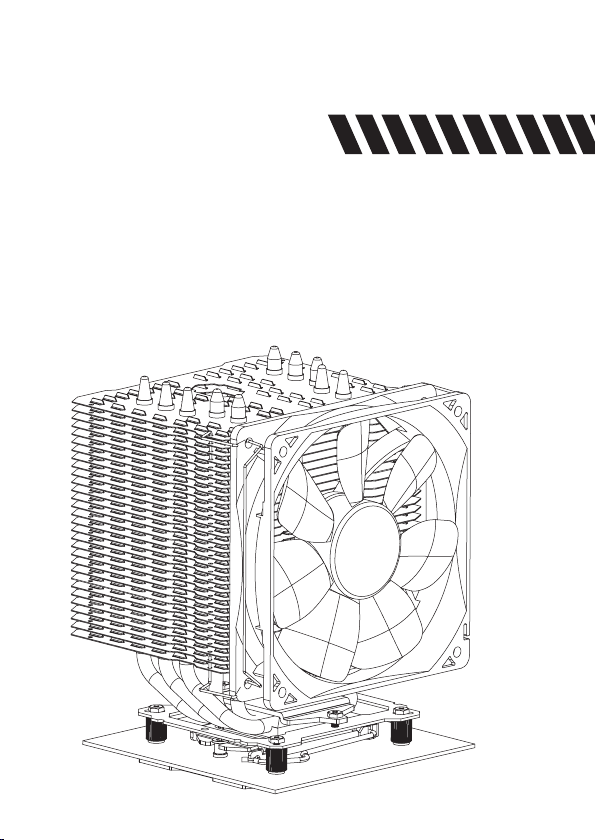

Thermalright Macho 120 Manual de usuario

Thermalright

Macho 120

Assembly package

× 1

× 2

× 4 × 1

× 4 × 4

× 7

× 5

Chill Factor 2g

× 4

Macho 120

Exploded View

Important! Before proceeding with installation, please check for the most

up-to-date instructions at www.thermalright.com

Intel 775/1155/1156/1366

Macho Heatsink Body 120mm Fan Clip

120mm Fan

Screw Nut

Anti-Vibration Pads

Mounting Plate

M3 L6 Screw

Anchoring Mount

Intel Washer

(small)

Backplate cap

Metal Back Plate

M3 L10 Screw

The Ultimate Cooling Solutions!

www.thermalright.com

Component

7 8

1615

1413

1110

Macho Heatsink Body ×1

LGA2011 Type B

Screw Pillars x4

120mm Fan Clip ×2

120mm Fan ×1

Thermal paste ×1

AMD Washer (big) ×4

Mounting Plate ×1

Metal Back Plate ×1

M3 L10 Screw ×5

Anti-Vibration Pad ×4

Anchoring Mount ×1

Screw Nut ×4

Intel Washer (small) ×4

Chill Factor 2g

M3 L6 Screw ×7

Backplate cap ×1

Screw driver ×1

Installation Instructions:

Step 1:

Step 2:

Step 3: Step 4:

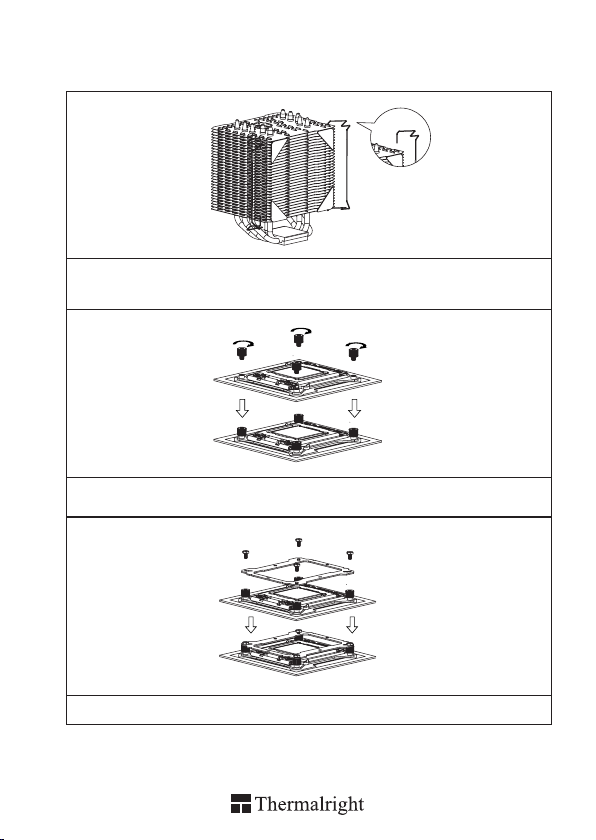

Step 1 : Part Installation

Take out Macho cooler from the paper box.Remove the 120mm Fan from the cooler by pulling the Fan

Clips upwards in order to give room for ease of installation. And leave the Fan Clips on the Heatsink

Body. Do not remove them.Apply Anti-Vibration Padding to 4 corners on the Heatsink Body.

Step 2 : Backplate Installation

Choose the platform (775/1155/1156/1366) you are in use. Make four M3L10 Screw Pillars go through

the Metal Back Plate from bottom towards top.And then place the Metal Back Plate on the table. Put the

four Washers (for Intel) around the Screw Pillars.

Step 3 : 775 backplate cap

Note: When installing on a 775 platform, please

rst insert the Back Plate Cap into the opening on

the Back plate, make sure you have the Cap facing

downwards. (Only for 775).

Step 4 : Place the motherboard on top of the Back

Plate. See the four Screw Pillars go through the

four holes around the processor socket.Cap the

four Screw Pillars with the four Screw Nuts.Make

sure the side with a washer is facing the Back

Plate.

1366

775 1156

1155

The Ultimate Cooling Solutions!

www.thermalright.com

Step 5: Step 6:

Step 7:

Step 5 : Anchoring Mount Installation

Place the Anchoring Mount on the Screw Nuts.

Use the four M3L6 Screws to fix the Anchoring

Mount on to the Screw Pillars.

Chill Factor

Step 6 : Applying Thermal Paste

Apply the Thermal Paste to the base of the

Heatsink and the surface of the CPU evenly.

Chill Factor

Step 7: Mounting Plate Installation

Place the Heatsink Body on top of the CPU. Make

the Mounting Plate go through the Heatsink Body.

Then use the supplied Screw Driver to fasten the

two M3L6 Screws to Secure the Mounting Plate.

Step 8: Easy Access

Pass the supplied Screw

Driver through the central

hole of the Heatsink Body,

for easier access to the

M3L6 Screw underneath

the cooler.

Step 9: Step 10:

Step 9 : Fan Installation

Place the included 120mm fan onto the Heatsink

Body. And then secure it with the 120mm Fan

Clips, by pulling the Fan Clips to place the four

ends at the four holes on the 120mm Fan.

Step 10 : Installation completed

Plug in the fan connector to the CPU PWM Fan

socket on the motherboard. Installation complete.

Step 8:

Macho 120

Exploded View

Important! Before proceeding with installation, please check for the most

up-to-date instructions at www.thermalright.com

Macho Heatsink Body 120mm Fan Clip

120mm Fan

Mounting Plate

M3 L6 Screw

Anchoring Mount

LGA2011 Type B Screw Pillars

Intel 2011

Anti-Vibration Pads

The Ultimate Cooling Solutions!

www.thermalright.com

Component

7 8

1615

1413

1110

Macho Heatsink Body ×1

LGA2011 Type B

Screw Pillars x4

120mm Fan Clip ×2

120mm Fan ×1

Thermal paste ×1

AMD Washer (big) ×4

Mounting Plate ×1

Metal Back Plate ×1

M3 L10 Screw ×5

Anti-Vibration Pad ×4

Anchoring Mount ×1

Screw Nut ×4

Intel Washer (small) ×4

Chill Factor 2g

M3 L6 Screw ×7

Backplate cap ×1

Screw driver ×1

Installation Instructions:

Step 1:

Step 2:

Step 3:

Step 1 : Part Installation

Take out Macho cooler from the paper box.Remove the 120mm Fan from the cooler by pulling the Fan

Clips upwards in order to give room for ease of installation. And leave the Fan Clips on the Heatsink

Body. Do not remove them.Apply Anti-Vibration Padding to 4 corners on the Heatsink Body.

Step 2 : Place the motherboard on top of the Back Plate. See the four Screw Pillars go through the four

holes around the processor socket.Cap the four Screw Pillars with the four Screw Nuts.Make sure the

side with a washer is facing the Back Plate.

Step 3 : Place the Anchoring Mount on the Screw Nuts. Use the four M3L6 Screws to x the Anchoring

Mount on to the Screw Pillars.
