Thermalright MACHO 120 SBM Manual de usuario

Thermalright

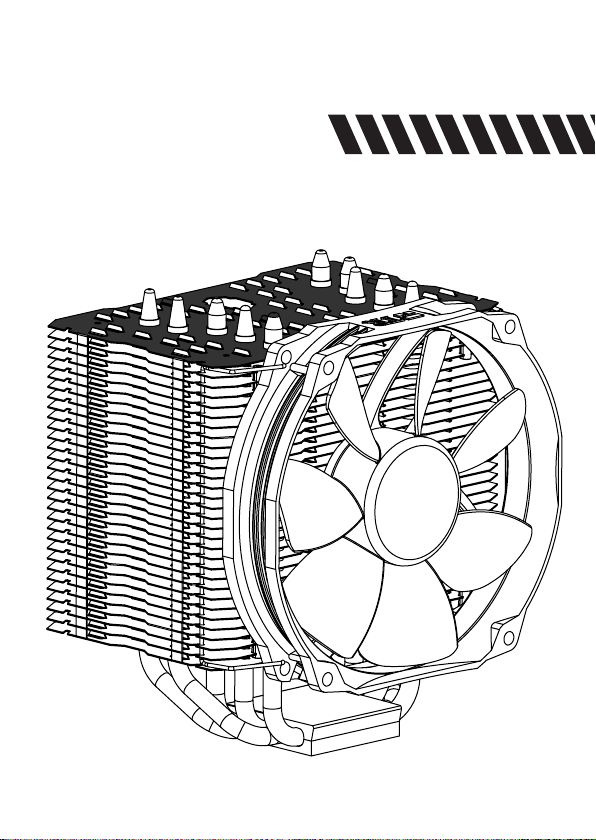

MACHO 120 SBM

× 1

× 4

× 4 × 1

× 4 × 8

× 7

× 5

× 4

MACHO 120 SBM

Assembly package

Chill Factor 2g

MACHO 120 SBM

Exploded View

Important! Before proceeding with installation, please check for the most

up-to-date instructions at www.thermalright.com

Intel 775/1150/1151/1155/1156/1366

Heatsink Body

Screw Nut

TY-127

Mounting Plate

Anchoring Mount

M3L6 Screw

Metal Back Plate

Motherboard

M3L10 Screw

Mylar Film

Rubber Tubes

Intel Washer

(small)

Backplate cap

Fan Clip

The Ultimate Cooling Solutions!

www.thermalright.com

Component

4 5 6

7 8

16 17

16 1715

1110

Macho 120 SBM

Heatsink Body ×1

Thermal paste ×1 Screw driver ×1

AMD Washer (big) ×4

Mounting Plate ×1

Metal Back Plate ×1

M3 L10 Screw ×5

Rubber Tubes ×8

Anchoring Mount ×1

Screw Nut ×4

Intel Washer (small) ×4M3 L6 Screw ×7

Backplate cap ×1

4 5 76 8

LGA2011 Type B

Screw Pillars x4

Fan Clip ×4

Mylar Film×1 TY-127×1

Chill Factor 2g

Installation Instructions:

Step 1:

Step 2:

Step 3:

Step 1 : Backplate Installation

Choose the platform (775/1150/1151/1155/1156/1366) you are in use. Make four M3L10 Screw

Pillars go through the Metal Back Plate and the Mylar lm from bottom towards top. And then

place the Metal Back Plate on the table. Put the four Washers (for Intel) around the Screw Pillars.

Step 2 : 775 Back Plate Cap

Note: When installing on a 775 platform, please rst insert the Back Plate Cap into the opening

on the Back plate, make sure you have the Cap facing downwards. (Only for LGA775 platform,

all other platforms go directly to Step 3.).

Step 3 : Screw Cylinder Installation

Place the motherboard on top of the Back Plate. See the four Screw Pillars go through the four

holes around the processor socket. Cap the four Screw Pillars with the four Screw Nuts. Make

sure the side with a washer is facing the Back Plate.

1366

775

1150

1151

1155

1156

The Ultimate Cooling Solutions!

www.thermalright.com

Step 4: Step 5:

Step 6: Step 7:

Step 8: Step 9:

Step 8 : Fan installation

Place the TY-127 fan onto the heat-sink

body. Pass both ends of the fan clip into

the mounting holes of TY-127 fan. Then pull

the fan clip until the straight line sits into the

groove on the n stack. Make sure both ends

of the fan clip (bending part) fall into the gap

between the rst and second n (as shown in

the diagram).hNow do the same for the other

fan clip on the other side of the TY-127 fan.

Step 9 : Installation completed

Plug in the fan connector to the CPU PWM

Fan socket on the motherboard. Installation

complete.

Step 5 : Apply the thermal paste

Apply the thermal paste to the base of the

Heatsink and the surface of the CPU evenly. (A

at edge, like a business card or an old credit

card would be benecial in spreading the

thermal paste.)

Step 6 : Mounting Plate Installation

Place the Heatsink Body on top of the CPU.

Make Mounting Plate go through the Heatsink

Body. And then use the two M3L6 screws to

secure the Mounting Plate, one side at a time

in several turns to ensure balanced mounting.

Insert the four black Rubber Tubes (Noise

damping use) into the four indents on the front

of the heat-sink body.

Step 7 : Easy Access

Pass the supplied Screw

Driver through the central

hole of the Heatsink Body,

for easier access to the

M3L6 Screw underneath

the cooler.

Step 4 : Anchoring Mount Installation

Place the Anchoring Mount on the Screw

Nuts. Use the four M3L6 Screws to x the

Anchoring Mount on to the Screw Nuts.

Chill Factor

MACHO 120 SBM

Exploded View

Important! Before proceeding with installation, please check for the most

up-to-date instructions at www.thermalright.com

Mounting Plate

Anchoring Mount

LGA2011 Type B Screw Pillars

Heatsink Body

M3L6 Screw

Motherboard

TY-127

Rubber Tubes

Fan Clip

Intel 2011/2011-3/2066

The Ultimate Cooling Solutions!

www.thermalright.com

Component

4 5 6

7 8

16 17

16 1715

1110

Macho 120 SBM

Heatsink Body ×1

Thermal paste ×1 Screw driver ×1

AMD Washer (big) ×4

Mounting Plate ×1

Metal Back Plate ×1

M3 L10 Screw ×5

Rubber Tubes ×8

Anchoring Mount ×1

Screw Nut ×4

Intel Washer (small) ×4M3 L6 Screw ×7

Backplate cap ×1

4 5 76 8

LGA2011 Type B

Screw Pillars x4

Fan Clip ×4

Mylar Film×1 TY-127×1

Chill Factor 2g

Step 1:

Step 2:

Step 3:

Step 1 : Screw Pillar Installation

Place the motherboard (the processor installed) on top of the desk or a workbench. Fix the four

included LGA2011 Type B Screw Pillars into the heat-sink studs on the Intel ILM Assembly Frame

around the processor socket in a criss-cross pattern.

Step 2 : Anchoring Mount Installation

Place the Anchoring Mount on the Screw Pillars. Use the four M3L6 Screws to x the Anchoring

Mount on to the Screw Pillars, also in a criss-cross pattern to ensure balanced mounting.

1 2

Step 3 : Apply the thermal paste

Apply the thermal paste to the base of the Heatsink and the surface of the CPU evenly. (A at

edge, like a business card or an old credit card would be benecial in spreading the thermal

paste.)

Installation Instructions:

Chill Factor
