Theben TR 611 top3 Manual de usuario

TR 611 top3

6110130

TR 611RC top3

6110330

TR 622 top3

6220130

307407

Time switch

1. Basic safety information 4

2. Proper use 4

Disposal 4

3. Installation and connection5

Mounting the time switch 5

Connecting the time switch 7

Connecting the cable 8

Disconnecting the cable 8

4. Device description 9

Display & buttons 9

Operating instructions 10

Overview of navigation menu 11

Initial operation 12

5. Settings and functions 13

Setting the switching time 13

Changing switching times 15

Deleting a switching time 17

Pulse programming 18

Cycle programming 20

Setting a special function 22

Setting holiday function 24

Activating PIN code 25

Time signal can be received

with appropriate top3 RC an-

tenna

(only with TR 611 top3 RC) 26

Setting manual control or per-

manent switching 27

Setting an external input 28

Setting channel lock (only for

TR 622 top3) 29

Channel combination 30

Hour counter 31

Using Bluetooth OBELISK top3

Connecting time switch, Blue-

tooth

OBELISK top3 and smartphone

(via app) 34

Resetting the time switch 36

6. Technical data 37

7. Contact 39

1. Basic safety information

Danger of death through electric shock or fire!

 Installation should only be carried out by a

qualied electrician!

WARNING

•The device is designed for installation on DIN top hat

rails (in accordance with EN 60715)

•Corresponds to type 1 STU in accordance with IEC/EN

60730-2-7

•Power reserve (10 years) is reduced when Bluetooth

OBELISK top3 is connected (in battery mode)

•Software: Class A

2. Proper use

•Digital time switch with weekly program, annual program

•Interface for Bluetooth OBELISK top3 (app)

•Time switch with 2 channels (6220130)

•The time switch is used for lighting, ventilation, ushing,

etc.

•Only for use in closed, dry rooms

!Do not use on safety devices, e.g. escape route doors, re

safety equipment, etc.

Disposal

Dispose of device in environmentally sound manner

3. Installation and connection

Mounting the time switch

Danger of death through electric shock or fire!

 Installation should only be carried out by a

qualied electrician!

WARNING

clic

Test connection

45° cable

Spring plug-in

terminal opener

Bluetooth

OBELISK top3

(9070130)

DuoFix spring plug-

in terminal

!Check the depth of the control cabinet when OBELISK top3 is

connected. The depth must be > 94 mm.

Mount on DIN top hat rail (as dened in EN 60715)

Disconnect power source

Ensure device cannot be switched on

Check absence of voltage

Earth and bypass

Cover or shield any adjacent live components

Wiring diagrams

LAdditional power unit required for GPS if only one device is con-

nected to the antenna.

LRefer to the operating instructions when connecting a GPS

antenna (9070610).

Minimum number of participants needed to operate the GPS

antenna:

•2 x weekly timer TR 611 top3 RC, SELEKTA 171 top3 RC

LUNA 121–122 top3 RC each with 50 mA feed, or

•1 x weekly timer with 50 mA feed plus 1 x top2 GPS

power unit (9070892) with 50 mA feed

Connecting the time switch

1 2 3

L N

Ext1

max. 100 m

1 2 3

L N

Ext1

max. 100 m

RC DCF

RC GPS

(9070410)

(9070610)

6110130 6110330

1 2 3

4 5 6 L

Ext1

max. 100 m

Ext2

6220130

Connecting the cable

Strip cable to 8 mm (max. 9)

Insert cable in the open DuoFix plug-in terminal at 45°

L2 cables per terminal position possible

To open the DuoFix plug-in terminal, press screwdriver

downwards

Disconnecting the cable

Use the screwdriver to push the spring plug-in terminal

downwards

4. Device description

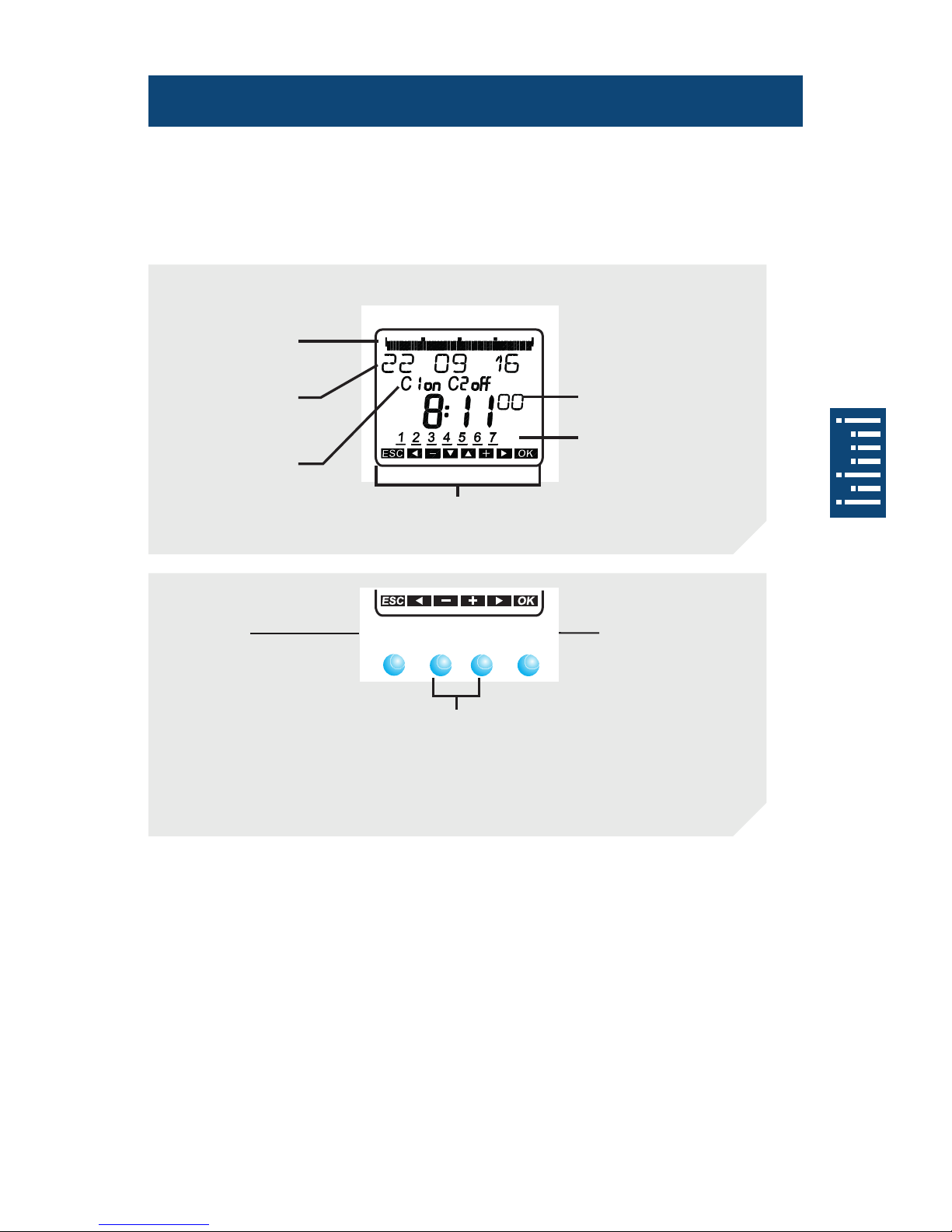

Display & buttons



12 18 24

MENU OK

OKMENU

Programmed

switching times

Date display

Channel status

C1, C2

on = on

off = off

Time display

Days of the week

from 1 to 7

Display of the active buttons

with the relevant function

–Activate display

–Open menu

–Cancel menu

–ESC

(leave menu)

–Save

selection

– Confirm

selection



Options

are displayed

Operating instructions

YES

Confirmation

Press

Modify/

Change

t u

Press

1. Read text line

Text/symbol repre-

sents query

2. Make a decision
