Theben LUNA 111 top2 Manual de usuario

LUNA 111 top2

1110100/ 1110200

LUNA 112 top2

1120100/ 1120200

307038

Digital twilight

switch

1. Basic safety information 4

2. Proper use 4

Disposal 4

3. Installation and connection5

Mounting the time switch 5

Connecting the cable 7

Disconnecting the cable 7

Connection/installation of light

sensor 8

4. Device description 10

Display & buttons 10

Operating instructions 11

Overview of navigation menu 12

Initial operation 12

5. Settings and functions 13

Set lux values 13

Set delay 14

Allocate sensors 15

Activating PIN code 15

Setting manual or permanent

switching 16

Set external input 17

Hour counter 18

Using the OBELISK top2

memory card 19

Resetting the twilight switch 20

6. Technical data 21

7. Contact 22

1. Basic safety information

Danger of death through electric shock or fire!

 Installation should only be carried out by a



WARNING

•The device is designed for installation on DIN top hat

rails (in accordance with EN 60715)

!OBELISK top2 memory card: Avoid mechanical overload

and contamination during storage/transportation

2. Proper use

•The digital twilight switch is used for lighting equipment

(streets), external stairways, display windows, entrances etc.

•Only for use in closed, dry rooms

•Sensor is installed in the open-air

!

safety equipment etc.

Disposal

Dispose of device in environmentally sound manner

3. Installation and connection

Mounting the time switch

Danger of death through electric shock or fire!

 Installation should only be carried out by a



WARNING

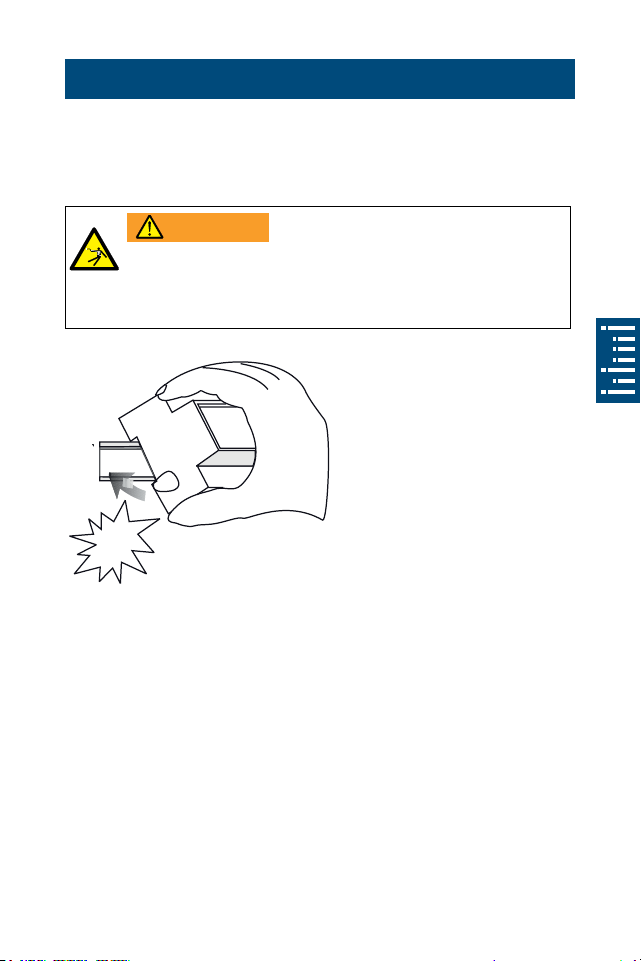

click

45° cable

Plug-in

screwless termi-

nal NC contact

OBELISK top2

memory card

(9070404)

Test tap

Load line connection



Switched voltage-free

Ensure device cannot be switched on

Check absence of voltage

Earth and bypass

Cover or shield any adjacent live components

Connecting the cable

Wiring diagrams LUNA 111 top2 / LUNA 112 top2

1 2 3

L N

–+

Ext1

max. 100 m

Data

Lux

max. 100 m

1 2 3

4 5 6

L N

Ext1

max. 100 m

Ext2 Data

–+

Lux

max. 100 m

Strip cable to 8 mm (max. 9)

Insert cable in the open DuoFix® plug-in terminal at 45°

L2 cables per terminal position possible

To open the DuoFix® plug-in terminal, press screwdriver

downwards

Disconnecting the cable

Use the screwdriver to push the load line connection

opener downwards

Connection/installation of light sensor

!Take length of connection cable into account: max. 100 m

(2 x 1.5 mm2), max. 50 m (2 x 0.75 mm2)

!Avoid running sensor wiring parallel to mains power

cables

Ensure correct polarity. Connect power source

Mounting light sensor 907 0 415

Mounting light sensor: 0.5-2.5 mm2, strip cable by 10 mm

(max. 11 mm)

max .o4mm

Installing light sensor 907 0 456

Installing light sensor: 0.25-1.5 mm2, strip cable by 8 mm

(max. 9 mm)

8-9 mm

max. 10 mm

Ø 5-10 mm

<9 mm Ø 20 mm

ca. 63 mm

IP 66

IP 40

4. Device description

Display & buttons



MENU OK

OKMENU

12 18 24

messwert

–Activate display

–Open menu

–Cancel menu

–ESC

(leave menu)

–Save

selection

– Confirm

selection



Options

are displayed

Text line

Channel status

C1, C2

ON = On

OFF = Off

Lux value display

Sunrise/sunset

display

Display of the active buttons with

the relevant function
