THE WORLD MODELS

MANUFACTURING CO., LTD.

FACTORY PRE-FABRICATED

ALMOST-READY-TO-FLY (ARF) SERIES

MADE IN CHINA

www.theworldmodels.com

Warning! This model is not a toy.

It is designed for maximum performance. Please seek advice if one is not familiar with this kind

of engine powered precision model. Operating this model without prior preparation may cause

injuries. Remember, safety is the most important thing. Always keep this instruction manual at

hand for quick reference.

Requires : 5-channel radio w/ 7 standard servos

*Specifications are subject to change without notice.*

INSTRUCTION MANUAL

Wing Span

Wing Area

Flying Weight

Fuselage Length

66 in / 1680 mm

590 sq in / 38.1 sq dm

6.6 Ib / 3000 g

51 in / 1300 mm

Specifications

0.40-0.50 cu.in. displacement 2-stroke

0.52-0.70 cu.in. displacement 4-stroke

SkyLink 40

INDEX

BEFORE YOU BEGIN

PARTS LIST

ASSEMBLY

SAFETY PRECAUTIONS

P.1

P.2

P.3-P.12

P.12

Check all parts. If you find any defective or missing parts contact your local dealer. Please

DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly.

Any parts you find to be defective after the gluing process may be difficult to remove for

warranty replacement. The manufacturer will replace any defective parts, but will not extend

to the parts that are good before gluing to defective parts during assembly. Warranty will

not cover any parts modified by customer.

Symbols used throughout this instruction manual comprise of the following :-

Read through the manual before you begin, so you will have an overall idea of what to do.

Apply epoxy glue.

Assemble left and right

sides the same way.

Peel off shaded portion

covering film.

Drill holes with the specified

diameter (here: 3mm)

Pay close attention here!

Pierce the shaded portion

covering film.

Apply instant glue

(C.A.glue, super glue.)

Ensure smooth non-binding

movement while assembling.

Cut off shaded portion.

Must be purchased separately!

Apply thread locker

Do not overlook this symbol!

3mm

P.1

SkyLink 40

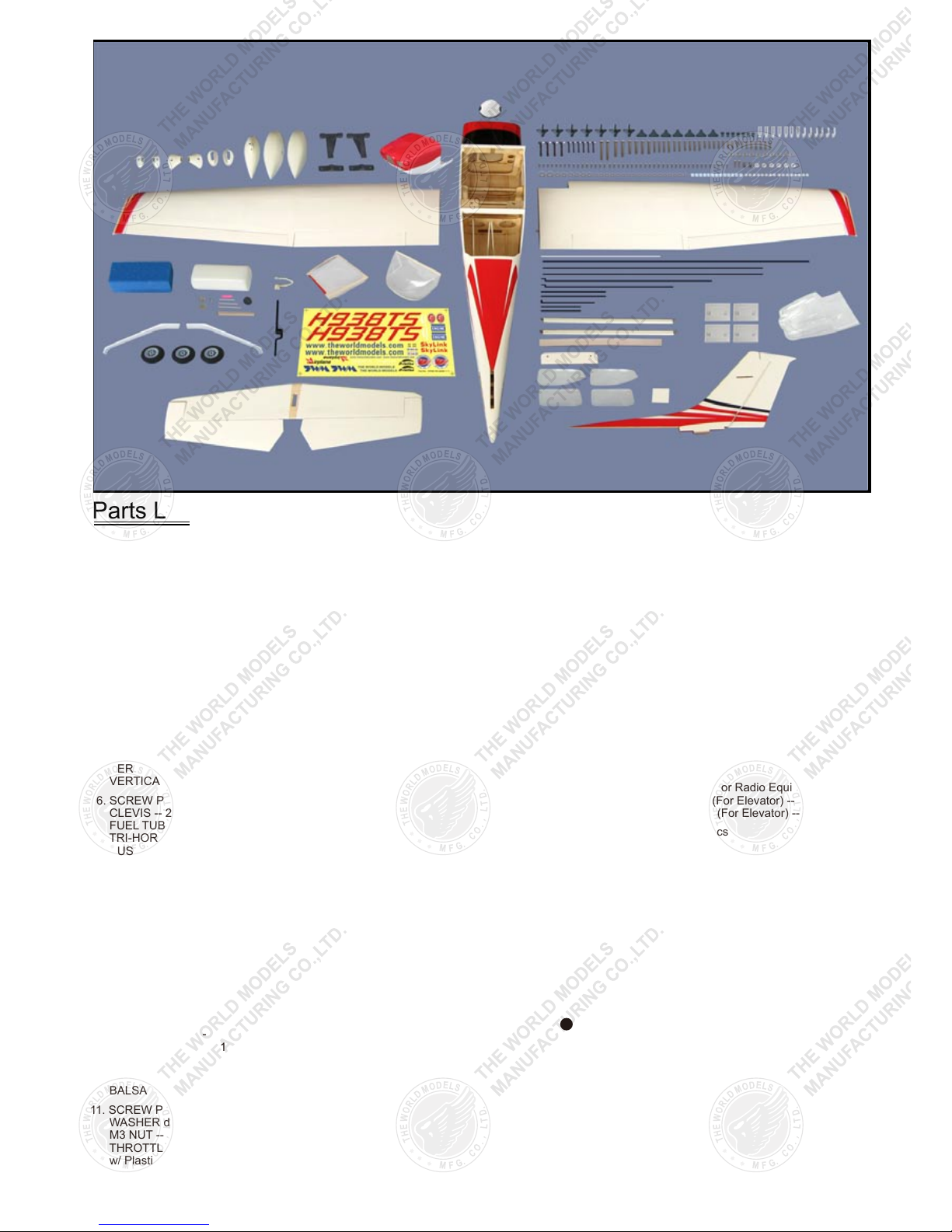

Parts List

P.2

1. MAIN WING -- 1 pair

2. SCREW PM2x20mm -- 4 pcs

SCREW PM2x16mm -- 2 pcs

SCREW PM2x22mm -- 4 pcs

SCREW PM2x18mm -- 2 pcs

SCREW PWA2x12mm -- 16 pcs

FUEL TUBE Ø6x5mm -- 8 pcs

CLEVIS -- 4 pcs

STRAPER -- 4 pcs

TRI-HORN M3x14mm (S) (For Aileron & Flap) -- 4 sets

SERVO MOUNTING PANEL 2x68x78mm (For Aileron) -- 4 pcs

PUSHROD Ø1.8x95mm w/ Threads (For Aileron) -- 2 pcs

PUSHROD Ø1.8x110mm w/ Threads (For Flap) -- 2 pcs

3. WING JOINER 6x20x299.4mm -- 1 pc.

4. STABILIZER & ELEVATOR -- 1 set

FUSELAGE -- 1 pc.

5. VERTICAL FIN & RUDDER -- 1 set

VERTICAL WING’S FIN 3x40x50mm -- 1 pc.

6. SCREW PM2x16mm -- 6 pcs

CLEVIS -- 2 pcs

FUEL TUBE Ø6x5mm -- 2 pcs

TRI-HORN M3x14mm (S) (For Elevator) -- 2 sets

PUSHROD Ø1.8x650mm w/ Threads (For Elevator) -- 2 pcs

7. SCREW PM2x16mm -- 3 pcs

CLEVIS -- 1 pc.

FUEL TUBE Ø6x5mm -- 1 pc.

TRI-HORN M3x14mm (S) (For Rudder) -- 1 set

PUSHROD Ø1.8x760mm w/ Threads (For Rudder) -- 1 pc.

8. ENGINE MOUNT PL5111050 -- 1 set

SOCKET HEAD SCREW M4x25mm -- 4 pcs

WASHER d4xD9mm -- 4 pcs

9. FRONT LANDING GEAR -- 1 set

COLLAR Ø4.1mm w/ set screw -- 4 sets

SET SCREW M3x3mm -- 2 pcs

WHEEL PANTS -- 1 pc.

WHEEL Ø50mm -- 1 pc.

STEERING ARM Ø4.1mm w/ set screw -- 1 set

FRONT GEAR ABSOREBER ACCESSORIZE -- 1 set

10. FUEL TANK 380cc -- 1 set

BALSA 8x8x156mm (For Fuel Tank Position Fixing) -- 1 pc.

11. SCREW PM3x25mm -- 4 pcs

WASHER d3xD7mm -- 8 pcs

M3 NUT -- 8 pcs

THROTTLE PUSHWIRE Ø1.2x370mm -- 1 pc.

w/ Plastic tube d2xD3x140mm -- 1 pc.

FRONT WHEEL PUSHROD Ø1.4x260mm -- 1 pc.

w/ Plastic tube d2.5xD4x140mm -- 1 pc.

12. MAIN LANDING GEAR -- 1 pair

MAIN LANDING GEAR COVER -- 1 pair

SCREW PM4x45mm -- 2 pcs

SCREW PWA2.6x8mm -- 4 pcs

SOCKET HEAD SCREW M2.5x15mm -- 6 pcs

M4 NUT -- 2 pcs

WASHER d4xD9mm -- 4 pcs

WASHER d2.5xD8mm -- 6 pcs

COLLAR Ø4.1mm w/ set screw -- 4 sets

WHEEL PANTS -- 1 pair

WHEEL Ø62mm -- 2 pcs

PLATE 1mm -- 2 pcs

13. LINKAGE CONNECTOR Ø2.1mm -- 2 sets

14. WIND SHIELD & SIDE WINDOWS -- 1 set

SCREW PWA2.3x8mm -- 8 pcs

SILICON GROMMET d1.5xD6.5mm -- 8 pcs

15. STRAPER -- 2 pcs

FUEL TUBE Ø6x5mm -- 2 pcs

SPONGE 60x70x122mm (For Radio Equipment) -- 1 pc.

PUSHROD Ø1.8x100mm (For Elevator) -- 1 pc.

PUSHROD CONNECTOR (For Elevator) -- 1 set

16. SCREW PM4x30mm -- 2 pcs

WASHER d4xD15mm -- 2 pcs

PLYWOOD 2x32.5x130mm (Wing Protection) -- 1 pc.

17. COWLING -- 1 pc.

TRANSPARENT 3D TEMPLATE -- 1 pc.

SCREW PWA2.6x12mm -- 8 pcs

SILICON GROMMET d1.5xD6.5mm -- 8 pcs

SPINNER Ø52mm -- 1 set

AIR SCOOP -- 1 set

18. MAIN WING STRUT -- 1 pair

SCREW PM2.5x15mm -- 4 pcs

WING STRUTS COVER -- 1 set

19. DECALS -- 1 set

COVERING:--

TOUGHLON STL100 WHITE

LIGHTEX SGX 201 BLACK

LIGHTEX SGX 350 CORSAIR BLUE

LIGHTEX SGX 580 PEARL BRONZE

Main Wing

PM2x20mm Screw

Bottom View

Completed

Aileron & Flap Servos

Apply instant type CA glue to both sides of each hinge.

Aileron Servo Lead

PM2x16mm Screw

PM2x22mm Screw

PM2x18mm Screw

PWA2x12mm Screw

PWA2x12mm

Clevis 2mm

2mm

Tri-horn

M3x14mm(S)

Fuel Tube

Ø6x5mm

Pushrod Ø1.8x95mmPushrod Ø1.8x110mm

PM2x20mm

PM2x16mm

Clevis

Straper

2mm

Tri-horn

M3x14mm(S)

Fuel Tube

Ø6x5mm

Fuel Tube

Ø6x5mm

PM2x22mm

PM2x18mm

Ø1mm pilot holes for World Models tri-horn are pre-drilled.

Please look for pin-hole marks at under side of control surfaces.

P.3

Main Wing

Stabilizer & Elevator

Temporary install the main wing, adjust leveling of the stabilizer

to make is as parallel to the main wing as possible.

*Also refer to step 19 Wing Setting

(Stabilizer)

(Main Wing)

B=B

A=A

A A

Completed

Apply instant type CA

glue to both sides of

each hinge.

Wing Joiner

P.4

Please dry fit wing joiner into left and right wing to make sure they fit with the proper

dihedral angle, mark the wing joiner if necessary. Apply epoxy glue to both sides of

all surfaces in contact. Use a stick to apply the glue to inner side of wing joiner sleeve,

and apply the glue to wing joiner before putting them together. Wing joiner not glued

properly will lead to wing failure and plane crash.

Vertical Fin & Rudder

Completed

Rudder Pushrod

Elevator Pushrod

Ø1mm pilot holes for World Models horn are pre-drilled.

Please look for pin-hole marks at side of control surfaces.

Ø1mm pilot holes for World Models horn are pre-drilled.

Please look for pin-hole marks at under side of control surfaces.

Clevis

35mm

115mm

Clevis

200mm

70mm

Tri-horn

M3x14mm(S)

Tri-horn

M3x14mm(S)

Fuel Tube

Ø6x5mm

Fuel Tube

Ø6x5mm

Pushrod

Ø1.8x650mm

Pushrod Ø1.8x760mm

2mm

P.5

Bottom View

Apply instant type CA glue

to both sides of each hinge.

c=c'

PM2x16mm Screw

PM2x16mm

PM2x16mm Screw

Blind nuts are off-centered to keep

the spinner at the fuselage axis.

d4xD9mm Washer

M4x25mm Socket HeadScrew

Engine Mount

PL5111050

4.1mm Collar

M3x3mm Set Screw

4.1mm

Collar

4.1mm

Collar

4.1mm

Collar

Wheel

Ø50mm

M3x3mm

Set Screw

5 6

2 3 4

M3x3mm

Set Screw

M3x3mm

Set Screw

M3x3mm

Set Screw

Control Horn

M3x3mm

Set Screw

M3x3mm

Set Screw

Completed

Bottom View Completed

P.6

Engine Mount

Front Landing Gear

PM3x25mm Screw

d3xD7mm Washer

M3 Nut

Fuel Tank

380cc

Fuel Tank

380cc

Balsa

8x8x156mm

Fuel Tank

380cc

Install Balsa 8x8x156mm

(For Fuel Tank Position Fixing)

d3xD7mm

Washer

M3 Nut

PM3x25mm

Installed Engine Position

127 mm

5.0 in.

Throttle Pushrod

Ø1.2x370mm

Front Wheel Pushrod

Ø1.4x260mm

Plastic Tube

d2xD3x140mm

Plastic Tube

d2.5xD4x140mm

P.7

Fuel Tank

Engine

Servo Set

2mm

PM4x45mm Screw

d4xD9mm Washer

d2.5xD8mm Washer

d2.5xD8mm

Washer

4.1mm Wheel Collar

M4 Nut

M2.5x15mm Socket Head Screw

M2.5x15mm

PWA2.6x8mm Screw

Completed

PWA2.6x8mm

1mm

Plate 1mm

d4xD9mm Washer

Wheel Ø62mm 3mm

Set Screw

4.1mm

Collar

M4 Nut

First insert the grommet to the canopy then apply screw.

d1.5xD6.5mm Silicon Grommet

PM4x45mm

Bottom View

P.8

Canopy

Main Landing Gear

3x3mm Set Screw

M2 Nut

Linkage Connector

2mm Washer

Throttle Pushwire

Please refer to the attached sheet for linkage connector installation.

2mm

3mm

2mm

Throttle Servo

1.5mm

PWA2.3x8mm Screw

PWA2.3x8mm

PWA2.3x8mm PWA2.3x8mm

Radio Equipment

Main Wing

Front

Install and arrange the servos

as shown in the diagram.

Sponge

Receiver

Fuel Tube

Ø6x5mm

Throttle Pushrod

Ø1.2x370mm

Elevator Pushrod

Ø1.8x650mm

Rudder Pushrod

Ø1.8x760mm Front Wheel Pushrod

Ø1.4x260mm

Elevator Pushrod

Ø1.8x100mm

KM2x8mm

M2 Nut

Elevator Servo

Throttle Servo

Rudder Servo

Straper

Battery

Elevator Servo

PM4x30mm Screw

PM4x30mm

Wing Protection

Plywood

d4xD15mm Washer

P.9
