Texecom INS656-3 Manual de usuario
INSTALLATION INSTRUCTIONS
Premier Elite Speech Module
INS656-3
INS656-3 2/13
Content
1.0 Introduction 3 ............................................................................................................................
2.0 Hardware Identification 3 ........................................................................................................
3.0 Specifications 12 ........................................................................................................................
4.0 Warranty 13 ................................................................................................................................
INS656-3 3/13
1.0 Introduction
The Premier Elite Speech Module provides four recordable 10 second audio
messages, each message is assigned to a Digi Channel, which in turn can be
triggered from one of the many output functions of the control panel. A COM2400
must be installed to enable the Premier Elite Speech Module, it will not function
with a COM300. Only the first four Digi Channels are used by the Premier Elite
Speech Module. The Premier Elite Speech Module is supported by the following
Texecom control panels:
Premier Elite all models factory built V3 and later, all models fitted with a
DTMF decoder.
N If the Speech Module is fitted to a V3 panel that does not have the DTMF
decoder chip fitted, it may not be possible to acknowledge the received calls. This
will result in repeated calls until all programmed dial attempts have been used.
2.0 Hardware Identification
The DTMF chip is located below the
Barcode label and is identified with a
green dot.
INS656-3 4/13

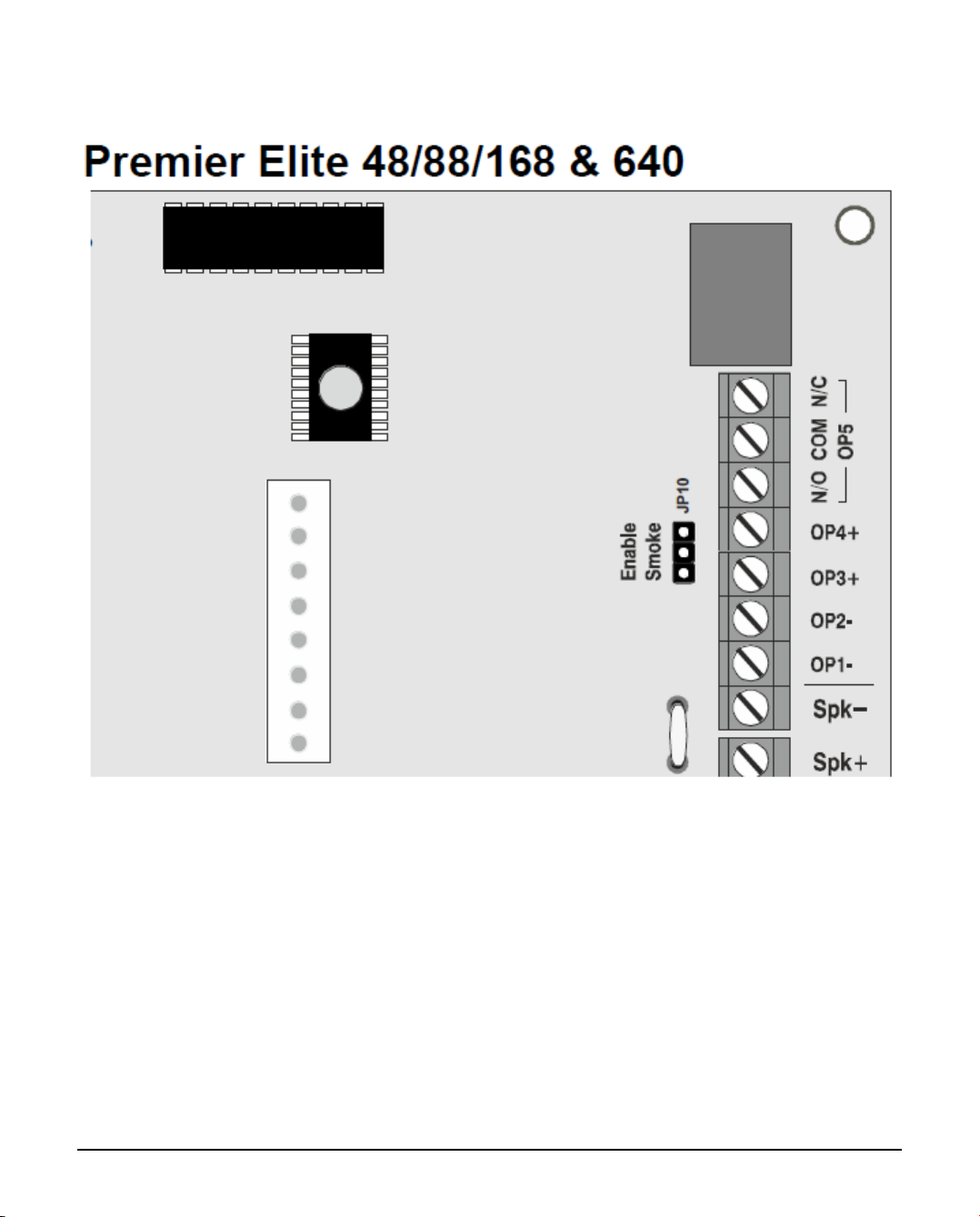

The DTMF chip is located just below the digi pins and is identified with a
green dot.
The DTMF chip is located to the left of the main processor and is identified with a green dot.
INS656-3 5/13
PCB Layout and Connections
The figure below shows the PCB layout of the Premier Elite Speech Module.
INS656-3 6/13
INS656-3 7/13
Figure 2 Premier Elite Speech Module Connected to Expansion Port on PCB
Premier Elite Speech Module Installation
To install the Premier Elite Speech Module proceed as follows:
Ensure that all power is removed from the control panel before connecting the
Premier Elite Speech Module.
Plug the Premier Elite Speech Module (see Figure 2) onto the 7 way Expansion
Port of the control panel.
Plug the COM2400 onto the onboard digi pins, and connect to a telephone line.
When using an RJ11 plug, this should be connected before the COM2400 is fitted in
place.
Re-apply power to the system and proceed to the next section.
Premier Elite Speech Module Locations
Use the self-adhesive mounting posts to locate the Speech Module as shown.
Premier Elite Small Polymer Housing (e.g. Live front ) mount to the rear of the
housing
INS656-3 8/13
Premier Elite Large Polymer Housing (e.g. 24 & -W panels) mount to the inner
wall of the housing
Premier Elite Metal Housing (e.g. 48.88 & 168) mount inside the top of the
housing.
INS656-3 9/13
Recording Messages
The Premier Elite Speech Module can store four 10-second audio messages.
Message 1 is allocated to channel 1 and message 2 is allocated to channel 2 etc.
To record a message proceed as follows:
Press and hold the [RECORD] button, then press and hold either [REC1] for
message 1 or [REC2] for message 2 [REC3] for message 3 or [REC4] for
message 4
Speak clearly into the microphone to record your message. During the
recording process, the record indicator will illuminate.
To stop the recording process, release the record buttons. The recording
INS656-3 10/13
process will automatically end after 10 seconds and the record indicator will
go out.
Repeat steps 1 to 3 for other messages, if required.
Programming the Control Panel
The control panel will then need to be programmed correctly in order for the
Premier Elite Speech Module to function as expected:
Program Onboard Com2400 & Expansion Port
Enter the engineer code ????
Press 7 then y/y (UDL/Digi Options).
Press 8 then y/y for (Com Port Setup/Onboard Digicom).
Press n/n then 2 to select COM2400
Press y/y
Press 5 (Expansion Port).then n/n
Press 6 (Speech Module) then y/y
Digi Enabled & Dial All Numbers
If you have more than one communication device connected to the control panel,
Dial All Numbers MUST be enabled; continuing from the previous
Press N/N then 4 then y/y (Digi Options)
Press n/n
Press 1 Digi is Enabled (E shown on Screen)
Press 6 Dial All Numbers (A shown on screen)
Press y/y
Program ARC's
Press N/N then 3 then y/y (Program Digi)
Press y/y
Using the Scroll key select Which ARC you wish to use
Press n/n and scroll to change the ARC protocol to Speech Module
