User's Guide

SLVU224C–January 2008–Revised February 2010

TPS61165EVM-283

This user's guide describes the characteristics, operation, and use of the TPS61165EVM-283 evaluation

module (EVM). This EVM contains the Texas Instruments TPS61165 boost converter, configured with

external components to regulate current through a string of WLEDs. This user's guide includes EVM

specifications, recommended test setup, test results, bill of materials, and a schematic diagram.

Contents

1 Introduction .................................................................................................................. 2

2 Setup and Test Results .................................................................................................... 2

3 Board Layout ................................................................................................................ 6

4 Schematics and Bill of Materials .......................................................................................... 9

List of Figures

1 USB Interface Adapter Quick Connection Diagram .................................................................... 4

2 Screen Capture of TPS6116x Controller Software GUI Interface .................................................... 6

3 LED Efficiency vs Output Current......................................................................................... 6

4 Assembly Layer ............................................................................................................. 7

5 Top-Side Layer.............................................................................................................. 8

6 Bottom-Side Layer.......................................................................................................... 9

List of Tables

1 Typical Performance Specification Summary ........................................................................... 2

2 HPA283 Bill of Materials.................................................................................................. 10

SLVU224C–January 2008–Revised February 2010 TPS61165EVM-283

( )

[ ]

VVVV-V

ID4D3D2D1IN

LED

+++

Introduction

www.ti.com

1 Introduction

The Texas Instruments TPS61165EVM-283 evaluation module contains a TPS61165 IC, supporting active

and passive components and three white light-emitting diodes (WLEDs) in series. The goal of this EVM is

to facilitate evaluation of the TPS61165 in a typical WLED application.

1.1 Performance Specification Summary

Table 1 provides a summary of the TPS61165EVM-283 performance specifications. All specifications are

given for an ambient temperature of 25°C.

Table 1. Typical Performance Specification Summary

CONDITION MIN TYP MAX UNITS

VIN supply 4.5 5 5.5 V

CTRL=VIN, JP2 shorted 9.5 V

VOUT CTRL=VIN, JP2 open 37 38 39 V

IOUT CTRL=VIN, JP2 shorted 347 357 368 mA

The EVM was designed and tested for an input voltage of 5 V +/-10%. Lower input voltages may result in

the part entering current limit and therefore not providing the regulated current in the specification table.

Input voltages greater than the drop across the sum of D2-D4 but less than the 18-V maximum do not

damage the IC but cause the IC to stop switching and regulating current. At this time, the input voltage,

less the drop across D1, is applied across D2-D4, setting the current to that as shown in Equation 1.

(1)

Currents higher than the LEDs' 500-mA maximum rating can damage the LEDs.

1.2 Modifications

To aid user customization of the EVM, the board was designed with devices having 0603 or larger

footprints. A real world implementation would likely occupy less total board space.

The inductor and compensation components (R1, C2) were designed for the VIN range in Table 1. Using

a different input voltage range may require resizing of the inductor and/or the compensation components.

Also, changing components can improve or degrade EVM performance. For example, using inductors with

larger dc resistances lowers efficiency of the solution.

The other members of the TPS6116x IC family have the same footprint. Therefore, the TPS61165 IC may

be replaced on the TPS61165EVM-283 PCB with either the TPS61160 or TPS61161.

NOTE: When modifying the REV A version of this PCB, it is strongly recommended that you heat

the PCB on a hot plate before using a soldering iron to remove/replace components,

especially the input capacitor and inductor. Otherwise, the expansion when soldering and

contraction when cooling of the wide traces/places connecting these components to the IC

pins can damage the IC. For further explanation and guidance, see the TI application report

QFN/SON PCB Attachment SLUA271.

2 Setup and Test Results

2.1 Input/Output Connections

The connection points are described in the following paragraphs.

EasyScale is a trademark of Texas Instruments.

Windows is a trademark of Microsoft Corporation.

VeriSign is a trademark of VeriSign, Inc.

2TPS61165EVM-283 SLVU224C–January 2008–Revised February 2010

Submit Documentation Feedback

www.ti.com

Setup and Test Results

2.1.1 J1-VIN

This header is the positive connection to the input power supply. The leads to the input supply should be

twisted and kept as short as possible.

2.1.2 J2-GND

This header is the return connection to the input power supply.

2.1.3 J3-VOUT

This header is the positive output for the device.

2.1.4 J4-FB

This header connects to the IC's FB pin through resistor R4. The EVM does not have resistor R4

populated.

2.1.5 J5-USB-TO-GPIO Connector

This connector is for the 10-pin ribbon cable that connects the EVM to the USB-TO-GPIO interface box. It

is only used when the software is used to perform dimming.

2.1.6 J6-GND

This header is the return connection for the load.

2.1.7 JP1-ENable

Installing this jumper ties the EN pin to VIN, thereby enabling the device. Removing the jumper allows the

internal pulldown resistor to pull EN to ground, thereby disabling the device. The shorting jumper must be

removed when using EasyScale™ control.

2.1.8 JP2-Open LED

Installing this jumper places the WLEDs in the boost converter's feedback path and allows current to flow

through the WLEDs. Removing the jumper removes the WLEDs from the boost converter feedback path.

With this jumper removed and jumper JP1 installed, the IC's overvoltage protection circuit clamps the

boost converter output to 38 V (typ).

WARNING

This EVM has a white LED that shines brightly. Protective eye wear

and/or a diffuser to cover the white LED is recommended.

2.2 Hardware Requirements

This EVM requires an external power supply capable of providing 5 V at 1.5 A.

In order to change the default current value (i.e., implement dimming), the user can apply either a PWM or

digital control signal to CTRL. Both signals change the feedback voltage at the IC's FB pin, so that the IC

performs analog dimming. A function generator capable of driving the CTRL pin with 1.2 V to VIN

amplitude and, 5-kHz to 100-kHz PWM signal is required for PWM controlled dimming. The user can also

implement dimming using a digital control signal. The EVM kit includes a PC software CD and

USB-TO-GPIO interface box which, when installed on a PC and connected to the EVM, allows the user to

communicate with the EVM via a GUI interface. The minimum PC requirements are:

• Windows™ 2000 or Windows™ XP operating system

• USB port

• Minimum of 30 MB of free hard disk space (100 MB recommended)

SLVU224C–January 2008–Revised February 2010 TPS61165EVM-283

Host

Computer

USB Cable

USB

Interface

Adapter

Green LED

Indicates

Power

10-Pin

Ribbon

Cable

EVM Board

Setup and Test Results

www.ti.com

• Minimum of 256 MB of RAM

2.3 Hardware Setup

After connecting the power supply between J1 and J2, turning on the power supply, and installing JP1 and

JP2, the EVM regulates the default current per Table 1 through the WLEDs. Additional input capacitance

may be required in order to mitigate the inductive voltage droop that occurs at start-up and/or during a

load transient event.

In order to implement analog dimming via a PWM signal, remove the jumper on JP1 and the 10-pin ribbon

cable from J5 if installed, and perform the following steps in any sequence:

• Connect the power supply between J1 and J2, and turn on the power supply.

• Ensure that JP2 is installed.

• Remove the shorting jumper from JP1, and connect the appropriately configured function generator to

the CTRL side of JP1.

The PWM signal's duty cycle is directly proportional to the regulated current.

In order to implement analog dimming by sending the digital control via a PC running the TPS6116x

Controller software and USB-TO-GPIO interface box, remove the jumper or the function generator on JP1,

and perform the following steps in any sequence:

• Connect one end of the USB-TO-GPIO box to the PC using the USB cable and the other end to J5 of

the TPS61165EVM using the supplied 10-pin ribbon cable per Figure 1. The connectors on the ribbon

cable are keyed to prevent incorrect installation.

• Connect the power supply between J1 and J2 and turn on the power supply.

• Ensure that JP2's jumper is installed.

• Run the software as explained in the following section.

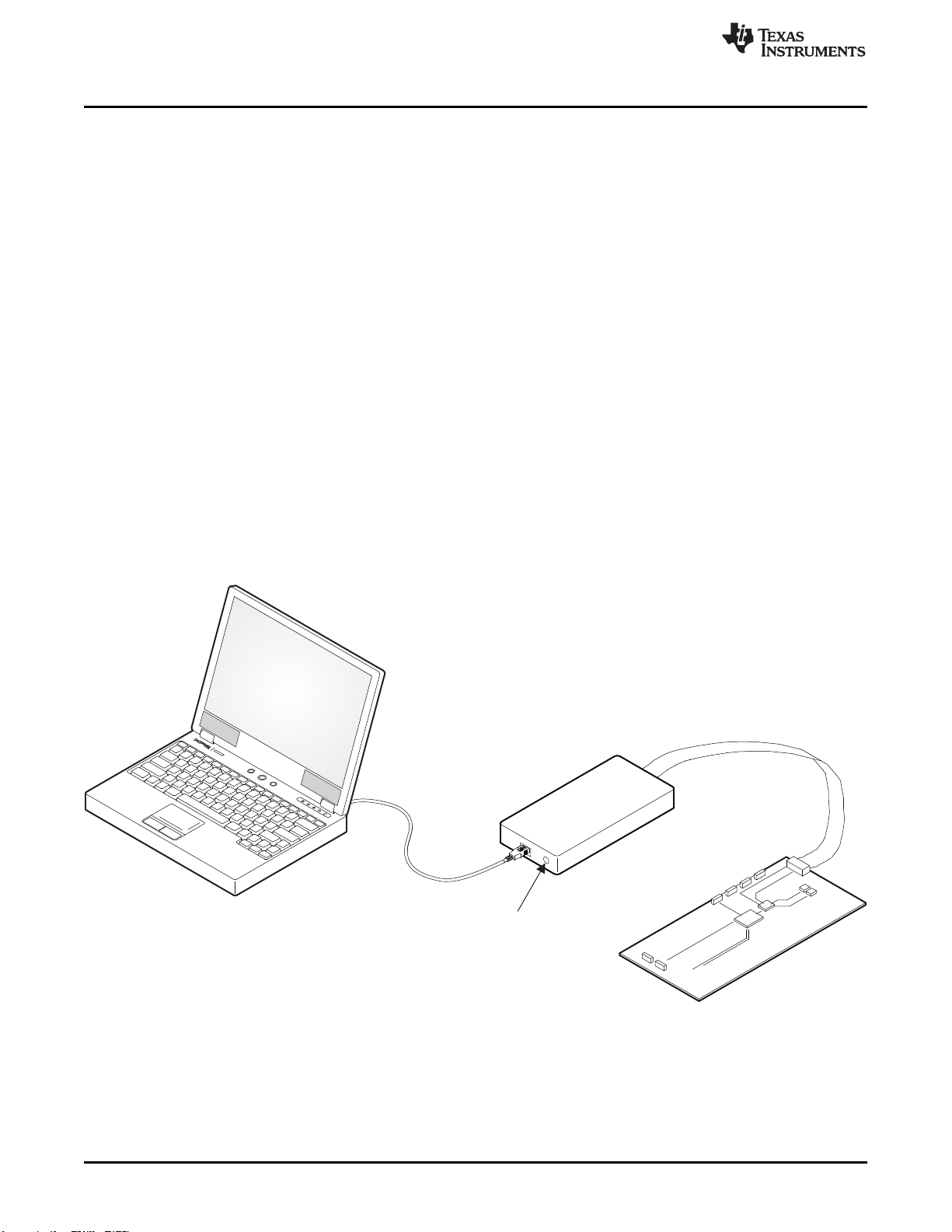

Figure 1. USB Interface Adapter Quick Connection Diagram

4TPS61165EVM-283 SLVU224C–January 2008–Revised February 2010

Submit Documentation Feedback

www.ti.com

Setup and Test Results

2.4 Software Installation and Operation

If installing from a CD, insert the CD and run Setup.exe; follow all the prompts to install the software.

If installing from the TI Web site, go to the URL,

http://focus.ti.com/en/download/aap/DesignEnv/TPS6116XEVM-SW/publish.htm.

NOTE: This installation page is best viewed with Microsoft Internet Explorer browser (It may not

work correctly with other browsers)

Click on the install button; your PC gives you a security warning and asks if you want to install this

application. Select Install to proceed. If a pre-release or Beta version is currently installed on your PC, you

must uninstall this version of the software before installing the final version from either the CD or the TI

Web site.

With both types of installation, the software attempts to install the Microsoft Dot Net Framework 2.0 (if it is

not already installed) This framework is required for the software to run.

Immediately following installation, the software automatically runs.

To run the software after installation, go to

Start →all programs →Texas Instruments, Inc. →TPS6116x Controller EVM Software.

At start-up, the software first checks the firmware version of the USB-TO-GPIO adapter box. If an incorrect

firmware version is installed, the software automatically searches on the Internet (if connected) for

updates. If a new update is available, the software notifies the user of the update, downloads and installs

the software. Note that after the firmware is updated, the user must disconnect and then reconnect the

USB cable between the adapter and PC, as instructed during the install process. The host PC software

also automatically searches on the Internet (if connected) for updates. If a new update is available, the

software notifies the user of the update, downloads, and installs it.

NOTE: VeriSign™ Code Signing is used to prevent any malicious code from changing this

application. If at any time in the future the binaries are modified, the code no longer attempts

to run.

The TPS6116x IC has a 5-bit register that stores the feedback voltage to which the error amplifier

regulates the FB pin. Using the EasyScale™ protocol, the user can program a separate digital IC to

generate a signal that changes this register to one of 32 discrete settings, thereby changing the FB

voltage and subsequent regulated WLED current. The software provides a GUI interface which allows the

user to change the bits directly or by a drop-down box. After changing the bits, press the WRITE button.

See a screen shot of the software in Figure 2.

SLVU224C–January 2008–Revised February 2010 TPS61165EVM-283

100

10 60 110 160 210 260 310 360

I - Output Current - mA

Efficiency - %

Board Layout

www.ti.com

Figure 2. Screen Capture of TPS6116x Controller Software GUI Interface

2.5 Test Results

This section provides typical performance characteristics for the TPS61165EVM-283 board.

Figure 3. LED Efficiency vs Output Current

3 Board Layout

This section provides the TPS61165EVM-283 board layout and illustrations.

6TPS61165EVM-283 SLVU224C–January 2008–Revised February 2010

Submit Documentation Feedback

Caution: Bright WLEDS

www.ti.com

Board Layout

Board layout is critical for all high-frequency, switch-mode power supplies. Figure 4 through Figure 6 show

the board layout for the TPS61165EVM-283 printed circuit board (PCB). The nodes with high-switching

frequencies and currents are kept as short as possible to minimize trace inductance. Careful attention was

given to the routing of high-frequency current loops and a single-point grounding scheme is used. See the

data sheet for specific layout guidelines.

Figure 4. Assembly Layer

SLVU224C–January 2008–Revised February 2010 TPS61165EVM-283

Board Layout

www.ti.com

Figure 5. Top-Side Layer

8TPS61165EVM-283 SLVU224C–January 2008–Revised February 2010

Submit Documentation Feedback

www.ti.com

Schematics and Bill of Materials

Figure 6. Bottom-Side Layer

4 Schematics and Bill of Materials

This section provides the TPS61165EVM-283 schematic and bill of materials. The EVM was designed and

tested assuming the input voltage is 5 V ±10%. Lower input voltages may result in the part entering

current limit and therefore not providing the regulated current in the specification table. Input voltages

greater than the drop across the sum of D2-D4 but less than the 18-V maximum does not damage the IC

but causes the IC to stop switching and regulating current. At this time, the input voltage, less the drop

across D1, is applied across D2-D4, potentially damaging the diodes.

SLVU224C–January 2008–Revised February 2010 TPS61165EVM-283

Schematics and Bill of Materials

www.ti.com

4.1 TPS61165EVM-283 Schematic

4.2 Bill of Materials

Table 2. HPA283 Bill of Materials

Count RefDes Value Description Size Part Number MFR

1 C1 4.7 mF Capacitor, Ceramic, 25V, X5R, 10% 0805 TMK212BJ475KG-T Taiyo

Yuden

1 C2 0.22 mF Capacitor, Ceramic, 10V, X5R, 10% 0603 C1608X5R1A224K TDK

1 C3 1.0 mF Capacitor, Ceramic, 50V, X7R, 10% 1206 C3216X7R1H105K TDK

0 C4 Open Capacitor, Ceramic 1210 Std Vishay

0 C5 Open Capacitor, Ceramic 0603 Std Vishay

1 D1 MBR0540T1 Diode, Schottky, 500-mA, 40-V SOD123 MBR0540T1 OnSemi

3 D2, D3, D4 LW W5SM-HYJZ-5K8L-Z Diode, LED White, 500-mA, 0.244 × 0.441 inch LW W5SM-HYJZ-5K8L-Z Osram

LW W5SM-JXJY-5K8L-Z 17000-mcd LW W5SM-JXJY-5K8L-Z

LW W5SM-JXJZ-5K8L-Z LW W5SM-JXJZ-5K8L-Z

(see Note 5) (see Note 5)

5 J1, J2, J3, J4, PEC02SAAN Header, 2 pin, 100mil spacing 0.100 inch x 2 PEC02SAAN Sullins

1 J5 2510-6002UB Connector, Male Straight 2×5 pin, 0.338 × 0.788 inch 2510-6002UB 3M

100mil spacing, 4 Wall

2 JP1, JP2 PEC02SAAN Header, 2 pin, 100mil spacing 0.100 inch × 2 PEC02SAAN Sullins

1 L1 10 mH Inductor, 67 mΩ, ±20% 0.205 x 0.205 inch A915AY-100M Toko

1 R1 0 Resistor, Chip, 1/16W, 1% 0603 Std Std

1 R2 0.56 Resistor, Chip, 1/8W, 1% 0805 Std Std

1 R3 1.82k Resistor, Chip, 1/16W, 1% 0603

0 R4 Open Resistor, Chip, 1/16W, 1% 0603

1 U1 TPS61165DRV IC, 1200KHz/1.2A PWM SON-6 TPS61165DRV TI

1 — PCB, 2.42 In × 2.81 In × 0.062 In HPA283 Any

2 — Shunt, 100 mil, Black 0.100 929950-00 3M

Notes: 1. These assemblies are ESD sensitive, ESD precautions shall be observed.

2. These assemblies must be clean and free from flux and all contaminants.

Failure to use clean flux is unacceptable.

3. These assemblies must comply with workmanship standards IPC-A-610 Class 2.

4. Reference designators marked with an asterisk ('**') cannot be substituted.

All other components can be substituted with equivalent MFG's components.

5. D2, D3, D4 can be any LW W5SM. The last eight characters of the orderable number are don't cares.

10 TPS61165EVM-283 SLVU224C–January 2008–Revised February 2010

Submit Documentation Feedback

Tabla de contenidos

Otros manuales de Placa madre de Texas Instruments

Texas Instruments

Texas Instruments TPS5420EVM-175 SWIFT Manual de usuario

Texas Instruments

Texas Instruments TPS60120EVM-174 Manual de usuario

Texas Instruments

Texas Instruments ADS7881 Manual de usuario

Texas Instruments

Texas Instruments TPA0253EVM Manual de usuario

Texas Instruments

Texas Instruments bq2083EVM-001 Manual de usuario

Texas Instruments

Texas Instruments SERDESUB-16OVT Manual de usuario

Texas Instruments

Texas Instruments AMC1203EVM Manual de usuario

Texas Instruments

Texas Instruments BoosterPack IWR1642BOOST Manual de usuario

Texas Instruments

Texas Instruments ADC364xEVM Manual de usuario

Texas Instruments

Texas Instruments DRV884 EVM Series Manual de usuario

Texas Instruments

Texas Instruments TMP468EVM Manual de usuario

Texas Instruments

Texas Instruments TS3USB221 Manual de usuario

Texas Instruments

Texas Instruments BQ25887 Manual de usuario

Texas Instruments

Texas Instruments TPS54973EVM-017 Manual de usuario

Texas Instruments

Texas Instruments TPS51123 Manual de usuario

Texas Instruments

Texas Instruments DRV2605EVM-CT Manual de usuario

Texas Instruments

Texas Instruments LM8365EVM Manual de usuario

Texas Instruments

Texas Instruments TMP103EVM Manual de usuario

Texas Instruments

Texas Instruments TMS320C3 Series Manual de usuario

Texas Instruments

Texas Instruments AM572x series Manual de usuario

Texas Instruments

Texas Instruments AM263 Series Manual de usuario

Texas Instruments

Texas Instruments CDCE906 Manual de usuario

Texas Instruments

Texas Instruments PGA112EVM Manual de usuario

Texas Instruments

Texas Instruments AFE5805EVM Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
