User's Guide

SNAU145A–MAY 2013–Revised JUNE 2013

LMK04826/28 User’s Guide

1 Introduction

These evaluation board instructions describes how to set up and operate the LMK04828/6 evaluation

module (EVM). The LMK04828/6 is the industry's highest performance clock conditioner with JEDEC

JESD204B support.

2 Evaluation Board Kit Contents

The evaluation board kit includes. -002 and -003 are currently available:

Table 1. EVM Contents

SV600788 -001 -002 -003

(1) LMK04826B Evaluation

Evaluation Board (1) LMK04828B Evaluation Board Board

USB Communications (1) USB2UWIRE-IFACE (1) USB2ANY

LPT Communicaitions (1) CodeLoader uWire cable -

SNAU145A–MAY 2013–Revised JUNE 2013 LMK04826/28 User’s Guide

Laptop or PC

Parallel Port or USB

Connector to SPI

4 to 5 V

4Program with CodeLoader

%HVXUHWRSUHVVµ&WUO- /¶

CLKin1*

Reference clock from

signal generator or other

external source.

122.88 MHz (Default)

Power

Reference

LMK0482x

Parallel Port Cable, or

USB2UWIRE-IFACE cable, or

USB2ANY cable

DCLKout2

DCLKout2*

SDCLKout11*

SDCLKout11

DCLKout3*

DCLKout3

OSCout

OSCout*

CLKin0

CLKin0*

OSCin

OSCin*

These SMAs not used by default.

With PCB change, can be used for reference

input for single PLL mode.

SDCLKout1*

SDCLKout1

DCLKout0*

DCLKout0

DCLKout10*

DCLKout10

Default is

LDO to IC

PLL1 Digital Lock Detect LED

PLL2 Digital

Lock Detect LED

Quick Start

www.ti.com

3 Quick Start

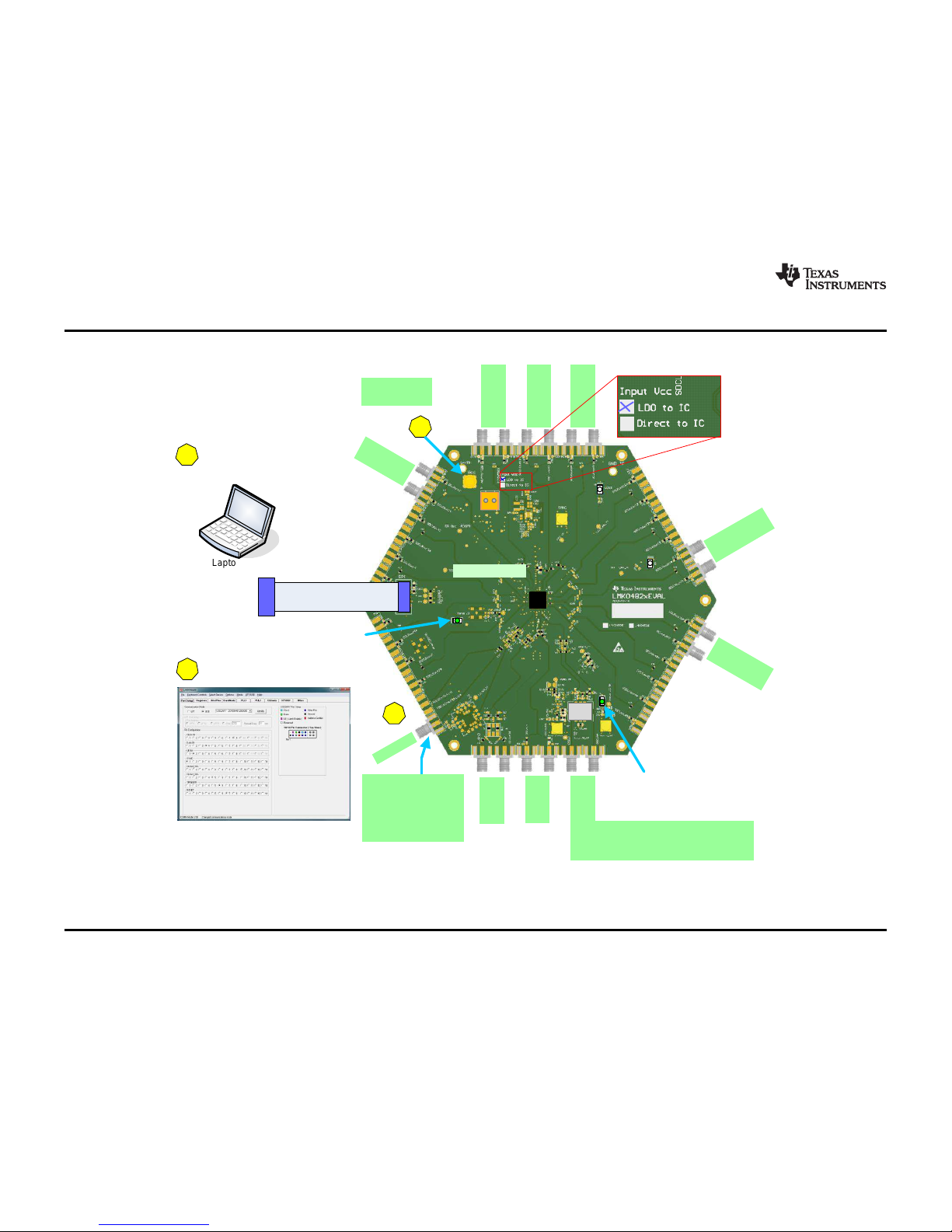

Figure 1. Quick Start Diagram

2LMK04826/28 User’s Guide SNAU145A–MAY 2013–Revised JUNE 2013

Submit Documentation Feedback

www.ti.com

Quick Start

3.1 Quick Start Description

The LMK04828/6 EVM allows full verification of the device functionality and performance specifications.

To quickly set up and operate the board with basic equipment, refer to the quick start procedure below

and test setup shown in Figure 1.

1. Connect a voltage of 4.5 volts to the Vcc SMA connector or terminal block. Device operates at 3.3 V

using onboard LP3878-ADJ LDO. VCXO operates at 3.3 V using onboard LP5900 LDO.

2. Connect a reference clock to the CLKin1 port from a signal generator or other source. Use 122.88 MHz

for default. Exact frequency and input port (CLKin0/CLKin1) depends on programming.

3. Connect the SPI header to a computer using USB2ANY, USB2UWIRE-IFACE, or parallel port with the

CodeLoader cable.

4. Program the device with CodeLoader. CodeLoader is available for download at:

http://www.ti.com/tool/codeloader.

(a) Select LMK04828B or LMK04826B from “Select Device →Clock Conditioners” Menu.

(b) Select LPT or USB mode from the Port Setup tab as required. If USB is selected, confirm that

USB device being used to communicate with EVM is chosen from list of available USB devices.

122.88 MHz”

(d) Ctrl-L must be pressed at least once to load all registers. Alternatively click menu Keyboard

Controls →Load Device.

5. Measurements may be made at an active CLKout port via its SMA connector.

NOTE: New REV C boards dated 02-18-2013 have an updated Pin Configuration which is defaulted.

For older pre-release boards, Pin Configuration must manually be changed and only work with

USB2UWIRE-IFACE or LPT cable.

Figure 2. Pin Configuration for Pre-Release Boards

SNAU145A–MAY 2013–Revised JUNE 2013 LMK04826/28 User’s Guide

1 2 3 5 64 98 10

11 12 13 14

15 16

Quick Start

www.ti.com

3.1.1 CLKout Tab Description

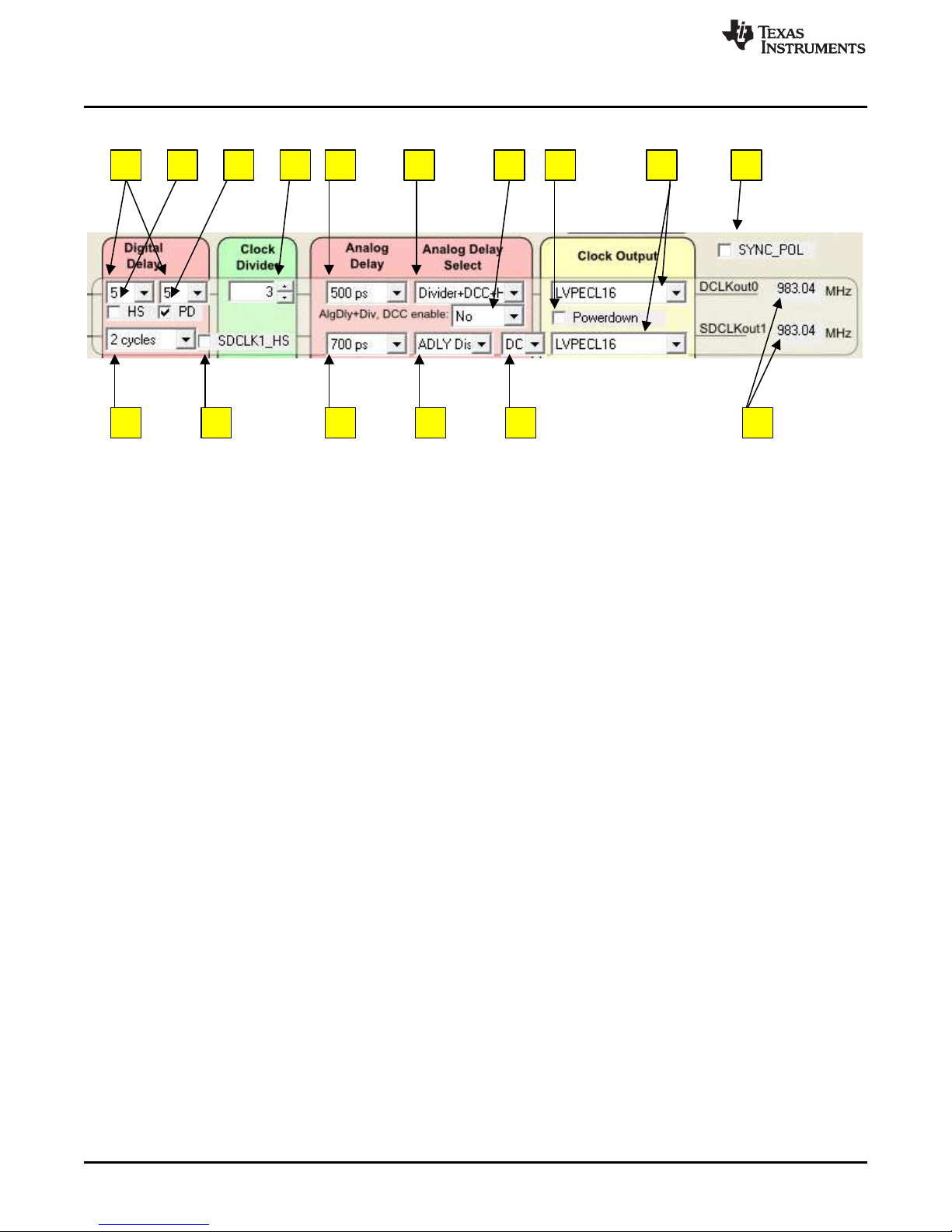

Figure 3. CLKout Tab Description Diagram

Device Clock Controls

1. CLKoutX_Y_CNTL/CNTH for controlling digital delay.

2. Half step bit (must have a HS mode selected by #6 or #7).

3. Power down digital delay for DCLKoutX.

4. DCLKoutX_DIV, divider for the output channel.

5. Analog delay (if enabled with #6).

6. Select source for output. Can be divider only, divider w/ DCC+HS (duty cycle correction and half step),

bypass, or analog delay w/ Divider (and DCC/HS if selected by #7).

7. Select DCC/HS or not when using analog delay mode.

8. Powerdown the entire CLKoutX_Y block. Both outputs will be off.

Device Clock/SYSREF Controls

9. Select output type for each output.

10. SYNC_POL bit, will allow SYNC when in default configuration (SYNC_MODE / SYSREF_MUX setup

for normal SYNC).

SYSREF Controls

11. SYSREF clock digital delay.

12. SYSREF clock half step

13. SYSREF analog delay (if enabled by #14)

14. Enable analog delay

15. Select Device Clock or SYSREF clock for output to SDCLKoutY clock.

16. Calculated output frequency.

3.1.2 CodeLoader Tips

• On Bits/Pins tab right-clicking any register name in the Bits/Pins tab will display a Help prompt with the

• On PLL tabs clicking Show Bits will show register info.

• On other tabs, pressing ~ with a control focused will show help.

4LMK04826/28 User’s Guide SNAU145A–MAY 2013–Revised JUNE 2013

Submit Documentation Feedback

www.ti.com

Quick Start

3.2 SYSREF Quick Start

The LMK0482x EVK allows for verification of the LMK0482x’s implementation of JESD 204B SYSREF

functionality. To quickly setup and operate the SYSREF functions refer to the following procedures.

3.2.1 Continuous SYSREF

1. Set SDCLKoutY_PD = 0 (where Y is the desired SDCLKout)

2. Set SDCLKoutY_MUX = 1 (Set to “SR” for desired SDCLKout)

3. Set SYSREF_PD and SYSREF_DDLY_PD = 0

4. Set SYNC_DISX and SYNC_DISSYSREF = 0 (where X is the desired DCLKout)

5. Perform a SYNC event (toggle SYNC_POL on/off/on)

6. Set SYNC_DISX = 1 (for desired DCLKout’s) and SYNC_DISSYSREF = 1

7. Set SYSREF_MUX = 3 (SYSREF Continuous)

8. Ensure SYSREF_CLR = 0 (SYSREF tab, location: right side, below clock output pic)

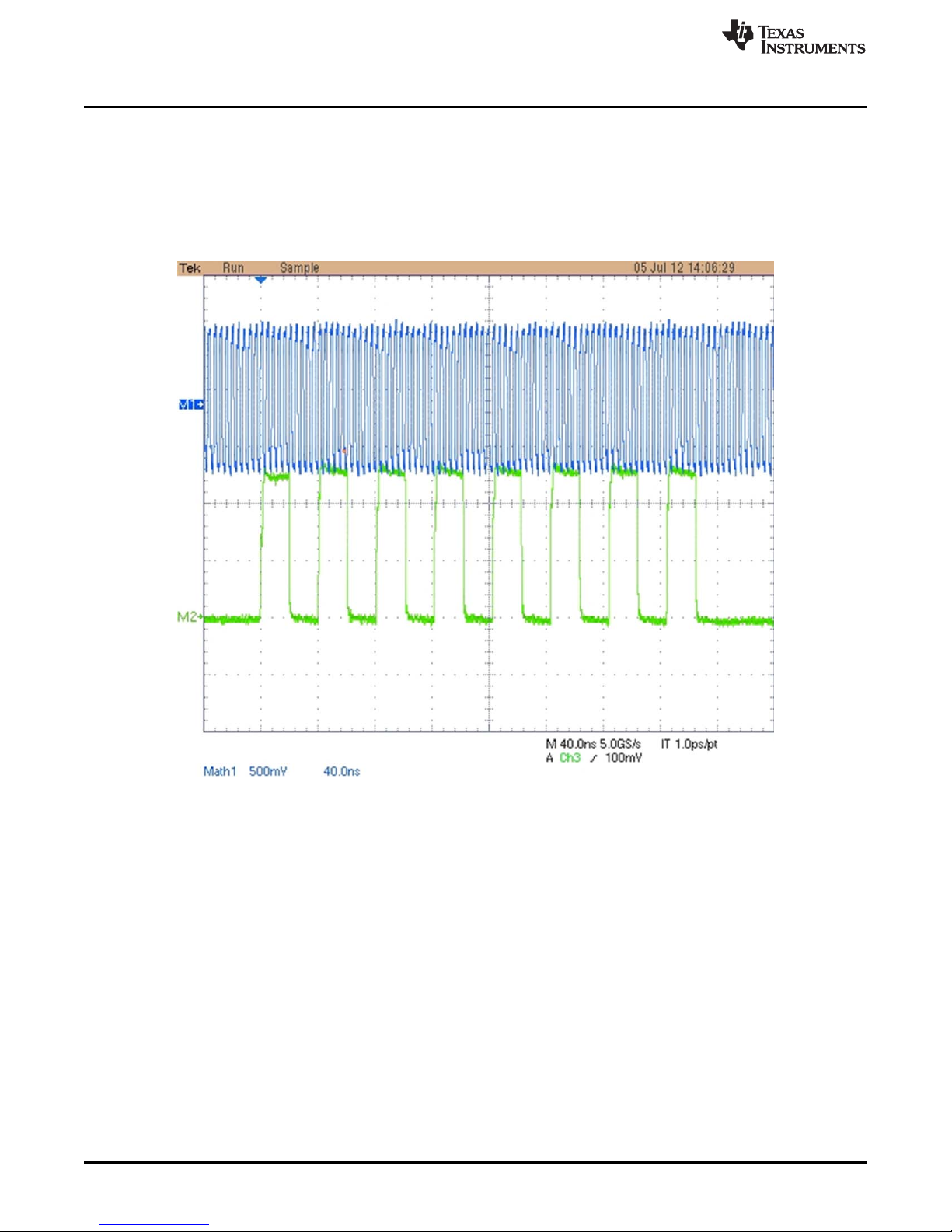

In Figure 2 and Figure 4 the Blue trace is DCLKout6 at 245.76 MHz and the Green trace is SDCLKout7

(SYSREF) at 24.475 MHz. Figure 5 shows the configuration of the LMK0482xB outputs.

Figure 4. Continuous SYSREF Output

3.2.2 Pulsed SYSREF

1. Set SDCLKoutY_PD = 0 (where Y is the desired SDCLKout)

2. Set SDCLKoutY_MUX = 1 (Set to “SR” for desired SDCLKout)

3. Set SYSREF_PD and SYSREF_DDLY_PD = 0

4. Set SYNC_DISX and SYNC_DISSYSREF = 0 (where X is the desired DCLKout)

SNAU145A–MAY 2013–Revised JUNE 2013 LMK04826/28 User’s Guide

Quick Start

www.ti.com

5. Perform a SYNC event (toggle SYNC_POL on/off/on)

6. Set SYNC_DISX = 1 (for desired DCLKout’s) and SYNC_DISSYSREF = 1

7. Set SYSREF_MUX = 2 (SYSREF Pulses)

8. Set SYSREF_PULSE_CNT = 1, 2, 4, or 8 as desired

9. Generate a SYNC event (i.e. toggle SYNC_POL on/off/on)

10. Ensure SYSREF_CLR = 0 (SYSREF tab, location: right side, below clock output pic)

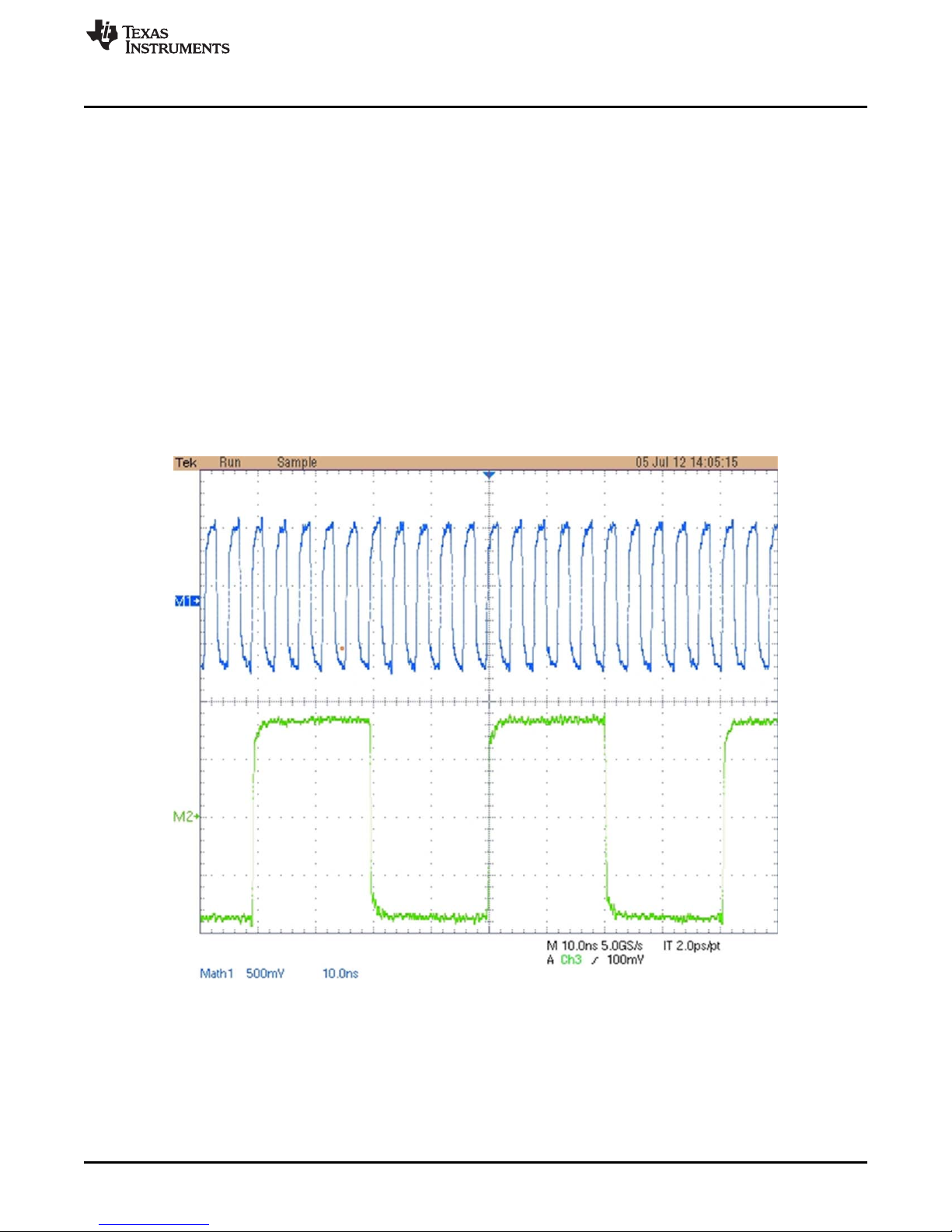

Figure 5. Pulsed SYSREF Output

6LMK04826/28 User’s Guide SNAU145A–MAY 2013–Revised JUNE 2013

Submit Documentation Feedback

www.ti.com

Quick Start

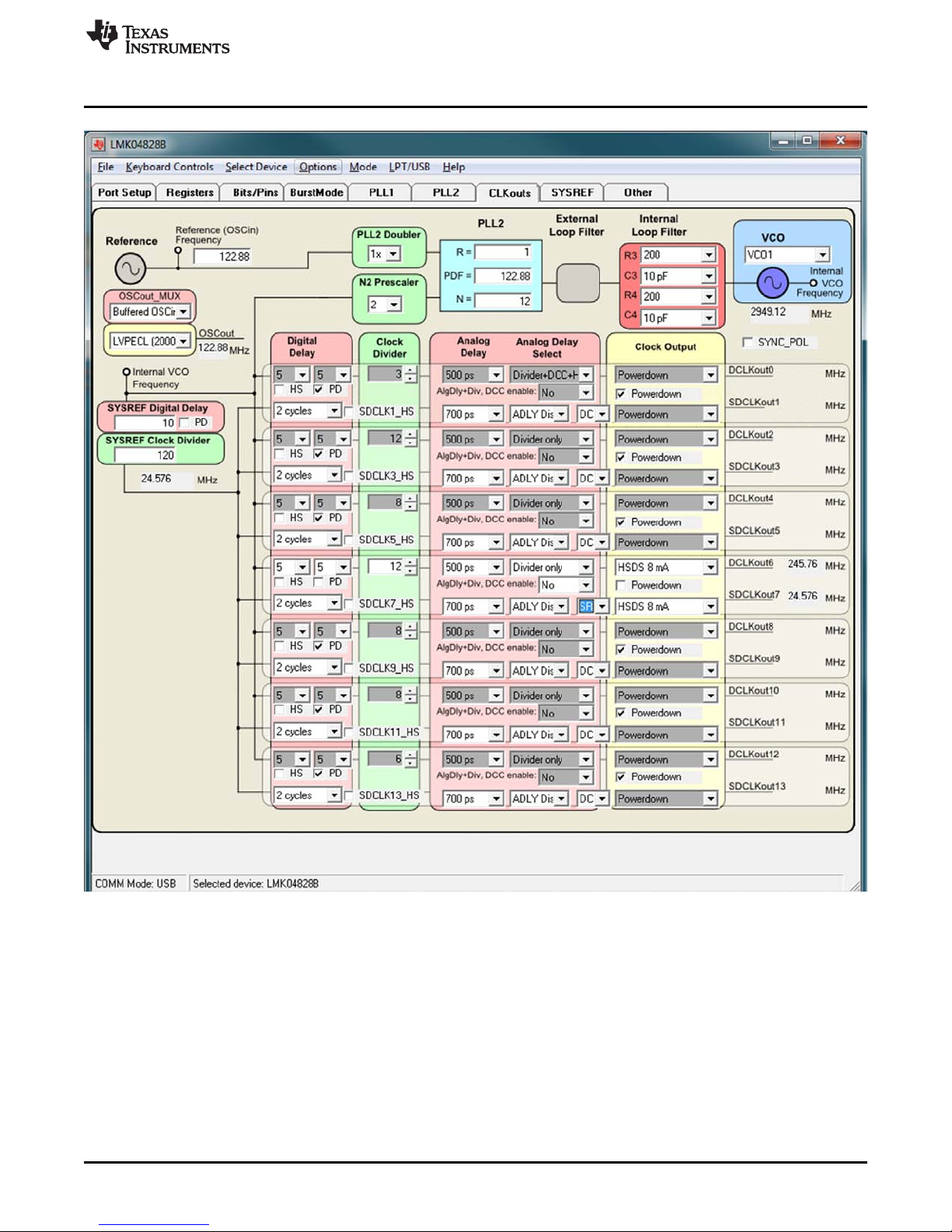

Figure 6. Clock Outputs Tab Setup for SYSREF Output on SDCLKout7

SNAU145A–MAY 2013–Revised JUNE 2013 LMK04826/28 User’s Guide

PLL Loop Filters and Loop Parameters

www.ti.com

4 PLL Loop Filters and Loop Parameters

In jitter cleaning applications that use a cascaded or dual PLL architecture, the first PLL’s purpose is to

substitute the phase noise of a low-noise oscillator (VCXO or crystal resonator) for the phase noise of a

“dirty” reference clock. The first PLL is typically configured with a narrow loop bandwidth in order to

minimize the impact of the reference clock phase noise. The reference clock consequently serves only as

a frequency reference rather than a phase reference.

The loop filters on the LMK048xx evaluation board are setup using the approach above. The loop filter for

PLL1 has been configured for a narrow loop bandwidth (> 100 kHz). The specific loop bandwidth values

depend on the phase noise performance of the oscillator mounted on the board. The following tables

(Table 2 and Table 3) contain the parameters for PLL1 and PLL2 for each oscillator option.

TI’s Clock Design Tool can be used to optimize PLL phase noise/jitter for given specifications. See:

http://www.ti.com/tool/clockdesigntool

4.1 PLL1 Loop Filter

Table 2. PLL1 Loop Filter Parameters for Crystek 122.88 MHz VCXO(1)

122.88 MHz VCXO PLL

Phase Margin 50˚Kφ(Charge Pump) 450 uA

Loop Bandwidth 14 Hz Phase Detector Freq 1.024 MHz

VCO Gain 2.5 kHz/V

Reference Clock Frequency 122.88 MHz Output Frequency 122.88 MHz

(To PLL 2)

Loop Filter Components C1_A1 = 100 nF C2_A1 = 680 nF R2_A1 = 39 kΩ

(1) Loop Bandwidth is a function of Kφ, Kvco, N as well as loop components. Changing Kφand N will change the loop bandwidth.

4.2 PLL2 Loop Filter

Table 3. Integrated VCO PLL(1)

LMK04826 LMK04828

VCO0 VCO1 VCO0 VCO1

C1_A2 0.047 nF

C2_A2 3.9 nF

C3 (internal) 0.01 nF

C4 (internal) 0.01 nF

R2_A2 0.62 kΩ

R3 (internal) 0.2 kΩ

R4 (internal) 0.2 kΩ

Charge Pump Current, Kφ3.2 mA

Phase Detector Frequency 122.88 MHz

Frequency 1966.08 2457.6 2457.6 2949.12 MHz

Kvco 15.3 8.9 21.9 17.4 MHz/V

N16 20 20 24

Phase Margin 73 64 73 70 degrees

Loop Bandwidth 303 151 344 233 kHz

(1) PLL Loop Bandwidth is a function of Kφ, Kvco, N as well as loop components. Changing Kφand N will change the loop

bandwidth.

8LMK04826/28 User’s Guide SNAU145A–MAY 2013–Revised JUNE 2013

Submit Documentation Feedback

www.ti.com

Default CodeLoader Modes for the LMK0482x

5 Default CodeLoader Modes for the LMK0482x

CodeLoader saves the state of the selected LMK0482x device when exiting the software. To ensure a

common starting point, the following modes listed in Table 4 may be restored by clicking “Mode” and

selecting the appropriate device configuration.

Table 4. Default CodeLoader Modes for the LMK0482x

Default CodeLoader Mode Device Mode CLKin Frequency OSCin Frequency

CLKin1 122.88 MHz, OSCin Dual PLL, Internal VCO 122.88 MHz 122.88 MHz

122.88 MHz

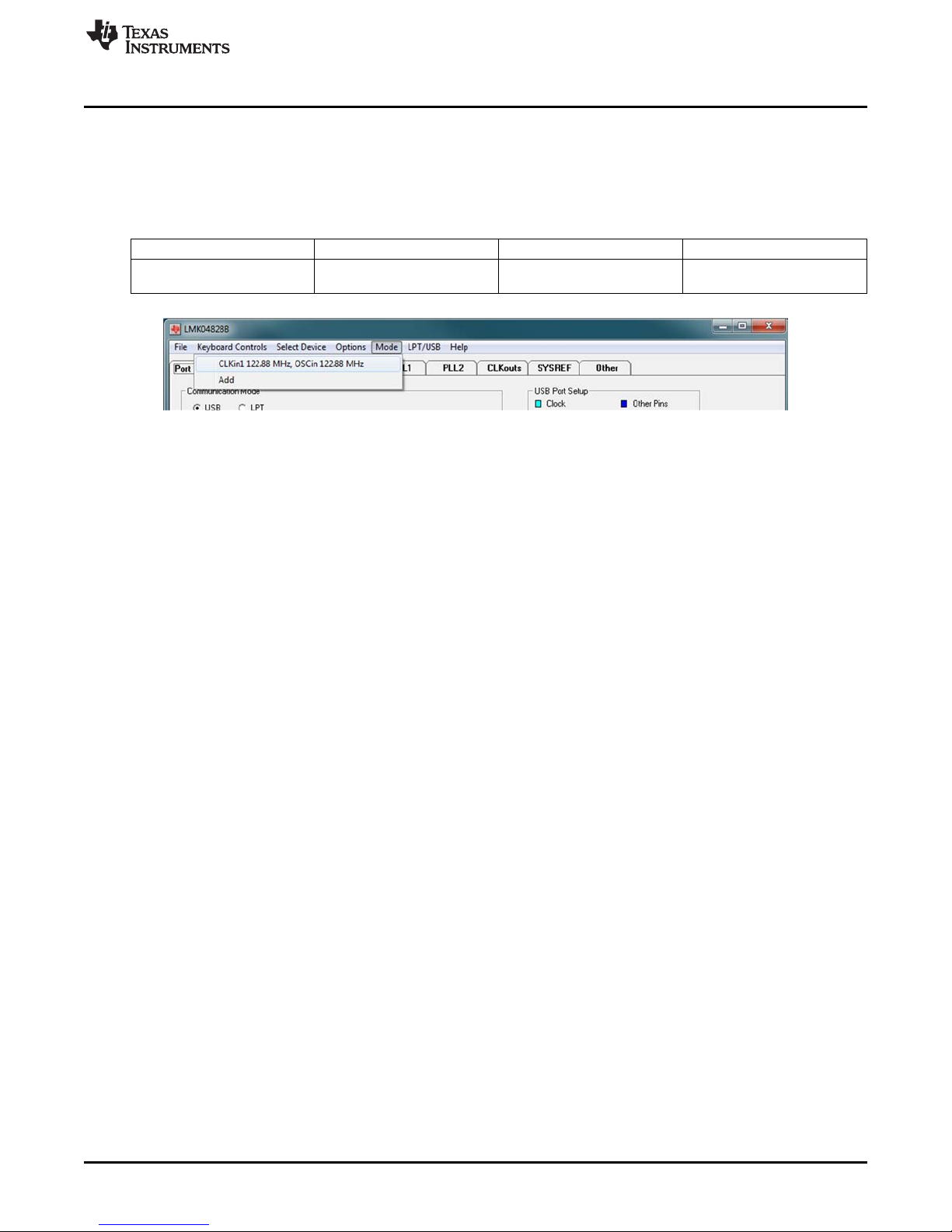

Figure 7. Selecting a Default Mode for the LMK04828 Device

SNAU145A–MAY 2013–Revised JUNE 2013 LMK04826/28 User’s Guide

Using CodeLoader to Program the LMK04828

www.ti.com

6 Using CodeLoader to Program the LMK04828

The purpose of this section is to walk the user through using CodeLoader 4 to make some measurements

with the LMK04828B device as an example. For more information on CodeLoader refer to CodeLoader 4

instructions located at http://www.ti.com/tool/codeloader

Before proceeding, be sure to follow the Section 3 section above to ensure proper connections. To

program the LMK04826B the procedure would be the same but select the LMK04826B as the device.

6.1 Start CodeLoader Application

Click “Start” →“Programs” →“CodeLoader 4” →“CodeLoader 4”

The CodeLoader 4 program is installed by default to the CodeLoader 4 application group.

6.2 Select Device

Click “Select Device” →“Clock Conditioners” →“LMK04828B”

Once started CodeLoader 4 will load the last used device. To load a new device click “Select Device” from

the menu bar, then select the subgroup and finally device to load. For this example, the LMK04828B is

chosen. Selecting the device does cause the device to be programmed.

6.3 Program/Load Device

Assuming the Port Setup settings are correct, press the “Ctrl+L” shortcut or click “Keyboard Controls” →

“Load Device” from the menu to program the device to the current state of the newly loaded LMK04828

file.

Figure 8. Loading the Device

Once the device has been initially loaded, CodeLoader will automatically program changed registers so it

is not necessary to re-load the device upon subsequent changes in the device configuration. It is possible

to disable this functionality by ensuring there is no checkmark by the “Options” →“AutoReload with

Changes.”

Because a default mode will be restored in the next step, this step isn’t really needed but included to

emphasize the importance of pressing “Ctrl+L” to load the device at least once after starting CodeLoader,

restoring a mode, or restoring a saved setup using the File menu.

See CodeLoader 4 instructions located at http://www.ti.com/tool/codeloader/ for more information on Port

Setup. This contains information on troubleshooting communications.

6.4 Restoring a Default Mode

Click “Mode” →“CLKin1 122.88 MHz, OSCin 122.88 MHz”; then press Ctrl+L.

10 LMK04826/28 User’s Guide SNAU145A–MAY 2013–Revised JUNE 2013

Submit Documentation Feedback

Otros manuales para LMK04826

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Texas Instruments

Texas Instruments

Texas Instruments TIC12400 Manual de usuario

Texas Instruments

Texas Instruments LM5171-Q1 Manual de usuario

Texas Instruments

Texas Instruments TAA5242EVM-K Manual de usuario

Texas Instruments

Texas Instruments TPS61194xEVM Manual de usuario

Texas Instruments

Texas Instruments TPS23755EVM-894 Manual de usuario

Texas Instruments

Texas Instruments Stellaris LM3S3748 Manual

Texas Instruments

Texas Instruments LMZM23601 Manual de usuario

Texas Instruments

Texas Instruments ADS5294EVM Manual de usuario

Texas Instruments

Texas Instruments DEM-OPA-SC-1A-EVM Manual de usuario

Texas Instruments

Texas Instruments CC2538 Manual de usuario

Texas Instruments

Texas Instruments BoosterPack IWR1642BOOST Manual de usuario

Texas Instruments

Texas Instruments AMC7823 EVM Manual de usuario

Texas Instruments

Texas Instruments TCA9536EVM Manual de usuario

Texas Instruments

Texas Instruments TPA3223EVM Manual de usuario

Texas Instruments

Texas Instruments ADS1263EVM-PDK Manual de usuario

Texas Instruments

Texas Instruments ADC31JB68 Manual de usuario

Texas Instruments

Texas Instruments TPS54225 Manual de usuario

Texas Instruments

Texas Instruments TPS23758EVM-080 Manual de usuario

Texas Instruments

Texas Instruments BQ24210/2 Manual de usuario

Texas Instruments

Texas Instruments TPS23861EVM-612 Manual de usuario

Texas Instruments

Texas Instruments LMX2820EVM Manual de usuario

Texas Instruments

Texas Instruments TPS40077 Manual de usuario

Texas Instruments

Texas Instruments BUF08821EVM Manual de usuario

Texas Instruments

Texas Instruments DS90UB934-Q1EVM Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
