Texas Instruments PCM1808EVM Manual de usuario

SBAU349–June 2020

PCM1808 Evaluation Module

User's Guide

SBAU349–June 2020

PCM1808 Evaluation Module

This user's guide describes the function and use of the PCM1808EVM. This document includes the

hardware configuration instructions, a quick-start guide, jumper and connector descriptions, schematics,

and printed-circuit board (PCB) layout that demonstrate TI's recommended practices for these devices.

Contents

1 Introduction ................................................................................................................... 2

2 Power Supply................................................................................................................. 2

3 Hardware Configuration..................................................................................................... 2

4 Interfacing With the EVM ................................................................................................... 3

5 Board Layout ................................................................................................................. 4

6 Schematic and Bill of Materials ............................................................................................ 7

7 Related Documentation..................................................................................................... 8

List of Figures

1 PCM1808EVM Top Layer .................................................................................................. 4

2 PCM1808EVM Power Plane 1............................................................................................. 5

3 PCM1808EVM Power Plane 2............................................................................................. 5

4 PCM1808EVM Bottom Layer .............................................................................................. 6

5 PCM1808EVM Schematic.................................................................................................. 7

List of Tables

1 PCM1808EVM Headers and Jumpers.................................................................................... 2

2 PCM1808 Mode Settings................................................................................................... 2

3 PCM1808 Format Settings ................................................................................................. 3

4 Bill of Materials............................................................................................................... 8

Trademarks

All trademarks are the property of their respective owners.

Introduction

www.ti.com

2SBAU349–June 2020

Submit Documentation Feedback

PCM1808 Evaluation Module

1 Introduction

The PCM1808EVM is an evaluation module (EVM) designed to demonstrate the performance and

functionality of the PCM1808 device. The PCM1808 is a high-performance, low-cost, single-chip, stereo

analog-to-digital converter (ADC) with single-ended analog voltage input. The device is configured through

logic-level mode selection pins and does not require a digital interface such as I2C or SPI to configure

registers. As such, no software is necessary to interface with the EVM. The EVM is powered with a single

5-V supply. Access to the converter output is provided on the audio serial interface in I2S and LJ formats.

2 Power Supply

The PCM1808EVM is powered with a single 5-V power supply connected to J11. An onboard low-dropout

regulator converts the 5-V supply to the 3.3-V rail used by the ADC. The analog supply, VCC, is fixed at 5-

V and the digital supply, VDD, at 3.3 V. The power status of the EVM is indicated by LED (D1), which will

illuminate when power is applied to the board.

3 Hardware Configuration

The format of the audio data and the operating mode of the ADC are controlled by the following pins:

MD0, MD1, and FMT. These signals are referenced to VDD and can be set to high (1) or low (0). If no

shunt is installed, then an internal 50-kΩpulldown resistor will set the pin low so that the ADC remains in

a defined state. Table 1 shows the header numbers and their pin functions and Table 2 and Table 3 show

the possible modes and output formats, respectively. In master mode, BCK and LRCK are outputs

generated by internal divider circuitry from the SCKI input. Thus, SCKI must be a valid multiple of the

intended sample rate. MD0 and MD1 are used to select the serial audio data communication timing and

must be set prior to power on. The frequency of BCK is constant at 64 BCK/frame. In slave mode, BCK

and LRCK work as input pins. The device accepts 64-BCK/frame or 48-BCK/frame format (only for a 384

fs system clock), but not 32-BCK/frame format. Although BCK and LRCK are no longer derived from SCKI

in slave mode, a valid SCKI is still required for operation.

Table 1. PCM1808EVM Headers and Jumpers

Designator Function

J1 Audio serial interface: system clock input

J2 Audio serial interface: bit-clock input or output

J3 Audio serial interface: latch-enable input or output

J4 Audio serial interface: digital data output

J5 System clock source

J6 FMT select

J7 MD1 select

J8 MD0 select

J9 Analog audio input: right

J10 Analog audio input: left

J11 +5-V supply input

Table 2. PCM1808 Mode Settings

MD1 MD0 Interface Mode

0 0 Slave mode (256 fs, 384 fs, 512 fs auto-detection)

0 1 Master mode (512 fs)

1 0 Master mode (384 fs)

1 1 Master mode (256 fs)

www.ti.com

Interfacing With the EVM

SBAU349–June 2020

PCM1808 Evaluation Module

Table 3. PCM1808 Format Settings

FMT Format

0 I2S, 24bit

1 Left-justified, 24 bit

All hardware pins are tied low by default, placing the device in slave mode and I2S, 24-bit audio format.

For more information on the operating modes and clock timing of the PCM1808 device, see the PCM1808

Single-Ended, Analog-Input 24-Bit, 96-kHz Stereo ADC Data Sheet.

4 Interfacing With the EVM

4.1 PCM1808EVM Inputs

The right and left audio inputs to the PCM1808EVM can be applied through the RCA connectors (J9 and

J10, respectively) or directly to the test points (TP4 and TP5, respectively). The single-ended audio inputs

pass through an optional anti-aliasing filter made by R9 and C8 for the right input and R10 and C10 for the

left input. The capacitors can be left de-populated and the resistors replaced with 0-Ωresistors if the filter

is not desired. An input high-pass filter is created by the 1-µF capacitors (C1 and C9) and 60-kΩinput

impedance.

4.2 PCM1808EVM Output

The digital I/O of the PCM1808EVM are provided by J1 through J4; the functions are outlined in Table 1.

The first two pins of each header are duplicated signals to allow for signal input and monitoring. The third

pin of each is connected to GND.

Board Layout

www.ti.com

4SBAU349–June 2020

Submit Documentation Feedback

PCM1808 Evaluation Module

5 Board Layout

Figure 1 to Figure 4 illustrate the EVM board layout.

Figure 1. PCM1808EVM Top Layer

www.ti.com

Board Layout

SBAU349–June 2020

PCM1808 Evaluation Module

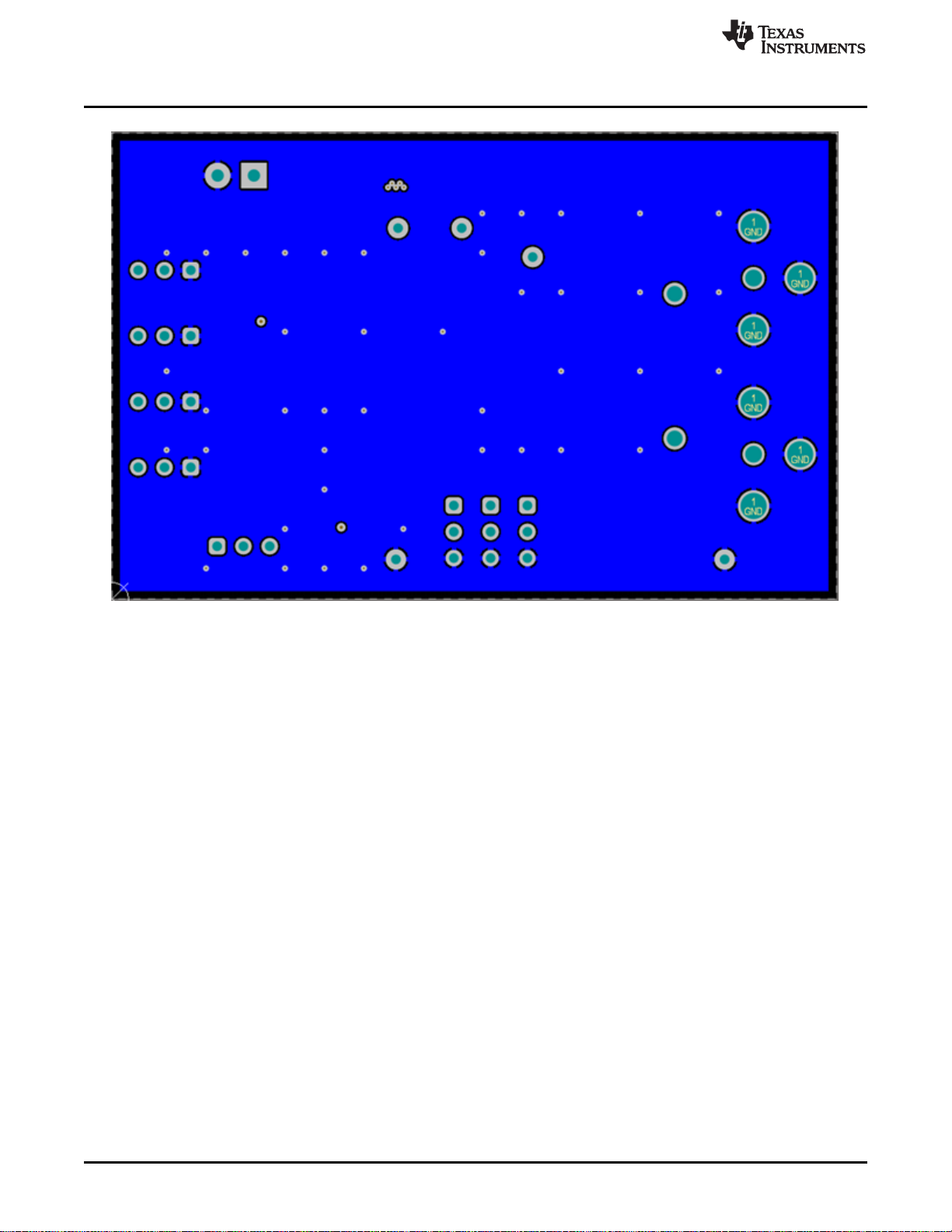

Figure 2. PCM1808EVM Power Plane 1

Figure 3. PCM1808EVM Power Plane 2

Board Layout

www.ti.com

6SBAU349–June 2020

Submit Documentation Feedback

PCM1808 Evaluation Module

Figure 4. PCM1808EVM Bottom Layer

www.ti.com

Schematic and Bill of Materials

SBAU349–June 2020

PCM1808 Evaluation Module

6 Schematic and Bill of Materials

This section contains the EVM schematic and bill of materials.

6.1 Schematic

Figure 5 illustrates the EVM schematic.

Figure 5. PCM1808EVM Schematic

Schematic and Bill of Materials

www.ti.com

8SBAU349–June 2020

Submit Documentation Feedback

PCM1808 Evaluation Module

6.2 Bill of Materials

Table 4 lists the EVM bill of materials.

Table 4. Bill of Materials

Designator QTY Description Part Number Manufacturer

!PCB1 1 Printed Circuit Board DC015 Any

C1, C9 2 CAP, CERM, 1 uF, 16 V, ±10%, X7R, 0805 GRM21BR71C105KA01L MuRata

C2, C4, C6 3 CAP, CERM, 10 uF, 16 V, ±10%, X7R, 0805 CL21B106KOQNNNE Samsung Electro-

Mechanics

C3, C5, C7 3 CAP, CERM, 0.1 uF, 50 V, ±10%, X7R, 0402 C1005X7R1H104K050BB TDK

C8, C10 2 CAP, CERM, 0.01 uF, 50 V, ±10%, X7R, 0805 08055C103KAT2A AVX

C11, C15,

C18 3 CAP, CERM, 0.1 uF, 16 V, ±10%, X7R, 0402 GCM155R71C104KA55D MuRata

C12, C13 2 CAP, CERM, 33 pF, 50 V, ±5%, C0G/NP0, 0402 C1005C0G1H330J050BA TDK

C14, C17 2 CAP, CERM, 10 uF, 16 V, ±20%, X5R, 0603 GRM188R61C106MAALD MuRata

C16 1 CAP, CERM, 0.01 uF, 16 V, ±10%, X5R, 0402 GRM155R61C103KA01D MuRata

D1 1 LED, Green, SMD LTST-C170KGKT Lite-On

H1, H2, H3,

H4 4 Bumpon, Hemisphere, 0.25 X 0.075, Clear SJ5382 3M

J1, J2, J3,

J4, J5, J6,

J7, J8

8 Header, 100mil, 3x1, Gold, TH TSW-103-07-G-S Samtec

J9 1 RCA Jack, 1Pos, Tin, Red, R/A, TH RCJ-012 CUI Inc.

J10 1 RCA Jack, 1Pos, Tin, White, R/A, TH RCJ-013 CUI Inc.

J11 1 Terminal Block, 3.5mm Pitch, 2x1, TH ED555/2DS On-Shore Technology

L1 1 Ferrite Bead, 220 ohm @ 100 MHz, 2.2 A, 0603 MPZ1608S221A TDK

R1, R2, R3,

R4 4 RES, 47.0, 1%, 0.1 W, 0603 RC0603FR-0747RL Yageo

R5 1 RES, 442, 1%, 0.1 W, AEC-Q200 Grade 0, 0603 CRCW0603442RFKEA Vishay-Dale

R6, R7, R8 3 RES, 10.0 k, 1%, 0.1 W, AEC-Q200 Grade 0, 0603 CRCW060310K0FKEA Vishay-Dale

R9, R10 2 RES, 100, 1%, 0.125 W, AEC-Q200 Grade 0, 0805 CRCW0805100RFKEA Vishay-Dale

R11 1 RES, 1.0 M, 5%, 0.063 W, AEC-Q200 Grade 0, 0402 CRCW04021M00JNED Vishay-Dale

R12 1 RES, 0, 5%, 0.063 W, 0402 RC0402JR-070RL Yageo America

SH1, SH2,

SH3, SH4 4 Shunt, 100mil, Gold plated, Black SNT-100-BK-G Samtec

TP1, TP2,

TP3 3 Test Point, Miniature, Yellow, TH 5004 Keystone

TP4 1 Test Point, Compact, Red, TH 5005 Keystone

TP5 1 Test Point, Compact, White, TH 5007 Keystone

TP6, TP7 2 Test Point, Miniature, Black, TH 5001 Keystone

U1 1 99dB SNR Stereo ADC with Single-Ended Inputs, PW0014A

(TSSOP-14) PCM1808PWR Texas Instruments

U2 1 Crystal Oscillator Driver, DCK0006A (SOT-SC70-6) SN74LVC1GX04DCKR Texas Instruments

U3 1 Single Output Low Noise LDO, 400 mA, Fixed 3.3 V Output,

1.7 to 5.5 V Input, with Reverse Current Protection, 5-pin

SOT-23 (DBV), -40 to 85 degC, Green (RoHS & no Sb/Br)

TPS73633DBVR Texas Instruments

Y1 1 Crystal, 12.288 MHz, 20 pF, SMD ECS-122.8-20-5PX-TR ECS Inc.

7 Related Documentation

1. Texas Instruments, PCM1808 Single-Ended, Analog-Input 24-Bit, 96-kHz Stereo ADC Data Sheet
