FPC401 and FPC402 Evaluation Module (EVM) User’s Guide

User's Guide

SNLU222B–December 2016–Revised September 2019

FPC401 and FPC402 Evaluation Module (EVM) User’s

Guide

The information and/or drawings set forth in this document and all rights in and to inventions disclosed

herein and patents which might be granted thereon disclosing or employing the materials, methods,

techniques, or apparatus described herein are the exclusive property of Texas Instruments. No disclosure

of information or drawings shall be made to any other person or organization without the prior consent of

Texas Instruments.

Contents

1 Hardware Description and Setup .......................................................................................... 2

1.1 Power Configuration................................................................................................ 2

1.2 Communication Protocol Configuration.......................................................................... 3

2 FPC401 EVM GUI Description and Setup................................................................................ 5

2.1 Installation ........................................................................................................... 6

2.2 Initializing Communication......................................................................................... 6

2.3 Local FPC Read and Write........................................................................................ 8

2.4 Remote Access on Downstream Modules....................................................................... 9

2.5 Input and Output Status and Configuration.................................................................... 10

2.6 Interrupt Configuration and Monitoring ......................................................................... 11

2.7 LED Configuration................................................................................................. 12

2.8 Prefetch Configuration............................................................................................ 13

2.9 Data-Driven Interrupt Configuration............................................................................. 14

2.10 Scheduled Write Configuration.................................................................................. 15

Trademarks

All trademarks are the property of their respective owners.

Hardware Description and Setup

www.ti.com

2SNLU222B–December 2016–Revised September 2019

Submit Documentation Feedback

FPC401 and FPC402 Evaluation Module (EVM) User’s Guide

1 Hardware Description and Setup

The general procedure for setting up the FPC401 and FPC402 Evaluation Modules (EVM) is described in

the following sections.

Figure 1. FPC40xEVM – Top and Bottom

1.1 Power Configuration

Configure the power illustrated by Figure 2.

1. If the LDO is used to power the FPC, enable the LDO through header J8 and connect the LDO output

to VDD1 using header J4 (note that each header connection is rated for 1 A of current). Make sure

headers J7 and J13 are disconnected. The LDO has a maximum rated current of 1.5 A, so if the

cumulative QSFP/SFP module current draw is greater than that, the LDO may not be used.

2. If the LDO is not used and the FPC is powered through an external supply, configure the J8 header to

disable the LDO and connect VIN to VDD1 using header J7 (note that each header connection is rated

for 1 A of current). Make sure headers J4 and J13 are disconnected.

3. If USB power is used to power the FPC, ensure the LDO and VIN and disconnected from VDD1

(disconnect headers J4 and J7). Connect the 3.3 V of the MSP430 microcontroller to VDD1 through

header J13. Note that a typical computer USB port is only able to supply up to 100 mA which will be

enough to power the FPC and passive modules (that is, DAC); but it will not be enough to power active

SFP+ and QSFP+ modules which are plugged in.

4. To set VDD2 to 3.3 V, connect it to VDD1 through header J2. To operate at lower host-side supply

voltages (down to 1.8 V), connect an external supply to the header or test point loop (TP3).

5. The FPC401EVM and FPC402EVM includes a TPS2561 power switch which is used to selectively

enable and disable 3.3-V power to the SFP and QSFP ports. The FPC controls this power switch with

its GPIO pins. To supply power to ports 0 and 1 (QSFP+ ports and LEDs), configure the FPC GPIO0

high logic output to enable the power switch. Similarly, configure GPIO1 to high logic to enable power

for ports 2 and 3 (SFP+ ports and LEDs). Alternatively, supply 3.3 V externally through the test points

(TP4 and TP5). Note that the ground is shared with the board.

6. GPIO2 and GPIO3 are connected to the fault outputs of the power switch, and hence should be set as

inputs or left unconfigured.

www.ti.com

Hardware Description and Setup

SNLU222B–December 2016–Revised September 2019

FPC401 and FPC402 Evaluation Module (EVM) User’s Guide

Figure 2. Power Block Diagram – Configured for LDO Use

1.2 Communication Protocol Configuration

The following sections describe how to configure the FPC401EVM and FPC402EVM for I2C and SPI

protocols.

1.2.1 I2C Configuration

For I2C communication with the onboard MSP430, refer to Figure 3 and configure the board based on the

following procedure.

1. Leave the PRTCL_SEL pin disconnected (header J3).

2. Connect the MSP430 SCL and SDA to the FPC SCL and SDA through header J12. The SPI header

(J9) should be disconnected.

3. Connect the 2.7-kΩpullup resistors through header J1.

4. Connect the VDD2 pin to the VDD1 pin through header J2.

5. Connect the ADDR_N pin to GND through header J2 with the provided jumper wire.

For I2C communication with an external host controller, disconnect the MSP430 SDA and SCL. Connect

the FPC SDA and SCL pins to the SDA and SCL pins of the host controller. Only connect the onboard

pullup resistors if the host board does not have pullups.

To control multiple EVMs, connect all the SDA and SCL pins together. Only one board should have the

MSP430 and pullup resistors connected to these pins. The ADDR_N of the first device should be tied to

GND as shown in Figure 3 . Connect DONE_N pin of the first device to the ADDR_N of the second

device, and the DONE_N pin of that device to the following device in a daisy-chained fashion until all

ADDR_N pins are connected. Connect the final DONE_N pin to GND. See the data sheet for more details

on how I2C is configured.

Figure 3. I2C Configuration

Hardware Description and Setup

www.ti.com

4SNLU222B–December 2016–Revised September 2019

Submit Documentation Feedback

FPC401 and FPC402 Evaluation Module (EVM) User’s Guide

1.2.2 SPI Configuration

For SPI communication with the onboard MSP430, refer to Figure 4 and configure the board based on the

following procedure.

1. Connect the PRTCL_SEL pin to GND through header J3.

2. Connect the MSP430 MISO, MOSI, SCK, and SS_N pins to the FPC MISO, MOSI, SCK, and SS_N

pins through header J9. The I2C header (J12) should be disconnected.

3. Connect the VDD2 pin to the VDD1 pin through header J2.

For SPI communication with an external host controller, disconnect the MSP430 MOSI, MISO, SCK, and

SS_N pins. Connect the FPC MOSI, MISO, SCK, and SS_N pins to the MOSI, MISO, SCK, and SS_N

pins of the host controller.

To control multiple EVMs with SPI, connect all the SCK and SS_N pins to a single MSP430 SCK and

SS_N pins. Daisy chain the MOSI and MISO pins so that the MOSI of the MSP430 connects to the MOSI

of the first device, the MISO of the first device connects to the MOSI of the second device, and so on, until

the final device's MISO connects to the MISO of the MSP430. See the data sheet for more details on how

SPI is configured.

Figure 4. SPI Configuration

www.ti.com

FPC401 EVM GUI Description and Setup

SNLU222B–December 2016–Revised September 2019

FPC401 and FPC402 Evaluation Module (EVM) User’s Guide

2 FPC401 EVM GUI Description and Setup

The FPC401 EVM GUI is used to program both FPC401EVM and FPC402EVM. The general procedure

for setting up the FPC401 GUI is described in the sections below.

Figure 5. FPC401 EVM GUI

FPC401 EVM GUI Description and Setup

www.ti.com

6SNLU222B–December 2016–Revised September 2019

Submit Documentation Feedback

FPC401 and FPC402 Evaluation Module (EVM) User’s Guide

2.1 Installation

The FPC401 EVM GUI has two installers. The Setup_FPC401_EVM.exe installer does not contain the

National Instruments Run-Time Engine and requires web access to download the NI run-time engine if the

computer does not already have this installed. The Setup_FPC401_EVM_with_RTE.exe installer is a

larger file that contains the run-time engine and does not require web access. Select the appropriate

installer and follow the installer wizard to install the FPC401 EVM GUI.

2.2 Initializing Communication

To initialize communication with the FPC401EVM, first select the number of FPC401s under FPC Count

and the protocol (I2C or SPI), highlighted by Figure 6. Click OPEN LINK to establish communication with

the MSP430 through USB and initialize the device. In I2C mode, this will configure the MSP430 and

automatically configure the I2C addresses of all connected FPC401s so that each one has a unique

address. In SPI mode, this will configure the MSP430 and establish the length of the SPI message. Each

time the hardware configuration changes, the link must be reestablished. For example, connecting

additional FPC401s or changing the communication from I2C to SPI requires the link to be reestablished.

The TOGGLE LED button will toggle the LED (D7) for a visual indication that the USB communication is

working. The text in the bottom of the GUI should say CONNECTED and turn green after USB

communication is established. Note that this means that the computer is communication with the MSP430

but does not necessarily mean that communication is established with the FPC401.

The CLOSE LINK button will terminate USB communication.

Figure 6. Communication Control

www.ti.com

FPC401 EVM GUI Description and Setup

SNLU222B–December 2016–Revised September 2019

FPC401 and FPC402 Evaluation Module (EVM) User’s Guide

The top right section of the GUI highlighted by Figure 7 controls the FPC(s) being programmed by all

controls in this GUI. The Instance # selects which FPC is being controlled, starting at instance 0. The Port

#selects which port is being configured, where 0 is the port 0 of FPC instance 0, and 4 is port 0 of FPC

instance 1. The Broadcast switch will broadcast commands to all FPCs if set to 1. Note that if a command

that targets a port is broadcasted, not all ports will be modified. Instead, only ports that match the local

port of the selected instance are modified. For example, broadcasting a command that targets port 5 (local

port 1 of instance 1) will affect ports 1, 5, 9, 13, and so forth.

Figure 7. FPC Instance and Port Selection

FPC401 EVM GUI Description and Setup

www.ti.com

8SNLU222B–December 2016–Revised September 2019

Submit Documentation Feedback

FPC401 and FPC402 Evaluation Module (EVM) User’s Guide

2.3 Local FPC Read and Write

To read and write to local FPC registers, select the Local Reads and Writes tab. Select the instance

number and register offset address to be read or written to. To write, select a value using the radio boxes

in the WRITE COMMAND section or type the desired hex value and click EXECUTE WRITE. To read,

click EXECUTE READ. The RESET FPC REGISTERS button will reset the instance's local FPC registers.

Note that performing a register reset in I2C mode will restore the default I2C address of the device and the

link must be closed and reopened to restore normal GUI operation.

Figure 8. FPC401 GUI – Local Reads and Writes

www.ti.com

FPC401 EVM GUI Description and Setup

SNLU222B–December 2016–Revised September 2019

FPC401 and FPC402 Evaluation Module (EVM) User’s Guide

2.4 Remote Access on Downstream Modules

To perform a remote access read or write on a downstream port, select the Downstream Reads and

Writes tab. Select the port number, downstream device I2C address, and register offset address. To write,

select a value using the radio boxes in the WRITE COMMAND section or type the desired hex value and

click EXECUTE WRITE. To read, click EXECUTE READ. The Set I2C Rate switch will toggle the I2C rate

of the downstream between 100 kHz (SFP) and 400 kHz (QSFP).

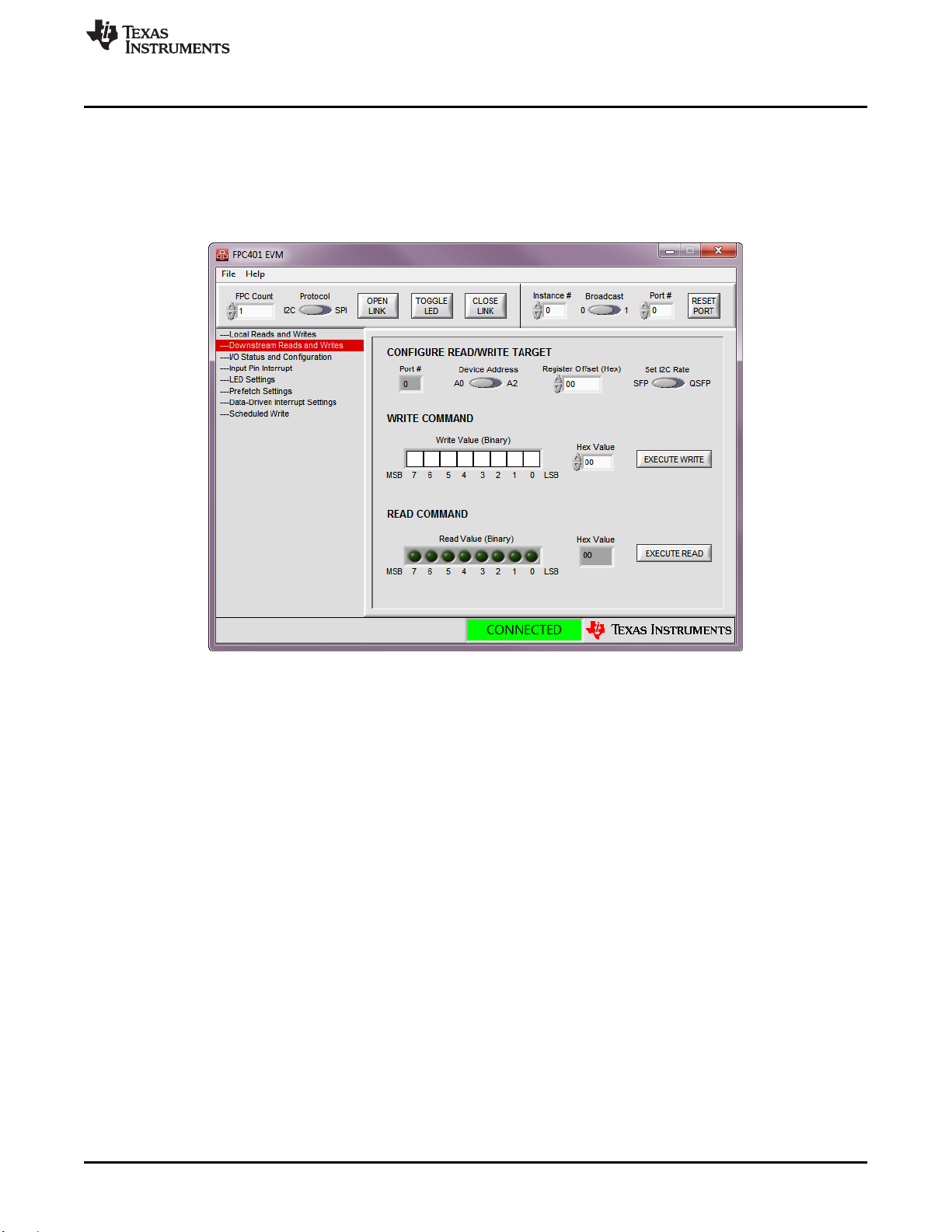

Figure 9. FPC401 GUI – Downstream Reads and Writes

FPC401 EVM GUI Description and Setup

www.ti.com

10 SNLU222B–December 2016–Revised September 2019

Submit Documentation Feedback

FPC401 and FPC402 Evaluation Module (EVM) User’s Guide

2.5 Input and Output Status and Configuration

To control the input, output, and GPIO pins, select the I/O Status and Configuration tab. The Enable

Periodic Update button will update the indicator of each input, GPIO, and output periodically set by the

Update Period (ms) slider. This will also update the Port's Aggregated Interrupt Flag which determines if

any interrupt of the selected port has been triggered. To modify the state of the GPIOs, modify the GPIO

0/1/2/3 Set drop-down menus and click SET GPIOS. To modify the state of the outputs, modify the OUT

A/B Set drop-down menus and click SET OUTPUTS.

Figure 10. FPC401 GUI – Input, Output, GPIO Status, and Control

Otros manuales para FPC401

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de Texas Instruments

Texas Instruments

Texas Instruments TMS320C6748 Manual de usuario

Texas Instruments

Texas Instruments bq20z65EVM-001 Manual de usuario

Texas Instruments

Texas Instruments TPS71533EVM Manual de usuario

Texas Instruments

Texas Instruments bq26220EVM-001 Manual de usuario

Texas Instruments

Texas Instruments INA190EVM Manual de usuario

Texas Instruments

Texas Instruments PCM4222EVM Manual de usuario

Texas Instruments

Texas Instruments ADS5231 EVM Manual de usuario

Texas Instruments

Texas Instruments TPS6101xEVM-157 Manual de usuario

Texas Instruments

Texas Instruments BOOSTXL-SENSORS BoosterPack Manual de usuario

Texas Instruments

Texas Instruments ADC12DJ3200 Manual de usuario

Texas Instruments

Texas Instruments TLV320AIC3109EVM-K Manual de usuario

Texas Instruments

Texas Instruments DRV10974 EVM Manual de usuario

Texas Instruments

Texas Instruments TPS53313 Manual de usuario

Texas Instruments

Texas Instruments TPS254900AQ1EVM-003 Manual de usuario

Texas Instruments

Texas Instruments 2000 series Manual de usuario

Texas Instruments

Texas Instruments TDC7200EVM Manual de usuario

Texas Instruments

Texas Instruments BoosterPack BOOSTXL-ADS7142-Q1 Manual de usuario

Texas Instruments

Texas Instruments TPS7A8300EVM-209 Manual de usuario

Texas Instruments

Texas Instruments LMX9838 Manual de usuario

Texas Instruments

Texas Instruments TUSB564RNQ Manual de usuario

Texas Instruments

Texas Instruments bq20z70EVM-001 Manual de usuario

Texas Instruments

Texas Instruments LM5156EVM-BST Manual de usuario

Texas Instruments

Texas Instruments TPS7B8401EVM Manual de usuario

Texas Instruments

Texas Instruments USB-C-PD-TKT-EVM Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
