Texas Instruments ADS5237 EVM Manual de usuario

ADS5231/32/37 EVM

User's Guide

November 2007 Wireless Infrastructure - Radio

SBAU111B

2 SBAU111B – May 2006 – Revised November 2007Submit Documentation Feedback

Contents
1 Overview .................................................................................................................... 51.1 Purpose............................................................................................................ 51.2 EVM Basic Functions ............................................................................................ 51.3 Power Requirements ............................................................................................ 51.4 ADS5231/32/37 EVM Operational Procedure ................................................................ 62 Circuit Description ...................................................................................................... 62.1 Schematic Diagram .............................................................................................. 62.2 Circuit Function ................................................................................................... 63 EVM Use With the TSW1100 ......................................................................................... 83.1 Connecting to the TSW1100.................................................................................... 83.2 Provide Power to the ADS5231/32/37 EVM .................................................................. 93.3 Providing Power to the TSW1100 ............................................................................. 93.4 Connecting to the USB .......................................................................................... 93.5 Launching the TSW1100 Software ............................................................................ 93.6 Using the TSW1100 Software .................................................................................. 94 Physical Description .................................................................................................... 94.1 PCB Layout ...................................................................................................... 105 Parts List and Schematics .......................................................................................... 16
SBAU111B – May 2006 – Revised November 2007 Table of Contents 3Submit Documentation Feedback

List of Figures

1 Top Layer .................................................................................................................... 102 Layer 2, Ground Plane .................................................................................................... 113 Layer 3, Power Plane #1 .................................................................................................. 124 Layer 4, Power Plane #2 .................................................................................................. 135 Layer 5, Ground Plane .................................................................................................... 146 Layer 6, Bottom Layer ..................................................................................................... 15

List of Tables

1 Three-Pin Jumper List ...................................................................................................... 62 Output Connectors J8 and J21 ............................................................................................ 83 Test Point Descriptions ..................................................................................................... 84 ADS5231/32/37 EVM Parts List .......................................................................................... 16

4List of Figures SBAU111B – May 2006 – Revised November 2007Submit Documentation Feedback

1 Overview

1.1 Purpose

1.2 EVM Basic Functions

1.3 Power Requirements

User's GuideSBAU111B – May 2006 – Revised November 2007

ADS5231/32/37 EVM

This preliminary user’s guide gives a general overview of the ADS5231/32/37 evaluation module (EVM),and provides a general description of the features and functions to be considered while using this module.

The ADS5231/32/37 EVM provides a platform for evaluating the ADS5231/32/37 dual, 12-bit,analog-to-digital converter (ADC) under various signal, reference, and supply conditions. This documentshould be used in combination with the EVM schematic diagram supplied.

Analog inputs to the ADC are provided via external SMA connectors. The single-ended input the userprovides is converted into a differential signal at the input of the device for both channels. Both analoginput channels of the ADS5231/32/37 EVM have two independent paths. One input path uses a differentialamplifier, while the other path is transformer-coupled.

The EVM provides an external SMA connector for input of the ADC clock. The single-ended input that theuser provides is transformer-coupled to provide a differential signal at both clock inputs of the device. TheEVM also allows the user to send a single-ended or true-differential clock if desired.

Digital outputs from the EVM are via two 40-pin connectors. The digital outputs from the ADC are bufferedbefore going to the connectors. The digital output connectors can be mated to TI's TSW1100 for digitalcapture.

Power connections to the EVM are via banana jack sockets. Separate sockets are provided for the ADCanalog and output driver supplies, external buffers supply, and differential amplifiers supply.

The EVM can be powered directly with only a single 3.3-V supply if using the module withtransformer-coupled input and internal reference mode. ±5 V is required if using the differential amplifierinput. A provision has been made to allow the EVM to be powered with independent analog and digitalsupplies to provide higher performance.

Voltage Limits

Exceeding the maximum input voltages can damage EVM components. Undervoltage may causeimproper operation of some or all of the EVM components.

SBAU111B – May 2006 – Revised November 2007 ADS5231/32/37 EVM 5Submit Documentation Feedback

www.ti.com

1.4 ADS5231/32/37 EVM Operational Procedure

*dBFS +20 logǒcaptured max code *captured min code

2NǓ,N is the number of bits

2 Circuit Description

2.1 Schematic Diagram

2.2 Circuit Function

Circuit Description

The ADS5231/32/37 EVM provides a flexible means of evaluating the ADS5231/32/37 in a number ofmodes of operation. A basic setup procedure that can be used as a board confidence check is as follows:1. Verify all jumper settings against the schematic jumper list in Table 1 :2. Connect supplies to the EVM as follows:•3.3-V ADC output buffer supply to J17 and return to J18.•3.3-V ADC analog supply to J11 and return to J10.3. Switch power supplies on4. Use a function generator with 50- Ωoutput to input a 45-MHz, 1.5-V offset, 3-V square-wave signal intoJ3. The frequency of the clock must be within the specification for the device speed grade. Caution:the ADS5231/32/37 does not work with a sinusoidal clock source.5. Use frequency generators with a 50- Ωoutput to provide a 10.1-MHz, 0-V offset, –1-dBFS amplitude,sine-wave signal into J15 and J16. This provides a transformer-coupled differential input signal to bothchannels of the ADC. A full-scale input tone into channel A or channel B can be calculated by usingthe following formula:

6. The digital patterns on output connectors J8 and J21 should now represent a sine wave and can bemonitored using a logic analyzer or TSW1100.

Table 1. Three-Pin Jumper List

Jumper Function Location: Pins 1- 2 Location: Pins 2-3 Default

W1 Reference select Internal reference External reference 1-2W2 Channel B output enable Output disabled Output enabled 2-3W3 Power down select Power-down mode Operate mode 2-3W4 Channel A output enable Output disabled Output enabled 2-3SJP1 Common-mode voltage-path provider Common-mode voltage to CHA Provide common-mode voltage 2-3differential amplifier to transformer T1W9 Invert most significant bit 2s complement Offset binary 2-3SJP3 Common-mode voltage path Provide common-mode voltage Provide common-mode voltage 2-3to CHB differential amplifier to transformer T2

The schematic diagram for the EVM is attached to the end of this document.

The following paragraphs describe the function of individual circuits. See the ADS5232 Dual, 12-Bit,65MSPS, +3.3V Analog-to-Digital Converter data sheet (SBAS294 ), the ADS5231 Dual, 12-Bit, 40MSPS,+3.3V Analog-to-Digital Converter data sheet (SBAS295 ), or the ADS5237 Dual, 10-Bit, 65MSPS, +3.3VAnalog-to-Digital Converter data sheet (SBAS420 ) for device operating characteristics.

6ADS5231/32/37 EVM SBAU111B – May 2006 – Revised November 2007Submit Documentation Feedback

www.ti.com

2.2.1 Analog Inputs

2.2.2 Clock Input

2.2.3 Control Inputs

2.2.3.1 Output Enable

2.2.3.2 MSB Control

2.2.3.3 Power Down

2.2.3.4 External Reference

2.2.4 Power

Circuit Description

The EVM can be configured to provide the ADC with either transformer-coupled or differential amplifierinputs from a single-ended source. The inputs are provided via SMA connectors J15 and J16 fortransformer-coupled input, and J1, J2, J7, and J9 for differential amplifier input. To set up for one of theseoptions, the EVM must be configured as follows:1. For a 1:1 transformer-coupled input to the ADC, a single-ended source is connected to J15 for channelA and J16 for channel B. R5, R6, R8, and R9 must not be installed. This is the default configuration forthe EVM.2. For single-ended inputs into the differential amplifiers, sources are connected to J2 for channel A andJ9 for channel B. R5, R6, R8, and R9 must be installed, and R74, R75, R78, and R79 removed.3. For a differential input into the amplifiers, the positive source of channel A is connected to J2 and thenegative source to J1. The positive source of channel B is connected to J9 and the negative source toJ7. R5, R6, R8, and R9 must be installed, and R74, R75, R78, and R79 removed. R19 and R22 mustbe replaced with 383- Ωresistors, and R12 and R14 must be replaced with 54.9- Ωresistors for propertermination.

To provide a clock to the ADS5231/32/37, apply a 3.3-V, 1.65-V offset, square-wave input to J3. This inputis terminated with a 50- Ωresistor to ground. Caution: the ADS5231/32/37 does not work with asinusoidal clock source.

The EVM has five discrete inputs to control the operation of the device.

With jumper W4 installed between pins 2 and 3, channel A of the ADC is enabled. This channel isdisabled with the jumper installed between pins 1 and 2. With jumper W2 installed between pins 2 and 3,channel B is enabled. Channel B is disabled with the jumper installed between pins 1 and 2.

With jumper W9 installed between pins 2 and 3, the outputs of the ADC are straight binary. The outputsare 2s complement with jumper W9 installed between pins 1 and 2.

With jumper W3 installed between pins 1 and 2, the ADC is in power-down mode.

With jumper W1 installed between pins 1 and 2, the ADC is in internal reference mode. The device is inexternal reference mode with jumper W1 installed between pins 2 and 3. When using the externalreference mode, install R3 and R4. Use the potentiometers R17 and R18 to adjust the corresponding topreference and bottom reference. For convenience, two test points, TP6 and TP7, allow monitoring thevoltage while using the external reference mode.

Power is supplied to the EVM via banana jack sockets. Separate connections are provided for a 3.3-Vanalog supply (J11 and J10), 3.3-V driver supply, external buffer supply (J17 and J18), and ±5-V amplifiersupply (J14, J13, and J12).

SBAU111B – May 2006 – Revised November 2007 ADS5231/32/37 EVM 7Submit Documentation Feedback

www.ti.com

2.2.5 Outputs

3 EVM Use With the TSW1100

3.1 Connecting to the TSW1100

EVM Use With the TSW1100

The data outputs from the ADC are buffered using two Texas Instruments SN74AVC16244s. Output dataheaders J8 and J21 are standard 40-pin headers on a 100-mil grid, and allow easy connection to a logicanalyzer or TSW1100. The connector pinout is listed in Table 2 . Furthermore, five test points are provided.They are listed in Table 3 .

Table 2. Output Connectors J8 and J21

DESCRIPTION DESCRIPTIONPIN NO. PIN NO.ADS5231/ADS5232 ADS5237 ADS5231/ADS5232 ADS5237

1 CLK OUT CLK OUT 2 GND GND3 NC NC 4 GND GND5 NC NC 6 GND GND7 NC NC 8 GND GND9 D11 (MSB) D9 (MSB) 10 GND GND11 D10 D8 12 GND GND13 D9 D7 14 GND GND15 D8 D6 16 GND GND17 D7 D5 18 GND GND19 D6 D4 20 GND GND21 D5 D3 22 GND GND23 D4 D2 24 GND GND25 D3 D1 26 GND GND27 D2 D0 (LSB) 28 GND GND29 D1 NC 30 GND GND31 D0 (LSB) NC 32 GND GND33 NC NC 34 GND GND35 NC NC 36 GND GND37 NC NC 38 GND GND39 NC NC 40 GND GND

Table 3. Test Point Descriptions

Test Point Function

TP1 GNDTP3 GNDTP4 GNDTP6 Bottom reference voltage when forcing external voltage (typical = 1 V)TP7 Bottom reference voltage when forcing external voltage (typical = 2 V)

The ADS5231/32/37 EVM allows for connection to the TSW1100, allowing easy capture and analysis ofthe ADC digital output data. See the TSW1100 Data Capture Board Quick Start Guide (SLAU155 ) andTSW1100 User’s Guide (SLAU164 ) for more information.

Gently insert the ADS5231/32/37 EVM output connectors J8 and J21 into the TSW1100 input connectorsJ2 and J1, respectively.

ADS5231/32/37 EVM8 SBAU111B – May 2006 – Revised November 2007Submit Documentation Feedback

www.ti.com

3.2 Provide Power to the ADS5231/32/37 EVM

3.3 Providing Power to the TSW1100

3.4 Connecting to the USB

3.5 Launching the TSW1100 Software

3.6 Using the TSW1100 Software

4 Physical Description

Physical Description

Follow the steps in Section 1.4 and power on the ADS5231/32/37 EVM.

Use either a wall-mount transformer that has an output rating of 12 VDC and 500 mA or a lab powersupply that can supply 12 VDC. Connect the output to J8 and the return to J9. Texas Instrumentsrecommends setting a current limit of 500 mA. Power on the TSW1100.

With the PC turned on, connect the USB cable from the PC to the TSW1100 USB connector, J10. At thispoint, the PC should recognize the TSW1100. To verify, go to the Hardware Device Manager, select USBDevice, and ensure the TSW1100 is listed as a USB device. At this point, LED D13 lights on theTSW1100, signaling that the device has been configured properly and is communicating with the PC. Thisshould be the only lighted LED. If at this point more than D13 is lighted, depress the reset switch, SW2, onthe TSW1100.

With the TSW1100 recognized by the hardware device manager, the software package can be run. To runthe program, click on Start →Program Files →Texas Instruments →TI ADC Capture Card.

Using the TI chip selector, select the ADS5231/32/37. The software then configures itself for operationwith the ADS5231/32/37 EVM. Fill in the appropriate fields describing the hardware setup conditions.When finished, acquire data by clicking on the red circular Acquire Data button.

This chapter describes the physical characteristics of the PCB, providing the layout of each board layer.

SBAU111B – May 2006 – Revised November 2007 ADS5231/32/37 EVM 9Submit Documentation Feedback

www.ti.com

4.1 PCB Layout

Physical Description

The EVM is constructed on a 6-layer, 5.15-inch ×5.05-inch, 0.062-inch thick PCB using FR-4 material.The individual layers are shown in Figure 1 through Figure 6 .

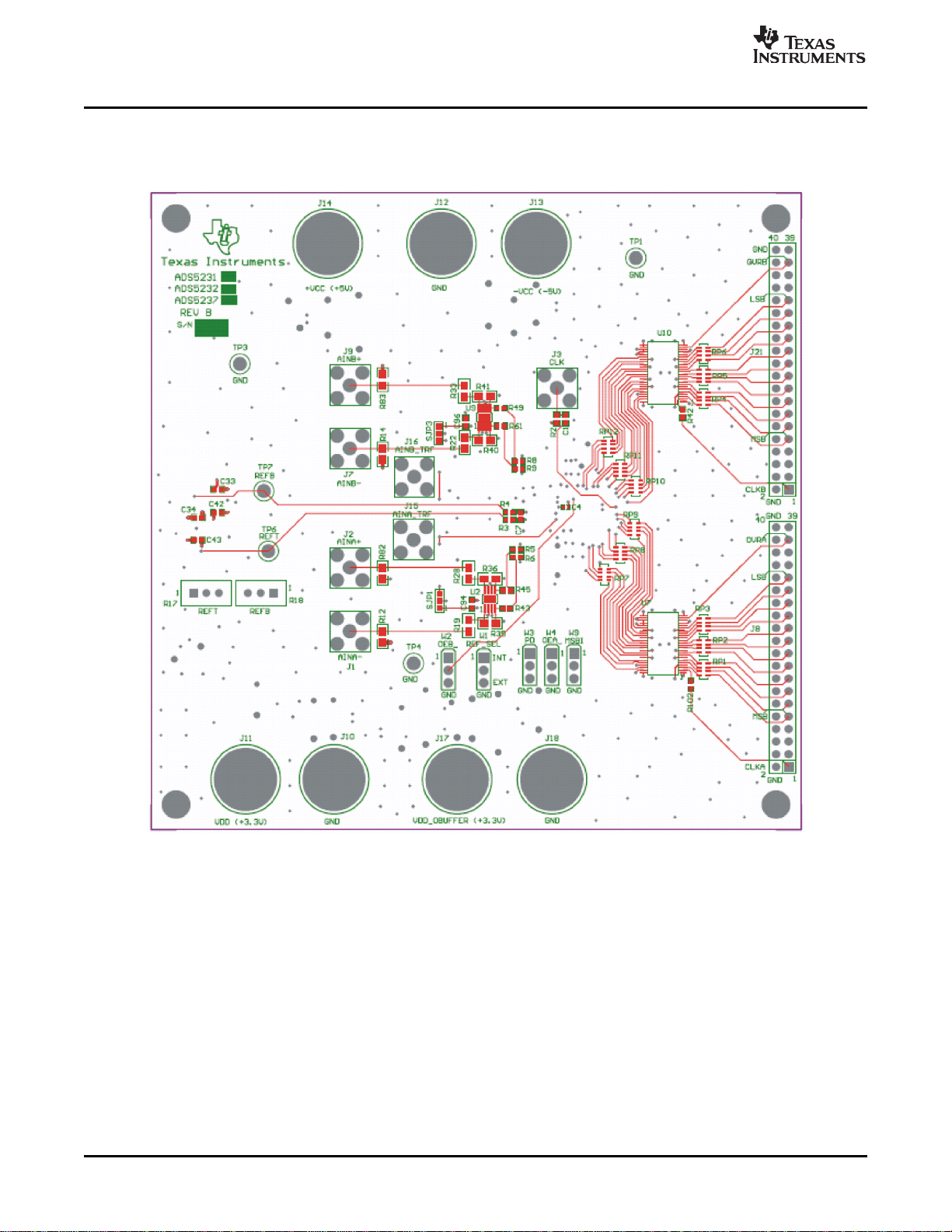

Figure 1. Top Layer

10 ADS5231/32/37 EVM SBAU111B – May 2006 – Revised November 2007Submit Documentation Feedback
