Bedienungsanleitung de

Instruction manual en

Mode d’emploi fr

Manual de instrucciones es

Manuale di istruzioni it

Manual de instruções pt

testo 510

1.888.610.7664info@Testo-Direct.com www.Testo-Direct.com

All manuals and user guides at all-guides.com

all-guides.com

Short manual testo 510 11

Short manual testo 510

Protection cap: Park position

Differential pressure sensor

nipple connection

Display

Control keys

Battery compartment, holding

magnets (on rear)

Basic ssettings

Instrument off >press and hold 2s > select with ( ),

confirm with ( ):

Unit of pressure/velocity: hPa, mbar, Pa, mmH2O, mmHg, psi, inH2O, inHG, m/s, fpm

>Density of the medium (Density) > Auto off function: OFF, ON

Switching tthe iinstrument oon

Press .

Switching tthe ddisplay llight oon((for 110s)

Instrument on > press

Select ddisplay mmode

Instrument on > select with :

Current reading > Hold: Readings are held > Max: Maximum values > Min: Minimum

values > Hold Avg: Timed mean value calculation, see below

Timed mmean vvalue ccalculation ffor fflow

Press several times, until Hold and Avg appear > Hold down

until ---- appears > Releasing starts mean value calculation,

the current readings are displayed > End measurement: press ,

the mean value is displayed.

Switching tthe iinstrument ooff:

Instrument on >press and hold 2s.

de

enfresitptsvnl????

1.888.610.7664info@Testo-Direct.com www.Testo-Direct.com

All manuals and user guides at all-guides.com

Safety and the enviroment12

Safety and the environment

About this document

iPlease read this documentation through carefully and

familiarise yourself with the product before putting it to use.

Keep this document to hand so that you can refer to it when

necessary. Hand this documentation on to any subsequent

users of the product.

iPay particular attention to information emphasised by the

following symbols:

Important.

Avoid personal injury/damage to equipment

iOnly operate the measuring instrument properly, for its

intended purpose and within the parameters specified in the

technical data. Do not use force.

iNever store the product together with solvents, acids or other

aggressive substances.

iOnly carry out the maintenance and repair work that is

described in the documentation. Follow the prescribed steps

when doing so. Use only OEM spare parts from Testo.

Strong magnets. Damage to other instruments!

iKeep a safe distance from products which could be damaged

by magnetism (e.g. monitors, computers, pacemakers, credit

cards).

Protecting the environment

iTake faulty rechargeable batteries as well as spent batteries to

the collection points provided for them.

iSend the product back to Testo at the end of its useful life. We

will ensure that it is disposed of in an environmentally friendly

manner.

1.888.610.7664info@Testo-Direct.com www.Testo-Direct.com

All manuals and user guides at all-guides.com

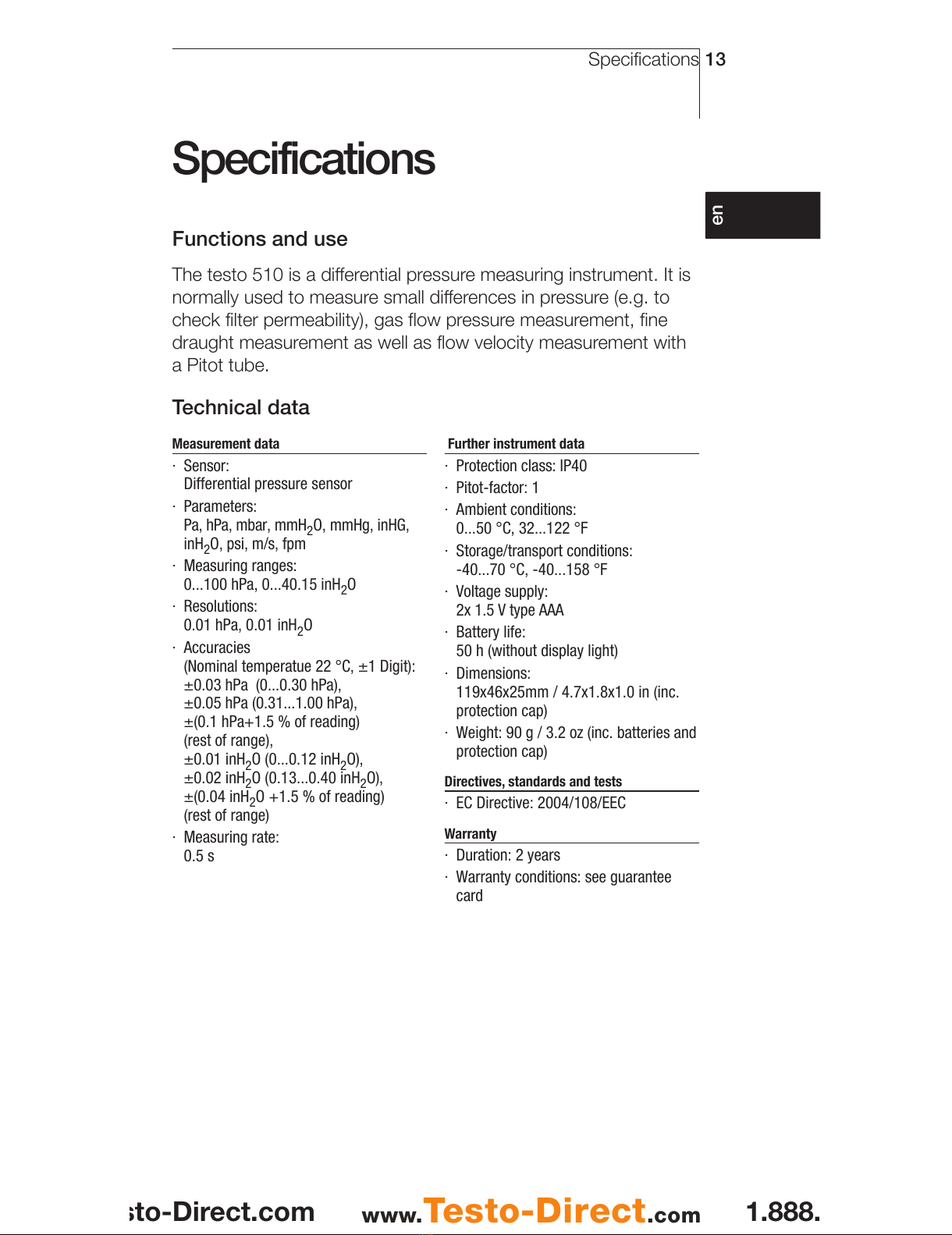

Specifications 13

Specifications

Functions and use

The testo 510 is a differential pressure measuring instrument. It is

normally used to measure small differences in pressure (e.g. to

check filter permeability), gas flow pressure measurement, fine

draught measurement as well as flow velocity measurement with

a Pitot tube.

Technical data

Measurement data

· Sensor:

Differential pressure sensor

· Parameters:

Pa, hPa, mbar, mmH2O, mmHg, inHG,

inH2O, psi, m/s, fpm

· Measuring ranges:

0...100 hPa, 0...40.15 inH2O

· Resolutions:

0.01 hPa, 0.01 inH2O

· Accuracies

(Nominal temperatue 22 °C, ±1 Digit):

±0.03 hPa (0...0.30 hPa),

±0.05 hPa (0.31...1.00 hPa),

±(0.1 hPa+1.5 % of reading)

(rest of range),

±0.01 inH2O (0...0.12 inH2O),

±0.02 inH2O (0.13...0.40 inH2O),

±(0.04 inH2O +1.5 % of reading)

(rest of range)

· Measuring rate:

0.5 s

Further instrument data

· Protection class: IP40

· Pitot-factor: 1

· Ambient conditions:

0...50 °C, 32...122 °F

· Storage/transport conditions:

-40...70 °C, -40...158 °F

· Voltage supply:

2x 1.5 V type AAA

· Battery life:

50 h (without display light)

· Dimensions:

119x46x25mm / 4.7x1.8x1.0 in (inc.

protection cap)

· Weight: 90 g / 3.2 oz (inc. batteries and

protection cap)

Directives, standards and tests

· EC Directive: 2004/108/EEC

Warranty

· Duration: 2 years

· Warranty conditions: see guarantee

card

de

enfresitptsvnl????

1.888.610.7664info@Testo-Direct.com www.Testo-Direct.com

All manuals and user guides at all-guides.com

Product description14

Product description

At a glance

Protection cap: Park position

Differential pressure sensor

nipple connection

Display

Control keys

Battery compartment, holding

magnets (on rear)

First steps

²Inserting bbatteries:

1To open the battery compartment, push the battery cover

down.

2Insert batteries (2x 1.5 V type AAA). Observe the polarity!

3To close the battery compartment, push the battery cover

back on.

²Basic ssettings ((configuration mmode):

Adjustable functions

· Unit of pressure/velocity: hPa, mbar, Pa, mmH2O, mmHg, psi, inH2O, inHG,

m/s, fpm

· Only if a unit of velocity is selected:

Density of the medium (Density): Adjust flashing numbers with , change to

the next number with .

· Auto off function: OFF, ON (instrument switches off automatically if no key is

pressed for 10 minutes)

1When switching the instrument on, press and hold until

and appear on the display (configuration mode).

- The adjustable function is displayed. The current setting

flashes.

2Press ( ) several times until the desired setting flashes.

3Press ( ) to confirm the input.

4Repeat steps 2and 3for all functions.

- The instrument changes to measuring mode.

1.888.610.7664info@Testo-Direct.com www.Testo-Direct.com

All manuals and user guides at all-guides.com

Using the product 15

Using the product

For velocity to be measured, the unit of density and density

value must be set correctly, see chapter 'First steps', section

'Basic settings (configuration mode)'.

²Switching tthe iinstrument oon:

iPress .

- Measuring mode is opened.

²Switching tthe ddisplay llight oon:

The instrument is switched on.

iPress .

- The display light goes out automatically if no key is

pressed for 10 seconds.

²Zeroing tthe mmeasuring iinstrument:

The measurement values can be falsified by a change in the

position of the measuring instrument. After zeroing, the

position of the measuring instrument must not be changed.

Carry out zeroing before every measurement in order to

compensate faulty positioning or long-term zero-point drift.

Zeroing is only possible in a range of 0...25% of the

measuring range.

The instrument can only be zeroed in the range up to

10 hPa.

iPress .

- Zeroing takes place.

²Changing tthe ddisplay vview:

Adjustable views

· Current reading

·Hold: Readings are held.

·Max: Maximum values since the instrument was last switched on or last reset.

·Min: Minimum values since the instrument was last switched on or last reset.

·Hold Avg: Timed mean value calculation, see below.

iPress several times until the desired view appears.

de

enfresitptsvnl????

1.888.610.7664info@Testo-Direct.com www.Testo-Direct.com

All manuals and user guides at all-guides.com

all-guides.com

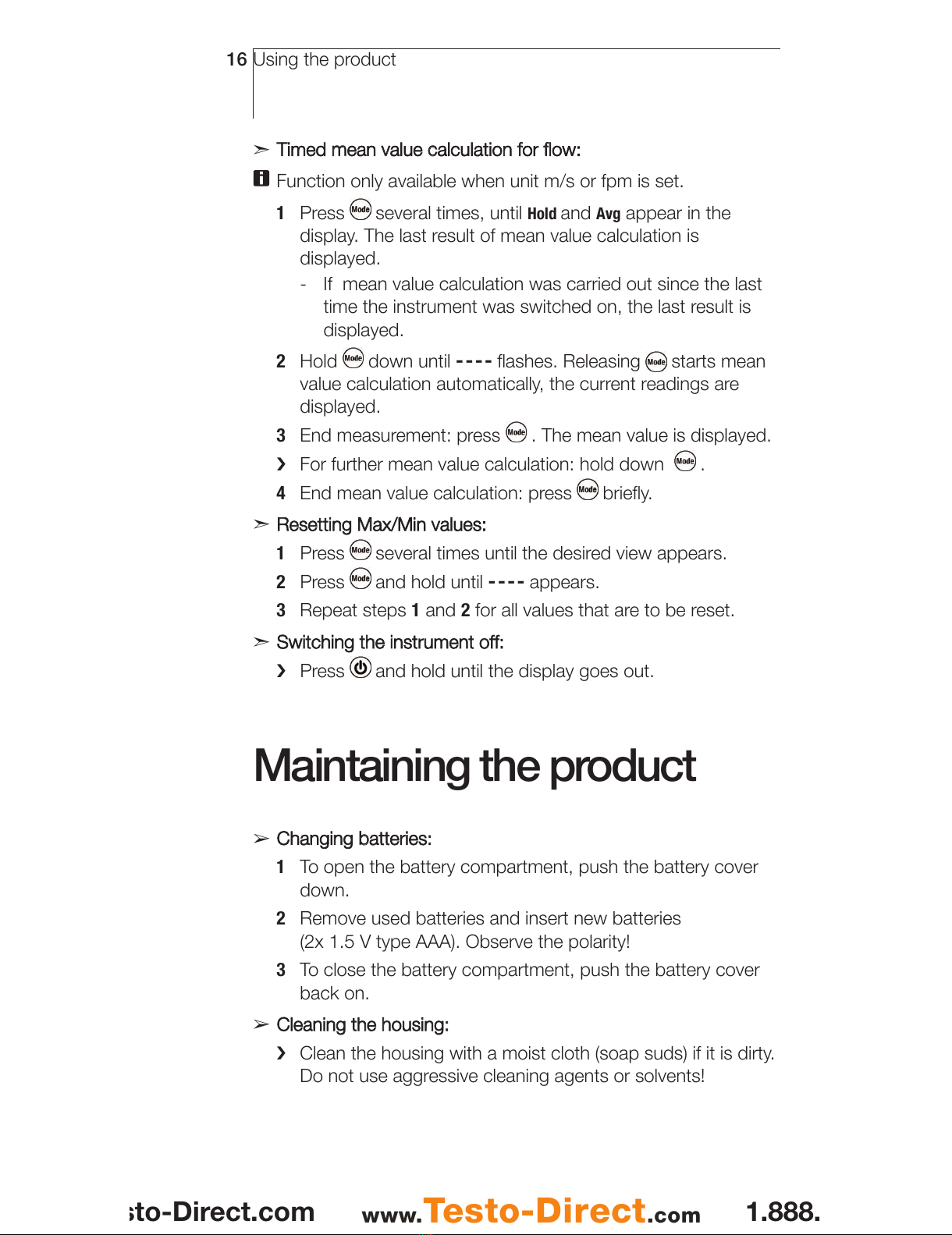

Using the product16

²Timed mmean vvalue ccalculation ffor fflow:

Function only available when unit m/s or fpm is set.

1Press several times, until Hold and Avg appear in the

display. The last result of mean value calculation is

displayed.

- If mean value calculation was carried out since the last

time the instrument was switched on, the last result is

displayed.

2Hold down until

---- flashes. Releasing starts mean

value calculation automatically, the current readings are

displayed.

3End measurement: press . The mean value is displayed.

iFor further mean value calculation: hold down .

4End mean value calculation: press briefly.

²Resetting MMax/Min vvalues:

1Press several times until the desired view appears.

2Press and hold until ---- appears.

3Repeat steps 1and 2for all values that are to be reset.

²Switching tthe iinstrument ooff:

iPress and hold until the display goes out.

Maintaining the product

±Changing bbatteries:

1To open the battery compartment, push the battery cover

down.

2Remove used batteries and insert new batteries

(2x 1.5 V type AAA). Observe the polarity!

3To close the battery compartment, push the battery cover

back on.

±Cleaning tthe hhousing:

iClean the housing with a moist cloth (soap suds) if it is dirty.

Do not use aggressive cleaning agents or solvents!

1.888.610.7664info@Testo-Direct.com www.Testo-Direct.com

All manuals and user guides at all-guides.com

Tips and assistance 17

Tips and assistance

Questions and answers

Question Possible causes/solutions

Hi or Lo · Readings outside the measuring range (too high, too

low): Keep to the permitted measuring range.

· Residual capacity <10 min: Change batteries.

If we could not answer your question, please contact your dealer

or Testo Customer Service. Contact details can be found on the

guarantee card or on the Internet at: www.testo.com

Accessories and spare parts

Accessories and spare parts can be found in the product

catalogues and brochures or in the internet at: www.testo.com

de

enfresitptsvnl????

1.888.610.7664info@Testo-Direct.com www.Testo-Direct.com

All manuals and user guides at all-guides.com

Notes18
