TESmart PKS0802A10 Especificaciones técnicas

www.tesmart.com

DP Dual Monitor KVM Switch

# PKS0802A10

DP Dual Monitor KVM Switch can easily integrate cross-platform computer devices. Our

Dual Monitor KVM Switch can help you add more inputs to your TV or AV receiver if you

have too many devices to manage. Each input device requires 2 DisplayPort inputs to

display to 2 monitors. Support 2 display mode, you can choose any connected PC to

duplicate or extend to 2 monitors, or switch any PC to display on any monitor at will. Support

DCCI, you can extend the connected PCs to up to 4 monitors using 2 of this KVM Switch.

Supports using USB hubs and USB keyboard and mouse. You can connect a printer, USB

drive, bar code scanner or other USB 2.0 devices to this KVM. This product also supports

several other switching modes. You can switch input ports with front panel button, IR signals

and keyboard hot keys.

Features

Using only 1 set of keyboard, mouse and 2 monitors to control 4 computers

Support 2 monitors to display the desktop of 1 computer or to display 2 desktops at the same

time.

Support Unix/Windows/Debian/Ubuntu/Fedora/Mac OS X/ Raspbian/Ubuntu for Raspberry

Pi and other Linux basic system

Support resolution up to 3840*2160@60HZ

Support hot plug, disconnect or connect devices to the KVM at any time without turning off

Support front panel button, keyboard hotkeys, IR remote control and RS232 to control KVM

Available to use keyboard and mouse without any delay after switching input sources

With extra USB 2.0 port, it is possible to connect bar code scanner, USB hard device or

other USB device

Support keyboard and mouse pass through mode to improve KVM compatibility

Support auto switch to monitor computers in a specified time interval

Support DCCI

Packing list

1 * Dual Monitor DP KVM Switch

1 * IR remote control

1 * IR Receiver cable

1 * DC 12V power adapter

1 * 3 Pins Connector(For RS232)

2 * Rack-ears

1 * AUX Cable

1 * User manual

www.tesmart.com

Panel Descriptions

Name

Description

DC 12V input

DC 12V power supply

RS232 port

Connect this port to any control termination, then it

is able to select the input sources by sending

RS232 commands

Ext.IR

For extended IR receiver cable input

L/R audio output

Analog audio output, connect to speaker

Standard USB 2.0 port

Connect to USB 2.0 devices, printers, USB drives

DCCI port

Used for product cascading to realize simultaneous

display of 4 monitors

Keyboard and mouse input

Connect to keyboard and mouse

HDMI output ports

Connect to DP displays

PC 4 Input

DP input A/B:Connect to the two outputs of the

same computer

USB:Connect to computer by USB Type A to Type

B cable

PC 3 Input

DP input A/B:Connect to the two outputs of the

same computer

USB:Connect to computer by USB Type A to Type

B cable

PC 2 Input

DP input A/B:Connect to the two outputs of the

same computer

USB:Connect to computer by USB Type A to Type

B cable

www.tesmart.com

PC 1 Input

DP input A/B:Connect to the two outputs of the

same computer

USB:Connect to computer by USB Type A to Type

B cable

Auto scan time interval

settings

[MIN]: Press [MIN] to loop between 0~59 minutes

[SEC]: Press [SEC] to loop between 0~59 seconds

[Set]: After setting minutes and seconds, press

button [Set] to enter final scan time interval setting

LED display

Display current selected input port

Status LED

Red: Turn off auto scanning mode

Green: Turn on auto scanning mode

IR receiver

Receive IR remote signal

Keypad

[1~4]: Press button[1]~[4] to directly select input

1~4

[Output A]: Keyboard and mouse focus on the

desktop of output A in the display mode 2

[Output B]: Keyboard and mouse focus on the

desktop of output B in the display mode 2

[Output A]+[1~4]: After pressing [Output A], then

press [1~4] to switch input sources of output A

[Output B]+[1~4]: After pressing [Output B], then

press [1~4] to switch input sources of output B

[Close]: Press this button to turn on or off the LED

display and monitor

[Scan]: Press this button to start or stop

automatically scanning between input1 to input8.

The interval time can be set by [Set], [MIN], [SEC]

as described above

Power switch

Turn on or turn off power supply

www.tesmart.com

Connection Diagram

www.tesmart.com

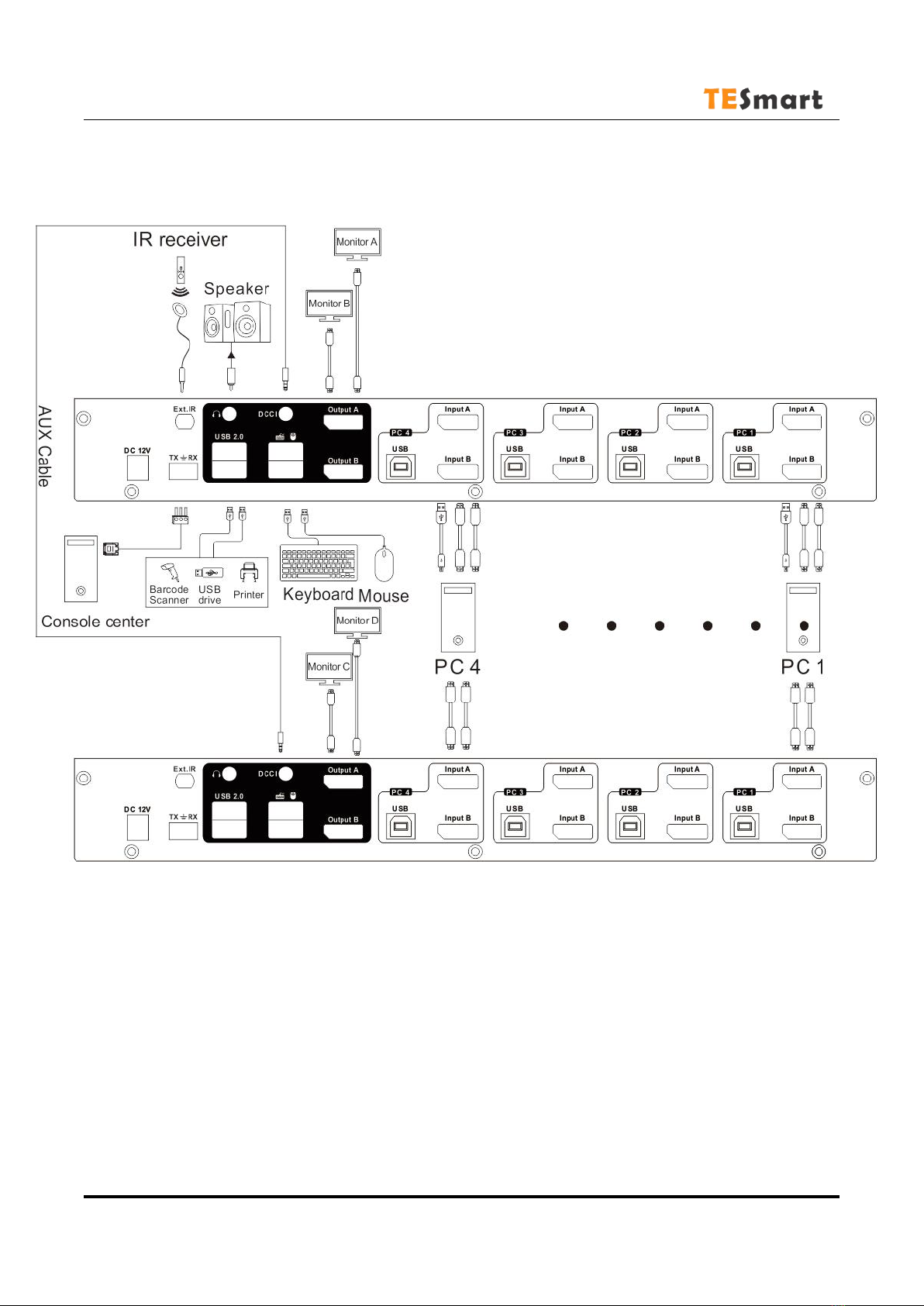

DCCI Connection Diagram

www.tesmart.com

Specification

PKS0802A10

DP Dual Monitor KVM Switch

Functionality:

Auto Scan

Yes

Port selection

Front panel buttons

Yes

Keyboard hotkeys

Yes

IR remote control

Yes

Console commands

RS232

Technical:

Max. Resolution

3840x2160@60Hz

Auto to get EDID

Yes

Data rate

18 Gbps

OSD

Supported OS

Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/

Raspbian /Ubuntu for Raspberry Pi and other Linux

based systems

Input ports

Video /Audio

8 * DP Type A

USB 2.0 Hub ports

3 * USB Type A

USB Data

4 * USB Type B

Output ports

Video /Audio

2 * DP Type A

USB 2.0 Hub ports

1 * USB Type A

Keyboard/Mouse

emulation

2 * USB Type A

L/R audio output

2*AUX

DCCI output

1*AUX

Ext.IR

1*AUX

RS232

3 Pins jack

ESD protection

Human body model - ±8kV (Air-gap discharge)

Mechanical:

Chasing material

Metal

Product

Dimension

350 (L) x 149 (W) x 44.5 (H) mm

Weight

1268g

Item

Dimension

397 (L) x 197(W) x 107 (H) mm

Weight

2764g

Carton

Dimension

505 (L) x 280 (W) x 395 (H) mm

Quantity

4pcs

Total Weight

11.806kg
