TerraTrike EVO Manual

www.TerraTrike.com | 800.945.9910

Revised 6/2022

Build Notes

www.TerraTrike.com | 800.945.9910

Caution: Boom and main frame are

connected by the battery wire. Move both

pieces together so the battery wire does not get

damaged.

Look through entire setup guide before

beginning.

Small parts box:

x 1 x 2

Speed Sensor Magnet Lock Keys

www.TerraTrike.com | 800.945.9910

REVISIONS

REV

DESCRIPTION

DATE

APPD.

INITIAL RELEASE

6/11/2021 AM

UPDATED COMPONENT DESCRIPTION

8/30/2021 AM

WH000059 ADDED TO ASSEMBLY

1/31/2022

ITEM NO.

PART NUMBER

DESCRIPTION

QTY.

TT000854

CLAMP, ACCESSORY MOUNT 7/8"

TT000851

EVO DISPLAY MOUNT RISER

WH000006

M4x.7 X 6mm SBHCS SS

WH000002

M5x.8 X 18mm SBHCS SS

TT000906

BOSCH, KIOX DISPLAY BRACKET

WH000059

M4x0.7x6mm Flat Head SS

A A

B B

SEE COMPONENT LEVEL

TT KIOX DISPLAY MOUNT ASM

DO NOT SCALE DRAWING

TT600903

SHEET 1 OF 1

SCALE: 1:2

REV

Part Number:

SIZE

DESCRIPTION:

NAME

DATE

APPROVED

DRAWN BY

N/A

FINISH

MATERIAL

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WIZWHEELZ INC.

ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT WRITTEN PERMISSION IS PROHIBITED.

THIRD ANGLE PROJECTION

UNLESS OTHERWISE SPECIFIED:

DIMENTIONS ARE IN MILLIMETERS

UNSPEDIFIED TOLERANCES:

ANGULAR: MACH

.5° BEND

1°

LINEAR: .X

1.0

.XX

0.4

.XXX

0.13

ADAM M

12/10/2020

Speed Sensor Bracket

Kiox Display

www.TerraTrike.com | 800.945.9910

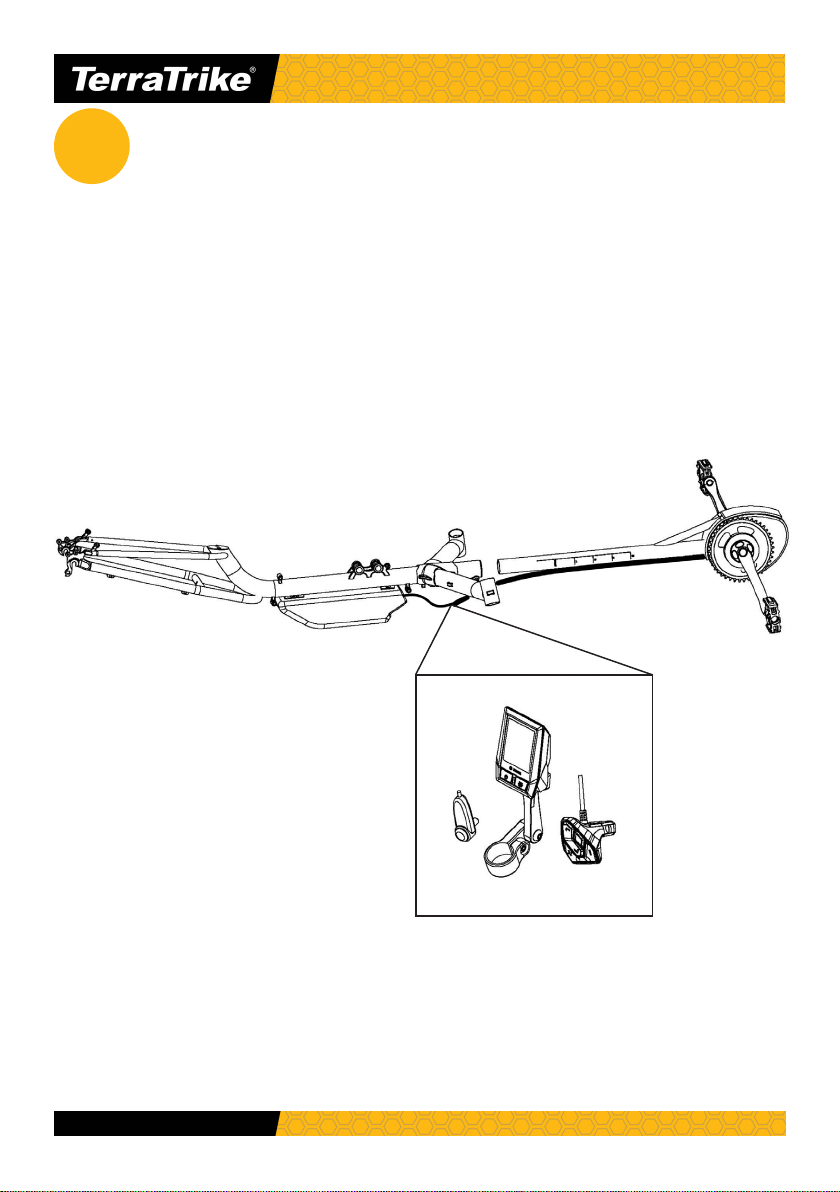

Using caution to not stress wires,

insert boom to desired length and snug boom

pinch bolts to secure boom.

Speed Sensor, Kiox Display and Controller will be

hanging loose.

www.TerraTrike.com | 800.945.9910

2Apply cable guide to bottom side of right

outrigger.

www.TerraTrike.com | 800.945.9910

Install computer sensor bracket.

Mount speed sensor on computer sensor

bracket.

Refer to Step 6 for proper wire routing.

Install magnet on spoke.

Align magnet and marking on speed sensor.

Ensure speed sensor wire is clear of brake rotor

and any steering parts that could cause damage.

www.TerraTrike.com | 800.945.9910

Attach computer mount to left handlebar.

Refer to Step 5 for proper wire routing.

Mount Kiox Display and secure.

www.TerraTrike.com | 800.945.9910

Route wires according to diagram (underside of

trike frame).

Kiox cable should follow brake cable routing.

Use the cable housing guide under the center

lug of the frame to secure excess wires with

ziptie.

Kiox

cable

Speed sensor

cable

www.TerraTrike.com | 800.945.9910

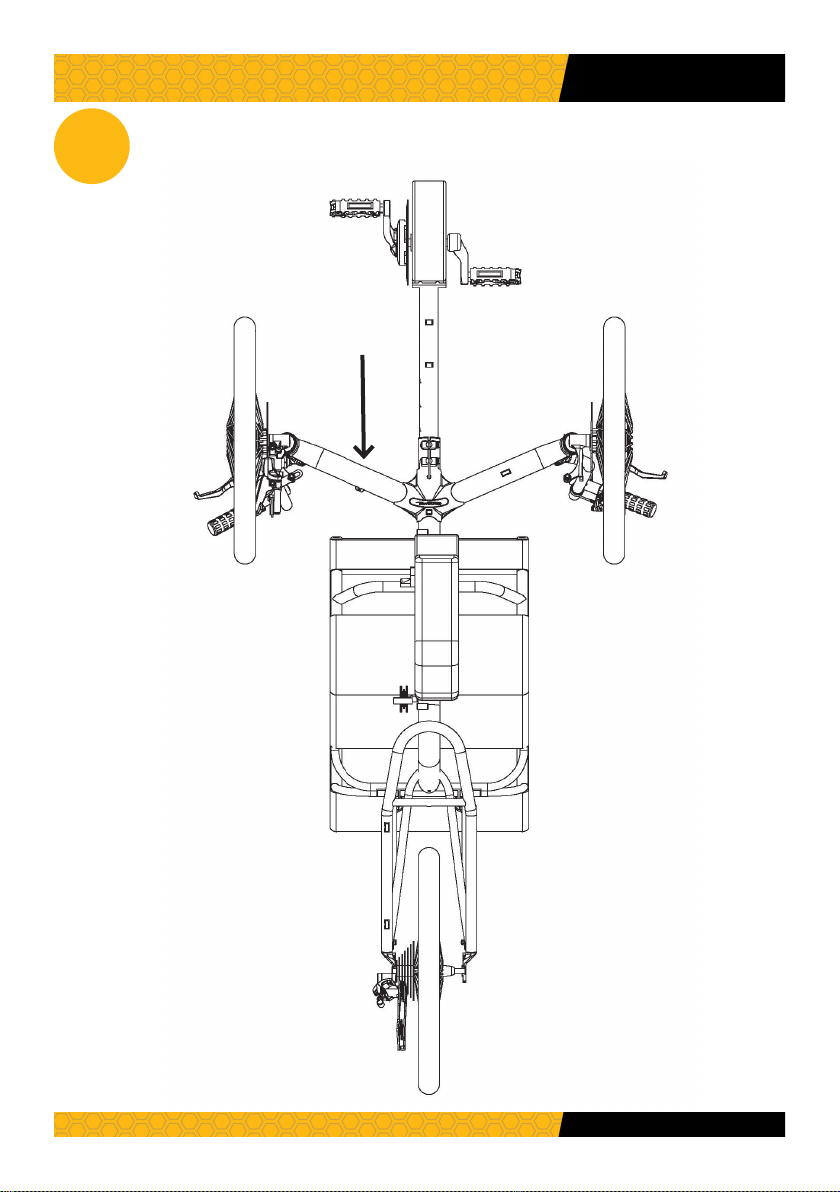

Inate tires before performing alignment. The E.V.O.

alignment measurement is approximately 295/8inches

(center tread to center tread), though slight variance

is possible. Most importantly, make sure the alignment

remains neutral with a rider seated in the trike.

Alignment

295/8

www.TerraTrike.com | 800.945.9910

Hybrid Steering Stack Assembly*

Assemble the steering stack as shown. Grease the steerer tube before

inserting into head tube. Remove any excess grease from steerer tube

before installing handlebar. Grease axle before installing wheel. Torque axle

to 23-25Nm.

*Right Hand assembly depicted. Some components can be purchased

individually as well as in pairs, see parts list below.

1 M6x30 Bolt TT000576

2Hybrid Top Cap TT000506

3Trigger Handlebar - RH TT000649

Trigger Handlebar - LH TT000650

Trigger Handlebar - Pair TT000514

M5x20 Bolt - 2qty (not pictured)

TT000301

4Hybrid Headset Spacer TT000520

5 Hyrbid Headset Cap TT000505

6 Bushing (pre-installed)

TT000809

7Hybrid Headset Cup (pre-installed) TT000602

8 Hybrid Headset Bearing TT000600

9 Rapid Axle Hubmount - RH TT000713

Rapid Axle Hubmount - LH TT000714

Rapid Axle Hubmount - Pair TT000516

10 Rapid Axle - RH TT000717

Rapid Axle - LH TT000718

Rapid Axle - Pair TT000563

11 Axle Spacer TT000568

Parts List
