Teledyne Quasar Premium Manual de usuario

CM-640x-11-I Quick Install Guide Revision 150

December 2022

This document does not contain any export-controlled information.

Quasar™ Premium

Mini-Dome Cameras

Quick Install Guide

1 Check Contents

Make sure all of the items above are included in the camera kit.

2 Select a Location

Warnings

Placing a camera in an environment subject to extremely high temperature

can result in an explosion or the leakage of flammable liquid or gas.

Subjecting the camera to extremely low air pressure can result in an explosion

or the leakage of flammable liquid or gas.

The camera must be installed by qualified personnel and the installation

should conform to all local codes.

Verify that the operating temperature falls within the following ranges, with 10-90%

non-condensing humidity:

Without heater: -30° C to 60° C (-22° F to 140° F)

With heater: -55° C to 60° C (-67° F to 140° F)

Cold start with heater: -40° C to 60° C (-40° F to 140° F)Make sure you have the

required accessories and tools.

Make sure that the location provides a suitable method for routing cables to and

from the camera.

CM-640x-11-I Quick Install Guide Revision 150

December 2022

This document does not contain any export-controlled information.

Supplying Power to the Camera

The camera can be powered by:

A UL-listed L.P.S. (Limited Power Supply) unit, rated to a maximum temperature

of 60° C:

o12VDC, 1.21A minimum

o24VAC, 50/60Hz, 1.2A minimum

PoE (Power over Ethernet): 48 VDC, 0.27A minimum

Maximum Power Consumption with Heater and IR

CM-6405-11-I

12.5 W

CM-6408-11-I

11.5 W

For assistance with purchasing a power supply, contact Teledyne FLIR.

3 Remove Cover and Separate Base

Tip

When unpacking the camera, do not remove the plastic sheet

protecting the dome.

To remove the dome cover:

a. Using the Torx wrench, loosen the screw on the camera's outer circular ring

that secures the dome cover to the camera base.

b. While firmly holding the base, rotate the ring counterclockwise to loosen it.

c. Carefully pull the ring and cover away from the base.

Outer Ring Locking Screw

Loosen Ring

To separate the camera base from the mounting bracket:

a. Using a screwdriver, loosen the two twist-lock screws securing the camera and

its base to the mounting bracket.

b. Gently pull the camera and its base away from the mounting bracket.

Change the number of LEDs (optional)

The camera has a total of eight IR LED illuminators. On the 3D lens assembly,

there is a switch that enables four (left when switch faces up) or all eight (right;

default). With the dome cover removed, you can change the switch setting.

CM-640x-11-I Quick Install Guide Revision 150

December 2022

This document does not contain any export-controlled information.

Separate Base from Bracket

Switch in 8 LED Position

4 Connect the Camera

To install the camera, Teledyne FLIR recommends connecting the camera on a

bench or in a lab and configuring it for networking before mounting and aiming it.

However, circumstances can dictate adjusting the sequence of the steps. For

example, you can mount the camera before configuring it for networking, or

connect the camera before mounting it.

Warning

The camera itself does not have a power on/off switch. Do not

supply power to the camera until you have completely finished

connecting it.

Connectors

Connector

Connection

RJ-45

Two LEDs

Attach a Cat 6 cable from the network switch to the RJ45 connector for a

10/100/1000 Mbps Ethernet and IEEE 802.3af class 0 PoE connection.

Ethernet is required for streaming video and for configuring the camera.

The green link LED indicates a good network connection. The orange

activity LED flashes to indicate network activity.

Warning

The PoE unit and all interconnected equipment must be installed

indoors within the same building, including all PoE-powered network

connections, as described by Environment A of the IEEE 802.3af

standard.

CM-640x-11-I Quick Install Guide Revision 150

December 2022

This document does not contain any export-controlled information.

Connector

Connection

Four-pin

power

terminal

block

24VAC -

12VDC -

If using a 24VAC or 12VDC power

supply, connect it to the power

terminal block connector according

to the pin assignment shown.

24VAC +

12VDC +

Warning

The power cord to the 12VDC or 24VAC power supply unit must be

connected to a socket outlet with an earthing connector.

Default

Button

To restore the camera to its factory defaults, use a proper tool to press

the default button for at least 20 seconds.

USB

Connects to Wi-Fi dongle (future release support)

microSD

Card Slot

For video clip and snapshot recording and file storage, insert a

microSD / SDHC / SDXC card (maximum 1 TB) in the card slot. When

the camera is powered on, do not remove the microSD card.

Nine-pin

terminal

block

Audio In L

Alarm Out +

Attach wires from external devices

to the terminal block connector for

alarm and audio in/out according to

the pin assignment shown.

Audio In R

Alarm Out -

GND

Alarm In +

Audio Out L

Alarm In -

Audio Out R

Warnings

Do not connect an external power supply to the nine-pin audio/alarm I/O

terminal block connector.

This product contains a battery that is soldered to the PCB. There is a risk of

explosion if the battery is replaced by an incorrect type. Do not replace the

battery. The battery should be disposed of in accordance with the battery

manufacturer’s instructions.

Tip

To make it easier to mount and install the camera, while the camera is on the

bench or in the lab, you can connect Ethernet and other cable patch cords to the

camera's connectors and route them through the grommets on the base and

through the mounting bracket. Then, you'll be able to mount and install the

camera without separating the camera base from the mounting bracket a second

time.

5 Configure for Networking

To discover the camera on the network, Teledyne FLIR recommends using the

FLIR Discovery Network Assistant (DNA) tool, which does not require a license to

use, and is a free download from the product's web page on the Teledyne FLIR

website. After downloading the DNA ZIP file, extract it.

Users assigned the Admin privilege level can configure the camera using the DNA

tool, the camera's web page, or a supported VMS.

CM-640x-11-I Quick Install Guide Revision 150

December 2022

This document does not contain any export-controlled information.

DNA tool

Camera's web page

Discover camera IP address

•

Configure IP address, mask, and gateway

•

Configure DNS settings, MTU, and Ethernet speed

•

Change user credentials

•

Change video format

•

Configure more than one camera at the same time

•

For information about using the DNA tool to configure one or more cameras, see

the DNA User Guide. While the software is open, click the Help icon .

For information about using the camera's web page to configure the camera, see

the camera's installation and user guide. For information about using a supported

VMS to configure the camera, see the VMS documentation.

By default, DHCP is enabled on the camera and a DHCP server on the network

assigns the camera an IP address. If the camera cannot connect to a DHCP

server, the camera’s default IP address is 192.168.0.250. For example, if the

camera is managed by FLIR Horizon or Meridian VMS and the VMS is configured

as a DHCP server, the VMS automatically assigns the camera an IP address.

If the camera is managed by FLIR Latitude VMS or is on a network with static IP

addressing, you can manually specify the camera’s IP address using the DNA tool

or the camera's web page.

To manually specify the camera's IP address using the DNA tool:

a. Make sure the camera and the PC are on the same LAN segment.

b. Run the DNA tool (DNA.exe) by double-clicking .

The Discover

List appears,

showing

compatible

devices on the

LAN segment

and their

current IP

addresses.

c. In the DNA Discover List, verify that the camera's status is Online.

If this is the first time you are configuring the camera or if it is the first time after

resetting the camera to its factory defaults, DNA authenticates the camera with

user name admin using its default password (admin).

If the admin user's password is not the default password, you need to

authenticate the camera.

1. In the DNA Discover List, select the camera and then click Login.

CM-640x-11-I Quick Install Guide Revision 150

December 2022

This document does not contain any export-controlled information.

2. In the DNA - Login window, type a

user name for a user assigned Admin

privileges and the password. If you

do not know this information, contact

the person who configured the

camera's users and passwords.

3. Click Login, wait for Ok status to

appear, and then click Close.

d. Verify that the camera's Login status is Authenticated.

e. Change the camera’s IP address.

1. Right-click the camera and select IP

Setup.

2. In the DNA - IP Setup window, clear

Use DHCP and specify the camera's IP

address. You can also specify the Mask

(default: 255.255.255.0) and Gateway.

Then, click Update, wait for Ok

status to appear, and then click Close.

6 Change Video Format (Optional)

By default, NTSC is the camera's video format.

You can change the camera's video format to

PAL using the DNA tool.

a. In the DNA Discover List, right-click the

camera and select Change Video Format.

b. In the Change Video Format window,

select PAL. If Shutter WDR 30 FPS NTSC

is the camera's current video format, this

changes the camera's video format to

Shutter WDR 25 FPS PAL. Likewise, if Linear 60 FPS NTSC is the camera's

current video format, this changes the camera's video format to Linear 50 FPS

PAL.

c. Click Update, wait for Ok status to appear, and then click Close.

7 Re-attach Cover

To prevent damaging the camera's internal components while moving it from the

bench or lab to its mounting location, re-attach the dome cover to the base and

then remove it again at the mounting location.

Before doing so, you can re-attach the camera base to the mounting bracket. Use

a screwdriver to tighten the two twist-lock screws securing the camera and its

base to the mounting bracket. If you do not re-attach the camera base to the

mounting bracket, remember to bring the screwdriver to the mounting location.

To re-attach the dome cover:

a. Using the two guide pins on the dome cover and the triangles on the cover and

on the base, carefully align and position the dome cover and outer ring onto the

base.

CM-640x-11-I Quick Install Guide Revision 150

December 2022

This document does not contain any export-controlled information.

b. Make sure the outer ring sits flat on the base. Then, securely tighten the outer

ring.

c. Lock the ring. Using the Torx wrench, tighten the screw on the outer ring that

secures the outer ring to the base.

8 Install Mounting Hardware (Optional)

Using the hardware included in the camera kit, you can mount the camera onto a

standard electrical box or onto a suitable surface. For information about other

mounting options, including the list of Teledyne FLIR mounting accessories that

support the camera, see the camera's installation and user guide.

If you are using mounting hardware not included in the camera kit, install it

according to the installation instructions for the hardware. If necessary, adapt the

instructions in this guide to those instructions.

9 Remove Cover and Separate Base

Repeat the steps described in 3 Remove Cover and Separate Base.

10 Install Mounting Bracket

To install the mounting bracket on a standard electrical box:

Attach the bracket to the box using:

The holes in the mounting bracket,

according to the types of boxes engraved on

the bracket

The corresponding holes in the box

Suitable bolts, washers, and nuts (not

included in the camera kit)

To install the mounting bracket directly on

a surface:

a. Choose four widely spaced mounting holes

on the bracket for optimum flat surface mounting.

b. Using the bracket as a template to mark the surface, drill four anchor holes.

c. (Optional) If necessary, drill a hole wide enough for routing cables.

d. Hammer the four plastic screw anchors into the drilled holes.

e. Insert the anchors and then attach the bracket to the surface using the four M4

25mm self-tapping screws included in the camera kit.

When tightening the screws, the holes in the mounting plate allow for making small

adjustments to the bracket's position.

CM-640x-11-I Quick Install Guide Revision 150

December 2022

This document does not contain any export-controlled information.

11 Route Cables and Connect the Camera

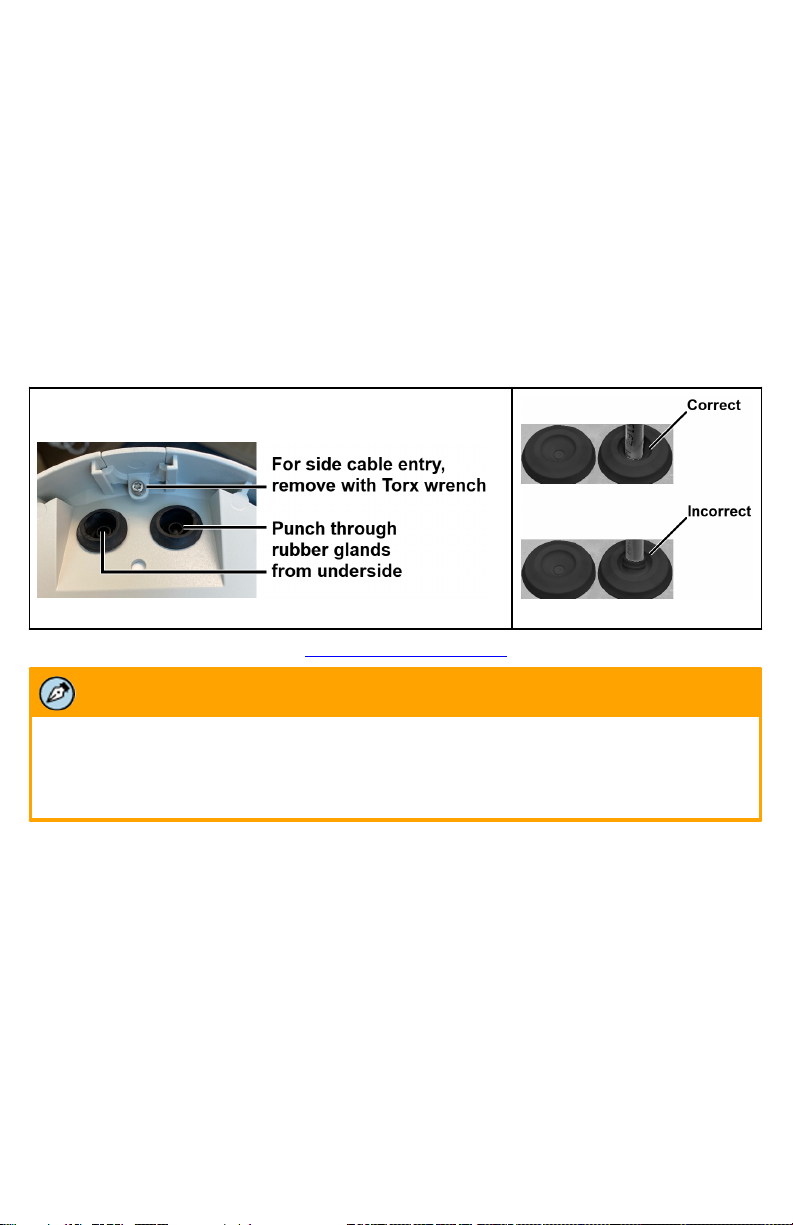

Cables can enter the camera from the side or from the rear. To route cables

through the side of the camera, use the Torx wrench to loosen the screw securing

the side conduit hole cover and remove the hole cover. Then, route cables through

the hole. To route cables through the rear of the camera, route cables through the

hole in the mounting bracket.

To route cables into the camera base:

a. For each cable, use the Torx wrench to punch a hole in the center of the rubber

glands in the the camera's base, from the underside.

b. Route the cable through the hole in the grommet.

To route an Ethernet cable with an RJ45 plug attached, attach the supplied

RJ45 insertion tool to the RJ45 plug. Then, route the tool, plug, and cable

through the grommet. Remove the tool.

c. Push the cables back through the seal so that the seal extends out of the base.

Inside base

According to the information in 4 Connect the Camera, connect the camera.

Note

Connect the camera to a 24VAC or PoE power source as the primary power

source, and then connect 12VDC as the secondary power source. If the primary

power source fails, the camera seamlessly switches to 12VDC until the primary

power source is restored.

12 Mount and Aim the Camera

a. Make sure that the camera is facing the required field of view. Then, carefully

re-attach the camera base to the mounting bracket. Use a screwdriver to

tighten the two twist-lock screws securing the camera and its base to the

mounting bracket.

b. Aim the camera, which has three axes for adjusting the field of view:

oPan adjustment – Rotate the lens base until satisfied with the field of view.

oTilt adjustment – Loosen the screw locking the camera lens in its tilt angle. Tilt

the lens until satisfied with the field of view. Then, tighten the screw.

oLens rotation – Rotate the 3D assembly in the lens until satisfied with the field

of view.

CM-640x-11-I Quick Install Guide Revision 150

December 2022

This document does not contain any export-controlled information.

Aiming the Camera

Caution

Do not rotate or tilt beyond the mechanical limits for each axis:

Pan adjustment range: 356°

Tilt adjustment range: ±80°

Lens rotation range: ±98° – Rotating the 3D assembly in the lens beyond

its mechanical limit can twist, disconnect, or break the camera's internal

cables.

At the camera's widest view (zoom = 1x) and

at certain tilt / rotation angles, a small part of

the camera can appear in the far upper-left

corner of the field of view.

Tilt angle

Lens rotation

angle range

20°

30°~45°

10°

10°~45°

c. Repeat the steps described in 7 Re-attach Cover.

13 Complete Camera Setup

Depending on installation and use, completing camera setup can consist of

adjusting the camera's zoom and focus; and formatting the microSD card.

To complete camera setup, you need to access the camera's web page, which

supports the latest version of Google Chrome® and other popular web browsers.

To access the camera's web page:

a. Do one of the following:

oIn the Teledyne FLIR Discovery Network Assistant

(DNA) tool, double-click the camera in the Discover

List.

oType the camera’s IP address in a browser’s address

bar (when the PC and the camera are on the same

network). If you do not know the camera's IP address,

you can use the DNA tool to discover it.

b. On the login screen, enter a user name and the password. Passwords are

case-sensitive. If you do not know a user name or the password, contact the

person who configured the camera's users and passwords.

CM-640x-11-I Quick Install Guide Revision 150

December 2022

This document does not contain any export-controlled information.

When logging in to the camera for the first time or for the first time after

resetting the camera to its factory defaults:

1. Log in with user name admin and the default password, admin.

2. Specify a new password for user name admin:

omust be 8-64 characters

ocan include the following special characters: @#~!$&<>+_-.,*?

ocannot include four-digit sequences (for example, 1234)

ocannot include four repeating characters (for example, aaaa)

3. Log back in using the new password.

The camera's View Settings home page opens.

Camera Web Page for Admin users

Light Mode - CM-6405-11-I

To adjust the zoom and focus:

Use the controls on the View Settings home page. They are available when a View

Settings menu page is not open.

To format the microSD card:

a. Click System Settings. Then, open the SD Card

page.

b. Under SD Format, select vfat (default) or ext4

(recommended).

c. Click Format.

Additional Configuration Steps

Setting up the camera can also consist of configuring or modifying the default

video stream settings; exposure, white balance, WDR, and other picture settings;

security, advanced networking, event notification, and other system settings.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Teledyne

Teledyne

Teledyne FLIR Triton FH-Series Manual de usuario

Teledyne

Teledyne Genie C640-1/2 Manual de usuario

Teledyne

Teledyne Quasar Gen III CP-6302-31-P Manual de usuario

Teledyne

Teledyne CP-6302-31-I Manual de usuario

Teledyne

Teledyne Micropublisher6 Manual de usuario

Teledyne

Teledyne FLIR FC AI Series Manual de usuario

Teledyne

Teledyne CP-6302-30-R Manual de usuario

Teledyne

Teledyne Genie Monochrome Series Manual de usuario

Teledyne

Teledyne FLIR Quasar CM-640 1-IA Series Manual de usuario

Teledyne

Teledyne DALSA P3-80-12k40-00-R Manual de usuario

Teledyne

Teledyne TS Series Manual de usuario

Teledyne

Teledyne FLIR Elara DX Series Manual de usuario

Teledyne

Teledyne P2-2x-xxx40, P2-4x-xxx40, P2-2x-xxx30 Manual de usuario

Teledyne

Teledyne DALSA HS-40-04k40-xx-R Manual de usuario

Teledyne

Teledyne CP-6302-31-I Manual de usuario

Teledyne

Teledyne Quasar Gen III CP-6302-31-P Manual de usuario

Teledyne

Teledyne Genie Nano Series Manual de usuario

Teledyne

Teledyne Linea ML ML-FC-08K10T Manual de usuario

Teledyne

Teledyne M1 Series Instrucciones de instalación y funcionamiento

Teledyne

Teledyne Piranha4 4K Manual de usuario

Teledyne

Teledyne FLIR FC AI Series Manual de usuario

Teledyne

Teledyne Piranha4 Manual de usuario

Teledyne

Teledyne P4-CM-04K07D Manual de usuario

Teledyne

Teledyne SG-14 Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
