Teldat C1+LS Manual de usuario

Teldat C1+LS Router

Installation Manual

Teldat S.A. Manual

Teldat C1+LS Router 1

Legal Notice

Warranty

This publication is subject to change.

Teldat S.A. offers no warranty whatsoever for information contained in this manual.

Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv-

ery, supply or use of this manual.

Manual Teldat S.A.

2Teldat C1+LS Router

Table of Contents

I ImportantInformation................................ 1

Chapter1 InstallingtheRouter ................................ 2

1.1 Introduction...................................... 2

1.2 Connections...................................... 3

1.2.1 PowerSourceConnection................................ 3

1.2.2 DataConnections.................................... 4

1.2.3 ConfigurationConnection................................ 7

1.2.4 InstallingtheSIMcard.................................. 9

1.3 MeaningoftheLEDs................................. 11

1.4 RSTPushbutton................................... 12

1.4.1 Procedure to ignore the current configuration and to establish the default configuration . . . . 12

1.4.2 Procedure to force start up in BOOT mode . . . . . . . . . . . . . . . . . . . . . . . . 13

1.4.3 Procedure to force start up in BIOS mode . . . . . . . . . . . . . . . . . . . . . . . . 15

Appendix A Technical Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

A.1 Troubleshooting................................... 18

A.2 SoftwareUpdating.................................. 18

A.3 Connectors ..................................... 18

A.3.1 LANConnector.................................... 19

A.3.2 DSLConnector.................................... 19

A.3.3 SERIALConnector.................................. 19

A.3.4 WANconnectors(female)............................... 20

A.3.5 ConfigurationConnector................................ 20

A.4 TechnicalSpecifications................................ 20

Appendix B Regulatory compliance and safety information . . . . . . . . . . . . . . . . . 23

B.1 Recycling and the Environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

B.2 Translated Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

B.3 Compliance..................................... 25

B.3.1 Compliance Information for Teldat C1+LS Routers Relevant to de European Union and Other Coun-

tries Following the EU Directive 1999/5/EC (R&TTE Directive) . . . . . . . . . . . . . . . 25

Teldat S.A. Table of Contents

Teldat C1+LS Router i

Table of Contents Teldat S.A.

ii Teldat C1+LS Router

I Important Information

Caution

The manufacturer reserves the right to make changes and improvements to the appropriate features in

both the software and hardware of this product, modifying the specifications of this manual without prior

notice.

The images presented on the front and back panels of the devices are provided as an information

guideline. Some small modification can exist in the actual device.

Warning

The equipment is intended to be installed by Service Personnel and only handled by qualified person-

nel. If not, the device may be damaged and malfunction.

This device contains elements that are sensitive to electrostatic surges and shocks. Therefore, it is es-

sential when handling the equipment that an antistatic wriststrap is connected to the device chassis and

that this is placed on an antistatic mat. Furthermore, it is crucial to avoid any kind of contact between

the device components and necklaces, bracelets, rings, ties etc.

Teldat S.A. Important Information

Teldat C1+LS Router 1

Chapter 1 Installing the Router

1.1 Introduction

The Teldat C1+LS router is a general purpose router with a wide scope of application: personal environments,

SOHO/SME and corporative, covering access needs using ADSL, ADSL2+ (over PSTN) and 3G access. As for local

area networks (LAN), it incorporates a 4 port Ethernet LAN Switch. The Teldat C1+LS also has a serial port allowing

it to be used in X.25, SDLC and Frame Relay scenarios, or with an external backup device.

The Teldat C1+LS router is perfectly adaptable to a wide variety of IP scenarios: from providing simultaneous ac-

cess to Internet for private LAN users and/or for the corporation through Virtual Private Networks (VPNs) to the ad-

aptation of teleprocessing networks and SNA support. The most common applications are as follows:

• ADSL access router

• ADSL access router with 3G backup

Fig. 1: ADSL access router

Fig. 2: ADSL access router with 3G backup

This manual shows you how to install and connect these devices.

1 Installing the Router Teldat S.A.

2Teldat C1+LS Router

Fig. 3: Teldat C1+LS : External aspect

1.2 Connections

Caution

Before connecting the router, please read the following instructions carefully.

Workplace Conditions. Main Characteristics

• Excessive cold and heat should be avoided, as should humidity and dust.

• Direct exposure to sunlight should be avoided as well as other heat sources. The device should not be placed

amongst papers, magazines or other elements that could hinder natural air circulation.

• The device should not be placed very close to strong electromagnetic fields such as speakers, engines, etc.

• Knocks and/or strong vibrations should be avoided during transport, operation and storage.

Warning

The electric current in power cables, telephone lines and communication cables is dangerous. To pre-

vent electric shocks, before installing, handling or opening the equipment covers, connect and discon-

nect the cables as follows:

To Connect To Disconnect

Make sure that the device power switch is in the OFF po-

sition

Place the device power switch in the OFF position

Check that the power supply is not connected to either

the main electricity supply or the device

Disconnect the power supply from the main electricity

supply

Connect all data cables Disconnect the power supply from the device

Connect the power supply to the device Disconnect the data cables

Connect the power supply to the main electricity supply

Place the device power switch in the ON position

1.2.1 Power Source Connection

The Teldat C1+LS router is powered with an external AC/DC source.

Teldat S.A. 1 Installing the Router

Teldat C1+LS Router 3

To avoid electric shocks, residual current circulation and other unwanted effects, also affecting communications, the

following is recommended:

Warning

All interconnected communication devices should be plugged to THE SAME GROUNDED POWER

OUTLET, which should at the same time be of good quality (lower than 10 ohms).

Whether the workplace is provided with an uninterrupted power supply system (UPS), regulated supply

or it is independent from the rest (such as lighting, etc.); it is highly recommended that all data devices

should be connected to the same power source. This will avoid operating and premature aging prob-

lems of drivers and other components.

Fig. 4: Connecting the power with an external source

To connect the power source to the device, follow the steps listed in the previous table: make sure that the switch is

OFF (0) and that the power supply is NOT connected to the main electricity supply; find the 12 V DC connector which

is located on the rear panel of the device and plug it into the power source

1.2.2 Data Connections

The Teldat C1+LS router has the following connectors available:

1.2.2.1 4 port Ethernet Switch (connectors LAN1..4)

The Teldat C1+LS router has a 410/100BaseT switch incorporated with an automatic MDI/MDIX to connect to the

local area network (LAN).

Please pay close attention to the labeling. This is important in order to avoid confusing the switch with other types of

ports.

Fig. 5: LAN switch ports (4)

1 Installing the Router Teldat S.A.

4Teldat C1+LS Router

1.2.2.2 ADSL/ADSL2+ connection over PSTN (DSL connector)

The Teldat C1+LS router has a DSL connector in order to connect to an ADSL/ASDL2+ network over PSTN. This is

a female RJ11 connector with 4 wires. The central pair is used for data transmission/reception.

For connection, you can use the telephone cable with male RJ11connectors that are provided with the device.

Fig. 6: DSL Connector (ADSL and ADSL2+)

The splitter

The Full Rate ADSL (ITU G.dmt or G.922.1) operating mode uses a higher transmission capacity that does not allow

the use of telephones directly connected to the same line. It is, therefore, necessary to use a mechanism known as

“splitter” to part the band frequencies for voice telephony from those used by the ADSL connection to transmit data.

This way, interferences between the telephone service and the ADSL service are avoided.

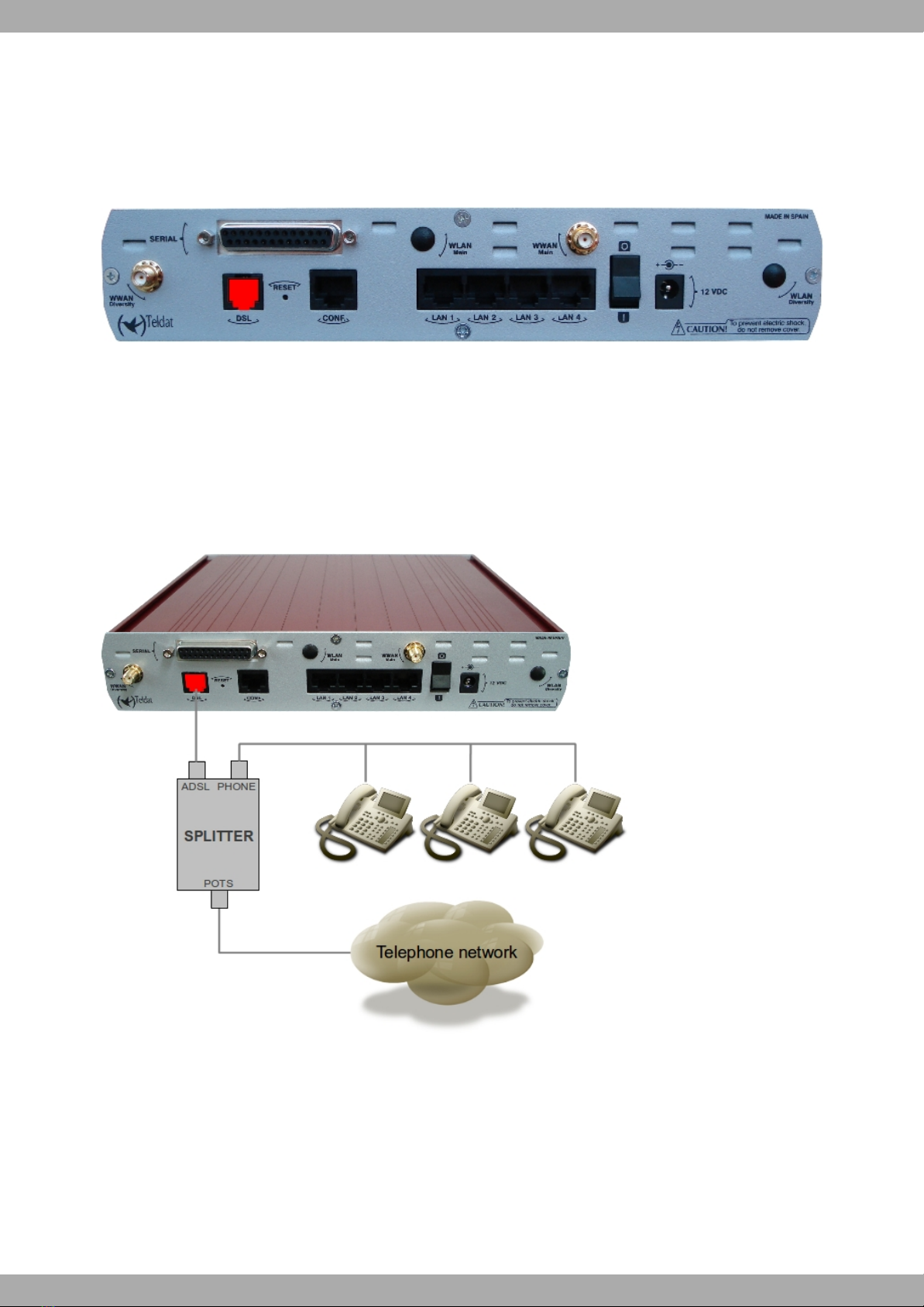

A typical installation with a splitter is shown in Figure 7.

Fig. 7: ADSL installation with a splitter

The micro-filters

The G. Lite (ITU G.922.2) operating mode uses reduced transmission power, allowing the use of telephones directly

connected to the same line by means of a device known as a “micro-filter”. This device stops the ADSL signal from

reaching the telephone and prevents any undesired signal generated by the telephone from interfering with the ADSL

signal.

A typical installation with a splitter is shown in Figure 8.

Teldat S.A. 1 Installing the Router

Teldat C1+LS Router 5

Fig. 8: ADSL installation with micro-filter

1.2.2.3 Serial

The Teldat C1+LS routers incorporates a multistandard serial interface to connect an external modem, POS or to

connect to a wide area network (WAN) such as X.25, Frame Relay, PPP, etc., (among other functions).

This requires a pluggable driver (V.24, V.35, V.36, X.21, RS-485) to operate.

Fig. 9: SERIAL connector

1.2.2.4 Connecting the WWAN antenna

The Teldat C1+LS router has two connectors for the WWAN antennas. To assemble and dismantle the antennas,

simply screw them into the connectors labeled WWAN (located at the rear of the device).

You must install the antennas in the Teldat C1+LS router in order to improve the quality of the signal received and

sent by the Wireless WAN module (GPRS, UMTS, HSDPA, HSUPA, etc.).

Note

Always install the WWAN antennas to achieve optimum performance from the router.

The device must have the corresponding software license installed in order to activate the Wireless

WAN interface.

Some cellular telephony technologies use antenna diversity techniques to improve the quality of the received signal

(HSUPA, CDMA EV-DO, etc.). For this reason the Teldat C1+LS router incorporates two WWAN connectors, labeled

Main and Diversity.

1 Installing the Router Teldat S.A.

6Teldat C1+LS Router
