WS6850 Desktop Weather Station

Instruction Manual

Introduction

This desktop weather station comes with barometric weather prediction, clock, calendar,

indoor and outdoor temperature and humidity display. It is battery powered with AC

charger. It is recommended to use the AC charger at all times.

Fig. 1 Front view Fig. 2 Back view

1. MODE button

2. +/°C/°F button

3. -/ RCC button

4. SNOOZE/ LIGHT button

5. HISTORY button

6. CHANNEL button

7. MAX/ MIN button

8. DC line in jack

9. Battery compartment

General notes:

1. It is recommended to set up the remote temperature sensor before setting up the

weather station/ clock. See “Configuring Remote Temperature Sensor(s)”

for more information. Batteries andAC adapter should be used together.

2. Please note all other clock/ weather station settings seize to function when the

clock is in RCC synchronization mode. See “RCC Synchronization”for

additional information.

3. During initial installation, the temperature and humidity sensor may take up to an

hour or more to acclimatize to current conditions.

4. Press SNOOZE/ LIGHT (4) to change LCD screen backlight brightness from OFF,

LOW and HIGH.

Getting started:

Installing AC adapter

1. Plug in AC/DC adapter at DC input jack (8) (see fig. 2). Use only approved

adapters.

Batteries installation

1. Open battery compartment (9) on the back of the unit (see fig. 2).

2. Install/ replace 2 x AAA size batteries in the compartment. It is recommended that

only alkaline batteries are used.

3. Replace the battery compartment (9) on the back of the unit.

4. A short beep will be heard to confirm proper installation of batteries.

5. It will take approximately 3 seconds for the screen to light up.

6. Replace batteries when this symbol is shown. This indicates low batteries.

Batteries safety warnings:

1. Please read all instructions carefully before use.

2. Install batteries correctly by matching the polarities (+/-).

3. Always replace a complete set of batteries.

4. Never mix used and new batteries.

5. Remove exhausted batteries immediately.

6. Remove batteries when not in use.

7. Do not recharge and do not dispose of batteries in fire as the batteries may

explode.

8. Ensure batteries are stored away from metal objects as contact may cause a

short circuit.

9. Avoid exposing batteries to temperature or humidity extremes or direct sunlight.

10. Keep all batteries out of reach from children. They are a choking hazard.

11. Please retain packaging for future reference.

Setting up the weather station:

The weather station will sound once batteries are installed or ac adapter is plugged in.

1. The double digits of sea level on the bottom left hand corner of the display will

flash. Press +/°C/°F button (2) or -/ RCC button (3) to change the sea level

closest to your location. The sea level units are in meters (1 meter equals

approximately 3.28 feet). Contact your local weather bureaus or authorities for

more information.

2. Press HISTORY button (5) to confirm sea level.

3. Press +/°C/°F button (2) or -/ RCC button (3) to change the current weather

situation of your location. See figure 3 below for the weather pattern that is

resembles your immediate area.

Fig. 3 Weather pattern

4. Press HISTORY button (5) to confirm weather pattern.

Interpreting the weather forecast symbols

The weather station requires at least 24 hours on acclimatizing to local weather

conditions. The weather station process and analyze the weather patterns for the past 24

hours in order to determine the future weather. Until that time has elapsed, the predicted

weather forecast may not accurately reflect the actual weather for your immediate area.

The weather station will display the symbols (see fig. 3) to indicate the predicted weather

forecast for the next 12 to 24 hours for an area within a radius of approximately 30-50

km.

Note:

1. Accuracy rate might be lower in extreme weather conditions. The weather

forecast is only for reference only and it is only for domestic use only. Do NOT

rely on the weather station for weather forecast if any serious matter replies on it

including but not limited to: personal health, life and death situation, any business

or financial decisions, and/or agricultural planning.

2. The weather forecast does not display the current weather. It displays the

weather for the future.

Adjusting the weather station:

1. Press HISTORY button (5) for 3 seconds until a beep sound is heard.

2. Press +/°C/°F button (2) or -/ RCC button (3) to toggle between atmospheric

pressure units of Pascal (hPa) to inch of mercury (inHg)

3. Press HISTORY button (5) to confirm.

4. Press +/°C/°F button (2) or -/ RCC button (3) to toggle between absolute and

relative atmospheric pressure.

5. Press HISTORY button (5) to confirm.

6. Press +/°C/°F button (2) or -/ RCC button (3) to change the sea level closest to

your location.

7. Press HISTORY button (5) to confirm sea level.

8. Press +/°C/°F button (2) or -/ RCC button (3) to change the current weather

situation of your location. See figure 3 above for the weather pattern that is

resembles your immediate area.

Barometer:

1. The unit takes approximately 24 hours to process and analyze the recorded

barometric pressure data. Until this time has elapsed, the pressure trend and

weather forecasts may not reflect actual weather forecast for your area.

Reading Pressure trend:

1. Recorded memory of the barometric pressure changes are displayed with 3

arrows to show pressure trend.

Note: It is only possible to measure the barometric pressure trend properly when

the unit remains at the same altitude. When moving around at different

altitudes within a short period of time, the air pressure and the barometric

pressure will change. The pressure trend will only be correct and regulate

the has remain at a constant altitude for 24 hours or more.

To recall recorded pressure history reading

The barometric pressure reading is recorded at an hourly interval and can be recalled

and displayed up to previous 12 hours.

Press HISTORY button (5) repeatedly to view pressure recorded in the past hours. -1

HR indicates the pressure of the previous hour. The pressure reading history will appear

for 20 seconds before the current pressure returns.

RCC Synchronization:

Where ever available, this clock will automatically synchronize with the radio control

towers at the following time: 02:05, 03:05, 04:05, 05:05.

User may also manually synchronize the clock by following the instructions below.

Press and hold down the -/ RCC button (3) for approximately 3 seconds until is

flashing.

When this signal is flashing, the clock is attempting to synchronize with the radio control.

will flash when a strong signal is received and the clock will synchronize with the

radio control. This process can take up to 7 minutes. will stop flashing and will be

displayed once the signal is received and in synchronization.

will not be displayed if the clock is not able to synchronize within this period of

time. User may manually synchronize again at a later time or the clock will automatically

attempts to synchronize at the above mentioned time.

When the clock is attempting to synchronize, press down the -/ RCC button (3) to cancel

RCC synchronization.

Please note all other clock/ weather station settings seize to function when the clock is in

RCC synchronization mode. Wait until the clock is no longer attempting to synchronize

or it is synchronized to set other clock and weather station function.

If the alarm goes off during synchronization mode, RCC synchronization will seize

immediately. Follow the above instructions again to set synchronization.

RCC Zone Offset

This clock is equipped with radio controlled time adjustment. The user will need to work

out the time zone signal they receive at their current location and make (any) adjustment

as required. This function also allows for daylight saving adjustment. Contact your local

weather bureaus or authorities for more information.

Press -/ RCC button (3) once for +1 time zone.

Press -/ RCC button (3) once again for +2 time zone.

Press -/ RCC button (3) once again for -1 time zone.

Press -/ RCC button (3) once again for same time zone.

To set time manually:

Hold down the MODE button (1) for approximately 3 seconds until the display is flashing.

Press +/°C/°F button (2) or -/ RCC button (3) to change the hour setting.

Press MODE button (1) again. Press +/°C/°F button (2) or -/ RCC button (3) to change

the minute setting.

Press MODE button (1) again. Press +/°C/°F button (2) or -/ RCC button (3) to toggle

between am / pm and 24 hour clock

Press MODE button (1) again to confirm settings. Display will no longer flash.

To see alarm time:

Press MODE button (1) once and alarm time 1 will be shown as indicated by .

Press MODE button (1) again and the current time will be shown.

To set alarm time:

Press MODE button (1) once and alarm time 1 will be shown as indicated by .

Press and hold MODE button (1) for approximately 3 seconds until the digits flash.

Press +/°C/°F button (2) or -/ RCC button (3) to change the hour setting.

Press MODE button (1) again.

Press +/°C/°F button (2) or -/ RCC button (3) to change the minute setting.

Press MODE button (1) again.

When alarm time is shown, press MODE button (1) to turn on and off the alarm. will

be shown when the alarm is on.

When alarm time is shown, press +/°C/°F button (2) or -/ RCC button (3) to turn on and

off the alarm. will be shown when the alarm is on.

The alarm will sound for 120 seconds when the preset alarm time is reached. Hit any

button on the back of the clock to deactivate the alarm. The clock will automatically enter

snooze mode if the alarm is not deactivated.

Hit the SNOOZE / LIGHT button (4) when the alarm is on to enter snooze mode.

will flash when the clock is it snooze mode. The alarm will sound again in 5

minutes. Hit any button on the back of the clock to deactivate the alarm.

Please note that alarm time setting seize to function when the clock is in RCC

synchronization mode. Wait until synchronization has ended before setting the alarm

time.

Configuring the Thermometer

This weather station is equipped to synchronize up to 3 remote temperature sensors.

One remote temperature sensor is included. Additional remote temperature sensor is

available for purchase separately. Please contact your local distributor for purchase.

Remote temperature sensors

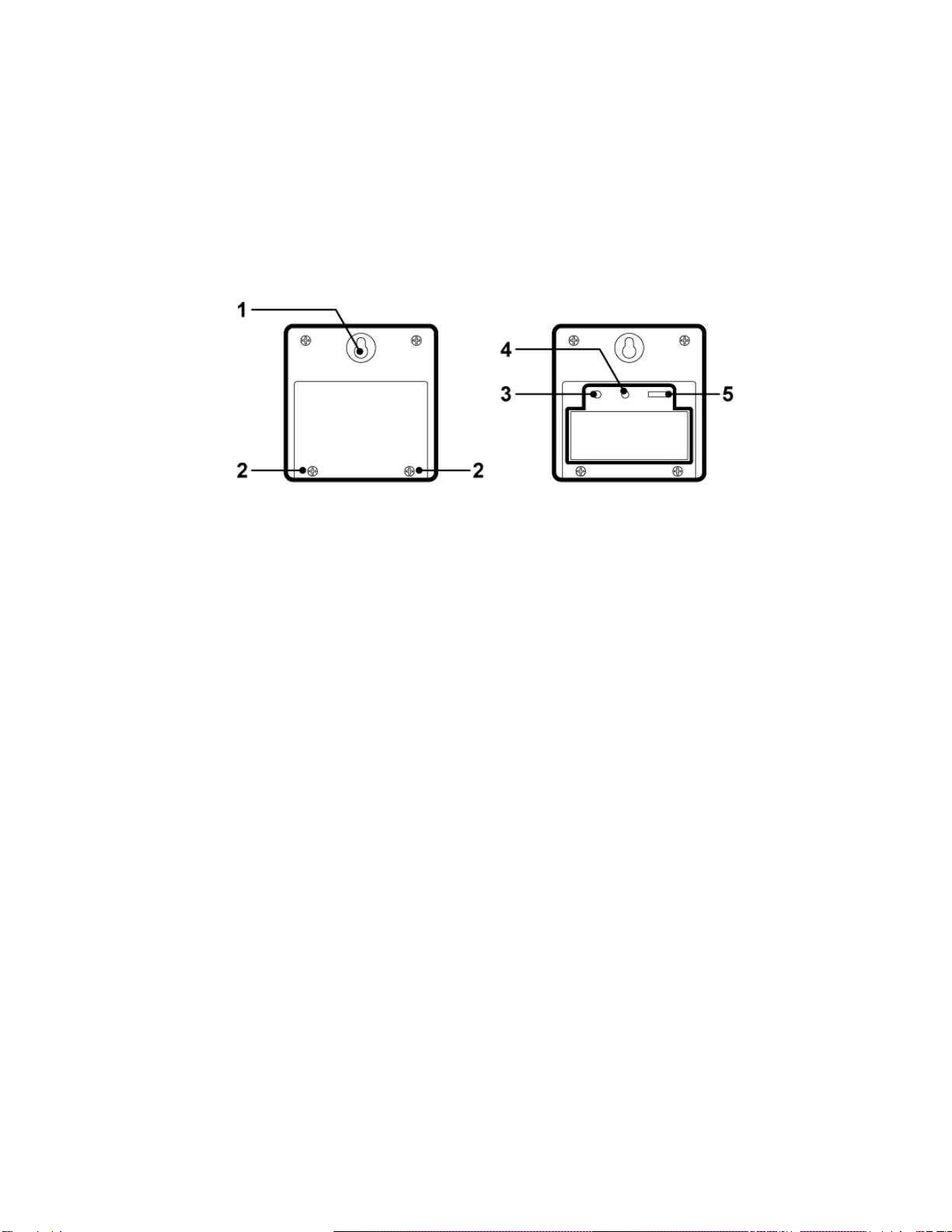

Fig. 4 Back View Fig. 5 Back view - open

RTS 1. Hang hole

RTS 2. Battery compartment screws

RTS 3. TX button

RTS 4. RESET button

RTS 5. CHANNEL 123 switch

Batteries installation

1. Open battery compartment on the back of the unit by removing the

two small screws (RTS 2) with a Philips head screwdriver. (see fig. 4)

2. Install/ replace 2 x AAA size batteries in the compartment. It is

recommended that only alkaline batteries are used. Do not use

rechargeable batteries.

3. The weather station is capable of receiving up to 3 different channels.

Select the channel number (1, 2, or 3) by sliding the CHANNEL123

switch (RTS 5). If you only have 1 remote temperature sensor, select

4. Press the RESET button (RTS 4) once and the red light will flash once.

5. Replace the battery compartment on the back of the unit by tightening

the two screws (RTS 2).

Installation

1. Place the remote temperature sensor at a desired place by mounting

the unit’s hang hole (RTS 1) on a screw (screw not included).

Alternatively, the unit can be place on a flat horizontal surface.

2. The unit can be placed indoor or outdoor. The unit is weather proof.

Do not submerge unit in water. Do not expose unit to water for

prolonged periods. Avoid accumulation of water and or snow on unit.

Avoid exposing unit to direct sunlight. Remove unit from the exterior in

extreme or harsh weather, including but not limited to hurricane,

typhoon, and cyclones seasons. Do not place the unit in area of high

winds.

3. Do not place the remote temperature sensor more than 30 meters (98

feet) from the receiving weather station. The remote temperature

sensor is most effective if there are no obstruction and interference

between the remote temperature sensor and the weather station. The

remote temperature sensor might have to closer than 30 meters if the

weather station is not able to receive any signals. This is due to

obstructions and interference. The user might need to experiment with

various locations to get the best reception.

Configuring Weather Station to receive remote temperature signals.

1. Follow the above instructions to set up remote temperature sensor.

2. Press and hold “Channel” button (6) on weather station for 3 seconds.

will flash. This will reset all temperature memories.

3. The weather station will begin scanning for signals for channel 1. As

soon as signals are received for channel 1, the temperature will be

displayed. The weather station will automatically scans for the other

channels. It will scan each channel for approximately 3 seconds

before skipping to the next channel.

4. Once all your channels are received press CHANNEL button (6) once

to confirm the channel. will no longer be displayed.

5. The weather station will receive a new signal automatically every 30

seconds to update the remote temperature.

6. Press CHANNEL button (6) on weather station repeatedly to toggle

between channel 1, channel 2 and channel 3.

7. will be displayed if any of the remote temperature sensor’s

battery needs replacing.

1. Temperature MAX/ MIN button (7) to display maximum recorded

temperature, minimum recorded temperature, and current

temperature. MAX indicates maximum temperature. MIN indicates

minimum temperature

2. Press and hold MAX/ MIN button (7) for approximately 3 seconds to

reset the maximum and minimum temperature and humidity records.

Temperature display

1. The IN temperature displays the indoor temperature. It is the

temperature of the location of the weather station.

2. The OUT temperature displays the temperature of the remote

temperature sensors.

3. Press CHANNEL button (6) on weather station repeatedly to display

the temperature of channel 1, channel 2 and channel 3.

4. When is shown, the display will automatically show through all

the remote sensors channel. Press CHANNEL button (6) to cancel.

Celsius / Fahrenheit

1. Press +/°C/°F button (2) to toggle between displaying the temperature

in Celsius and Fahrenheit.

Temperature Trend

1. indicates the temperature is in a increasing trend.

2. indicates the temperature is in a no change trend.

3. indicates the temperature is in a decreasing trend.

Warnings

Do not subject the unit to excessive force, shock, dust, temperature or humidity.

Do not immerse the unit in water.

Dispose the complete unit when battery is no longer charging or when the unit is

no longer displaying the temperature and / or humidity.

Do not remove any screws.

Do not dispose this unit in a fire. IT MAY EXPLODE.

Keep unit away from small children. The unit or parts of the unit might be a

choking hazard.

Never attempt to recharge the batteries in any other methods.

Dispose the unit legally.

Recycle when possible.

Specifications

Indoor temperature range: 0℃to 50℃( 32°F to 122°F)

Outdoor temperature range: -20℃to 50℃( -4°F to 122°F)

Relative humidity range: 20% - 95%

Barometeric pressure range: 930 mb to 1050 mb

Consideration of duty according to the battery law

Old batteries don’t belong to domestic waste because they could cause damages

of health and environment. End-user are committed by law to bring back needed

batteries to distributors and other collecting points.

Otros manuales para WS6850

Tabla de contenidos

Otros manuales de Estación meteorológica de Technoline

Technoline

Technoline TEMPERATURE STATION Manual de usuario

Technoline

Technoline WS6825 Manual de usuario

Technoline

Technoline WS6447 Manual de usuario

Technoline

Technoline WT 188 Manual de usuario

Technoline

Technoline WS 6870 Manual de usuario

Technoline

Technoline WS9123 Manual de usuario

Technoline

Technoline WS 6449 Manual de usuario

Technoline

Technoline WS1700 Manual de usuario

Technoline

Technoline WS9132 Manual de usuario

Technoline

Technoline WS 9032 Manual de usuario

Technoline

Technoline WS 6600 Manual de usuario

Technoline

Technoline WS 9120 Manual de usuario

Technoline

Technoline WS6762 Manual de usuario

Technoline

Technoline WT 221 Manual de usuario

Technoline

Technoline WS 9900 Manual de usuario

Technoline

Technoline WS 6449 Manual de usuario

Technoline

Technoline WS 9123 Manual de usuario

Technoline

Technoline WS6767 Manual de usuario

Technoline

Technoline WS 7018 Manual de usuario

Technoline

Technoline WS 9218 Manual de usuario

Technoline

Technoline WS9767 Manual de usuario

Technoline

Technoline WS 6710 Manual de usuario

Technoline

Technoline WS 6720 Manual de usuario

Technoline

Technoline WS 6502 Manual de usuario

Manuales populares de Estación meteorológica de otras marcas

Auriol

Auriol AHFL 433 A1 Manual de usuario

NexSens

NexSens G2-HYDROMET Manual de usuario

Hyundai

Hyundai WS 2202 Manual de usuario

IROX

IROX HBVR761 UV-X Manual de usuario

La Crosse Technology

La Crosse Technology C86371 Manual de usuario

ADE

ADE WS 1711 Manual de usuario

Auriol

Auriol z29592 Manual de usuario

Auriol

Auriol 296289 Manual de usuario

Hyundai

Hyundai WS 2266 Manual de usuario

La Crosse Technology

La Crosse Technology WS-2210 Manual de usuario

La Crosse Technology

La Crosse Technology WS-811561 Manual de usuario

Ventus

Ventus W177 Manual de usuario

National Geographic

National Geographic VA Colour RC Manual de usuario

Renkforce

Renkforce 1208067 Manual de usuario

Levenhuk

Levenhuk Discovery Report WA40 Manual de usuario

Instant Transmission

Instant Transmission MA 10410 Manual de usuario

Lutron Electronics

Lutron Electronics PHB-318 Manual de usuario

WAREMA

WAREMA EWFS Weather station eco Manual de usuario
