Leg Extension

User manual

Identification of the manufacturer

and the equipment

Description of the equipment

Technical data

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling

the equipment

Adjusting the equipment

Routine maintenance

Replacing

the padded components

Replacing the cable

Adjusting cable tension

Removing

the weight stack panel

Technical Service

Storage

Disposing of the equipment

Using the equipment

2LegExtension

ABD

04199002

Identificationofthemanufacturerandtheequipment

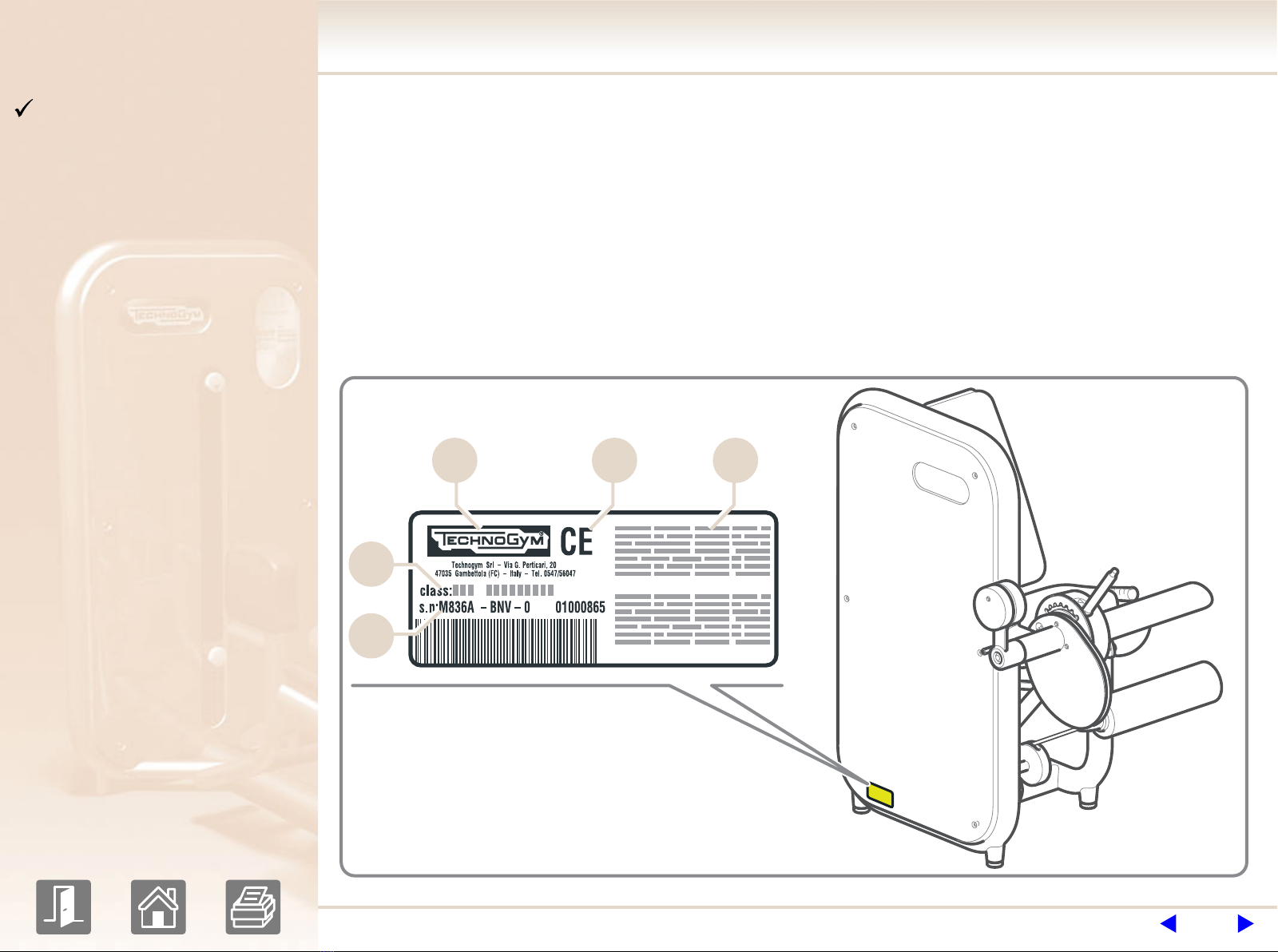

The identification plate of the equipment and manufacturer, affixed on the back

panel of the weight stack, gives the following details:

AName and address of the manufacturer

BCE Mark

CSerial number

DCautions

EEquipment classification

Identification of the manufacturer

and the equipment

Description of the equipment

Technical data

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling

the equipment

Adjusting the equipment

Routine maintenance

Replacing

the padded components

Replacing the cable

Adjusting cable tension

Removing

the weight stack panel

Technical Service

Storage

Disposing of the equipment

Using the equipment

Contents

LegExtension

04199003

Description of the equipment

Seat

Seat lever

Exercise lever

Roller pad

ROM device

ROM lever

Side handgrips

Weight stack

Knob

Seat: where the user sits to perform the exercise. Its position can be adjusted

using the seat lever.

Identification of the manufacturer

and the equipment

Description of the equipment

Technical data

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling

the equipment

Adjusting the equipment

Routine maintenance

Replacing

the padded components

Replacing the cable

Adjusting cable tension

Removing

the weight stack panel

Technical Service

Storage

Disposing of the equipment

Using the equipment

Contents

4LegExtension

04199004

Description of the equipment

Seat

Seat lever

Exercise lever

Roller pad

ROM device

ROM lever

Side handgrips

Weight stack

Knob

Seat: where the user sits to perform the exercise. Its position can be adjusted

using the seat lever.

Identification of the manufacturer

and the equipment

Description of the equipment

Technical data

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling

the equipment

Adjusting the equipment

Routine maintenance

Replacing

the padded components

Replacing the cable

Adjusting cable tension

Removing

the weight stack panel

Technical Service

Storage

Disposing of the equipment

Using the equipment

Contents

5LegExtension

04199005

Description of the equipment

Seat

Seat lever

Exercise lever

Roller pad

ROM device

ROM lever

Side handgrips

Weight stack

Knob

Exercise lever:operated by the user by means of the roller pad; before starting to

exercise, or between one set and the next, the starting position can be adjusted so

as to modify the range of motion by using the ROM device.

Identification of the manufacturer

and the equipment

Description of the equipment

Technical data

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling

the equipment

Adjusting the equipment

Routine maintenance

Replacing

the padded components

Replacing the cable

Adjusting cable tension

Removing

the weight stack panel

Technical Service

Storage

Disposing of the equipment

Using the equipment

Contents

6LegExtension

04199006

Description of the equipment

Seat

Seat lever

Exercise lever

Roller pad

ROM device

ROM lever

Side handgrips

Weight stack

Knob

Exercise lever:operated by the user by means of the roller pad; before starting to

exercise, or between one set and the next, the starting position can be adjusted so

as to modify the range of motion by using the ROM device.

Identification of the manufacturer

and the equipment

Description of the equipment

Technical data

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling

the equipment

Adjusting the equipment

Routine maintenance

Replacing

the padded components

Replacing the cable

Adjusting cable tension

Removing

the weight stack panel

Technical Service

Storage

Disposing of the equipment

Using the equipment

Contents

7LegExtension

04199007

Description of the equipment

Seat

Seat lever

Exercise lever

Roller pad

ROM device

ROM lever

Side handgrips

Weight stack

Knob

ROM device: system for adjusting the Range of Motion and the starting position.

Adjustments are made by means of the ROM lever after having released it by

operating the button positioned on it.

Identification of the manufacturer

and the equipment

Description of the equipment

Technical data

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling

the equipment

Adjusting the equipment

Routine maintenance

Replacing

the padded components

Replacing the cable

Adjusting cable tension

Removing

the weight stack panel

Technical Service

Storage

Disposing of the equipment

Using the equipment

Contents

8LegExtension

04199008

Description of the equipment

Seat

Seat lever

Exercise lever

Roller pad

ROM device

ROM lever

Side handgrips

Weight stack

Knob

ROM device: system for adjusting the Range of Motion and the starting position.

Adjustments are made by means of the ROM lever after having released it by

operating the button positioned on it.

Identification of the manufacturer

and the equipment

Description of the equipment

Technical data

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling

the equipment

Adjusting the equipment

Routine maintenance

Replacing

the padded components

Replacing the cable

Adjusting cable tension

Removing

the weight stack panel

Technical Service

Storage

Disposing of the equipment

Using the equipment

Contents

9LegExtension

04199009

Description of the equipment

Seat

Seat lever

Exercise lever

Roller pad

ROM device

ROM lever

Side handgrips

Weight stack

Knob

Side handgrips: the user can enhance the comfort by holding them during the

exercise.

Identification of the manufacturer

and the equipment

Description of the equipment

Technical data

Safety labels and devices

Packing

Place of installation

Unpacking

Lifting and handling

the equipment

Adjusting the equipment

Routine maintenance

Replacing

the padded components

Replacing the cable

Adjusting cable tension

Removing

the weight stack panel

Technical Service

Storage

Disposing of the equipment

Using the equipment

Contents

10LegExtension

04199010

Description of the equipment

Seat

Seat lever

Exercise lever

Roller pad

ROM device

ROM lever

Side handgrips

Weight stack

Knob

Weight stack: the exercise lever, operated by the user, moves the weights along

two guides by means of a cable. A pin is used for selecting the load in order to

adjust the exercise effort level. The knob can be used to increase the selected

workload by 2.5 kg.Pull on the knob and lower it until the extra weight rests on the

first plate in the weight stack.To remove this extra weight, simply return the knob

to its original position.
