Technaxx TX-44 Wild Cam Manual de usuario

Technaxx

Wild Cam TX–44

User Manual

The Declaration of Conformity for this device is under the

Internet link: www.technaxx.de/ (in bottom bar

“Konformitätserklärung”). Before using the device the first time,

read the user manual carefully.

Service phone No. for technical support: 01805 012643 (14

cent/minute from German fixed-line and 42 cent/minute from

mobile networks). Free Email: sup[email protected]

Features

Security camera for indoor and outdoor use

Ideal for viewing wild animals and for monitoring houses

2.7” CMOS sensor with 2 mega pixels

Video and photo function are selectable

Standby time up to ~ 290 days

Motion and infrared sensor for night shots

1.2 seconds triggering time

Motion Detection Distance up to ~ 15m

IPX4 splash water proof

Easy handling and installation

Table of Contents

1. Introduction………..…………………..……..…....

System Requirements...……...……………..…

2. Getting to know your camera……………………..

Part Names (front and rear view)..……..…

3. Basic Camera Operation............…………………

Installing Batteries and MicroSD Card.............

Power On….......…………….…………….…….

3. Operation Mode…………….………..…………….

PIR Photo........................................................

PIR Video........................................................1

Time Lapse......................................................1

5. Setting..........……………...……….………………1

6. TEST Mode………………...………………………2

7. Surveillance Mode…………………………………2

8. Playback...................................…..……………...2

Download.............…………….……………….2

Playback from PC......….......…………………

Playback from Mac......….......…………………

9. Appendix……………………………………………

Specifications…………………………………..2

UI Flow.............................................................

10. Warnings & Hints

1. Introduction

System Requirements

PC System Requirement



Intel

Core2Duo 1.8G or AMD equivalent CPU



Hi-speed USB2.0 port



1 GB RAM internal memory minimum



HD color monitor



nVIDIA GeForce MX440 or above, AMD (ATi)

Radeon 9200 or above



DirectX 9.0 or higher



Windows

XP (SP2 or higher) / Windows Vista™ /

Windows 7™ / Windows 8™

Note: If your system is Windows XP Service Pack I,

please go to www.microsoft.com. It’s free to update your

system to Windows XP SP II.

Mac System Requirement



Power PC G5 or Intel

Core Duo processor

recommended



Hi-speed USB2.0 port



1 GB RAM internal memory minimum



HD color monitor



Mac OS™ 10.5x or above

2. Getting to know your camera

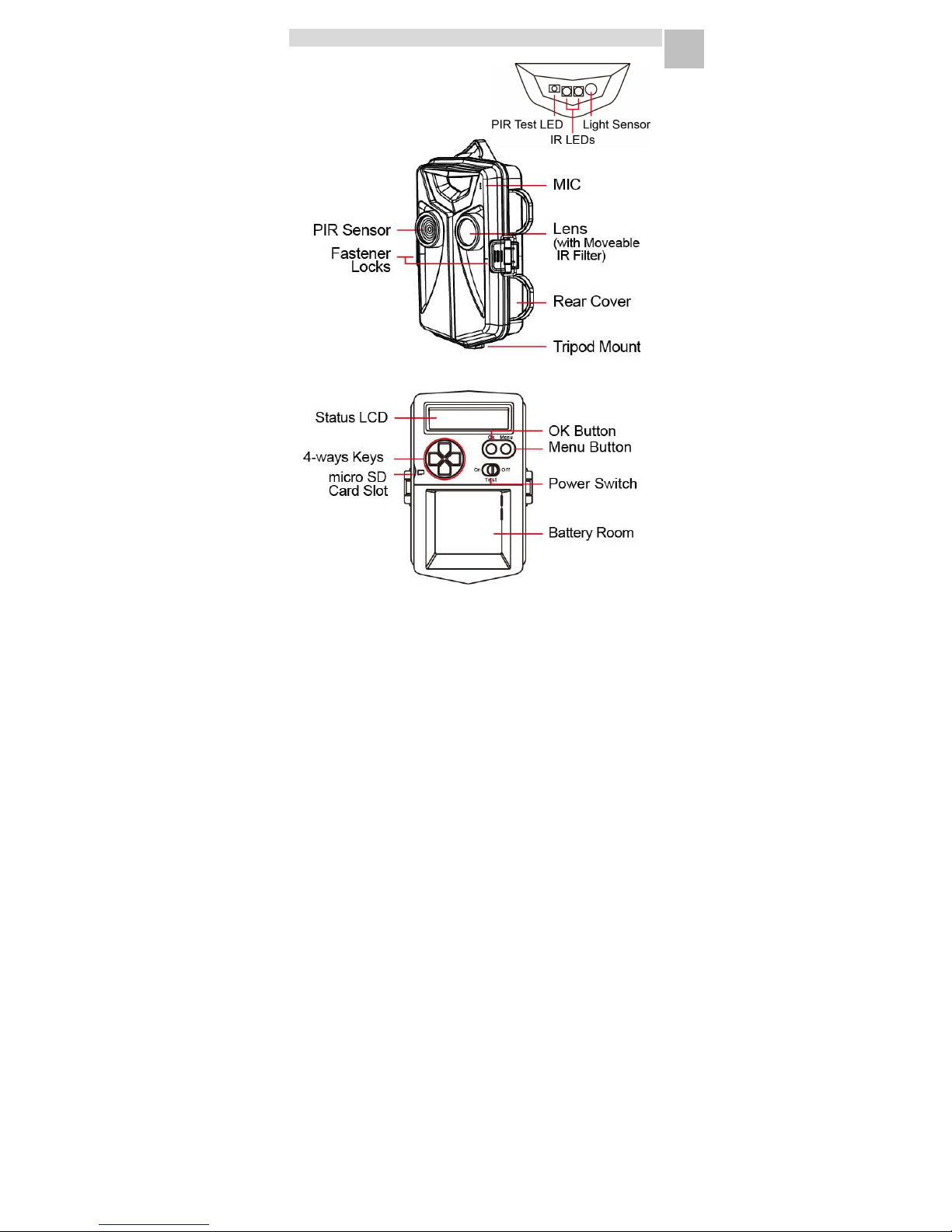

Part Names

Front View

Rear View

3. Basic Camera Operation

Installing Batteries and SD Card

1. Release 2 Fastener Locks of the camera.

2. Than take out the Rear Cover.

3. Make sure the Power Switch of the camera is OFF.

4. Install the MicroSD card. Be sure to observe the

correct polarity with clipped corner on the card to the

right. All the pictures and videos will be saved in the

memory card.

5. Install 8 brand new alkaline AA cell batteries in the

battery box. Make sure to observe correct polarity.

6. Put the Battery Box into the Battery Room of the

camera and make sure to observe correct polarity.

7. Press the Battery Box to the end of the Battery Room.

Make sure the Battery Box has fixed in the Battery

Room.

Power On

1. Slide the Power Switch to ON in the left side.

2. It will initial the camera system. Wait until the LCD

display the default mode on the preview screen.

3. Slide the Power Switch to the right side to turn off

the camera.

4. Operation Mode

Define use which operation mode to record image.

1. Power On the camera.

2. Press the Menu button to enter the Main Menu.

3. Use the Up / Down key and change the Menu to

Operation Mode. (Operation Mode (default)

Setting

Version)

PIR PHOTO

1. In OPERATION MODE menu, press the OK Button

then the mode item is blinking.

2. Use Up / Down Keys to change the operation mode

to PIR PHOTO then press OK Button again. (PIR

PHOTO (default) / PIR VIDEO / TIME LAPSE)

3. Use Up / Down Keys to change settings of PIR

PHOTO.

4. Press the Menu Button and go back to the

OPERATION MODE menu.

5. Press the Menu Button again to exit the main menu.
