Taylor TE30WD Manual de usuario

TE30WD

Wireless Scale

INSTRUCTION MANUAL

TABLE OF CONTENTS:

TABLE OF CONTENTS ...................................................................................................................1

SPECIFICATIONS ..........................................................................................................................2

DISPLAY ...........................................................................................................................................3

BUTTON DESCRIPTION.................................................................................................................3

PREPARING SCALE FOR WEIGHING....................................................................................…4

CHANGING THE WIRELESS DISPLAY’S CHANNEL ............................................................ 5

SELECTING SCALE PLATFORM’S CHANNEL ..........................................................................6

USING THE TARE FUNCTION.....................................................................................................7

ACTIVATING/DEACTIVATING TOUCHLESS TARE FEATURE .............................................8

FUNCTION SETTINGS ...................................................................................................................8

TABLE-TOP STAND AND WALL MOUNTS .................................................................................9

POWER SOURCES...........................................................................................................................10

ERROR MESSAGES ....................................................................................................................... 11

FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT ....................................12

PRECAUTIONS………………………………………………………………………………………………………………………………………… 13

WARRANTY AND CUSTOMER SERVICE INFORMATION……………………………………….…………………14

SPECIFICATIONS

Model TE30WD

Capacity

0-10 lb x 0.05 oz/10-30 lb x 0.1 oz

0-5 kg x 0.002 kg(2 g)/5-15 kg x 0.005 kg (5 g)

30 lb x 1/8 oz

Weight Unit

lb:oz(decimals)/lb:oz(fractions)/kg

LCD Readout

1”LCD readout

Dimensions

14” x 14” x 1.6”

Buttons

ON/OFF, HOLD, Unit, Tare, Channel

Power

Supply

10-AA batteries(6 for base,4 for remote, not

included.)

2 120V AC adapters 1 for base,

1 for remote (included)

Operation

Temperature

32°F / 104°F (0℃/ 40℃)

DISPLAY

BUTTON DESCRIPTION

Press to turn the scale ON or OFF.

Press to ‘Tare’ (zero) the weight of

any item while weighing.

Press to ‘Hold’ the weight on the

screen.

Press to switch between lb:oz and kg

units of measurement.

Press to reset the scale to zero(TARE

function)if the scale does not show

zero automatically.

Icon flashes when scale is ready for a

weighing.

Stability display:

If the display shows‘o’,the weight is

stable on the scale. If the display

shows ‘ ’, the weight is unstable.

The ‘Hold’weighing function is

active.

kg ←→ lb:oz

Indicates the Weighing unit [kg ←→

lb:oz].

Stored ‘Tare’ value.

Touch-free taring field.

-/ o on base

On (-) /Off (o) switch for scale

base.

PREPARING SCALE FOR WEIGHING

Before Weighing

1. Please select the scale’s channel to match the wireless

display. (The scale’s channel indicator is located on the

scale’s base; please remove the rubber stopper to access

the channel indicator.)For example: If the wireless

display is using Channel-1, select Channel-1 for the

scale.(Please see Page 6 for instructions for selecting

platform channels.)

2. Press the ON/OFF button to turn on the scale.

3. Please make sure that the distance between the scale

base and the wireless display is within 30 feet (10

meters).

Note: If the scale’s channel is not same as the wireless

display, ‘88888’will appear on the display. Set the scale

and wireless display to the same channel.

Weighing

1.Press the ON/OFF button to turn on the scale.

2.‘88888’appears on the screen, then ‘0’and ‘ ’will

flash. The scale is ready for weighing.

*NOTE- If the “88888” display does not show ‘01, press the

button to change the wireless display’s channel to

match the scale’s channel. For example: If the scale’s

channel is set to Channel-1, please select Channel-1 for

the wireless display also.

CHANGING THE WIRELESS DISPLAY’S CHANNEL

Press the button to select the wireless display

channel.

Channel numbers (1, 2, 3) are shown on the left hand side

of the display. When a channel is selected,a triange icon

points to the selected channel. For example- If Channel-1

is selected, the triange icon points to ‘1’.

Channel 1

Channel 2

Channel 3

SELECTING THE SCALE PLATFORM’S CHANNEL

To select the scale platform’s channel, first turn off the

scale base and wireless display units. Then use the dip switch,

which is located on the bottom of the scale under the rubber

stopper. The dip switch has four pins marked ‘1, 2, 3, 4’

(Pin-4 is not active; only 3 channels are available for use.)

To select a channel, move the pin toward the ‘ON’ mark

(pictured below). For example- To select Channel-1 for the

scale, move Pin-1 towards the ‘ON’mark. Turn on the scale

base first, then the wireless display for use.

The dip switch is on the bottom of the scale platform under

the rubber stopper.

Channel

USING THE TARE FUNCTION

The Tare Function allows the user to zero the scale to cancel

out the weight of a container, thus giving the weight of the

item being weighed.

Press the ON/OFF button to turn on the scale.

Place the containter on the scale platform.

Press the ‘TARE’button after the weight stabilizes and

stable sign displays.

The display will reset to ‘0’.

Place the item to be weighed on the platform(without

removing the ‘tared’container).

Touch Free Tare Function:This scale is equipped with ‘Photo

eye mechanism’for a touch free ‘TARE’ function. Simply pass

your hand over the ‘Photo eye’ sensor and the scale will tare

the weight.

Place the container to be tared on the scale platform.

Pass your hand over the sign on the indicator.

The display will reset to ‘0’.

Place the next item to be weighed on the scale platform.

To reset the ‘TARE’ to zero, remove the tared container from

the platform and press the ‘TARE’ button, or pass your hand

over the sign.

ACTIVATING/ DEACTIVATING TOUCH LESS TARE FEATURE

FUNCTION SETTINGS

Function

Description

Default

(Units): lb , kg

(Auto off Time): 120 sec/ 180 sec/ 240

sec/ 300 sec/ OFF

(Hold range): 2d/ 5d/ 10d/ 15d

(Touch less feature): on , off

To confirm the settings and end the procedure

The start icon(*) is

the default value

Press to move right

or down as shown in

setup flowchart.

TABLE-TOP STAND AND WALL MOUNTS

You may stand the scale platform on a table.

Adjust the angle of the wireless display for easy viewing.

Table top display:

Wall display:

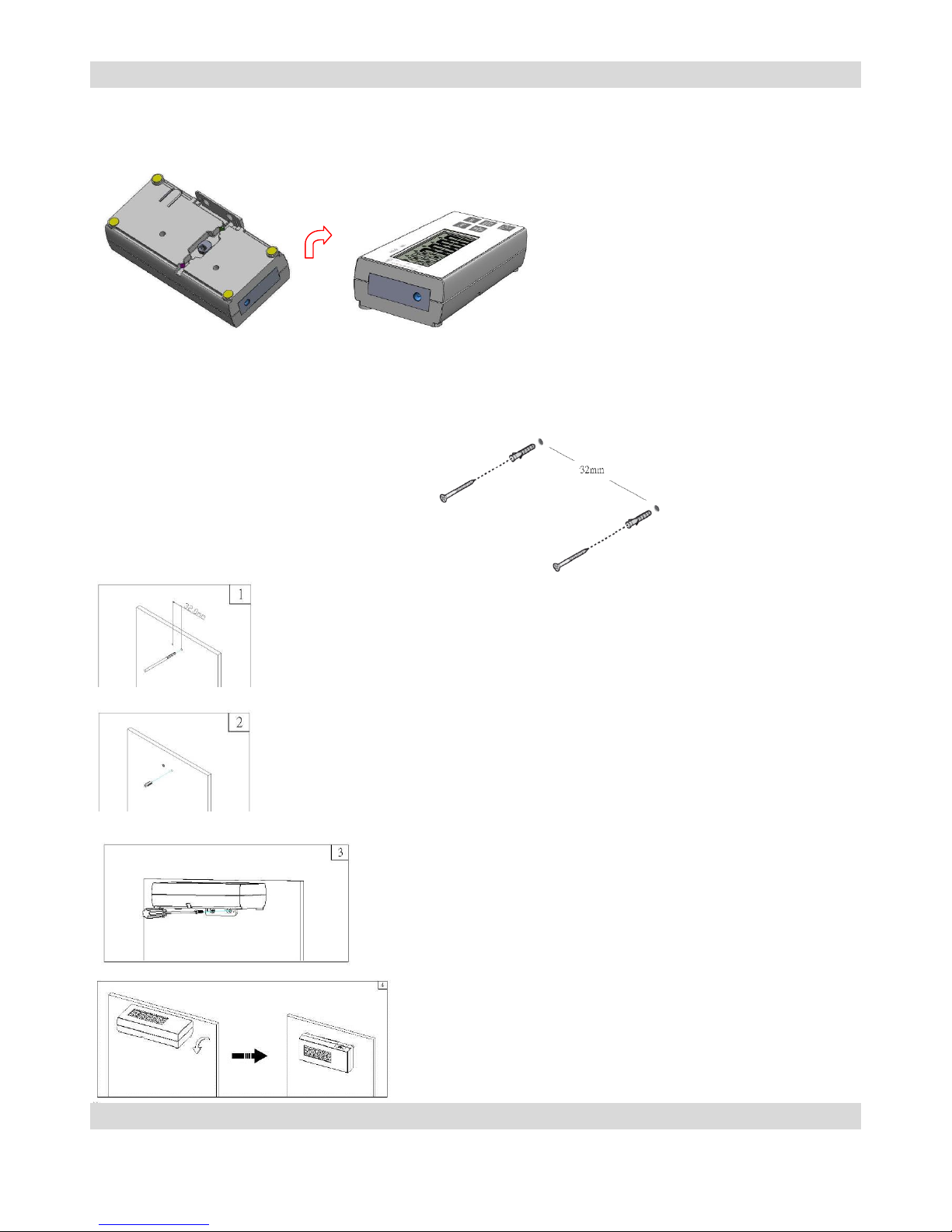

The wireless display may be mounted to a wall. Use the

mounting material included.

1.Screw the screws to the

wall as shown.

2.Push the wireless

display onto the well.
