Targus AMW14EU Manual de usuario

USER GUIDE

8-button

wireless

laser mouse

Table of Contents

English- - - - - - - - - - - - - - - - - - - - - - - 3

Deutsch - - - - - - - - - - - - - - - - - - - - - 14

Español - - - - - - - - - - - - - - - - - - - - - 26

Français - - - - - - - - - - - - - - - - - - - - - 38

Italiano - - - - - - - - - - - - - - - - - - - - - - 50

Nederlands- - - - - - - - - - - - - - - - - - - 62

Português- - - - - - - - - - - - - - - - - - - - 74

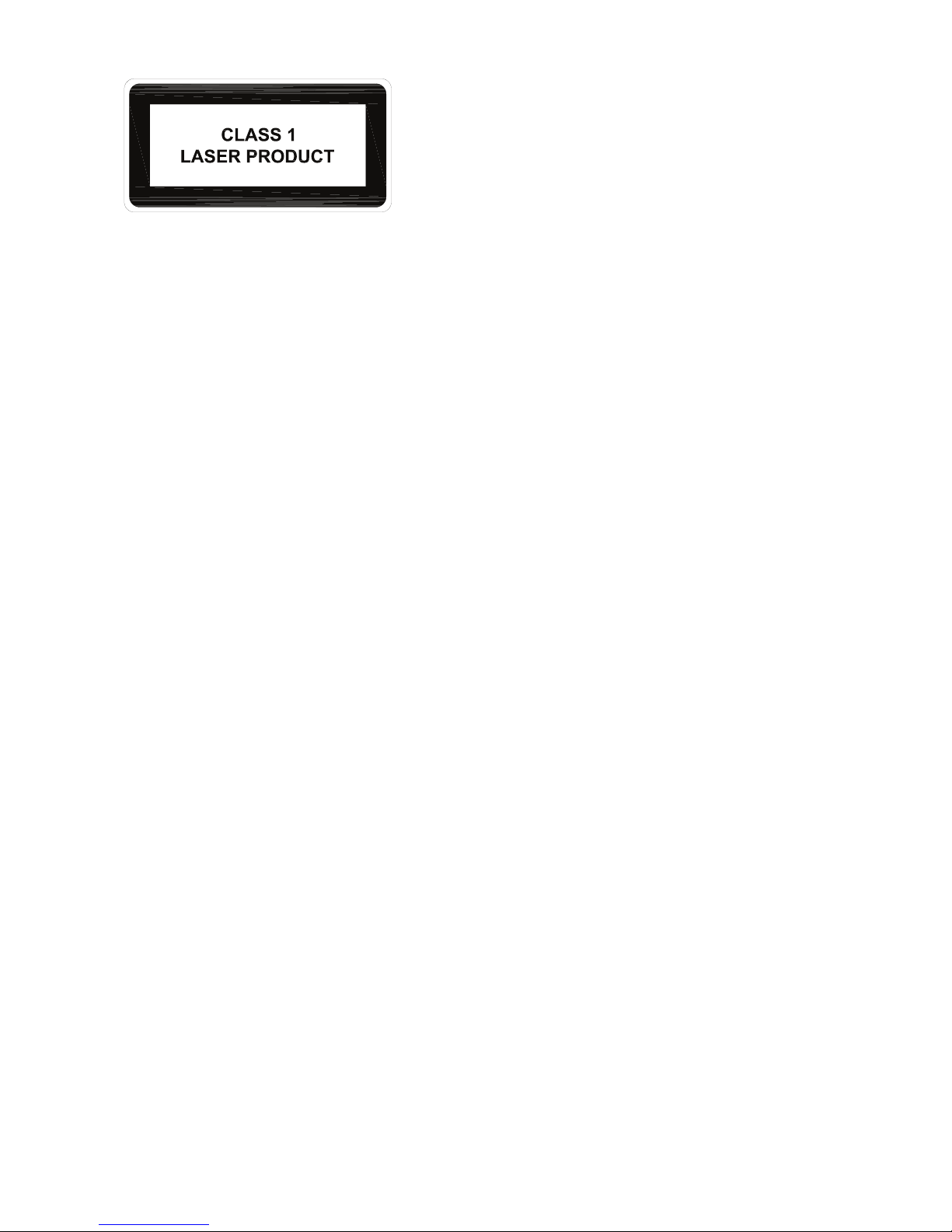

CAUTION

LASER RADIATION. DO NOT STARE INTO

THE BEAM OR VIEW DIRECTLY WITH

OPTICAL INSTRUMENTS. CLASS I LASER

PRODUCT.

NEVER POINT A LASER BEAM INTO A

PERSON’S EYES OR VIEW A LASER BEAM

DIRECTLY, AS PROLONGED EXPOSURE CAN

BE HAZARDOUS TO THE EYES.

MOMENTARY EXPOSURE FROM A LASER

POINTER, SUCH AS AN INADVERTENT

SWEEP OF THE LIGHT ACROSS A PERSON'S

EYES, MAY CAUSE TEMPORARY FLASH

BLINDNESS SIMILAR TO THE EFFECT OF A

CAMERA FLASH BULB. ALTHOUGH THIS

CONDITION IS TEMPORARY, IT CAN

BECOME MORE DANGEROUS IF THE

EXPOSED PERSON IS ENGAGED IN A

VISION-CRITICAL ACTIVITY SUCH AS

DRIVING.

TARGUS 8-BUTTON

LASER WIRELESS

MOUSE

Introduction

Congratulations on your purchase of the Targus 8-Button

Laser Wireless Mouse for the desktop. This

ergonomically-designed mouse offers the latest in laser

tracking technology as well as the most up-to-date

wireless features. It allows for improved tracking

accuracy on most types of surfaces, even some mirror

and glass. With 6 channels and 256 IDs per channel, the

mouse's digital signal processor offers a new level of

accuracy and precision in wireless data transmission.

Productivity is enhanced by a practical 8-button design

that includes such short cuts as Internet back and

forward, applications switch and scroll up and down

functions.

NOTE: WHILE THE MOUSE IS FUNCTIONING,NO LASER LIGHT IS VISIBLE TO THE

NAKED EYE. BE CAREFUL NOT TO LOOK DIRECTLY INTO THE EMITTER HOLE

WHILE THE MOUSE IS ACTIVE.

Package Contents

• Wireless Laser Mouse

• USB Receiver

• USB Charge Cable

• USB Extension Seat

Targus 8-Button Laser Wireless Mouse

• 2 x AA Rechargeable Batteries

• User Guide

System Requirements

Hardware

• USB interface

Operating System

For Desktop PCs

For instances where the PC is positioned under a desk or

other places that might impede wireless connectivity, use

of the extension seat is recommended.

1 Connect the extension seat to an available USB port

on your PC.

2 Plug the USB wireless receiver into the port labeled

'receiver' located at the top of the seat.

3 Connect the USB end of the charge cable to the USB

port labeled 'charger' on the extension seat.

• Windows®2000/XP

• Windows Vista™

Targus 8-Button Laser Wireless Mouse

For Notebook PCs

1 Connect the extension seat to an available USB port

on your PC.

2 Plug the USB wireless receiver into the port labeled

'receiver' located at the top of the seat.

3 Connect the charge cable's USB end to the USB port

labeled 'charger' on the extension seat.

Alternatively, if more than one USB port is available you

may opt not to use the extension seat by plugging the

receiver and charging cable directly into the notebook

PC's open USB ports.

Installing the Batteries

1 Remove the battery cover from the bottom of the

mouse by pressing the tab located on the bottom and

lifting it off.

Bottom of mouse

2 2 AA NiMH rechargeable batteries are included. Insert

the supplied batteries, making sure that the positive

(+) and negative (-) ends of each battery match the

polarity indicators inside the battery housing.

Battery cover

tab

Targus 8-Button Laser Wireless Mouse

WARNINGS: USE ONLY HEAVY-DUTY NIMH RECHAREGEABLE BATTERIES.

NEVER USE ALKALINE BATTERIES.

AVOID MIXING NEW AND USED BATTERIES.

3 Slide the battery cover back into position until it

“clicks” firmly into place.

Charging the Mouse

For best results, you should charge the mouse at least

eight hours before using it.

1 Connect the supplied charge cable to the charge port

on the supplied extension seat and plug the extension

seat cable to the USB port on your computer.

2 Connect the other end of the charge cable to the

mouse.

3 Alternatively, you can connect the charge cable's USB

connector directly into an available USB port on your

computer.

NOTE: TO CONTINUOUSLY CHARGE THE MOUSE VIA THE USB CHARGE CABLE,

YOUR COMPUTER MUST BE ON AND AWAKE. FOR BEST RESULTS,TURN OFF

YOUR COMPUTER’S POWER MANAGEMENT FEATURE WHILE CHARGING THE

MOUSE.

Targus 8-Button Laser Wireless Mouse

Synchronisation

Make sure that your computer is turned on and has

detected the USB receiver before you synchronise.

1 Press and release the connect button on the receiver.

2 Press and release the connect button located on the

bottom of the mouse.

The receiver’s status light flashes while it scans the

identification codes. When synchronized the status

light stops flashing. This process must be completed

within a few seconds or the steps will need to be

repeated.

After successfully synchronising, you are ready to use

the mouse.

Connect

button

Connect

button

Targus 8-Button Laser Wireless Mouse

NOTE: REMOVING THE BATTERIES WILL REQUIRE YOU TO SYNCHRONIZE THE

MOUSE WITH THE RECEIVER AGAIN.

Using the Mouse

NOTES: THE 4TH THROUGH 8TH BUTTONS REQUIRE WINDOWS 2000 OR XP

TO FUNCTION.

DUE TO THE IMPROVED TRACKING SPEED OF THE LASER ENGINE,USERS MAY

FIND THE CURSOR MOVEMENT IS FASTER THAN A CONVENTIONAL OPTICAL

MOUSE. CURSOR SETTINGS CAN BE CHANGED FROM THE CONTROL PANEL IN

WINDOWS.

1: Left Mouse Button 5: Application Switch

2: Right Mouse Button 6: Internet Page Backward

3: Middle Button/Scrolling 7: Scroll Up

4: Internet Page Forward 8: Scroll Down

Targus 8-Button Laser Wireless Mouse

Safety Measures

• Although this mouse is a Class 1 Laser Product and

safe for operation, avoid pointing the laser into the

eyes or looking directly into the laser emitter.

• Keep the mouse away from young children.

• Any attempt to disassemble, adjust or repair the mouse

may result in exposure to laser light or other safety

hazards.

Sleep Mode

The mouse's sleep mode feature activates after 8

minutes of non-operation. To wake the mouse, click the

left, right or scroll mouse button.

Troubleshooting

What do I do if the mouse does not work?

• Make sure that the polarity of the batteries is correct.

The positive (+) and negative (-) ends of each battery

must match the positive (+) and negative (-)

connections in the battery housing.

• Make sure that the batteries are fully charged. Check

your computer’s suspend mode settings, as the mouse

will not charge while the computer is in suspend mode.

• Check that the receiver's USB connector is firmly

attached to the USB port on your computer or the
