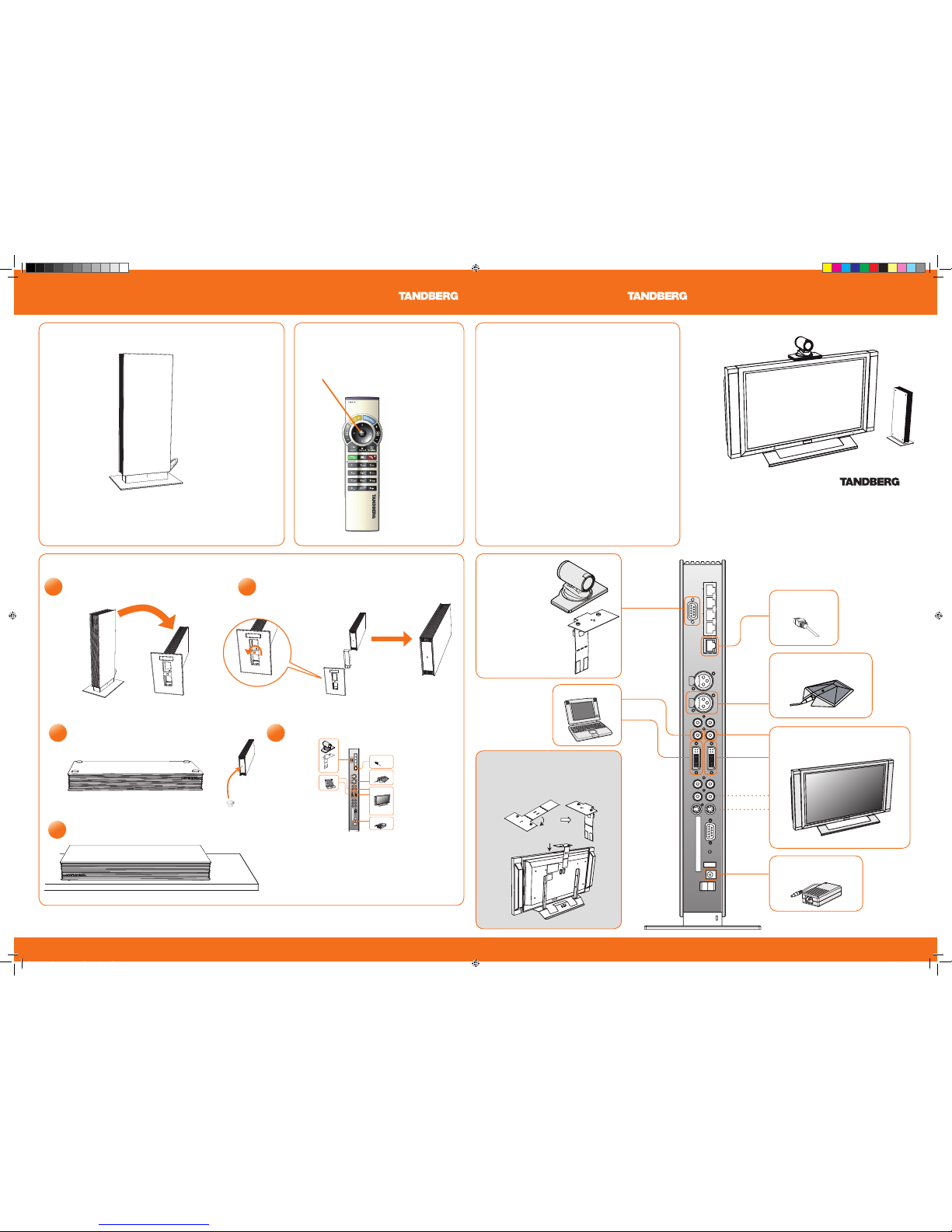

TANDBERG Edge D13922.06 Instrucciones de montaje

Installation Sheet

TANDBERG Edge

This box contains:

TANDBERG Edge unit

TANDBERG Precision HD camera

Edge unit wall mounting bracket

Precision HD camera bracket

Screwdriver (PH2)

Rubber feet and plug

Microphone and microphone cable

HD camera cables, 2m & 5 m

LAN cable

ISDN cables

DVI-I to DVI-I cable (for monitor connection)

DVI-I to VGA adapter

S-Video cable

RCA to RCA cable

DVI-I to VGA cable with mini-jack to stereo RCA Audio cable (for

PC connection)

Audio cable, RCA to 2× RCA

2 × RCA to stereo mini-jack adapter

Cable sleeve

Cable ties

Power supply with cables

TANDBERG Remote Control and batteries

User Guide on CD

Registration card

TANDBERG

Precision

HD Camera

The Camera must

be installed properly

by aligning the

camera on the

xing bolt and the

magnets on the

camera bracket.*

* Installation of the camera bracket with the

TANDBERG Flat Panel Display Option.

A wall mounted screen must have minimum

140 mm distance from the front of the screen

to the wall.

LAN/Ethernet

Microphone

Monitor

Power Supply

Desktop Use

Touch tonesSnapsho t

Camer a Preset s

TIP

If the menu is not already present, press

the OK/Menu key on the remote control

to open the menu. Navigate in the menu

with arrow keys and OK.

Please read the user documentation for further details.

D13922.06 MARCH 2008

Using the unit out of the box

Placing the unit on a shelf

Put it on the desktop, connect cables as shown to the far

right and it is ready to use.

CAUTION! Never place the unit as shown without the base

mounted!

Unscrew the base, using the enclosed screwdriver.Put the Edge codec on its back.

Turn the unit upside down and mount the rubber

feet over the screws. Insert the rubber plug in

the hole that held the screw just unscrewed.

Place the unit on the shelf.

1 2

3 4 Connect cables as shown to the right.

DVI-I to DVI-I

Composite

S-video

(optional)

CAUTION! Do not screw the screw back in if

the base has been removed and the bracket

is not to be used. Doing so may damage the

codec’s interior and will void the warranty.

Use the enclosed rubber plug instead.

Rubber plug

D1392205_Edge_Installation_Sheet_Feb08.indd 1 10.03.2008 09:56:24

Installation Sheet

TANDBERG Edge Wall Mounting

Recommended

mounting

DO NOT MOUNT IT HERE!

Alternative

mounting

Alternative

mounting





Equipment needed:

Caution!

Remove the monitor. Make sure there

is space for all

cables when the

monitor is put back

in place. Also make

sure that the cable

connections will be

well hidden behind

the monitor.

Recommended

Alt. 1

Alt. 2

Unscrew the base using the

enclosed screwdriver.

Put the Edge

codec on its back.

Bracket with screw

(included).

Screwdriver to

remove the base and

mount the bracket

(included).

Suitable screws (at

least 4×15) to mount

bracket on wall (not

included). Each screw

must be able to sustain

at least 10kg when

bracket is mounted.

Screwdriver to mount

bracket on wall (not

included).

Decide where to mount the Edge codec.

1 2 3

45 6

7 8

Mount the Edge codec (with all the cables connected) onto the bracket using the screw of the wall bracket. Mount the monitor and camera (see instructions overleaf) back in place.

Hose (sleeve) to

accommodate the

cables between

the codec and

the monitor and

camera (included).

Use screws in

all four holes for

mounting. Do not

rely on the center

hole alone.

Connect cables as shown overleaf.

D13922.06 MARCH 2008

Mount the bracket on the wall.

CAUTION! Never use other screws than the 20mm screw already attached to the wall

bracket. Do not remove this screw. Using other screws may damage the codec’s interior

and will void the warranty.

D1392205_Edge_Installation_Sheet_Feb08.indd 2 10.03.2008 09:56:30
