Tanaka HTD-2526PF Guía de configuración

IllustrIllustr

Illustraa

ated Pted P

ted Pted P

ted Parar

arar

arts Mants Man

ts Mants Man

ts Manualual

ualual

ual

Model Number:

HTD-2526PF

26” HEDGETRIMMER

P/N 30217

Rev 000

Date 9-17-08

Nikko Tanaka Engineering U.S.A.,Ltd.• 1028 4th Street SW, Bldg B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212

www.tanakapowerequipment.com [email protected]

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 1

HTD-2526PF

CYLINDER, PISTON, CRANKSHAFT, IGNITION • FIGURE 1

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

1-1 1570168090 CAP,SPARK PLUG ASS'Y 1

1-2 0181166021 PLUG,SPARK 1

1-3 2550168020 COVER,SPARK PLUG,RUBBER 1

1-6 0010300290 SET,CYLINDER 1 Includes gasket

1-7 99461050184 BOLT,HEX,5X18,S 4

1-9 0170300220 GASKET,CYLINDER 2 S/N ~A047500 requires 2 gaskets

1-9 0170300221 GASKET,CYLINDER 1 S/N A047500~ requires 1 gaskets

1-11 04101601200 RING,PISTON 2

1-12 0300168090 PISTON SET 1 Includes rings & circlips

1-13 03900000201 CIRCLIP,PISTON PIN 2

1-14 03701700200 PIN,PISTON 1

1-16 0460300280 CRANKSHAFT 1

1-17 99962091325 BEARING,NEEDLE,F-910 1

1-18 06810100200 KEY,WOODRUFF,3X13X4.5 1

1-40 1780300280 CORD,B,140M 1

1-46 99464040184 BOLT,HEX 4x18WS 2

1-47 1820186A201 WASHER,SPECIAL 2

1-50 1672174390 COIL,IGNITION ASS'Y 1

1-55 2500168020 TUBE,INSULATOR 1

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 2

HTD-2526PF

FLYWHEEL, CRANKCASE • FIGURE 2

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

2-19 33000200210 SHIM,12.2X19X.10 1

2-19 33000200220 SHIM,12.2X19X.15 1

2-19 33000200230 SHIM,12.2X19X.20 1

2-19 33000200240 SHIM,12.2X19X.30 1

2-26 2030300220 GROMMET 1

2-31 0720300290 CRANKCASE 1 Includes bearings, seals and gasket

2-32 99966122206 SEAL,OIL,#TC12227 2

2-33 99961600115 BEARING,BALL,6001 C3 2

2-34 0900300220 GASKET,CRANKCASE 1

2-35 10002100200 BOLT,STUD,6X22 2

2-36 99461050304 BOLT,HEX,5X30S 2

2-37 99414050451 SCREW,5X45/S 2 ~A091100

2-37 99051050453 BOLT,HEX,5X45 2 A091101~

2-38 99210050062 WASHER,S,5 2 A091101~

2-51 1552174480 MAGNETO 1

2-52 99210080012 WASHER,S,8 1

2-53 99201080011 WASHER,8 1

2-54 99101080011 NUT,8 1

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 3

HTD-2526PF

CARBURETOR, FUEL TANK, FUEL SYSTEM • FIGURE 3

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 4

HTD-2526PF

CARBURETOR, FUEL TANK, FUEL SYSTEM • FIGURE 3

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

3-25 4030300220 GASKET,INTAKE 1

3-26 4040300291 INSULATOR SET 1 Includes gasket

3-27 99464050254 BOLT,HEX HOLE,5X25WS 2

3-30 4020300220 GASKET,CARBURETOR 1

3-33 99967015000 O-RING,P15 1

3-35 4230650081 BODY,CLEANER 1

3-36 47006500200 COLLAR 2

3-37 5280300220 VALVE,CHOKE 1

3-38 99204080030 WASHER,8 1

3-39 47601700200 BOARD,BLOW OVER CHECK 1

3-40 99210050012 WASHER,S,5 2

3-41 99011050602 SCREW,5X60 2

3-43 4460650021 ELEMENT 1

3-44 4520650091 COVER,CLEANER,W/BOLT 1

3-45 3800637C200 BOLT,CLEANER COVER 1

3-46 4550300290 SET,CARBURETOR 1 Includes gasket

3-50 2230700090 FUEL PIPE ASSY 1

3-51 68000731201 CLIP 6.3 1

3-52 6750404280 FILTER,FUEL 1

3-53 5910300220 TANK,FUEL,ORANGE 1 ~C226140

3-53 5910301620 TANK,FUEL,WHITE 1 C226141~

3-54 5950300290 CAP,TANK (BLACK/RED) 1

3-55 65900801200 COLLAR 2

3-58 99463050185 BOLT,HEX 5X18PS 2

3-61 5600712020 SWIVEL CAP 1 A123751~

3-70 44225143800 PUMP,PRIMING ASS'Y 1

3-77 7000250408 PIPE,FUEL,2.5x4x80 1

3-78 7000250407 PIPE,FUEL,2.5x4x70 1

3-79 53432710200 GROMMET,FUEL PIPE 1

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 5

HTD-2526PF

CLUTCH, STARTER, MUFFLER COMPONENTS • FIGURE 4

Recoil Starter Assy

Use #762.03002.90

Includes items #11-#19

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

4-3 7380300221 PROTECTOR,MUFFLER 1 See Bulletin # PI 3121

4-6 7040300290 SET,MUFFLER 1 See Bulletin # PI 3121

4-7 99201060011 WASHER,6 2

4-8 99053060553 SCREW,HEX.HOLE 2

4-10 7210440020 PIPE,TAIL 1 See Bulletin # PI 3121 ~Z044250

4-10 7210300320 PIPE,TAIL 1 Z044251~

4-11 1120300280 CASE,FAN 1

4-12 78006097200 SPRING,RECOIL 1

4-13 77406097200 PULLEY,STARTER 1

4-15 8390201020 SCREW,SET 1

4-16 79806500900 PULLEY,STARTER,ASS'Y 1

4-17 20306000200 GROMMET,PRIMARY CORD 1

4-18 78306097200 ROPE,STARTER 1

4-19 78506410200 HANDLE,STARTER 1

4-20 99463040154 BOLT,HEX,4X15,PS 3

4-21 7350300281 SHIELD,HEAT 1

4-22 7320440020 ARRESTER,SPARK 1

4-23 99201050011 WASHER,5 1

4-24 99435040081 SCREW,4X8PS 1

4-25 99414050081 SCREW,5X8,S 1

4-47 2770634F901 CLUTCH 1

4-61 99073045104 SCREW,TAPPING,4.5X10 1

4-62 99425040128 BOLT,PS,4X12 1

4-65 79006097200 SPRING,STARTER PAWL 1

4-66 7880650020 PAWL,STARTER 1

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 6

HTD-2526PF

CARBURETOR • FIGURE 5

Asmallretainer(560-02170-

20), has been added to this

modelafterserial # A099801

to prevent the barrel end of the

throttlewirefrom coming

detachedfromthe carburetor.

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

5-0 4550300290 SET,CARBURETOR 1 Includes gasket

5-1 54825140200 SCREW,THROTTLE SET 2

5-5 53925120200 SWIVEL 1 Carburetor Repair Kit - 650-25140-900

5-7 48925100200 RING,STOP 1 Gasket/Diaphragm Kit - 652-25140-900

5-10 55025100200 O-RING 1

5-11 5992001W35 JET,MAIN,#35 1

5-13 ~ ~ ~ GASKET,PUMP 1 ~ Contained in Carb Kits

5-14 ~ ~ ~ DIAPHRAGM,PUMP 1

5-17 57825007200 SCREEN,INLET 1

5-18 5752522580 BODY,PUMP 1

5-19 ~ ~ ~ GASKET,DIAPHRAGM 1

5-20 ~ ~ ~ DIAPHRAGM,METERING 1

5-21 47625004200 COVER,DIAPHRAGM 1

5-22 54825101200 SCREW,SET 4

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 7

HTD-2526PF

CLUTCH DRUM, GEAR CASE, BLADES • FIGURE 6

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 8

HTD-2526PF

CLUTCH DRUM, GEAR CASE, BLADES • FIGURE 6

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

6-1-1 3003316082 GEAR CASE 1 ~C226140

6-1 3003329081 CASE,GEAR 1 C226141~

6-2 99350015002 RING,STOP,C-15 EX 1

6-3 99961600200 BEARING,BALL,#6002 1

6-4 99961600202 BEARING,BALL,#6002Z 1

6-5 2883318080 DRUM,CLUTCH 1

6-6 30533160200 SHAFT,GEAR 1 ~C226140

6-7 07533160200 PLATE,GUIDE 1

6-8 1013316022 ROD,CAM 2

6-9 3073318020 GEAR,2 1 ~C226140

6-9 2923319480 GEAR 2 1 C226141~

6-10 30333160200 GASKET,GEAR CASE 1

6-11 6303316020 COVER,GEAR CASE 1 ~C226140

6-11 6303316520 COVER,GEAR CASE 1 C226141~

6-12 1223316821 BAR,28-7/8"OAL,STANDARD 1 ~A319700

6-12 1223324820 BAR,28-7/8"OAL,METRIC 1 A319701~

6-13 1363316020 PLATE,PROTECTION 1 ~A319700

6-14 99052060165 BOLT,HEX,6X16 2 ~C226140

6-14 99052060255 BOLT,HEX FLUSH,6X25 2 C226141~

6-15 CB-22A BLADE,A,DS,26" 2

6-16 08533160200 SEAL,GREASE A 2

6-17 12933202201 WASHER,7 5

6-18 1243320221 BOLT,CUTTER FIXING,A 5 ~A319700

6-18 1243228720 BOLT,FIXING,A,M6 5 A319701~

6-19 1233317A20 NUT,SPECIAL 5 ~A319700

6-19 40927 NUT,FLANGE,6 5 From A319701 to C226140

6-19 40927 NUT,FLANGE,6 4 C226141~

2-21-1 99461040104 BOLT,HEX,4X10,S 8 ~C226140

6-21 99461040124 BOLT,HEX,4X12 6 C226141~

6-22 30032250801 FITTING,GREASE 1

6-23 99051060143 BOLT,HEX,6X14 2 ~A319700

6-23 99461060184 BOLT,HEX,6x18S 2 A319701~

6-24 87132600200 WASHER,SPECIAL,B 1 C226141~

6-30 4623329020 PLATE,SUPPORT 1 C226141~

6-32 99187060001 NUT 3 C226141~

6-33 99201060011 WASHER,6 3 C226141~

6-47 99201060011 WASHER,6 3 Z044251~

6-47 99101060011 NUT,6 3 ~A319700

6-60 3013316021 CASE,GEAR B 1 C226141~

6-67 19805015800 CLAMP,CORD 1 ~C226140

6-69 1383317120 COVER,CUTTER,26" 1

6-71 99210060012 WASHER,S,6 2 ~A319700

6-72 99440060011 NUT,SPRING 6 2

6-82 99461040104 BOLT,HEX,4X10,S 2 C226141~

6-88 99961608013 BEARING,BALL,#608Z 1 C226141~

www.tanakapowerequipment.com

PARTS INFORMATION

[email protected]

Page 9

HTD-2526PF

HANDLES, THROTTLE • FIGURE 7

Units Before

S/N C226141

Otros manuales de Recortadora de Tanaka

Tanaka

Tanaka TCH Series Manual de usuario

Tanaka

Tanaka TCH 24EAP Manual de usuario

Tanaka

Tanaka HTD-2522PF Guía de configuración

Tanaka

Tanaka TBC-220 Manual de usuario

Tanaka

Tanaka TCG24EBS(SL) Manual de usuario

Tanaka

Tanaka tch 27epa Manual de usuario

Tanaka

Tanaka THT-2120 Guía de configuración

Tanaka

Tanaka TBC-280 Guía de configuración

Tanaka

Tanaka TBC-225S Manual de usuario

Tanaka

Tanaka TCH24EA(50ST) Manual de usuario

Tanaka

Tanaka THT-240 Manual de instrucciones

Tanaka

Tanaka THT series Manual de usuario

Tanaka

Tanaka TBC-225C Guía de configuración

Tanaka

Tanaka TBC-355 Manual de usuario

Tanaka

Tanaka THT-230 Manual de instrucciones

Tanaka

Tanaka THT-210SB Guía de solución de problemas

Tanaka

Tanaka TBC-230 series Guía de configuración

Tanaka

Tanaka TCG 24ECP (SL) Manual de usuario

Tanaka

Tanaka THT-232 Manual de instrucciones

Tanaka

Tanaka TBC-2211 Manual de usuario

Tanaka

Tanaka THT-2000 Guía de configuración

Tanaka

Tanaka TBC-225 Guía de configuración

Tanaka

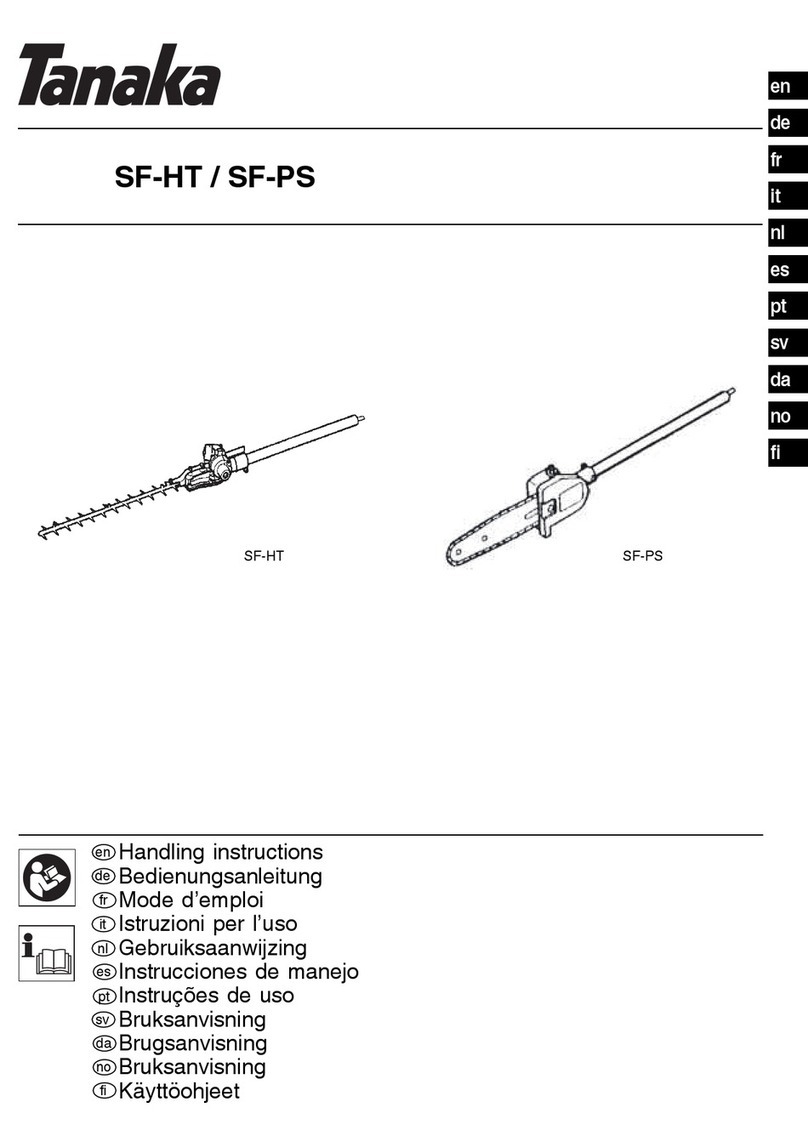

Tanaka SF-HT Manual de usuario
