Model Number:

TBC-420PF

LOW EMISSION TRIMMER / BRUSH CUTTER

P/N 29759

Rev 001

Date 5-14-08

Supplier To The Outdoor Power Equipment Industry

ISM, Inc. • 1028 4th Street SW • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212

[email protected]www.tanaka-ism.com

C.A.R.B. Tier II Certified!

PRODUCT INFORMATION

All data and specifications are subject to change without notice

For more information, contact:

ISM, Inc. • 1028 4th St. Sw, Suite B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212 • E-mail: [email protected]

30% More Fuel Efficient

Low Emission Trimmer / Brush Cutter

TBC-420PF

C.A.R.B. Tier II

CERTIFIED

Features / Benefits

Note: This unit comes blade ready!

40cc, 2.2 hp low emission engine provides outstanding performance while reducing

emissions by 70 percent and increasing fuel efficiency by 30 percent.

Increased fuel efficiency saves up to $150/yr in gas and oil costs, and increases

productivity.

BRAIN® automatic cutting head comes with 33 ft of .130 copolymer cutting line and

is simple to disassemble. The BRAIN senses when more line is needed and always

feeds out the perfect length.

Bearingsupported,solidsteeldriveshaftprovidessmoothandefficientpowertransfer

from the engine to the cutting head.

1 / 2 / 5 Warranty Coverage provides One-Year coverage for professionals, Two-

Year Coverage for Homeowners, and Five Years on the Electronic Ignition Module.

Specifications

Engine Displacement cc (cu. in.) 40 (2.4 )

Power (h.p.) 2.2

Cylinder Chrome Plated, Stress Relieved

Carburetion Walbro Diaphragm

Ignition System Transistorized Electronic

Fuel Tank Capacity / fl. oz. (cc) 33.8 (1000)

Anti-Vibration Engine Mount & Front Handle

Clutch System Heavy-Duty Centrifugal

Shaft Support 5 Shaft Bearings

Drive System 7mm Solid Steel Shaft

Standard Cutting Head BRAINAutomatic Feed (.130" Line)

Standard Cutting Blade 9" - 80 Tooth Saw Blade

Dry Weight / lbs. (kg) w/head 16.0 (7.3)

Optional Accessories:

ORDER # DESCRIPTION

746280 Aluminum fixed line head

746290 Aluminum manual feed head

746353 6” semi-auto head

746191 Single shoulder strap

746291 Deluxe shoulder harness

Varies Assorted brush & weed blades

748502 Dual handle kit

TMC-200 Cultivator attachment

Varies Copolymer Nylon Cutting Line

Varies Perfect Mix 2-Cycle Engine Oil

www.tanaka-usa.com

PARTSINFORMATION

[email protected]

Page 1

TBC-420PF

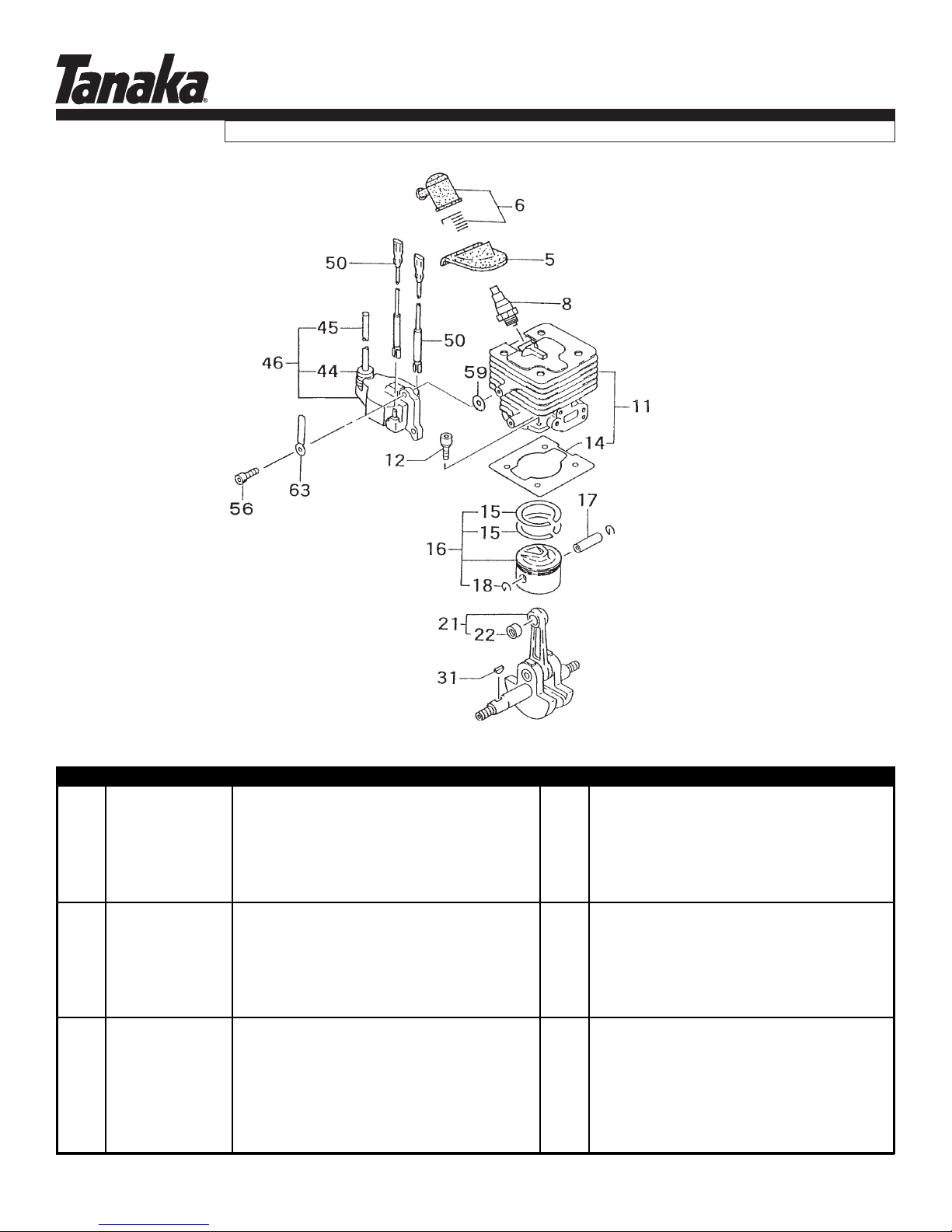

CYLINDER, PISTON & CRANKSHAFT • FIGURE 1

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

1-5 25504200200 COVER,SPARK PLUG,RUBBER 1

1-6 15711666900 CAP,SPARK PLUG 1

1-8 0181166021 PLUG.SPARK 1

1-11 0010440590 SET,CYLINDER 1 Includes gasket

1-12 99461050204 BOLT,HEX,HOLE,5X20,S 4

1-14 0170440020 GASKET,CYLINDER 1

1-15 04104050200 RING,PISTON 2

1-16 0300440090 PISTON SET 1 Includes rings and circlips

1-17 0370100020 PIN,PISTON 1

1-18 03905004200 CIRCLIP,PISTON PIN 2

1-21 0460440080 CRANKSHAFT 1

1-22 99962101004 BEARING,NEEDLE,F1010B 1

1-31 06802000200 KEY,WOODRUFF,3X13X5 1

1-44 56020517200 CAP,RUBBER 1

1-45 1782054322 CORD,HIGH TENSION 1

1-46 1672054391 COIL,IGNITION 1

1-50 1790007080 STOP CORD,220MM 2

1-56 99416040183 SCREW 4X18/WS 2 U112141~ includes washers

1-63 19811600200 CLAMP,CORD 1

www.tanaka-usa.com

PARTSINFORMATION

[email protected]

Page 2

TBC-420PF

CRANKCASE, FLYWHEEL & IGNITION • FIGURE 2

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

2-7 2570440020 PROTECTOR 1

2-9 99463050204 BOLT, HEX 5X20 1

2-19 7880162V20 PAWL,STARTER 1

2-20 99355050000 RING,STOP,5 1

2-23 99111100013 NUT,10 1

2-24 7900162V200 SPRING,PAWL,STARTER 1

2-25 7980422090 PAWL,STARTER ASS'Y 1

2-26 0720440090 CRANKCASE,ASSY 1 ~U207604 - Incl gasket, seals and brgs

2-26 0720440091 CRANKCASE,ASSY 1 U207605~ Incl gasket, seals and brgs

2-27 0900440020 GASKET,CRANKCASE 1

2-28 99966152511 SEAL,OIL,#VE15X25X7 2

2-29 99961620200 BEARING,BALL,#6202 2

2-32 07102007200 SHIM,15.2X20X.05 1

2-32 07102007210 SHIM,15.2X20X.10 1

2-32 07102007220 SHIM,15.2X20X.15 1

2-32 07111600230 SHIM,16X21X.20 1

2-32 07111600240 SHIM,16X21X.30 1

2-36 99461050304 BOLT,HEX,5X30S 4

2-51 1552053880 ROTOR,MAGNETO 1

2-52 99201100011 WASHER,10 1

2-54 99111100011 NUT,10 1

2-55 99414050101 SCREW,S,5X10 1 U112141~

2-60 1320440020 DEFLECTOR,AIR 1 U112141~

2-66 1120440021 CASE,FAN 1

2-67 99461050204 BOLT,HEX,HOLE,5X20,S 4

2-69 20311660200 GROMMET,PRIMARY CORD 1

www.tanaka-usa.com

PARTSINFORMATION

[email protected]

Page 3

TBC-420PF

FUEL SYSTEM • FIGURE 3

www.tanaka-usa.com

PARTSINFORMATION

[email protected]

Page 4

TBC-420PF

FUEL SYSTEM • FIGURE 3

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

3-31 4030430020 GASKET,INLET MANIFOLD 1

3-32 4040430090 SET,CARB INSULATOR 1 Includes gasket

3-33 4020430020 GASKET,CARBURETOR 1

3-34 4530637C200 COLLAR 1

3-35 4700138020 COLLAR 1

3-36 4230138082 BODY,CLEANER 1

3-37 5280138021 VALVE,CHOKE 1

3-38 47601700200 BOARD,BLOW OVER CHECK 1

3-39 4460138020 ELEMENT,CLEANER 1

3-40 99204080030 WASHER,8 1

3-41 4520138091 COVER,CLEANER,ASSY 1

3-42 3800637C200 BOLT,CLEANER COVER 1

3-43 99011050602 SCREW,5X60 2

3-44 99210050012 WASHER,S,5 2

3-45 4550440090 SET,CARBURETOR 1 Includes gasket

3-46 78600601200 WASHER,RECOIL STARTER 2

3-49 99464050254 BOLT,HEX HOLE,5X25WS 2

3-62 6490168020 COLLAR,TANK FIXING 1 U207605~

3-63 22301251901 PIPE,FUEL,3X5X230 1

3-64 68000731201 CLIP 6.3 1

3-65 67501630900 FILTER,FUEL 1

3-66 5910440021 TANK,FUEL,ORANGE 1 Before S/N ~D000000

3-66 5910440F20 TANK,FUEL,EVAPO 1 After S/N D000001~

3-68 6590430020 COLLAR,C 3

3-70 5950656B90 CAP,FUEL BLACK,NON VENT 1

3-72 5610007020 COVER,AIR VENT 1 ~V244130

3-73 6460661290 VALVE 1

3-74 5650441020 PIPE,AIR VENT 1

3-75 5640661190 VENT,AIR ASS'Y 1

3-76 99463050204 BOLT, HEX 5X20 3 ~U207604

3-76 99463050204 BOLT, HEX 5X20 2 U207605~

3-77 9400430020 STAND,ENGINE 1

3-78 7000300508 PIPE,FUEL,3X5X85 1

3-79 68000206200 CLIP,5.5 1 ~V244130

3-80 22206300200 GROMMET,FUEL PIPE 1

3-86 99461050304 BOLT,HEX,5X30S 1 U207605~

3-87 99201050061 WASHER,5 1 U207605~

www.tanaka-usa.com

PARTSINFORMATION

[email protected]

Page 5

TBC-420PF

MUFFLER, COVER & CLUTCH • FIGURE 4

www.tanaka-usa.com

PARTSINFORMATION

[email protected]

Page 6

TBC-420PF

MUFFLER, COVER & CLUTCH • FIGURE 4

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

4-1 7380440A21 PROTECTOR,MUFFLER 1

4-3 99461050124 BOLT,HEX,5X12S 1

4-4 99461050164 BOLT,HEX,5X16,S 1 ~U207604

4-5 99053060653 SCREW,HEX,6X65 2

4-6 99201060011 WASHER,6 2

4-7 7040440090 SET,MUFFLER 1 Includes gasket (#14), not heat shield (#16)

4-8 99201050061 WASHER,5 2 ~U207604

4-8 99201050061 WASHER,5 1 U207605~

4-10 7210440020 PIPE,TAIL 1

4-11 99434040081 SCREW,4X8/S 1

4-13 7320440020 ARRESTER,SPARK 1

4-14 73704230200 GASKET,MUFFLER 1

4-16 1330440020 SHIELD,HEAT 1

4-23 99463050204 BOLT, HEX 5X20 4 ~U207604

4-23 99463050204 BOLT, HEX 5X20 3 U207605~

4-24 2030604A202 GROMMET 1

4-25 99461050254 BOLT,HEX HOLE,5X25S 2 U207605~

4-26 99201050061 WASHER,5 2 U207605~

4-81 35910112203 WASHER,CLUTCH B 2

4-82 2900420081 SHOE,CLUTCH 2

4-83 34204200200 SPRING,CLUTCH 1

4-84 99204100030 WASHER,WAVE,10 2

4-85 35704201200 BOLT,CLUTCH STEP 2

www.tanaka-usa.com

PARTSINFORMATION

[email protected]

Page 7

TBC-420PF

RECOIL STARTER • FIGURE 5

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

5-0 7620422090 STARTER,RECOIL ASSY 1

5-1 7720422080 BODY,RECOIL STARTER 1

5-2 7690422020 REEL,STARTER ROPE 1

5-3 7790422020 SPRING,RECOIL 1

5-9 7830422020 ROPE,STARTER 1

5-12 8350422020 CAP,HANDLE 1

5-14 7850422020 HANDLE,STARTER 1

5-17 8390422020 SCREW,SET 1

www.tanaka-usa.com

PARTSINFORMATION

[email protected]

Page 8

TBC-420PF

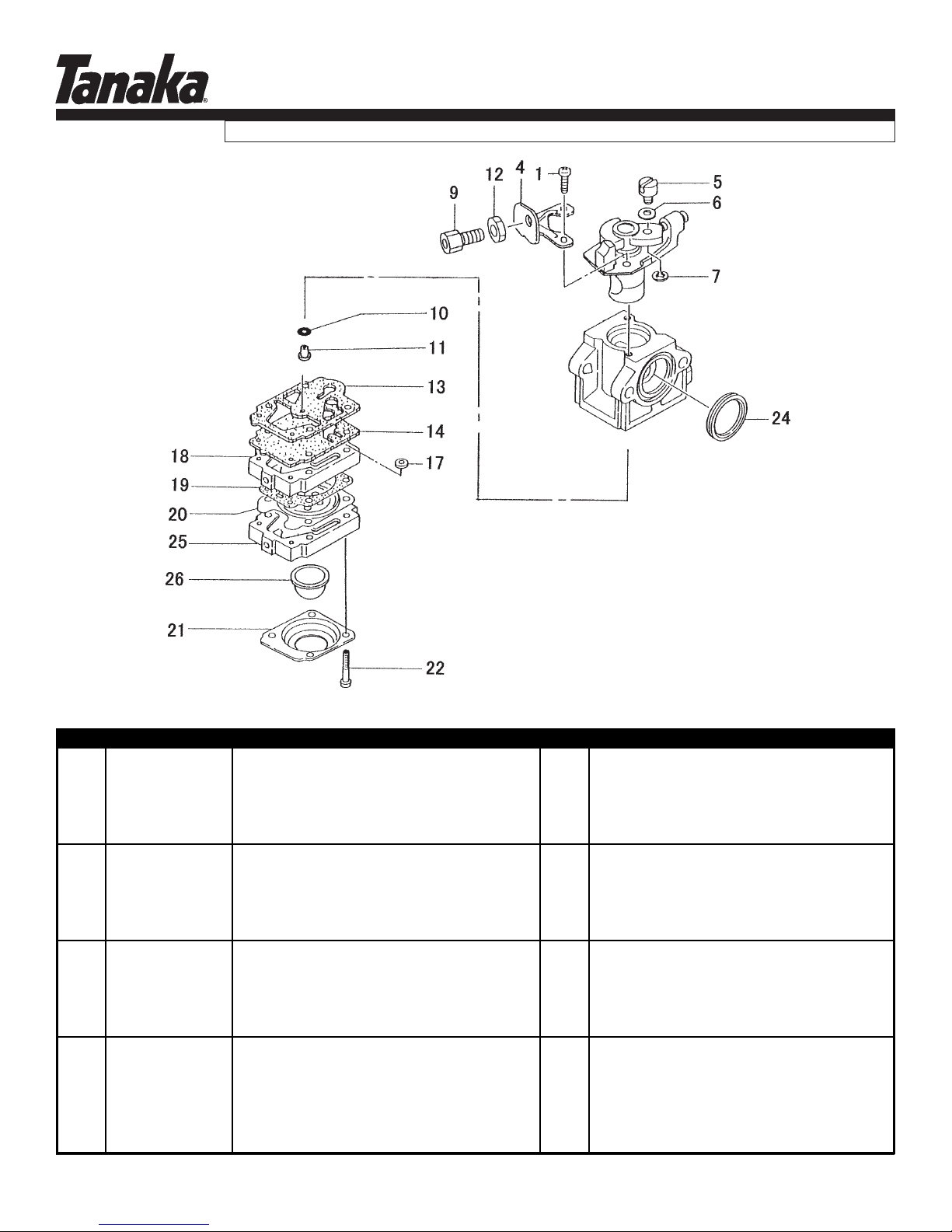

CARBURETOR • FIGURE 6

ITEM PART NUMBER DESCRIPTION QTY COMMENTS

6-0 4550440090 SET,CARBURETOR 1 Includes gasket

6-1 51425100200 SCREW,THROTTLE SET 1

6-4 54425164200 STAY,ADJUST,CABLE 1

6-5 53925120200 SWIVEL 1

6-6 5492516520 WASHER,THRUST 1

6-7 48925100200 RING,STOP 1

6-9 61425137200 ADJUSTER,CABLE 1

6-10 55025100200 O-RING 1

6-11 5992001W440 MAIN JET #44 1

6-12 99101060013 NUT,6 1

6-13 ~ ~ ~ GASKET,PUMP 1 ~ Contained in Carb Repair Kit

6-14 ~ ~ ~ DIAPHRAGM,PUMP 1 P/N 650-25124-900

6-17 57825007200 SCREEN,INLET 1 (Not available individually)

6-18 5752515380 BODY,PUMP 1

6-19 ~ ~ ~ GASKET,DIAPHRAGM 1

6-20 ~ ~ ~ DIAPHRAGM,METERING 1

6-21 4762515120 COVER,DIAPHRAGM 1

6-22 5482515120 SCREW,SET 4

6-24 4310634C200 GASKET,CLEANER 1

6-25 4422515180 PUMP,PRIMING 1

6-26 44725108200 BULB,PRIMING 1
