Systembuild Evolution 7964500COM Manual de usuario

7964500COM

Workbench

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B347964500COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

For the latest information on SystemBuild products

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-866-452-4081 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.systembuild.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

systembuild.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-866-452-4081

Monday-Friday

9am - 5pm CST

Visit systembuild.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

systembuild.com

Before You Start

Quick

Tip

Assembly

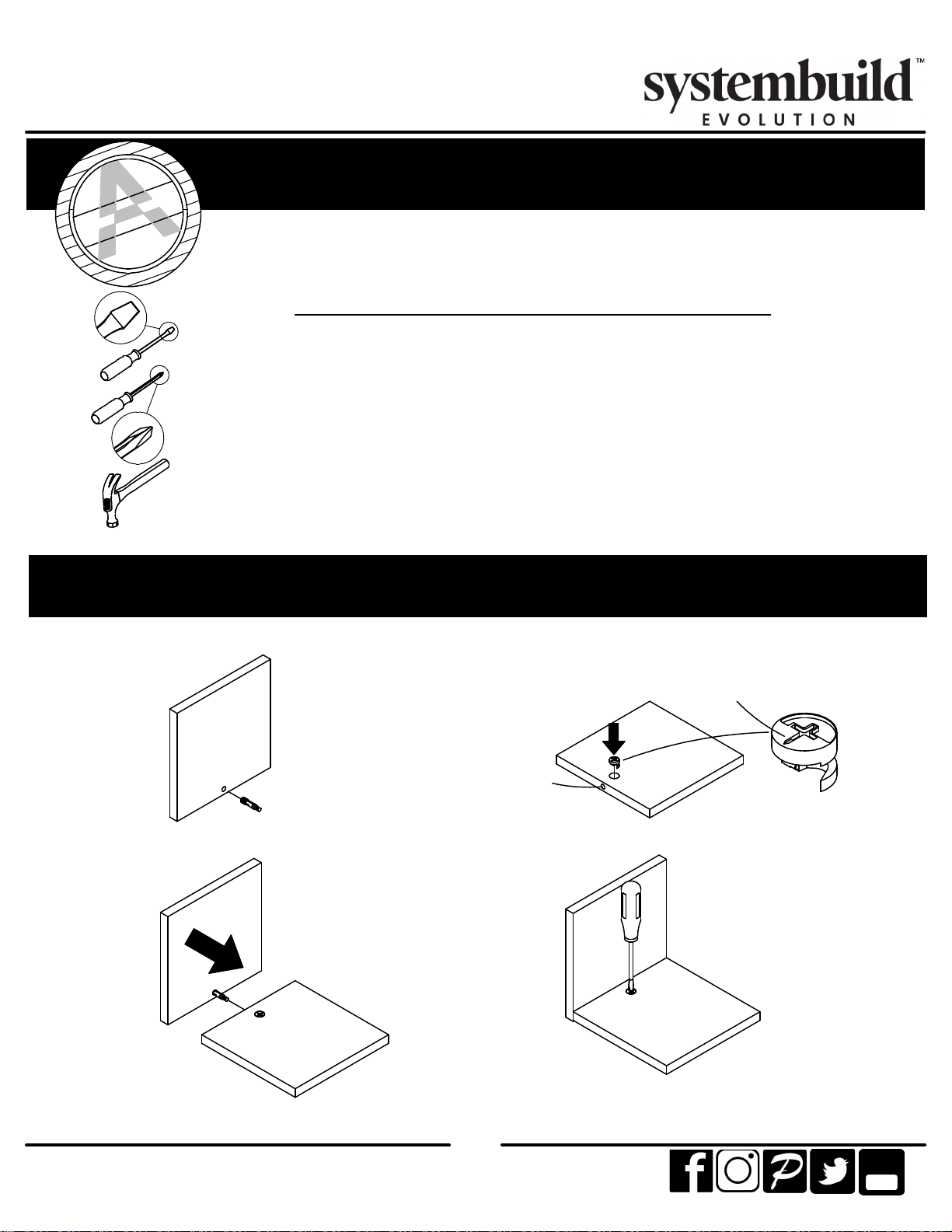

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Parts are labeled on the surface or edge of the part

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Press CAM BOLT into hole.

Press parts together so CAM BOLT inserts

into edge hole.

Using a screwdriver, turn the CAM LOCK clockwise to

lock the CAM LOCK and CAM BOLT into their holes

and fastening parts together.

Press CAM LOCK into hole.

End hole

Arrow to point towards end

hole in edge of part.

systembuild.com

Before You Start

Quick

Tip

Assembly

Tube

You

Please Note:

You may need to lightly tap the wood dowels into the holes during

your assembly process.

systembuild.com

Board Identification

Not actual size

Tube

You

Left Panel

37964015010 Right Panel

37964015020 Top

37964320030

Modesty Panel

37964015040

Apron

37964015050

Side Rail (x4)

37964015060

Leg 1 (x2)

37964015070 Leg 2 (x2)

37964015080

systembuild.com

Board Identification

Not actual size

Tube

You

systembuild.com

Part List

Actual Size

Tube

You

(x8)

#A22710

cam bolt

(x8)

#A22700

cam lock

(x14)

#A21670

wood dowel

(x6)

#A22770

quickloc

123

(x12)

#A22790

locking bolt

(x8)

#A21980

hidden face fastener

(x12)

#A22795

locking sleeve

567

(x1)

#A23220

T10 torx hex ky

systembuild.com

STEP1

Tube

You

(x12)

systembuild.com

STEP2

Tube

You

Press locking sleeves (6) into edge holes as shown.

(x6)

systembuild.com

STEP3

Tube

You

(x2)

Position and insert the locking bolts (5) of left rear leg (H) into edge holes of left panel (A) as shown.

Be sure both parts are positioned as shown. Place the hammer block on top of leg in each of the 3

locking bolt locations and give a firm strike to lock together. The locking bolt (5) will snap into the

locking sleeve (6).

IMPORTANT NOTICE: Once locked together, parts cannot be separated.

Note: A rubber mallet can be used in place of a hammer and hammer block.

Hammer Block

end view
