Synology NAS SA3200D Manual
Synology NAS SA3200D
Hardware Installation Guide
Table of Contents
Chapter 1: Before You Start
Package Contents 3
Synology SA3200D at a Glance 4
Hardware Specication 6
Optional Accessories 7
Safety Instructions 9
Chapter 2: Hardware Setup
Tools and Parts for Component Installation 10
Install Drives 10
Install Memory Modules 12
Install PCle Add-in Cards 15
Install and Remove Rail Kits 16
Expansion Unit Deployment and Topology 18
Start up Your Synology NAS 20
LED Indicator Table 21
Chapter 3: System Maintenance
Replace System Fan 23
Replace Power Supply Unit (PSU) 24
Initial Troubleshooting Guide 24
Chapter 4: Initialize DSM on Synology NAS
Initialize DSM with Web Assistant 25
Learn More 25
Synology_HIG_SA3200D_20191003
2
Synology NAS SA3200D is an enterprise server consisting of both system hardware and the software
operating system, DiskStation Manager (DSM). This manual will guide you through all conguration aspects
of your SA3200D, including the hardware components, setup procedures, system maintenance, and initial
troubleshooting instructions.
Note: All images below are for illustrative purposes only, and may dier from the actual product.
Package Contents
Main unit x 1 AC power cord x 2
Screws for 2.5” drives x 52
Screws for 3.5” drives x 52
Before You Start 1
Chapter
3
3
4Chapter 1: Before You Start
Synology SA3200D at a Glance
No. Article Name Location Description
1Power Button and
Indicator
Front
1. Press to power on your Synology NAS.
2. To power o the Synology NAS, press and hold until you hear
a beep sound and the Power LED starts blinking.
2HA Status Indicator Displays the status of the HA (High Availability). For more
information, see "LED Indicator Table."
3Alert Indicator Displays warnings regarding fan or temperature. For more
information, see "LED Indicator Table."
4Beep O Button Press to deactivate the beeping sound that is emitted when a
malfunction occurs.
5Drive Status Indicator Displays the status of drives. For more information, see "LED
Indicator Table."
6Drive Tray Install drives (hard disk drives or solid state drives) here.
7Rail Kit Release Tab Push in and hold to release the Synology NAS from the rail kit
lock.1
1For more information about the rail kit installation, please refer to the Quick Installation Guide that comes with the rail kit.
5Chapter 1: Before You Start
No. Article Name Location Description
8Power Port
Back
Connect power cords here.
9PSU Indicator and Beep
O Button
1. Displays the status of the power supply unit (PSU). For more
information, see "LED Indicator Table."
2. Press to deactivate the beeping sound that is emitted when a
malfunction occurs.
10 PSU Fan Disposes of excess heat and cools the PSU.
11 Console Port This port is used for manufacturing use only.
12 PCI Express Expansion
Slot Supports additional PCIe network interface cards.
13 SAS OUT Port Connect to Synology Expansion Unit2here.
14 1GbE LAN Port Connect RJ-45 network cables here.
15 10GBase-T LAN Port Connect RJ-45 network cables here.
16 RESET Button
1. Press and hold until you hear a beep sound to restore the
default IP address, DNS server, and password for the admin
account.
2. Press and hold until you hear a beep sound, then press and
hold again until you hear three beep sounds to return the
Synology NAS to “Ready” status so that DSM can be initialized.
17 Power Indicator Displays the status of the power supply of the controller. For more
information, see "LED Indicator Table."
18 Status Indicator Displays the status of the controller. For more information, see
"LED Indicator Table."
19 Alert Indicator Displays warnings regarding fan or temperature of the controller.
For more information, see "LED Indicator Table."
20 Remove Indicator Displays the status indicating whether the controller is removable.
For more information, see "LED Indicator Table."
2For more information about Synology Expansion Unit supported by your Synology NAS, please visit www.synology.com.
6Chapter 1: Before You Start
Hardware Specication
Item SA3200D
Compatible Drive Type 3.5” / 2.5” SAS x 12
Maximum Raw Capacity • 192 TB (12 x 16 TB HDD)
• 576 TB with 2 x RXD1219sas (Expansion unit)
External Device Port SAS OUT x 1 (Per controller)
LAN Port • 1GbE (RJ-45) x 2 (Per controller)
• 10GBase-T (RJ-45) x 1 (Per controller)
PCIe Slot Gen3 x 8 slots (x8 link) x 1 (Per controller)
Size (H x W x D) (mm) • 88 x 482 x 724 (with server ears)
• 88 x 430.5 x 692
Weight (kg) 19.7
Supported Client • Windows 7 and 10
• Mac OS X 10.11 onward
File System • Internal: Btrfs, ext4
Supported RAID Type • Basic • JBOD • RAID 0 • RAID 1
• RAID 5 • RAID 6 • RAID 10 • Synology RAID F1
Agency Certication • FCC Class A • CE Class A • BSMI Class A
• EAC • VCCI • CCC • KC • RCM • RoHS Compliant
Language Localization
Environment Requirement
• Line voltage: 100V to 240V AC
• Frequency: 50 to 60Hz
•Operating Temperature: 32 to 95˚F (0 to 35˚C)
•Storage Temperature: -5 to 140˚F (-20 to 60˚C)
• Relative Humidity: 5% to 95% RH
Note: Model specications are subject to change without notice. Please refer to www.synology.com for the latest information.
7Chapter 1: Before You Start

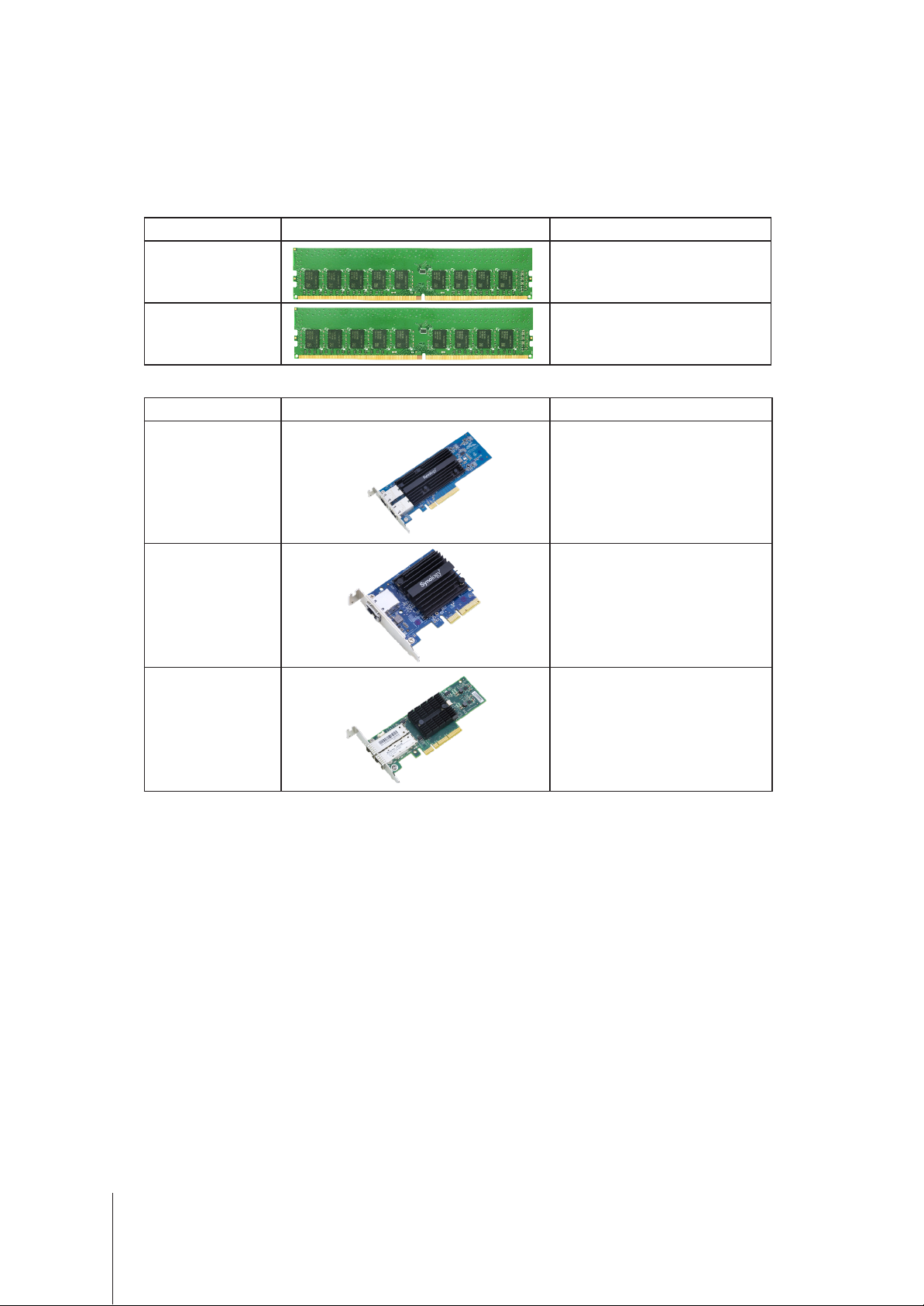

Optional Accessories
With Synology accessories, you can customize your Synology NAS to t dierent business environments without
worrying about compatibility and stability. Visit www.synology.com/compatibility for more information.
•Memory Module
Model Name Picture Description
D4EC-2666-8G 8 GB D4EC-2666 ECC U-DIMM
D4EC-2400-16G 16 GB D4EC-2400 ECC U-DIMM
•PCIe Add-in Card
Model Name Picture Description
E10G18-T2 Dual-port, 10GbE RJ-45
Network Interface Card
E10G18-T1 Single-port, 10GbE RJ-45
Network Interface Card
E10G17-F2 Dual-port, 10GbE SFP+
Network Interface Card
8Chapter 1: Before You Start
•Expansion Unit
Model Name Picture Description
RXD1219sas
12-bay Rackmount type expansion
unit, compatible with 3.5”/2.5” SAS
drives, up to 2 units connections
•Rail Kit
Model Name Picture Description
RKS1317 Sliding rails solutions
•Spare Part
Model Name Picture Description
Disk Tray (Type R7) 3.5"/2.5" Drive Tray
FAN 60*60*51_2 System Fan Module
PSU 500W-RP Module_2 Redundant PSU Module
PSU 500W-RP SET_2 Redundant PSU Set
(Cage x 1, PSU Module x 2)
9Chapter 1: Before You Start
Safety Instructions
Keep away from direct sunlight and away from chemicals. Make sure the environment does not
experience abrupt changes in temperature or humidity.
Place the product right side up at all times.
Do not place near any liquids.
Before cleaning, unplug the power cord. Wipe with damp paper towels. Do not use chemical or
aerosol cleaners.
To prevent the unit from falling over, do not place on carts or any unstable surfaces.
The power cord must plug in to the correct supply voltage. Make sure that the supplied AC voltage is
correct and stable.
To remove all electrical current from the device, ensure that all power cords are disconnected from
the power source.
Risk of explosion if battery is replaced with an incorrect type. Dispose of used batteries appropriately.
CAUTION: Restricted Access Location
This server is intended for installation only in restricted access locations as dened where both these conditions
apply:
• Access is through the use of a lock or tool and key, or other means of security, and is controlled by the
authority responsible for the location.
• Access can only be gained by service persons or by users who have been instructed about the reasons for
the restrictions applied to the location and about any precautions that shall be taken.
Tools and Parts for Component Installation
Please prepare tools and parts below before setting up your Synology NAS:
• A screwdriver.
• At least one 3.5” or 2.5” SAS drive (please visit www.synology.com/compatibility for compatible drive
models).
Warning: If you install a drive that contains data, the system will format the drive and erase all existing data.
Please back up any important data before installation.
• Rail mounting kit. (please see the Optional Accessories section to nd out the suitable rail kit for cabinet
installation)
Warning: We suggest mounting your Synology NAS on a cabinet before installing any drives since the heavy
weight will increase the installation diculty.

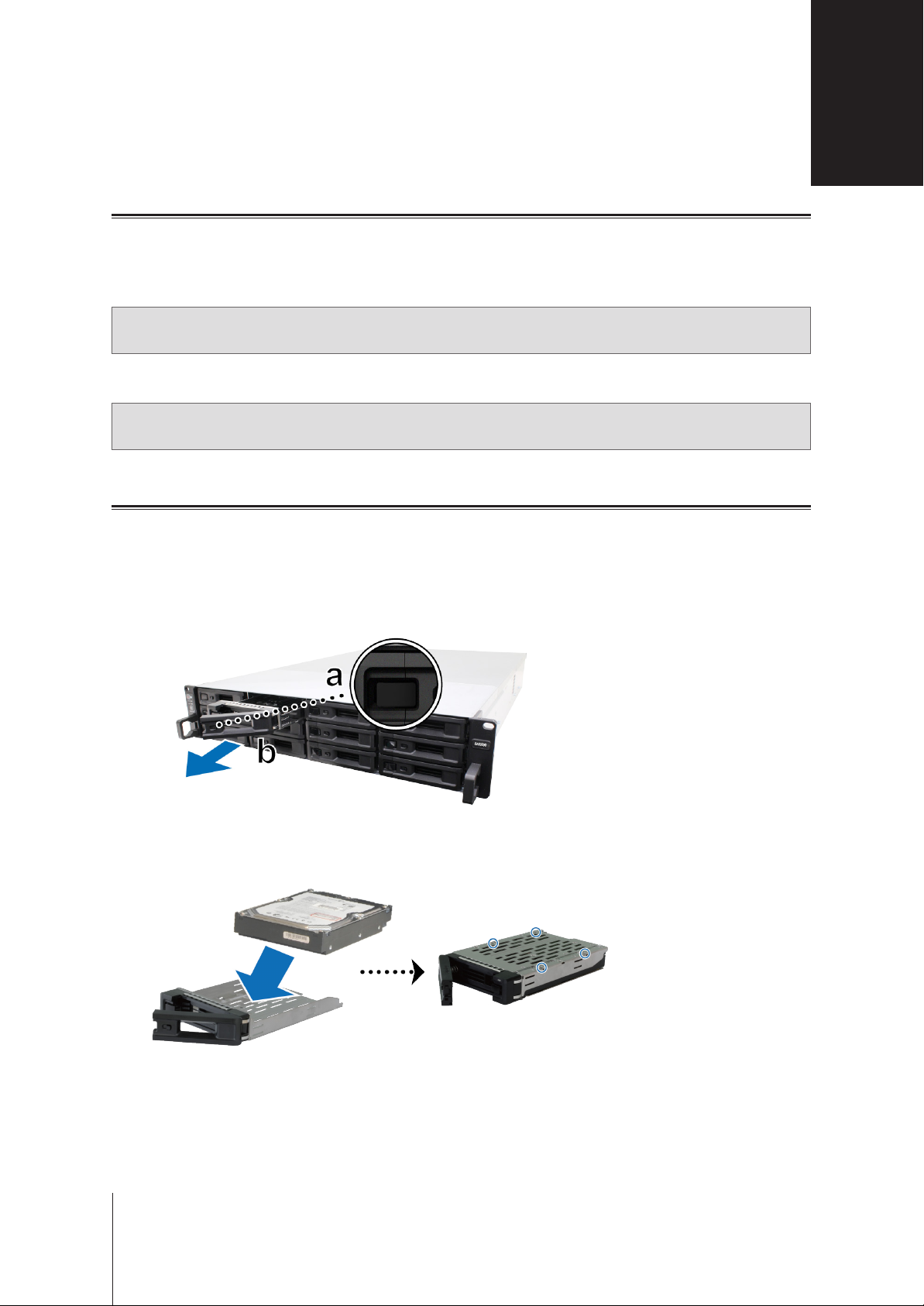

Install Drives
Please follow steps below for drive installation:
1 Open the drive tray:
a Find the small button located on the left side of the drive tray handle. Press the button down, and the drive
tray handle will pop out.
b Pull the drive tray handle out as illustrated below.
2 Install drives:
•For 3.5” drives: Place the drive in the drive tray. Turn the tray upside down and tighten screws into the four
spots indicated below to secure the drive.
Hardware Setup
10
2
Chapter
