Symbol LS 4071 Manual de usuario

RS 2200/3200 Series

LS 4071 Scanner

Quick Reference

Symbol reserves the right to make changes to any product to

improve reliability, function, or design.

Symbol does not assume any product liability arising out of, or

inconnectionwith,theapplicationoruseofanyproduct,circuit,

or application described herein.

No license is granted, either expressly or by implication,

estoppel, or otherwise under any patent right or patent,

covering or relating to any combination, system, apparatus,

machine, material, method, or process in which Symbol

products might be used. An implied license only exists for

equipment, circuits, and subsystems contained in Symbol

products.

Symbol Technologies, Inc.

One Symbol Plaza

Holtsville, NY 11742-1300

http://www.symbol.com

This product is covered by one or more of the following U.S. and foreign Patents:

U.S. Patent No. 4,360,798; 4,369,361; 4,387,297; 4,460,120; 4,496,831; 4,593,186;

4,603,262; 4,607,156; 4,652,750; 4,673,805; 4,736,095; 4,758,717; 4,816,660;

4,845,350; 4,896,026; 4,897,532; 4,923,281; 4,933,538; 4,992,717; 5,015,833;

5,017,765; 5,021,641; 5,029,183; 5,047,617; 5,103,461; 5,113,445; 5,140,144;

5,142,550; 5,149,950; 5,157,687; 5,168,148; 5,168,149; 5,180,904; 5,229,591;

5,230,088; 5,235,167; 5,243,655; 5,247,162; 5,250,791; 5,250,792; 5,262,627;

5,280,163; 5,280,164; 5,280,498; 5,304,786; 5,304,788; 5,321,246; 5,367,151;

5,373,148; 5,378,882; 5,377,361; 5,396,053; 5,396,055; 5,399,846; 5,408,081;

5,410,139; 5,410,140; 5,412,198; 5,418,812; 5,420,411; 5,436,440; 5,444,231;

5,449,891; 5,449,893; 5,468,949; 5,479,000; 5,479,002; 5,479,441; 5,504,322;

5,528,621; 5,532,469; 5,543,610; 5,545,889; 5,552,592; 5,578,810; 5,589,680;

D305,885; D341,584; D344,501; D359,483; D362,435; D363,700; D363,918;

D370,478.

Invention No. 55,358; 62,539; 69,060; 69,187 (Taiwan); No. 1,601,796; 1,907,875;

1,955,269 (Japan).

EuropeanPatent367,299; 414,281;367,300;367,298; UK 2,072,832;France 81/03938;

Italy 1,138,713.

Introduction

The LS 4071 is a high performance scanner that lets you scan a

bar code and transmit it to a base station up to 10 feet (3 meters)

away, without a physical cable to limit your movement. Instead,

the scanner communicates with the base station through a low

power radio transmission.

Scanning Made Easy

To install the scanner or change the different programmable

parameters of the LS 4071, see the

Product Reference Guide

Ifyou areusing a Synapse cable, selectthe host type byscanning

the appropriate bar code packed with the cable. If you are not

using a Synapse cable, scan one of the bar codes beginning on

page 6.

If you need assistance, contact the technical person in charge of

scanning at your site, or Symbol Technologies.

Quick Reference

Ready, Test, Scan

Ready

Make sure connections are secure, and the battery pack is

charged. The battery must be charged before the scanner’s

initial use, and after each day’s use. Placing the scanner in its

base station between uses will help maintain the battery’s

charge.

Be sure the scanner is “paired” to the base station by

scanning the

Pairing

bar code on the base.

Test

Aim the scanner away from you and press the trigger.

When you press the trigger, the scanning beam is energized

for approximately 3.0 seconds (default).

Scan

Make sure the symbol you want to scan is within the

scanning range. See the

LS4071 ProductReferenceGuide

Also, be certain the scanner is within range of the base

station: 10 feet (3 meters).

The scanner has read the symbol when:

• The yellow LED on the rear of the scanner turns green

for a short period of time after the scanning beam turns

off.

The data has been successfully sent to the base station when:

• You hear a short, high tone beep from the base (if

default beeper settings are selected).

• The yellow LED on the base blinks.

Aiming

Scan the Entire Symbol

• Your scan beam must cross every bar and space on the

symbol.

• The larger the symbol, the farther away you should

hold the scanner.

• Hold the scanner closer for symbols with bars that are

close together.

• Ashort, high tone beep from the base indicates a good

decode.

Right Wrong

0123456789 0123456789

Quick Reference

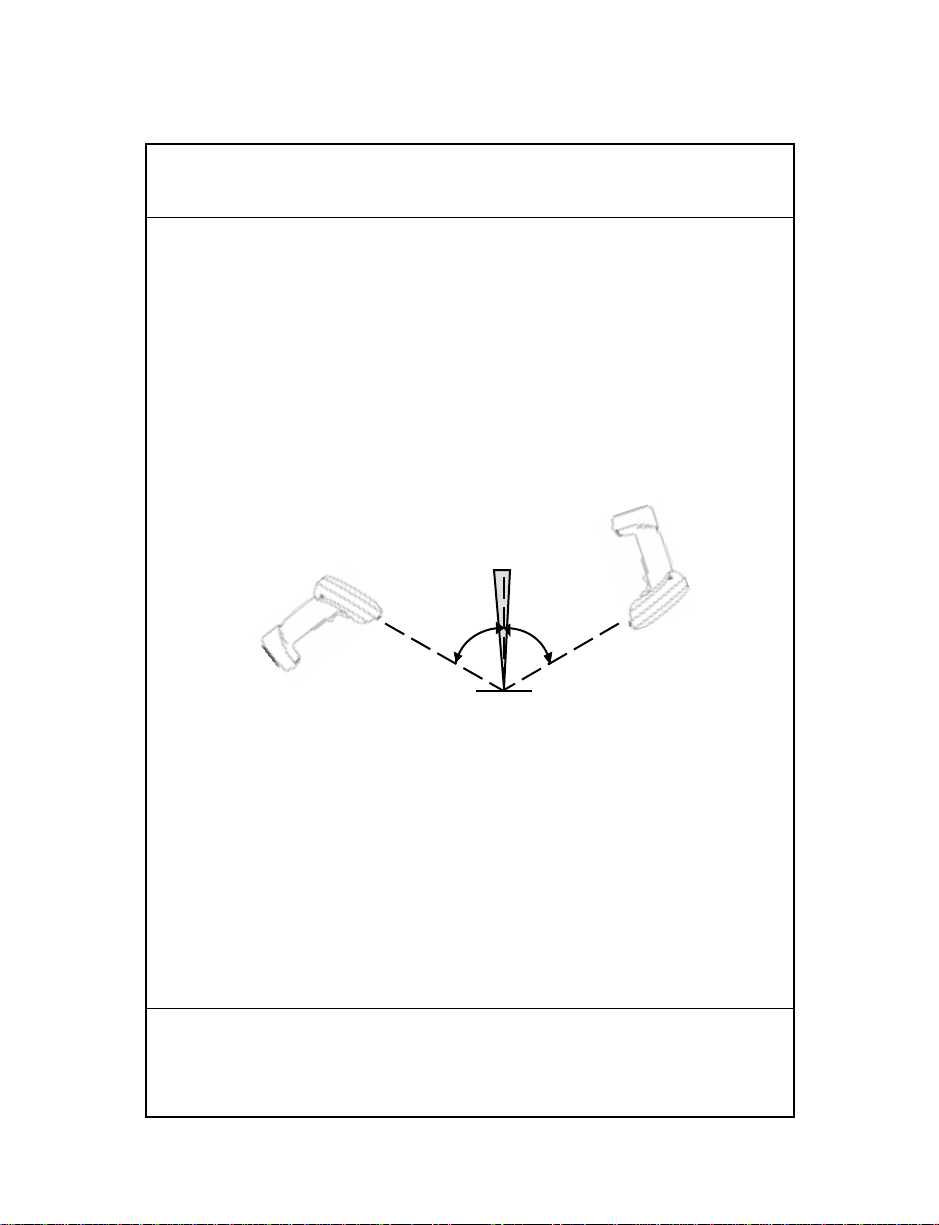

Hold at an angle

Do not hold the scanner directly over the bar code. Laser light

reﬂecting

directly

back into the scanner from the bar code is

known as specular reﬂection. This strong light can “blind” the

scanner and make decoding difﬁcult. The area where specular

reﬂection occurs is known as a “dead zone”.

You can tilt the scanner up to 65

forward or back and still

achieve a successful decode. Simple practice quickly shows

what tolerances to work within.

65°

Max

Shaded area represents

dead zone (±2°)

Bar Code

Scan

Beam

Scan

Beam

65°

Max

What Does The Beep Mean?

When you hear 1 beep (short high tone) it means data has been

decoded successfully. If any other beeps are heard, contact the

technical person in charge of scanning.

What If...

If the scanner is not operating according to your needs,

contact the technical person in charge of scanning. If there is

no one in charge of scanning, call the Symbol Support Center

at 1-800-653-5350.

Quick Reference

Host Types

When using an RL475 system, select one of the bar codes below

to communicate with an IBM 468X/9X host.

Port 5B

Port 9B

Port 17

Note: To properly communicate with 468X/9X

terminals, the driver corresponding to the

port being used must be loaded and

enabled when you are conﬁguring your

terminal system. See your terminal’s

operating manual for details.

Host Types

RS-232C Host Types

Three RS-232C hosts are set up with their own parameter

default settings. Selecting the ICL, Fujitsu or Nixdorf RS-232C

terminal sets the defaults listed on the following page. These

defaults take precedence over Standard RS-232 defaults. So,

if you’ve selected Fujitsu RS-232C, then select the Standard

RS-232 defaults, the Fujitsu defaults still take precedence. To

return to the factory set defaults, scan the

SET ALL

DEFAULTS

bar code below. See the table on the following

page for terminal speciﬁc defaults.

SET ALL DEFAULTS

Quick Reference

Host Types

Parameter Standard ICL FUJITSU NIXDORF

Mode A/

Mode B

Transmit

Code ID

No Yes Yes Yes

Data

Transmission

Format

Data as is Data/Sufﬁx Data/Sufﬁx Data/Sufﬁx

Sufﬁx

CR/LF CR CR CR

Baud Rate

9600 9600 9600 9600

Parity

None Even None Odd

Hardware

Handshaking

None RTS/CTS

Option 3 None RTS/CTS

Option 3

Software

Handshaking

None None None None

Serial

Response

Time-out

2 Sec. 9.9 Sec. 2 Sec. 9.9 Sec.

Stop Bit

Select

One One One One

ASCII Format

8-Bit 8-Bit 8-Bit 8-Bit

Beep On

<BEL>

Disabled Disabled Disabled Disabled

RTS Line

State

Low High Low *Low = No

data to send

*In the Nixdorf Mode B, if CTS is Low, transmission of scan data is

disabled. When CTS is High, bar code data is transmitted to the host.
