RS409 Ring Scanner
Quick Reference Guide
2 RS409 Ring Scanner
©2006 SYMBOL TECHNOLOGIES, INC. All rights reserved.
Symbol reserves the right to make changes to any product to improve reliability, function,
or design.
Symbol does not assume any product liability arising out of, or in connection with, the
application or use of any product, circuit, or application described herein.
No license is granted, either expressly or by implication, estoppel, or otherwise under any
patent right or patent, covering or relating to any combination, system, apparatus,
machine, material, method, or process in which Symbol products might be used. An
implied license exists only for equipment, circuits, and subsystems contained in Symbol
products.
Symbol and the Symbol logo are registered trademarks of Symbol Technologies, Inc. Other
product names mentioned in this manual may be trademarks or registered trademarks of
their respective companies and are hereby acknowledged.
Symbol Technologies, Inc.
One Symbol Plaza
Holtsville, N.Y. 11742-1300
http://www.symbol.com
Warranty
Subject to the terms of Symbol’s hardware warranty statement, the RS409 scanner, with
the exception of the finger strap assembly, is warranted against defect in workmanship and
materials for a period of twelve months from the date of shipment. For the complete
Symbol hardware product warranty statement, go to: http://www.symbol.com/warranty.
Patents
This product is covered by one or more of the patents listed on the website:
http://www.symbol.com/patents.
Quick Reference Guide 3
Introduction
The RS409 ring scanner is a modular, wearable laser scanner that allows the
operator hands-free bar code scanning capability. The scanner is used with the
WT4070/90 wearable terminal.
The RS409 is worn on the operator’s index finger, and utilizes a
thumb-operated trigger. The RS409 connects via an interface cable to the
wearable terminal, which provides power and performs the data collection
functions. The RS409 is available in two configurations; a short cable version
for connection to a wrist mounted wearable terminal, and a long cable version
for connection to a hip mounted wearable terminal.

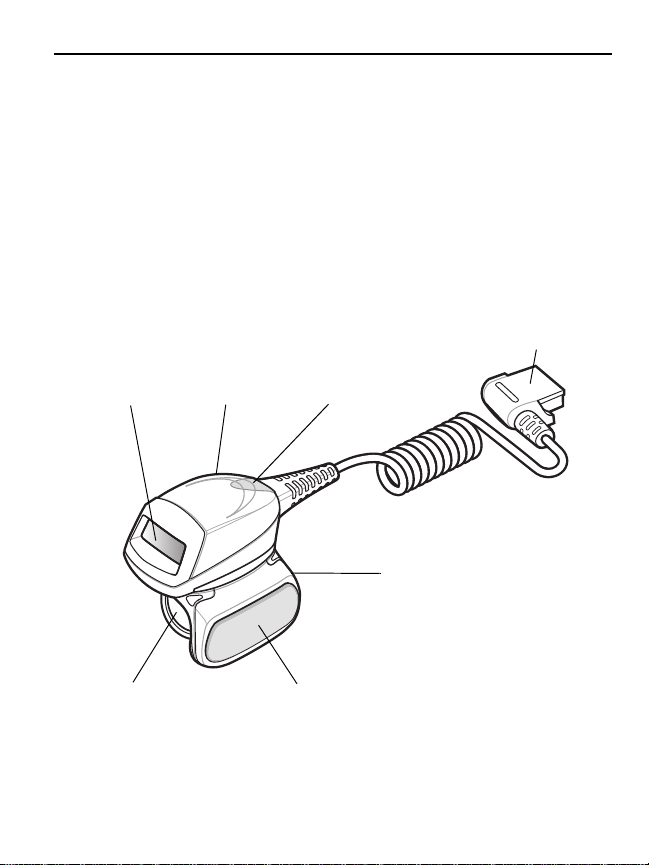

Scan LEDExit Window
Finger Strap
Assembly
Connector
Scan Trigger
Trigger
Assembly
Scan Assembly
4 RS409 Ring Scanner
Changing Trigger Position
The trigger assembly of the RS409 rotates to provide left-hand or right-hand
use.
1. Determine whether the RS409 is used on the right or left hand.
2. Rotate the trigger assembly so that the scan trigger is positioned next to the
thumb when the RS409 is placed on the index finger.
CAUTION The trigger assembly only rotates 180° around the back of the scan
assembly. Do not rotate the trigger assembly past the designed stops.
Quick Reference Guide 5
Installation
The RS409 connects to the wearable terminal and mounts on the index finger.
1. On the wearable terminal, remove the connector cap.
2. Connect the RS409 interface cable to the wearable terminal interface
connector. If connecting to a wrist mounted wearable terminal, connect to
the interface connector closest to the wrist.
3. Slide the RS409 onto the index finger with the scan trigger next to the
thumb.
4. Tighten the finger strap.
Scanner Cable Connector Interface Connector
6 RS409 Ring Scanner
5. If required, cut excess finger strap material.
6. Warm boot the wearable terminal.
Using the Scanner
To scan bar codes:
1. Turn on the wearable terminal.
2. Launch a scanning application.
3. Press the scan trigger and aim the RS409 at a bar code.
The scan LED lights red to indicate the RS409 is on.
4. Adjust the aim so that the thin, red laser beam covers the entire length of the
bar code.
5. If the decode is successful the LED turns green. The terminal beeps if
programed accordingly.
Right
012345
Wrong
012345
Quick Reference Guide 7
Scanning Tips
• For larger bar codes, hold the RS409 farther away from the bar code.
• For bar codes with bars that are closer together, hold the RS409 closer to
the bar code.
• The optimal scanning distance varies with bar code density, but 10 to 25 cm
(4 to 10 inches) generally works. Practice to determine what distances to
work within.
• Do not position the RS409 exactly perpendicular to the bar code being
scanned. In this position, reflected light can bounce back into the exit
window, and possibly prevent a successful decode.
Finger Strap Assembly Replacement
The finger strap assembly can be changed for each user or for replacement. To
replace the finger strap assembly:
1. Press down on the finger strap assembly release tab.
2. Slide the finger strap assembly out of the trigger assembly.
3. Align a new finger strap assembly with the slot in the trigger assembly.
4. Push the finger strap assembly into the trigger assembly until the release
tab clicks into place.
5. Insert your index finger through the finger strap. Tighten the strap and press
the hook and pile together.
6. If required, cut excess finger strap material.
Release Tab
8 RS409 Ring Scanner
Replacing the Trigger Assembly
To replace the trigger assembly:
1. Remove the finger strap assembly.
2. Turn the RS409 upside-down.
3. Remove the set screw with screwdriver.
4. Turn the trigger assembly counter-clockwise until the exit window and scan
trigger align.
5. Lift the trigger assembly off the scan assembly.
6. Align replacement trigger assembly with scan assembly.
7. Rotate trigger assembly 1/4 turn clockwise.
8. Tighten the set screw with screwdriver.
9. Replace finger strap assembly.
Quick Reference Guide 9
Cleaning
Wipe the exit window periodically with a lens tissue or other material suitable
for cleaning optical material such as eyeglasses.
Troubleshooting
CAUTION Do not pour, spray, or spill any liquid on the RS409.
Symptom Probable Cause Action
Laser beam does not
displaywhenpressing
the trigger.
Interface cable is not
secure. Verify that the interface cable
connection is connected properly.
Power is not applied to
RS409. Power for the RS409 is provided
by the wearable terminal. Verify
that the wearable terminal has a
charged battery installed.
Scan enabled application
on the wearable terminal is
not running.
Launch scanning application on
the wearable terminal.
RS409 does not
decode a bar code. Bar code is unreadable. Verify that the bar code is not
defective, i.e., smudged or broken.
Exit window is dirty. Clean exit window with a lens
tissue. Tissues for eyeglasses
work well. Do not use tissues
coated with lotion.
Symbology is not enabled. See your system administrator.
10 RS409 Ring Scanner
Ergonomic Recommendations
• Reduce or eliminate repetitive motion
• Maintain a natural position
• Reduce or eliminate excessive force
• Keep objects that are used frequently within easy reach
• Perform tasks at correct heights
• Reduce or eliminate vibration
• Reduce or eliminate direct pressure
• Provide adequate clearance
• Provide a suitable working environment
• Improve work procedures.
Regulatory Information
All Symbol devices are designed to be compliant with rules and regulations in
locations they are sold and will be labeled as required.
Regulatory Information is available in French, Italian, German, Spanish (Spain),
Portuguese, Japanese, Korean, Russian and Simplified Chinese. Please see
the following website: http://www.symbol.com/services/manuals/ and look for
your specific product.
Any changes or modifications to Symbol Technologies equipment, not
expressly approved by Symbol Technologies, could void the user's authority to
operate the equipment.
CAUTION In order to avoidor minimize the potential risk of ergonomic injury follow
the recommendations below. Consult with your local Health & Safety
Manager to ensure that you are adhering to your company’s safety
programs to prevent employee injury.
CAUTION Only use Symbol approved and UL Listed terminals.
