Swann PPW-250 Guía de inicio rápido

DViewing the camera and recording to VCR

Power on the receiver,

VCR and TV

Using your TV’s remote

control tune your TV to

the correct INPUT*. In our

example above the TV

should be set to INPUT 1

Using your VCR’s remote

control tune your VCR to

the LINE 1INPUT*

You should now see

your cameras on the

TV screen. Follow

your manufacturer’s

instructions to

record to your VCR

1. 2. 3. 4.

*Some VCR’s and TV’s will list this as INPUT, A/V, SOURCE, L1, Channel 0 - Consult your manufacturer’s manual for more information

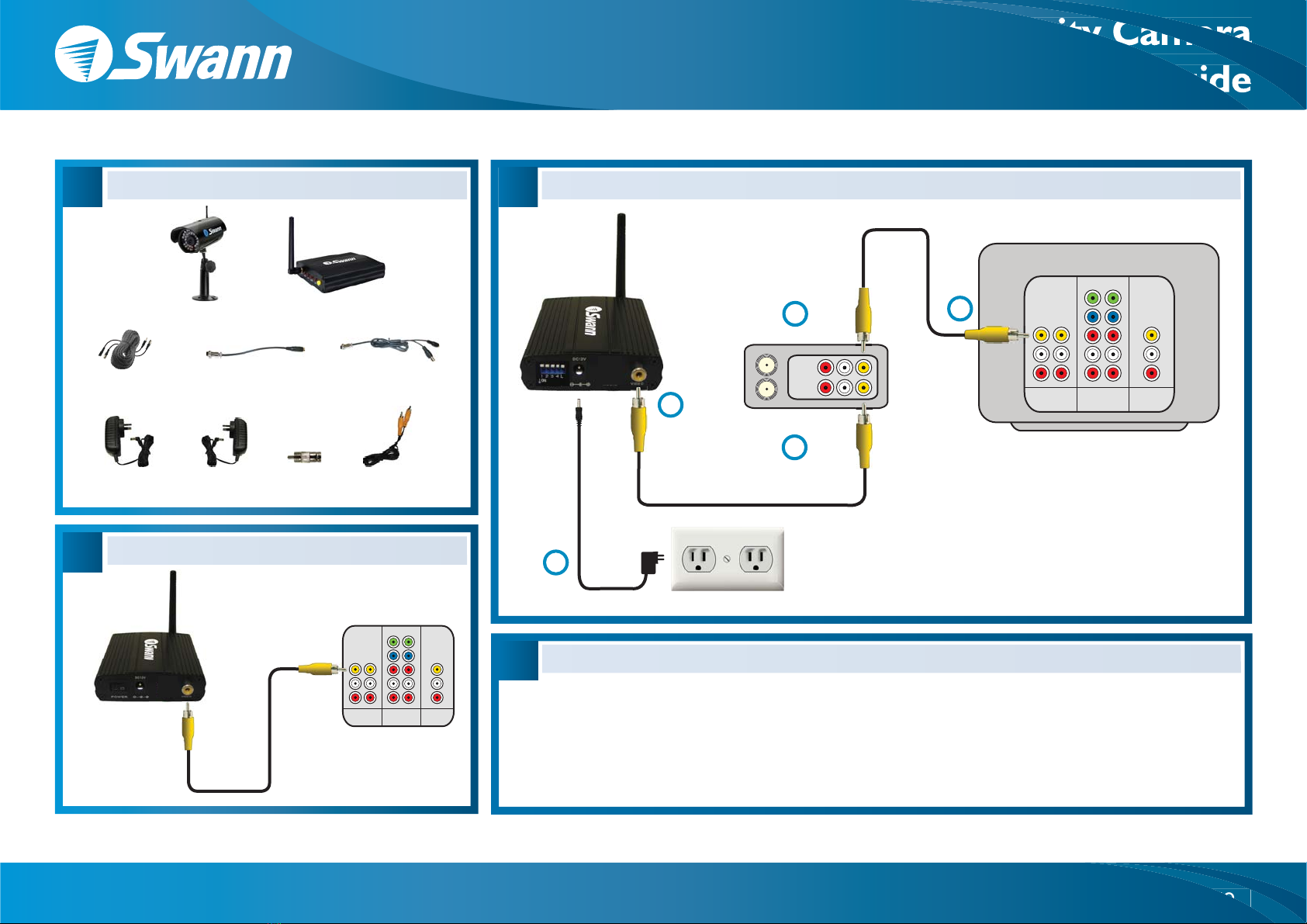

BConnecting the receiver to record on a VCR

Back of VCR

Input

Output

Back of TV

Component

Inputs

Video

Inputs Output

1. Using supplied video cable, connect one end to receiver

2. Connect other end of video cable to INPUT on VCR

4. Connect other end of video cable to INPUT on TV

5. Connect power cable to receiver

3. Using another video cable (not supplied) connect to VCR OUTPUT

Connecting the receiver to your TV

Component

Inputs

Video

Inputs Output

Back of

Receiver Back of TV

Connect the video

cable to the back

of the receiver Connect one end of the

cable to your TV Input

Easy Set up Components

Receiver

Power only Cable for

Wireless Connection

Power & BNC

Cable for Wired

Connection

Video Cable

Extension Cable

Camera and Stand

Camera Power

Supply

Receiver Power

Supply

Wireless / Wired Security Camera

PPW-250 Easy Setup Guide

www.swannsecurity.comSwann Communications • Toll Free Technical Support: USA - 1-800-627-2799, Australia - 1300 13 8324 • Email: tech@swannsecurity.com

.com

BNC to RCA

Adapter

SR231-WMX-1R005-060409

HGeneral Installation Notes and Tips

1. Test the camera signal before permanently installing the cameras.

2. Using battery power is only recommended for testing purposes as the cameras do require constant power to operate.

3. IR or night vision will reflect off of glass or windows and overexpose the picture. Try placing cameras in direct line of

sight of your subject.

4. Never aim the camera directly at the sun as this can permanently damage the lens.

5. Never submerge the camera in water. Some shelter is recommended such as an awning or eave.

Wireless Camera Positioning

Achieving the highest quality wireless signal

GFE

Wireless Internet

Cordless Phones/Mobiles

Some Electronic Devices

If possible turn off or keep

the camera and receiver

away from wireless devices

Some wireless devices can

be set to different frequencies.

Consult the manufacturer’s

manual for details

A clear line of sight with little wireless interference

will always give you the strongest picture

Cable for wireless connections only

To Power Supply

To DVR/Monitor

To Power Supply

Cable for wired connection

Walls and floors can also limit range and image results. Place the receiver in a location that

is relatively close to the camera’s position

Setting up Wireless or Wired options

Note: Wireless and electronic devices such as these can interfere with camera

transmission if they are within the cameras range.

Cab

for

red

conne

cti

www.swannsecurity.comSwann Communications • Toll Free Technical Support: USA - 1-800-627-2799, 1-877-274-3695, Australia - 1300 13 8324 • Email: tech@swannsecurity.com

.com

Wireless / Wired Security Camera

PPW-250 Easy Setup Guide
