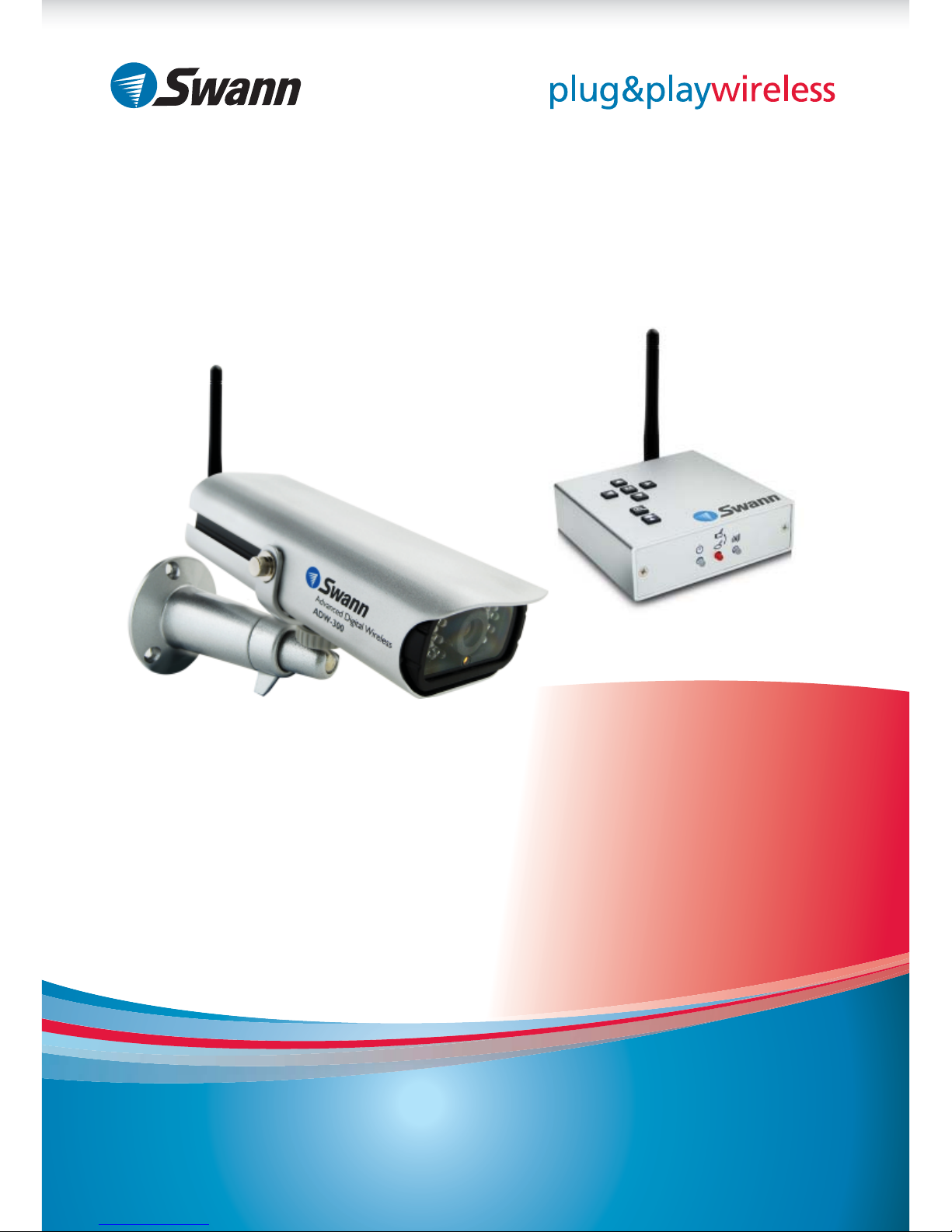

Swann ADW-300 Manual de usuario

www.swannsecurity.com SR233-ADW-10006-290709

Advanced Digital Wireless

Camera & Receiver

Operating Instructions

™

Advanced security made easy

ADW-300

SW233-ADW

222

FCC Veriﬁcation:

NOTE: This equipment has been tested and found to comply with the limits for

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are de-

signed to provide reasonable protection against harmful interference in a residen-

tial installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio or television reception, which can be deter-

mined by turning the equipment off and on, the user is encouraged to try to cor-

rect the interference by one or more of the following measures:

· Reorient or relocate the receiving antenna

· Increase the separation between the equipment and the receiver

· Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected

· Consult the dealer or an experienced radio/TV technician for help

IMPORTANT NOTE: Prohibition against eavesdropping

Except for the operations of law enforcement ofﬁcers conducted under lawful

authority, no person shall use, either directly or indirectly, a device operated pursu-

ant to the provisions of this Part for the purpose of overhearing or recording the

private conversations of others unless such use is authorized by all of the parties

engaging in the conversation.

WARNING: Modiﬁcations not approved by the party responsible for compliance

could void user’s authority to operate the equipment.

IMPORTANT SAFETY INSTRUCTIONS:

· Make sure product is ﬁxed correctly and stable if fastened in place

· Do not operate if wires and terminals are exposed

Before You Begin

Table of Contents

Before You Begin 2

Table of Contents 3

Package Contents 4

Tips & Suggestions 4

Camera Layout 5

Receiver Layout 6

Menu Functions 7

Connecting to a TV/VCR 8-9

Software Installation 10-11

Opening the Software 12

Software Layout & Functions 13

Motion Sensor 14

Record 14

Storage 15

Video Capture 15

Photo Snapshot 16

Event List 16

Device Setup 17

Troubleshooting Guide 18

Technical Speciﬁcations 19

Help Desk 20

Warranty Information 20

444

Tips & Suggestions

Before doing a permanent installation, connect the camera to your TV or VCR

using this Quick Start Guide to ensure all components in the pack are working

correctly.

If you have trouble with connecting the product contact our Technical Support

team. Contact details are on the back cover page of this guide.

Install cameras high enough or out of reach to avoid tampering.

Place Security Stickers in a visible location to alert potential thieves they are being

monitored.

Place cameras in high trafﬁc areas such as doorways to maximise security.

Use only the included Power Supply and do not modify or cut wires.

ADW-300 Camera with Stand

Receiver

A/V Cable

2 X Antennas

Power Adapters

Operating Instructions

Security Stickers

Mounting Hardware

Package Contents

Camera layout

Pairing button*

Antenna

connection

*Remove rubber cover to reveal pairing button

Pairing

LED

Power LED

Lens Infra Red

light

Front

Back

6666

Receiver Layout

34567

8910

1. CAMERA SELECT

When in display mode press to change between each

camera channel. Press to pair a camera with a channel once

you have selected the channel to pair. Press to reset the

receiver options when RESET is selected.

2. ZOOM IN / ZOOM OUT

Press to zoom in & zoom out in live view.

3. LEFT

Press to move the view left when in zoom mode. Press to

decrease a selection in the menu screen.

4. UP

Press to move the view up when in zoom mode. Press to

select previous selection above in the menu.

5. MENU

Press to access menu.

6. DOWN

Press to move the view down when in zoom mode. Press to

select next selection below in the menu.

7. RIGHT

Press to move the view right when in zoom mode. Press to

increase a selection in the menu screen.

8. Power Indicator LED

LED turns on when receiver is plugged to a power outlet.

9. PAIRING LED

LED turns on when a camera is paired.

10. SIGNAL LED

LED turns on when there is a signal from the camera to the

receiver.

USB socket AV Output Power socket

Antenna

connection

Menu Functions

After connecting the ADW-300 camera & receiver to your TV/VCR you will be able

to set up your camera/s to your receiver. To access the menu press the M button

on the receiver.

Audio vol

Use the LEFT & RIGHT arrow keys on the receiver to increase and decrease the

volume.

Scan time

This function allows you to change the display between single camera view and

quad view. You can also set the receiver to change between each camera display

in single camera view (must have atleast 2 cameras for this). Use the RIGHT & LEFT

arrow keys to scan between OFF (no scanning), 5, 10 & 15 second intervals.

Cameras 1-4

You can switch each channel ON & OFF. If the channel is set to OFF the display

will be completely black even when a camera is connected to that channel. Use

the RIGHT & LEFT arrow keys to switch between ON & OFF. When a channel is

switched OFF it will be skipped when scanning is activated.

Pair CAM 1 2 3 4

If you are unable to view a picture on your camera/s display your camera may not

be properly paired with a channel.

To pair a camera use the arrow keys to select between channel 1, 2, 3 & 4. Once

you have selected the channel you want to pair the camera with, press the CAM-

ERA SELECT button on the receiver.

You should now see a timer counting down on your TV. Using a pin or toothpick

press the PAIRING button on the back of the camera you want to pair with the

channel you have selected.

Note: you will have 60 seconds until the receiver stops searching for the camera’ss

signal.

Reset

To reset the settings above use the UP & DOWN button to scroll down to the RESET

option. Press the CAMERA SELECT button to reset the receiver options. Note: this

will not reset any camera that is paired to a channel.

888

Connecting to a TV/VCR

5A. Connect to VCR (Optional)

Connect the power

adapter plug into the power

socket attached to the

camera.

Connect the A/V cable

to the Input on the back

of the VCR

If your VCR is not already

connected to your TV,

connect another A/V cable

to the Output on the VCR

From Receiver

To T V

Plug the camera’s

power adapter into

the wall socket.

Input

Output

INPUT

5B. Connecting to TV

Connect the the A/V cable to your

TV or VCR

From Receiver

From VCR

(Optional)

Connect the power adapter

plug into the receiver’s

power socket.

Connect the A/V Cable

to a TV Input

Connect the

power

adapter into

the wall

socket.

101010

Software Installation

1. Insert the software CD. If the CD does not automatically start click START> MY

COMPUTER and click on the drive your software CD is in, to open it.

Find the ﬁle named AUTORUN.EXE and double click it.

2. Select the language you would like

to use for the installation process.

3. Click NEXT.

4. Click the “I accept the agreement”

selection button then click NEXT.

5. Click NEXT or choose your pre-

ferred location for the program.

< Back Next > Cancel

Next > Cancel

I accept the agreement

I do not accept the agreement
