2.1 Multimedia Speaker System

1. DESCRIPTION

The device is designed for playing music, sounding movies, videogames, etc. You can use it with a

computer, TV, MP3 player and other audio devices.

2. SAFETY PRECAUTIONS

•To avoid electric shock, do not open the MSS and do not perform repairs by yourself.

•Do not allow the circuit of wires (including the grounded ones) between the speakers, on the power

amplifier or the ground, for it causes damage to the power amplifier output stage.

•Do not put foreign objects inside the holes of the MSS. Make sure that needles, hair pins, coins,

insects etc. do not get inside.

•Protect the MSS from high humidity, water and dust. Do not locate it in areas with high level of humidity

and dust.

•Protect the MSS from heating: do not locate it near a heat source or expose to direct sunlight.

•Do not use gasoline, alcohol or other solvents when cleaning, since they may damage the paint-coated

surface of the MSS. Clean it with dry soft cloth only.

•If the MSS does not operate, unplug it and address your dealer.

Caution! High voltage inside! To avoid the risk of electric shock do not

open and touch elements inside.

3. PACKAGE CONTENTS

•Subwoofer — 1 pc

•Satellites — 2 pcs

•2RCA to mini-jack stereo signal cable — 1 pc

•Operation manual — 1 pc

•Warranty card — 1pc

4. SPECIAL FEATURES

•Easy connection to various audio devices

•Controls on the front panel

•Master volume control

•Independent subwoofer volume control

•Treble level control

5. FRONT CONTROL PANEL

aPower: power LED

bBASS: subwoofer volume control knob

cTREBLE: treble level control knob

dVOLUME: master volume control knob

Fig.1. Front panel

http://www.DataSheet4U.net/

datasheet pdf - http://www.DataSheet4U.net/

Operation Manual

ENG

S P S - 8 21

6. REAR PANEL

eAUDIO INPUT: audio device connection input

fAUDIO OUTPUT: satellite output

gON/OF: power switch

hPower cord

7. LOCATING

•Place the satellites symmetrically to the listeners

at least one meter away. Place the MSS far away

from TV sets, as picture distortion in supersensitive

monitors and TV sets is possible.

•It’s recommended that the subwoofer be

placed on the table.

8. INSTALLATION AND OPERATION GUIDE

SPS-821 Multimedia Speaker System can be

connected to virtually any audio source: DVD/CD

player, PC, laptop, etc. (see connection diagram,

Fig. 3).

WARNING! All components should be switched

off before connection.

•Connect the built-in audio cables to the audio out-

put jacks on the subwoofer rear panel (see Fig. 2).

Note that the RCA jack on the right speaker should

be connected to the red terminal of the subwoofer

(AUDIO OUTPUT R) and the RCA jack of the left

speaker to the white terminal of the subwoofer

(AUDIO OUTPUT L).

•Insert the RCA jacks of the 2RCA to mini-jack stereo signal cable (included) into R and L connectors e

of the subwoofer AUDIO INPUT and plug the mini-jack of the cable into the ø 3.5 mm LINE OUT port of

your PC sound card or an audio output of your MP3 player (see connection diagram, Fig. 3).

Note. To connect the MSS to a CD/DVD-player or TV, use the 2RCA to 3.5 mm mini-jack stereo

signal cable (included) with a mini-jack to 2RCA adapter (not included) or a 2RCA to 2RCA

stereo signal cable (not included), as shown in Fig. 2.

•Plug the power cord hon the rear panel of the subwoofer into a mains outlet.

•Set the master volume level to its minimum, turn VOLUME dcounterclockwise until it stops.

•Turn on power supply with the POWER switch g(ON position). The Power LED awill illuminate.

•Turn on your audio source.

•Adjust the master volume with the VOLUME dknob. By turning the knob clockwise, you increase the

volume level, and by turning it counterclockwise, you reduce it.

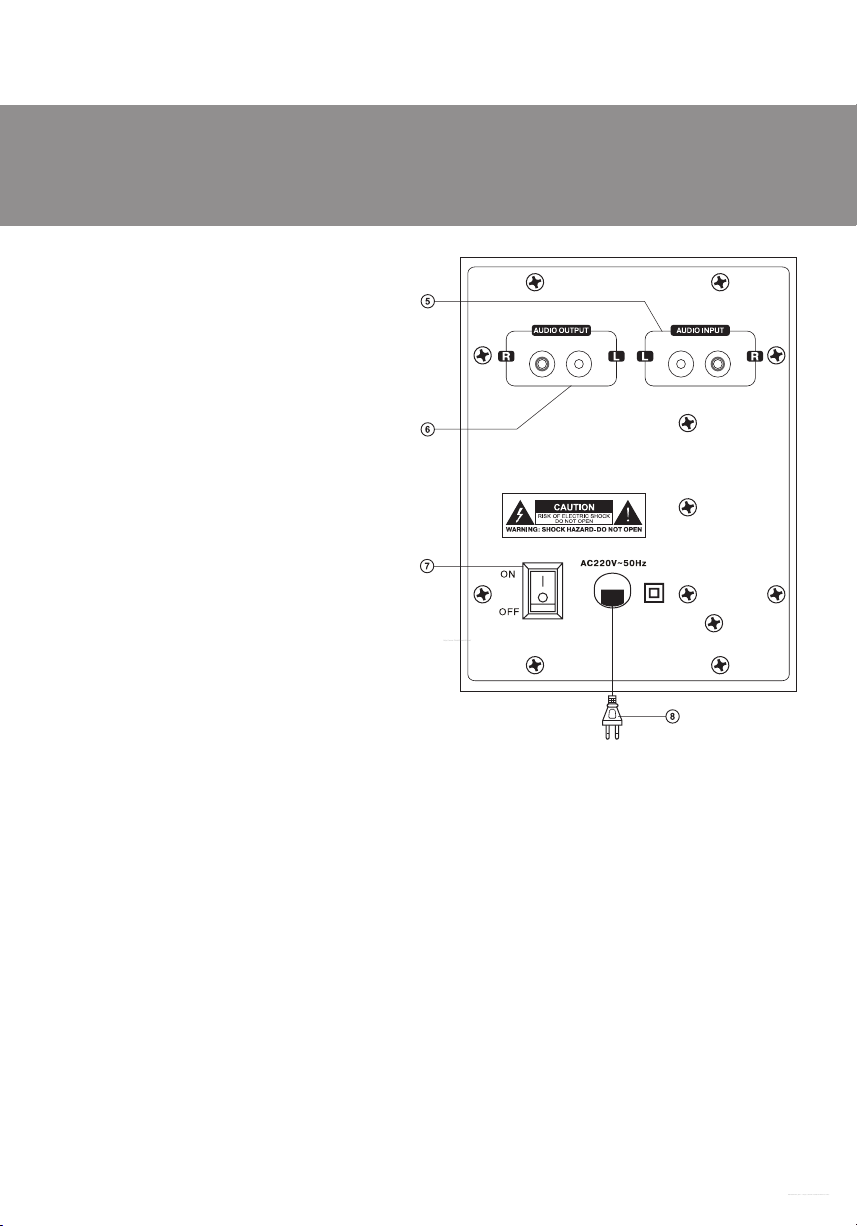

Fig. 2. Rear panel

http://www.DataSheet4U.net/

datasheet pdf - http://www.DataSheet4U.net/

you want - we can

ENG

2.1 Multimedia Speaker System

•Adjust the subwoofer and treble levels, with BASS band TREBLE cknobs respectively. By turning the

knob clockwise, you increase the volume level, while by turning it counterclockwise, you reduce it.

Notes:

• If you don’t use the MSS for a long time, mind to switch off the system with POWER switch on

the subwoofer rear panel and unplug the power cord.

• Use the soundcard Line-Out port to improve sound quality.

Fig. 3. Connection diagram

2RCA to mini-jack

signal cable

2RCA tо 2RCA

signal cable

Player

Power cord

DVD

http://www.DataSheet4U.net/

datasheet pdf - http://www.DataSheet4U.net/

Operation Manual

ENG

S P S - 8 21

10. TECHNICAL SPECIFICATIONS

Notes:

• Technical specifications gi ven in this table are supplemental information and cannot give occasion to claims.

• Technical specifications are subject to change without notice due to the improvement of SVEN production.

Parameter, measurement unit

Output power, W (RMS)

subwoofer

satellites

Speaker dimensions, mm

subwoofer

satellites

Supply voltage, V/Hz

Frequency range, Hz

subwoofer

satellites

Speaker dimensions, mm

subwoofer

satellites

Weight, kg

Value

40 (20 + 2 × 10)

2 × 10

=125

full range =75

~220/50

40 – 200

200 – 20 000

150 × 240 × 250

95 × 133 × 90

4.35

Cause

The MMS isn’t connected to the mains outlet.

Power switch is o.

Volume level is set at minimum value.

Improperly connected audio source.

Volume level is set at minimum value.

Large amplitude of the input signal.

Solution

Check the connection.

Turn on the switch.

Adjust the volume control knob.

Connect audio sources correctly.

Adjust the volume control knob.

Turn down the source volume and

MSS volume.

Problem

The MMS doesn’t

turn on.

No sound.

There is too quiet

sound of speakers.

Distortion of

sound.

If none of the above methods can solve the problem, please seek professional advice at your nearest service center.

Never attempt to repair the product yourself.

9. TROUBLESHOOTING

http://www.DataSheet4U.net/

datasheet pdf - http://www.DataSheet4U.net/

you want - we can

Модель: SPS-821

Импортер в России: ООО «СКАНДИТРЕЛ», 111024, РФ,

г. Москва, ул. Авиамоторная, д. 65, стр. 1.

Уполномоченная организация в России: ООО «РТ-Ф»,

105082, г. Москва, ул. Фридриха Энгельса, д. 75, стр. 5.

Условия гарантийного обслуживания смотрите

в гарантийном талоне или на сайте www.sven.

Гарантийный срок: 12 мес.

Срок службы: 5 лет.

Произведено под контролем «Свен Скандинавия

Лимитед», 48310, Финляндия, Котка,

Котолахдентие, 15. Сделано в Китае.

Модель: SPS-821

Постачальник/імпортер в Україні: ТОВ «СВЕН Центр», 08400,

Київська область, м. Переяслав-Хмельницький, вул. Героїв

Дніпра, 31.

Призначення, споживчі властивості та відомості про безпеку

товару див. у керівництві з експлуатації. Умови гарантійного

обслуговування дивіться в гарантійному талоні або на сайті

www.sven.

Гарантійний термін: 12 міс.

Строк служби: 5 років.

Товар сертифіковано/має гігієнічний висновок.

Шкідливих речовин не містить. Зберігати в сухому місці.

Виготовлено під контролем «Свен Скандинавія

Лімітед», 48310, Фінляндія, Котка, Котолахдентіє, 15.

Зроблено в Китаї.

Виробник для України: GREENWAVE INDUSTRIAL

GROUP LTD, Unit 2509, 25/F, 113 Argyle Street,

Mongkok, Kowloon, Hong Kong.

Produced under the control of Oy Sven Scandinavia Ltd.

15, Kotolahdentie, KOTKA, Finland, 48310. Made in China.

® Registered Trademark

of Oy SVEN Scandinavia Ltd. Finland. SPS-821
