OPERATION

MANUAL

Multimedia Speaker System 2.1

C2-15

ENG

Operation Manual C2-15

Technical support is on www.sven.ﬁ

CONTENTS

1. INTRODUCTION ....................................................................................

2. SAFETY PRECAUTIONS ..........................................................................

3. PACKAGE CONTENTS ............................................................................

4. SPECIAL FEATURES ..............................................................................

5. LOCATING ...........................................................................................

6. DESCRIPTION OF SUBWOOFER DESIGN .....................................................

7. REMOTE CONTROL ................................................................................

8. INSTALLATION AND OPERATION GUIDE ......................................................

9. TROUBLE SHOOTING ............................................................................

10. TECHNICAL SPECIFICATION ...................................................................

Congratulations on your purchase of the Sven speaker system!

Please read this operation manual before using the unit and retain this operation manual in safe place

for future reference.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted eﬀorts to make this manual more exact, some discrepancies may occur. The

information of this manual is given on «as is» terms. The author and the publisher do not bear any

liability to a person or an organization for loss or damages which have arisen from the information,

contained in the given manual.

UNPACKING

Unpack the device carefully. Make sure there are no accessories left in the box. Check up the

device for damages; if the product was damaged during transportation, address the ﬁrm which

carried out the delivery; if the product functions incorrectly, address the dealer at once.

ATTENTION!

Do not switch on acoustic system immediately after you bring it in a room from environment with

negative temperature!

Unpacked acoustic system should be placed in conditions of room’s temperature at least 4 hours.

ENG

Multimedia Speaker System 2.1

1. INTRODUCTION

C2-15 Multimedia Speaker System 2.1 (MSS) designed to play music and sound games, movies

etc. The subwoofer has built-in power ampliﬁer, due to which it can be connected to virtually any

audio source (CD/DVD-player, TV, PC, etc.) without using an additional power ampliﬁer. There is

remote control in package.

2. SAFETY PRECAUTIONS

•To avoid electric shock do not open MSS and do not perform repairs by yourself.

•Do not allow circuit of wires (including grounded ones) between speakers, power ampliﬁer or

ground, for it causes damage of power ampliﬁer output stage.

•Do not put foreign objects inside the holes of MSS. Make sure that needles, hair pins, coins,

insects etc. do not get inside.

•Protect MSS from high humidity, water and dust. Do not locate it in areas with high

level of humidity and dust.

•Protect MSS from heating: do not locate it near a heat source or expose to direct sunlight.

•Do not use gasoline, alcohol or other solvents when cleaning, since they may damage stained

surface of MSS. Clean it with dry soft cloth only.

•If MSS does not operate, unplug it and refer to service personnel.

3. PACKAGE CONTENTS

•Subwooofer — 1 pc

•Speakers — 2 pcs

•Signal cable mini-jack to mini-jack ( Ø 3.5 mm) — 1 pc

•Remote control — 1 pc

•AAA battery for remote control — 2 pcs

•Operation manual — 1 pc

•Warranty card — 1 pc

Caution! High voltage inside! To avoid the risk of electric

shock do not open or touch elements inside.

ENG

Operation Manual C2-15

4. SPECIAL FEATURES

•Built-in transformer power supply

•Timbre and volume control

•Stereo input for various audio devices

•Remote control

•Magnetic shielding

•MDF case of subwoofer and satellites

5. LOCATING

•Place speakers symmetrically to the listener at the distance not less than one meter. Subwoofer

emits non-directional sound, therefore it can be located in any place of the room, where it will sound

to the best advantage.

•Place speaker system far away from TV sets, as insigniﬁcant image distortion in supersensitive

monitors and TV sets is possible.

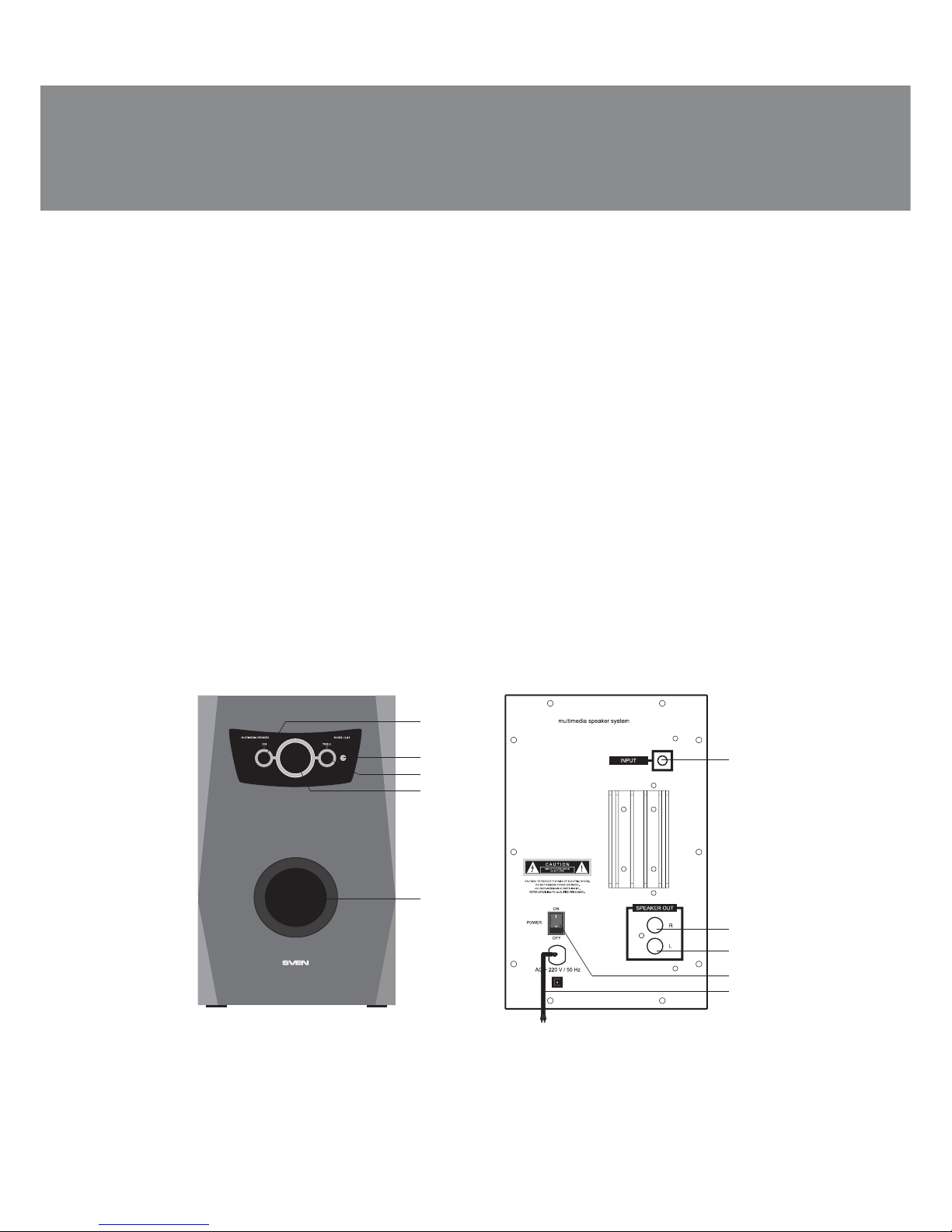

6. DESCRIPTION OF SUBWOOFER CONSTRUCTION

aSUB: Bass control knob

bVOLUME: Volume control knob

cTREBLE: Treble control knob

dInfrared receiver display

ePhase inverter

fINPUT: Audio source input

gR: Right speaker input

hL: Left speaker input

iPOWER: POWER On/Oﬀswitch

jPower cable

Fig. 1. Subwoofer

front panel

Fig. 2. Subwoofer

rear panel

C2-15

VOL+VOL-

TRE-

TRE+

SUB-

SUB+

MUTE

aMUTE: MUTE button

bTRE+/TRE-: Treble control buttons

cSUB+/SUB-: Bass control buttons

dVOL-/VOL+: Volume control buttons

7. REMOTE CONTROL

Installation of batteries inside remote control

• Open battery compartment on rear panel of remote

control.

• Install batteries from the set matching polarity.

• Close battery compartment.

Notes:

• Use remote control at an angle not less than

30 degrees at a distance not less than 7 meters.

• Direct remote control at infrared receiver display

on subwoofer.

• If remote control is not working, check for bat-

teries and replace discharged batteries for new

ones.

• Pull out batteries from remote control, if you are

not going to use them for a long time (more than a

week).

Fig. 3. Remote control

ENG

Multimedia Speaker System 2.1

ENG

Operation Manual C2-15

8. INSTALLATION AND OPERATION

C2-15 Multimedia Speaker System can be connected to virtually any audio source: DVD/CD, PC

sound card, etc. (see ﬁg. 4 below).

• Before connecting make sure that speaker system is switched oﬀ. Then connect built-in acoustic

cables to outputs on the rear panel of subwoofer (see connection diagram above).

• To connect speaker system to audio source, stereo signal cable mini-jack to mini-jack (stereo

jack Ø 3,5 mm) should be used. Insert one end of the cable into the audio input on the rear panel of

subwoofer, and insert the other end of the cable into audio source input (stereo jack Ø 3,5 mm).

Notes. Sound is directly dependent on accuracy and reliability of the cable connections.

Recommended to use cables that are supplied complete with speakers.

• To connect speaker system to CD/DVD-players, stereo signal cable mini-jack (Ø 3,5 mm) to

2*RCA (not included) should be used; its RCA jacks should be connected to outputs of

DVD/CD-players. If such a cable is not available, use adapter mini-jack (Ø 3,5 mm) to 2*RCA

(optional).

• Insert plug of power cable j(see ﬁg. 2) on rear panel of subwoofer into the socket.

• Shift POWER On/Oﬀswitch into ON position ion rear panel of subwoofer.

• Adjust volume level to its minimum by turning VOLUME control knob bon the front panel of

subwoofer counterclockwise as far as it would go.

• Adjust volume level by turning VOLUME control knob bon the front panel of subwoofer or by

pressing buttons VOL+ or VOL- don remote control (see ﬁg. 3).

• Adjust treble level by turning TREBLE control knob con the front panel of subwoofer or by

pressing buttons TRE+ or TRE- bon remote control.

Fig. 4. Connection diagram

C2-15

signal cable mini-jack

to mini-jack Ø 3.5 mm

DVD/CD/MP3, TV

subwoofer

rear panel

left

speaker

right

speaker

COMPUTER

PLAYER

ENG

Multimedia Speaker System 2.1

10. TROUBLE SHOOTING

If none of the above methods can not solve the problem, please seek professional advice at your

nearest service center. Never attempt to repair the product yourself.

Problem

MSS does not

turn on.

No sound.

There is too quiet

sound of speakers.

Distortion of

sound.

Sound is produced

by one of the

channels only.

Remote control is

not working.

Cause

MSS is not connected to the mains outlet.

Power switch is oﬀ.

Volume level is set at minimum value.

Improperly connected audio source.

Volume level is set at minimum value.

Large amplitude of the input signal.

Improperly connected speakers to audio

source.

The battery is discharged.

There is direct sunlight.

Obstacle between remote control and

subwoofer receiver.

Solution

Check the connection.

Turn on the switch.

Adjust volume control knob.

Connect audio sources correctly.

Adjust volume control knob.

Turn down source volume

and MSS volume.

Check the connection of

speakers.

Change battery for new one.

Change location of subwoofer or

remote control.

Change the subwoofer or remote

control location.

• Adjust bass level by turning BASS control knob aon the front panel of subwoofer or by pressing

buttons SUB+ or SUB- con remote control.

• MUTE feature allows to turn oﬀ/on sound of speaker system. To turn on sound, press MUTE

button aon remote control.

Notes:

• If speaker system has not been used for a long time, please mind to switch off POWER i

(position OFF) on subwoofer rear panel and pull out its plug jfrom the socket.

• To enhance sound quality, use Line-Out output of sound card.

ENG

Operation Manual C2-15

Parameter, measurement unit

Output power(RMS), W

subwoofer

satellites

Frequency range, Hz

subwoofer

satellites

S/N ratio, dB

Diameter, mm

subwoofer

satellites

Voltage, V/Hz

Dimensions (of one speaker) (W хH хD), mm

subwoofer

satellites

Weight, kg

Value

45 (25 + 2 х10)

2 х10

30 – 200

60 – 20 000

≥70

Ø 133

Ø 38 + Ø 102

~220/50

182 х313 х335

131 х242 х135

8.6

10. TECHNICAL SPECIFICATION

Notes:

•Technical speciﬁcation given in this table is supplemental information and can not give

occasion to claims.

•Technical speciﬁcation is subject to change without notice due to improvement of SVEN

production.

Модель:

C2-15

Импортер вРоссии: ООО «СКАНДИТРЕЛ»,

111024, РФ, г. Москва, ул. Авиамоторная, д. 65, стр. 1.

Уполномоченная организация вРоссии: ООО «РТ-Ф»,

105082, г. Москва, ул. Фридриха Энгельса, д. 75, стр. 5.

Условия гарантийного обслуживания смотрите в

гарантийном талоне или на сайте www.sven.ﬁ

Гарантийный срок: 12 мес.

Срок службы: 5 лет.

Произведено под контролем «Свен Скандинавия

Лимитед», 48310, Финляндия, Котка,

Котолахдентие, 15. Сделано вКитае.

Модель:

C2-15

Постачальник/імпортер вУкраїні: ТОВ «СВЕН Центр».

Київська область, м. Переяслав-Хмельницький,

вул. Героїв Дніпра, 31.

Призначення, споживчі властивості та відомості

про безпеку товару див. укерівництві зексплуатації.

Умови гарантійного обслуговування дивіться в

гарантійному талоні або на сайті www.sven.ﬁ

Гарантійний термін: 12 міс.

Строк служби: 5 років.

Товар сертифіковано/має гігієнічний висновок.

Шкідливих речовин не містить.

Зберігати всухому місці.

Виготовлено під контролем «Свен Скандинавія

Лімітед», 48310, Фінляндія, Котка, Котолахдентіє, 15.

Зроблено вКитаї.

Produced under the control of Oy Sven Scandinavia Ltd.

15, Kotolahdentie, KOTKA, Finland, 48310.

Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland. C2-15
