Sven RX-400W Manual de usuario

www.sven.ﬁ

USER’S MANUAL

RX-400W

Wireless Optical Mouse

ENG

Congratulations on your purchase of the SVEN PC mouse!

Please read the following instructions carefully before connecting, opera-

ting or adjusting this product. Besides, please keep this Manual in a safe

place for future reference.

This Manual and information contained in it are copyrighted. All rights

reserved.

TRADEMARKS

All trademarks are the property of their legal holders.

NOTICE OF RESPONSIBILITY RESTRICTION

Despite the exerted eﬀorts to make this Manual more exact, some

discrepancies may occur. The information in this Manual is given on “as is”

terms. The author and the publisher do not bear any liability to a person or

an organization for loss or damage which has arisen from the information

contained in this Manual.

CONTENTS

1. SPECIAL FEATURES ..................................................

2. PACKAGE CONTENTS ................................................

3. SYSTEM REQUIREMENTS ..........................................

4. DESCRIPTION .........................................................

5. INSTALLATION .........................................................

6. TROUBLESHOOTING ................................

.................

7. TECHNICAL SPECIFICATIONS ...........................

...........

Technical support is on www.sven.ﬁ.

Wireless Optical Mouse

ENG

1. SPECIAL FEATURES

• BlueLED advanced optical technology

• DPI resolution switch

• Resolution 600/1000 dpi

• Powered by 2 AAA batteries

• Long life battery-fed operation

2. PACKAGE CONTENTS

• Optical mouse – 1 рс

• 2.4 GHz USB nano receiver – 1 рс

• AAA batteries – 2 рсs

• User’s Мanual – 1 рс

• Warranty card – 1 рс

3. SYSTEM REQUIREMENTS

• Windows XP/Vista/7/8/10.

• Free USB port.

User’s Manual RX-400W

ON OFF

4. DESCRIPTION

a Scroll wheel

b Dpi resolution switch

c Power switch

d Optical sensor

e Battery compartment

f Nano receiver

g USB connector

ENG

Fig. 1. Top view

Fig. 2. Bottom view Fig. 3. Nano receiver

5. INSTALLATION

• Open the cover of the mouse battery compartment e, insert 2 AAA

batteries into the battery compartment matching the polarity, and close the

cover of the battery compartment (see Fig. 4).

• Сonnect the included nano receiver f to a free PC USB port (Fig. 5).

Wireless Optical Mouse

ON OFF

ENG

ААА batteries

Battery

compartment Battery compartment

cover

Fig. 4. Battery installation

Fig. 5. Receiver connection

Improper installation of

batteries can result in failure

of the mouse!

User’s Manual

• Turn on the mouse with the on/oﬀ switch c (the ON position). To activate

the mouse, press any button of the mouse or turn the scroll wheel. If the

mouse is connected correctly, it will turn on automatically.

RX-400W

ON OFF

SVEN

ON OFF

SVEN

Fig. 6. Fitting the receiver

into the mouse case

Fig. 7. Extraction of the receiver

from the mouse case

• After ﬁnishing work

turn oﬀ the mouse with the power switch c (the OFF

position)

After this, you can pull out the receiver f from the PC USB port

and insert it into the mouse (Fig. 6). When using the receiver again, pull it

out from the mouse (Fig. 7) and connect it to the PC USB port again.

• Do not place the receiver into a conﬁned metal space (table drawer, box,

safe), as a metal screen does not transmit radio signals.

• If the batteries run down, the mouse works in jerks. It means that the

batteries should be replaced with new ones, as it is shown in Fig. 4. Always

install only identical new batteries.

This device meets the highest standards of energy conservation.

Use the switch c on the bottom of the mouse to switch it on/off –

it will help you extend the mouse battery life.

Important

ENG

Wireless Optical Mouse

Notes:

• Technical speciﬁcations given in this table are supplemental infor-

mation and cannot give occasion to claims.

• Technical speciﬁcations are subject to change without notice due to

the improvement of SVEN production.

TECHNICAL SPECIFICATIONS

Parameter

OS compatibility

Type of mouse

Resolution, dpi

Q-ty of buttons

Interface

Dimensions, mm

Weight, g

Value

Windows XP/Vista/7/8/10

wireless 2.4 GHz

600/1000

3 + 1 (scroll wheel)

USB

103 × 66 × 38

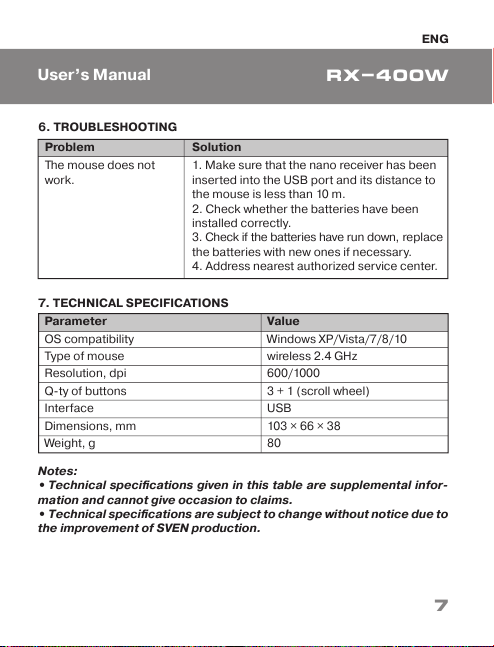

6. TROUBLESHOOTING

Solution

1. Make sure that the nano receiver has been

inserted into the USB port and its distance to

the mouse is less than 10 m.

2. Check whether the batteries have been

installed correctly.

3. Check if the batteries have run down, replace

the batteries with new ones if necessary.

4. Address nearest authorized service center.

Problem

The mouse does not

work.

ENG

User’s Manual RX-400W

Model:

RX-400W

Импортер в России: OOO «РЕГАРД», 109052,

РФ, г. Москва, ул. Нижегородская, д. 86, корп. Б.

Уполномоченная организация в России:

ООО «РТ-Ф», 105082, г. Москва, ул. Фридриха

Энгельса, д. 75, стр. 5.

Условия гарантийного обслуживания смотрите

в гарантийном талоне или на сайте www.sven.ﬁ.

Гарантийный срок: 12 мес. Срок службы: 2 года.

Производитель: «СВЕН ПТЕ. Лимитед»,

176 Джу Чиат Роуд, № 02-02, Сингапур, 427447.

Произведено под контролем «Свен Скандинавия

Лимитед», 48310, Финляндия, Котка,

Котолахдентие, 15. Сделано в Китае.

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,

№ 02-02, Singapore, 427447. Produced under the

control of Oy Sven Scandinavia Ltd. 15, Kotolah-

dentie, Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland. RX-400W
