SVANTTO IAM02 Manual de usuario
User Manual
IAM02 Time Clock
1.10
Page2of50
IAM02 Time Clock User Manual
Version 1.00
Version History
Date
By
Changes
Version
2022-3-16
Chuy
Initial Version
1.00
2022-3-22
Chuy
Replace Dusty Pictures.
Modify the USB Flash Drive Expression.
Modify Overview Image.
Modify Display Interface Image.
Add Video Links.
Correct the Wrong Words.
1.01
2022-3-25
Chuy
Modify Display Interface Image.
Modify Grammars
1.02
2022-3-29
Chuy
Modify Product Overview Image.
Modify Function Key Images.
Add Hyperlink.
Modify Section 3.5 Error Statement.
Replace Unclear Picture.
1.10
Page3of50
IAM02 Time Clock User Manual
Version 1.00
Contents
Version History...................................................................................................................................................... 2
1.0. Product Introduction...............................................................................................................................5
1.1. What’s in the Box......................................................................................................................................5
1.2. Product Overview......................................................................................................................................6
1.3. Function Keyboard.................................................................................................................................... 6
1.4. Display Interface....................................................................................................................................... 7
2.0. Machine Mounting Method.................................................................................................................... 8
3.0. Operating Instructions............................................................................................................................9
3.1. Before Using..............................................................................................................................................9
3.2. Set User Information................................................................................................................................. 9
3.2.1. Set User Information on the Machine...................................................................................................9
3.2.2. Set User Information on the Computer...............................................................................................14
3.3. Set the Shift Time....................................................................................................................................17
3.3.1. Set the Shift Time on the Machine..................................................................................................... 17
3.3.2. Set the Shift Time on the computer.................................................................................................... 18
3.4. Set the Shift............................................................................................................................................. 21
3.4.1. Set the Shift on the Machine...............................................................................................................21
3.4.2. Set the Shift on the computer..............................................................................................................25
3.5. Attendance Punch....................................................................................................................................27
3.5.1. Punch by Fingerprint.......................................................................................................................... 27
3.5.2. Punch by ID Card............................................................................................................................... 27
3.5.3. Punch by Password.............................................................................................................................27
3.6. Download the Attendance Report........................................................................................................... 28
4.0. Menu Setting.......................................................................................................................................... 30
4.1. User..........................................................................................................................................................30
4.1.1. Synchronize User Information............................................................................................................30
4.1.2. Download User Information............................................................................................................... 30
4.1.3. Upload User Information....................................................................................................................30
4.1.4. Enroll.................................................................................................................................................. 32
4.1.5. Delete..................................................................................................................................................32
4.1.6. Departments........................................................................................................................................33
4.1.7. View User List....................................................................................................................................34
4.2. Attendance Settings................................................................................................................................. 35
4.2.1. AttendSetting Upload......................................................................................................................... 35
4.2.2. AttendSetting Download.................................................................................................................... 35
4.2.3. Shift Time Zone..................................................................................................................................35
4.2.4. TR Schedule........................................................................................................................................35
4.2.5. Verification Mode...............................................................................................................................37
4.2.6. Bell Time............................................................................................................................................ 38
4.2.7. Reverify Time.....................................................................................................................................39
4.2.8. Attendance Rules................................................................................................................................ 39
4.3. Shift Settings........................................................................................................................................... 40
4.4. Setting......................................................................................................................................................40
4.4.1. Device ID............................................................................................................................................40
4.4.2. Volume............................................................................................................................................... 41
4.4.3. Calibrate Sensor..................................................................................................................................41
4.4.4. Date and Time.....................................................................................................................................41
4.4.5. Power.................................................................................................................................................. 42
4.4.6. Upgrade Firmware..............................................................................................................................42
4.4.7. Factory Reset...................................................................................................................................... 42
Page4of50
IAM02 Time Clock User Manual
Version 1.00
4.4.8. Backup All Data................................................................................................................................. 43
4.4.9. Restore All Data................................................................................................................................. 43
4.5. Log Management.....................................................................................................................................43
4.5.1. View Time Log...................................................................................................................................43
4.5.2. Management Log Warning................................................................................................................. 45
4.5.3. Time Log Warning............................................................................................................................. 45
4.5.4. Clear All Log...................................................................................................................................... 45
4.5.5. Management Log Download.............................................................................................................. 46
4.5.6. Download Time Log(txt)....................................................................................................................46
4.5.7. Download Management Log(txt)....................................................................................................... 47
4.6. System Info..............................................................................................................................................47
4.6.1. Enroll Info...........................................................................................................................................47
4.6.2. Device Info......................................................................................................................................... 47
4.6.3. Test 48
5.0. Product Specification............................................................................................................................ 49
Page5of50
IAM02 Time Clock User Manual
Version 1.00
1.0. Product Introduction
Thank you for using our product. This product uses the latest biometric solution with a high-speed and stable
ARM processor.
The performance indicators such as recognition and speed of the product are at the leading level in the industry.
Fully meet your safe and efficient work requirements.
All pictures shown are for illustration purposes only. Actual products may vary due to product improvements.
The actual product shall prevail.
Figure 1- 1 IAM02
1.1. What’s in the Box
After receiving the package, please open and inspect the product inside.
Figure 1- 2 What’s in the Box
Page6of50
IAM02 Time Clock User Manual
Version 1.00
1.2. Product Overview
Figure 1- 3 Overview
1.3. Function Keyboard
Table 1- 1 Function Keyboard
1
Number key
1. Input digit in the input box.
2. Input letter in the input box.
Press the "1" key to switch the TR schedule to AM In.
Press the "2" key to switch the TR schedule to AM Out.
Press the "3" key to switch the TR schedule to PM In.
Press the "4" key to switch the TR schedule to PM Out.
Press the "5" key to switch the TR schedule to OT In.
Press the "6" key to switch the TR schedule to OT Out.
2
ESC Key
1. Return to the previous interface.
2. Exit the face-to-face interface.
Page7of50
IAM02 Time Clock User Manual
Version 1.00
3
MENU Key
1. Enter the menu interface.
2. Delete the content of the input box.
4
Power Key
1. Power On.
2. Press the power key in the input box to switch numbers,
letters, and symbols.
5
0 key
1. Input 0 in the input box.
2. Enter spaces in the input box.
3. Pressthe 0 key in the main interface to clock in the
password.
6
OK Key
1. Confirm that the option is selected.
2. In the input box, press the OK key to save the input
content.
7
Up key
Move the selection bar up.
8
Down Key
Move the selection bar down.
1.4. Display Interface
Figure 1- 4 Display Interface
Page8of50
IAM02 Time Clock User Manual
Version 1.00
2.0.Machine Mounting Method
Figure 2- 1 Machine Mounting Method
1) Mount the machine on a wall approximately 110 cm above the floor. (Based on the bottom of the
machine)
2) Positioning and punching: Remove the two screws at the bottom of the attendance machine and the
wall panel at the back of the attendance machine.
3) Fixing the wall panel: Put the expansion screw into the hole, place the wall panel in the correct position
in the perforated area, and fasten the screw into the expansion screw.
4) Fix the device: install the time and attendance machine on the wall plate and fix the screws just
removed from the bottom of the machine.
Page9of50
IAM02 Time Clock User Manual
Version 1.00
3.0. Operating Instructions
3.1. Before Using
Plug into the power cord. The machine will power on automatically.

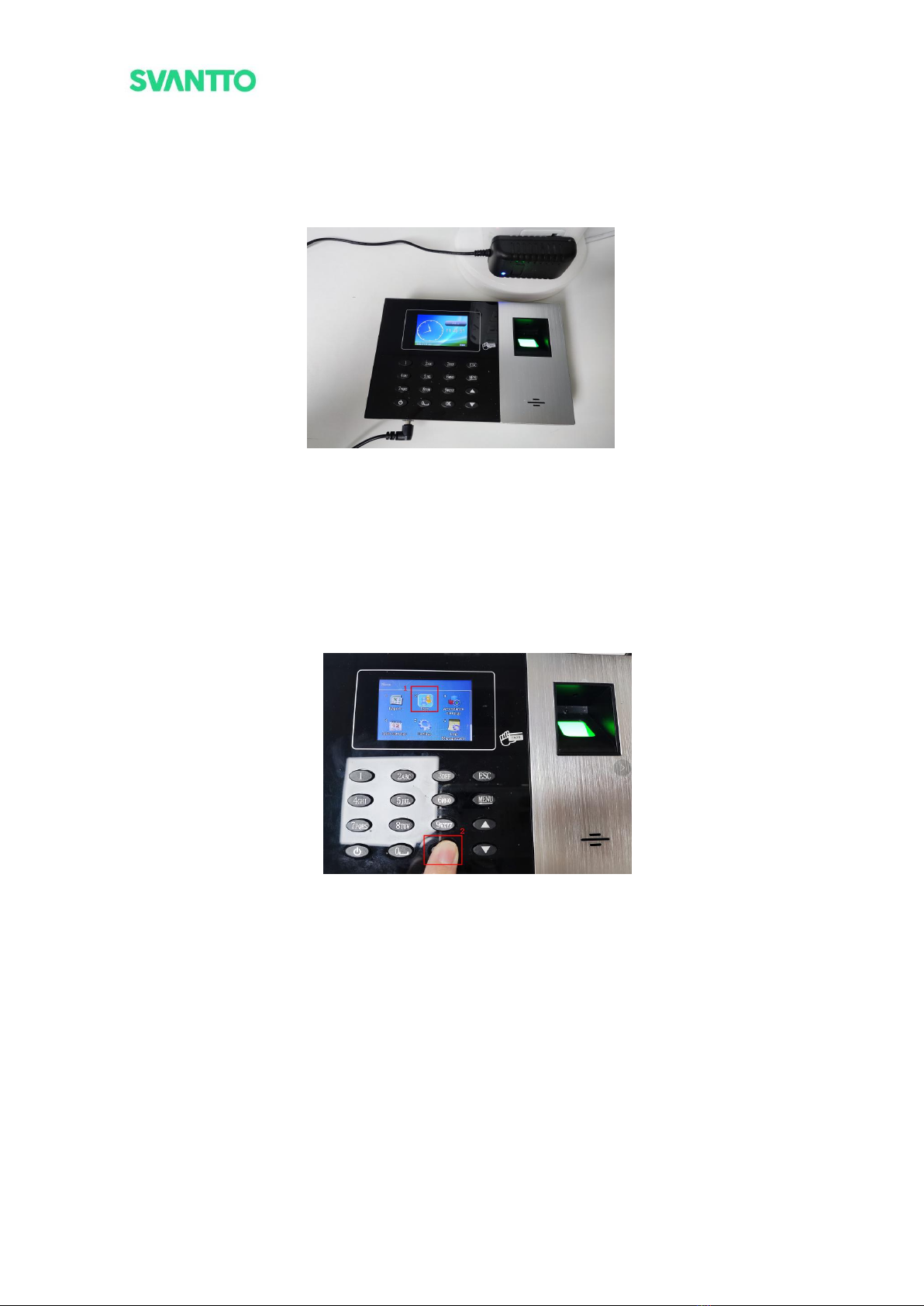

Figure 3- 1 Machine Charge
3.2. Set User Information
There are two settings, and you can choose either one.
3.2.1.Set User Information on the Machine
1) Press the [MENU] key to enter the menu interface.
1) Press the [Down] key to select the [User], press the [OK] key to confirm to enter the user interface.
Figure 3- 2 Menu Interface
2) Select the [Enroll] and press the [OK] key to enter the enroll interface.
Page10of50
IAM02 Time Clock User Manual
Version 1.00
Figure 3- 3 Enroll
3) Set the user ID in the order of 1, 2, 3 ......
Figure 3- 4 Set User ID
4) Select the [Depart], select the user department.
Figure 3- 5 Select Depart
5) Select [Name], press the [OK] key to enter the name setting interface.
Note: You can switch numbers, letters, and symbols by pressing the power key.
