SureCall FusionTrek Manual de usuario
FusionTREK™
Voice, text & 4G LTE signal booster for your vehicle
User Guide
SureCall | www.surecall.com | 1-888-365-6283 | support@surecall.com
Table of Contents
2
Thank you for purchasing SureCall’s FusionTrek cell phone signal booster kit. FusionTrek provides
enhanced voice, text and 4G data signal for any vehicle.
If you have any questions during setup, please reach out to our US-based experienced support
technicians:
• Call: 1-888-365-6283
TABLE OF CONTENTS
How It Works ................................................................................................................................. 3
Package Contents ......................................................................................................................... 4
Step 1: Mount Booster On/Near Rear Window............................................................................ 5
a. Installation Using Adjustable Window Suction Mount........................................................... 5
b. Installation Using Adhesive Base ......................................................................................... 5
Step 2. Mount Cradle Antenna & Connect Components ............................................................... 6
Step 3. Connect To Power............................................................................................................. 7
Troubleshooting............................................................................................................................. 8
Specications ................................................................................................................................ 9
Antenna Kitting Information ......................................................................................................... 10
Consumer Guidelines.................................................................................................................. 12
Three-Year Product Warranty...................................................................................................... 13
Watch the quick install video https://youtu.be/_k20SwLBaQg
SureCall | www.surecall.com | 1-888-365-6283 | support@surecall.com 3
HOW IT WORKS
The SureCall FusionTrek is a high-quality bidirectional booster that enhances cellular signals for
vehicles.
The FusionTrek works with two antennas:
• An inside antenna that communicates with your cell phone.
• An outside antenna that communicates with the cell tower.
Signals sent from a cell tower are received by the outside antenna, amplied by the booster and
then sent to your cell phone via the inside antenna. When your phone transmits, the signal is sent to
the inside antenna, and then sent to the cell tower via the outside antenna.
How It Works
➌
➊
➋
SureCall | www.surecall.com | 1-888-365-6283 | support@surecall.com
4
Package Contents
PACKAGE CONTENTS
1. Unpack all package contents. For missing or damaged items, contact your reseller.
2. Turn over the signal booster and record the model and serial number for reference:
Serial #:
Purchase Date:
Keep the carton and packing material to store the product in case you need to return it.
Your signal booster package includes the following items:
1. SureCall FusionTrek Inside window mount signal booster 2 mounting options
2. Adjustable Window Suction-Mount
3. Adhesive Base Mount
4. Magnetic phone mount with incorporated antenna
5. Metal phone plates
6. DC power adapter
6. DC Power
Adapter
1. FusionTrek
Booster
2. Adjustable Window
Suction-Mount
3. Adhesive Base
Mount
4. Magnetic Cradle
Antenna
5. Metal
Plates
SureCall | www.surecall.com | 1-888-365-6283 | support@surecall.com 5
STEP 1: MOUNT BOOSTER ON/NEAR REAR WINDOW
Mount booster in the center of your inside back window using one
of the two options below. We suggest using the adjustable window
mount option for vertical or near-vertical windows and the adhesive
base mount for windows that are more angled, like sedans. For both
installations you need to place the booster as close to the rear window
as possible. For best performance, be sure the booster is mounted
vertically with the SureCall logo facing the front of the vehicle.
Ensure that the antenna has at least a 12-inch radius clear of obstruc-
tions and other radiating elements, such as a radio antenna.
Note: The outside antenna must not be collocated or operating with any other antenna or booster.
Installation
b. Installation Using Adhesive Base
1. Find a at and horizontal surface near the rear window and the use
alcohol pad to clean the mounting location.
2. Remove the backing from the adhesive strip and press the booster
down rmly on to the mounting location.
Adhesive
base
a. Installation Using Adjustable Window Suction Mount
1. Remove the back part of the window suction mount bracket by
pressing on the release.
2. Identify a high and centered location on the back window and clean
location.
3. Lift the lever on the adjustable window mount, place rmly onto the
window and press down on the lever to lock in place.
4. Press the booster back into the mounted adjustable window mount
bracket.
Lever
Release
Connector
Nut
Ball Joint
SureCall | www.surecall.com | 1-888-365-6283 | support@surecall.com
IMPORTANT: The antenna must be located at least 8 inches from all persons. The FCC requires to never use the cell phone in the cradle next to
your ear.
6
Installation
STEP 2. MOUNT CRADLE ANTENNA & CONNECT COMPONENTS
Identify a location for the inside antenna on or near your front dashboard that is
1. Place the magnetic cradle antenna on an air-vent, in your cup-hold-
er or center-console.
2. Plug the barrel connector into the cradle antenna and route the
cable from the cradle antenna to the booster. Screw the cable into
the connector on the back of the booster.
3. We recommend running the cable under the oor-mats or beneath
the car’s molding for a professional look.
4. Adhere one of the magnetic stickers to the back of your phone or
phone-case and place your phone on the magnetic cradle antenna.
Identify a location for the inside antenna on or near your front dash-
board that is
1. Within 2-3 feet of the typical cell phone location
2. At least 8 inches (20cm) from cellular devices and
3. At least 4 inches (10cm) from metal
Vent clip
Magnetic plate
Cable to booster
Metal plate
SureCall | www.surecall.com | 1-888-365-6283 | support@surecall.com 7
Installation
STEP 3. CONNECT TO POWER
1. Plug the DC Power Adapter into power port of your car.
2. Switch the Power Switch to On and a red light will illuminate on the adapter.
3. The cradle antenna will illuminate a green light when it is receiving power.
Note: Your phone will only receive the enhanced signal when it is placed on the
cradle antenna.
When your car is off, turn the power switch to OFF to keep the booster from con-
tinuing to draw power from your vehicle.
Power
switch
Power LED
Power connector
Cable to booster
WARNING: The booster is rated for 5-15V input voltage. DO NOT use the booster with a higher voltage power supply. This can damage the
booster and/or cause personal injury.
SureCall | www.surecall.com | 1-888-365-6283 | support@surecall.com
8
SpecicationsTroubleshooting
TROUBLESHOOTING
Problem Resolution
Signal booster has no
power
Verify that the Power LED is ON.
Connect the power supply to an alternate power source.
Verify that the power source is operational and the fuse is intact.
If it remains OFF, contact tech support at:
After completing
installation, signal has
not Improved
Verify that cable connections are tightly tted to the booster.
Note: Bars are not always a reliable measure of signal. The best way to conrm signal coverage is the ability to
place and hold a call.
SureCall | www.surecall.com | 1-888-365-6283 | support@surecall.com 9
Specications
SPECIFICATIONS
Product FusionTrek (US) FusionTrek CA (Canada)
Uplink Frequency Range (MHz): 698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (G Block Included)
Downlink Frequency Range (MHz): 728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (G Block Included)
Input / Output Impedance: 50 Ω
Maximum Gain: 23 dB
Gain Adjustment: 20 dB (Automatic)
Supported Standards: CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards
Noise Figure: ≤ 7 dB
VWSR: ≤ 2.0
Maximum Output Power: 1 Watt EIRP
DC Power: 8-15VDC
Cable: SC-174, 15 ft
RF Connectors: SMA Female
Power Consumption: <12W
Operation Temperature: 14°F – 122ºF
Dimensions: 7.5 x 3.5 x 1.16 in
Weight: .62 lbs (9.92 oz)
Certication: FCC ID: RSNF-TREK IC: 7784A-FTREK
Note: The term “IC” before the radio certication number only signies that Industry Canada technical specications were met.
SureCall | www.surecall.com | 1-888-365-6283 | support@surecall.com
10
Kitting InformationKitting Information
ANTENNA KITTING INFORMATION
Component Prod No. Description
Gain/Loss Notes
LTE-A LTE-V 800 MHz
1900
MHz
1700 MHz /
2100 MHz
FusionTrek Kit
Outdoor Antenna WPANT10104-S3A
(SC325W-WP)
0.5dBi 0.5dBi 2dBi 2dBi 3dBi\3dBi Integrated
antenna
Indoor Antenna SC128W -0.1dBi -0.1dBi -0.3dBi 3dBi 2.5dBi\3.2dBi
Indoor Cable SC-174-15FT (15 Feet) 3.4dB 3.4dB 3.7dB 6dB 5.5dB \6.2dB
*All equivalent antennas and cables are suitable for use with the FusionTrek
As above information. Remark: Lower gain antenna can also be used.
* Warning: Unauthorized antennas, cables, and/or coupling devices are prohibited by FCC new rules. Changes or modications not
expressly approved by SureCall could void the user’s authority to operate the equipment.
* FCC 27.50(d)(4) Statement: Fixed, mobile and portable (hand-held) stations operating in the 1720-1755 MHz band are limited 1 Watt
EIRP. Fixed stations operating in this band are limited to a maximum antenna height of 10 meters above ground. Mobile and portable
stations operating in this band must employ a means for limiting power to the minimum necessary for successful communications.
Otros manuales para FusionTrek
1
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Extensor de SureCall
SureCall
SureCall SC-FusionInstall Manual de usuario
SureCall
SureCall Fusion5s 2.0 Omni/Dome Manual de usuario
SureCall
SureCall Fusion5S CA Manual de usuario
SureCall
SureCall Fusion2Go Max Manual de usuario
SureCall
SureCall Flare 3.0 Manual de usuario
SureCall
SureCall CM-FLEX2GO Manual de usuario
SureCall

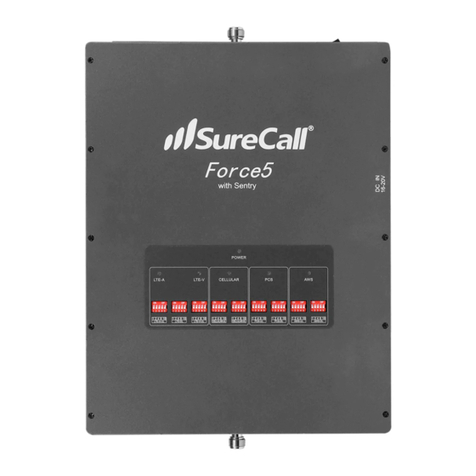

SureCall Force5 Inline Manual de usuario
