Superlux UT6 Series Manual de usuario

UT6 series

UHF wireless microphone system

User Manual

UT6_UM.indd 1 2009/5/7 �� 04:20:31

Contents

UT6_UM.indd 2 2009/5/7 �� 04:20:31

Page. 1

Contents

1. Preface: ………………… 2

2. Unpacking ………………… 2

3. Receiver Introduction ………………… 4

3.1 Front view ………………… 4

3.2 Rear view ………………… 4

4. Receiver Connections ………………… 6

5. Receiver Operation ………………… 8

6. Receiver Installation ………………… 9

7. Receiver LCD operation ………………… 11

7.1 LCD layout and buttons ………………… 11

7.2 Menu function ………………… 11

7.2.1 Locking and unlocking ………………… 11

7.2.2 G/CH: Display group and channel setting ………………… 12

7.2.3 FREQ: Display frequency in use ………………… 13

7.2.4 SQ: Squelch setting ………………… 14

7.2.5 VOL: Display volume on or mute ………………… 15

7.2.6 NAME: Displaying and naming receiver ………………… 16

7.3 FIC, Frequency Infrared Control ………………… 17

8. Receiver Cautions ………………… 18

9. Receiver Accessories ………………… 19

10. Handheld wireless microphone ………………… 20

10.1 Handheld wireless microphone Introduction ………………… 20

10.2 Inserting batteries ………………… 21

10.3 LCD ………………… 22

10.4 Color coded cover ………………… 23

11. Beltpack transmitter ………………… 24

11.1 Introduction ………………… 24

11.2 Operating ………………… 26

11.3 Wiring for audio input ………………… 27

11.4 LCD ………………… 28

11.5 Batteries exchange ………………… 29

12. Specification ………………… 30

13. Capsules for handheld microphone ………………… 32

14. Microphones for beltpack transmitter ………………… 33

15. Knowing your microphone ………………… 34

UT6_UM.indd 1 2009/5/7 �� 04:20:31

Page. 2

1. Preface 2. Unpacking

1 x dual plug cable

1 x power supply

1 x user manual

1 x warranty card

1 x UT6 receiver

2 x antenna (under UT6 receiver)

Optional headworn microphone

Optional UT2 beltpack transmitter

Optional UT4 handheld transmitter

Thank you for choosing the Superlux

UT6 series UHF wirelss microphone.

This remarkable component has been

engineered to provide superb sound

pick-up with stable transmission

and receiption, as well as providing

outstanding ease of operation.

As this product is provided with a wide

selections of microphones and connec-

tion possibilities, we recommend that

before you begin hookup and operation

that you review the contents of this

manual before proceeding.

Your package

There are combinations of products for various

demands. There are 2 type of transmitter in this UT6

system, handheld of beltpack. User can include both

in this package, but only one transmitter can operate at

the same time.

For handheld user, there are 4 types of capsules to

choose, 2 dynamics, 1 true condenser, and 1 electret

condenser.

For beltpack user, there are 7 microphones and 1 cable

to choose.

Your package can be any combination. Please verify the

contents with your dealer. Future upgrade with more

components can be easily made by contacting your

dealer.

UT6_UM.indd 2 2009/5/7 �� 04:20:31

Page. 3

UT6_UM.indd 3 2009/5/7 �� 04:20:34

Page. 4

single channel receiver

3. Receiver Introduction

Rear view

Rack mount side panel (optional)

Front panel antenna A socket: for optional

antenna extension from rear panel.

Front panel antenna B socket: for optional

antenna extension from rear panel.

Antenna B socket

Front view

①

②

⑥

⑤

Illustration 1

Illustration 2

UT6_UM.indd 4 2009/5/7 �� 04:20:34

Page. 5

Rack mount side panel, 1/2 space width (optional)

single channel receiver

Color LCD display panel

Power switch: LED indicator lighted when power-on.

Balanced audio output, XLR-3M, microphone level

Un-balanced audio level switch: Switch between “MIC” or “LINE” level for un-balanced output socket.

Un-balanced audio output socket: 6.3mm phone jack, level switchable

DC power socket: 12VDC power source, center positive.

Antenna A socket

③

④

⑪

⑦

⑨

⑩

⑫

⑧

single channel receiver

UT6_UM.indd 5 2009/5/7 �� 04:20:35

Page. 6

single channel receiver

4. Receiver Connections

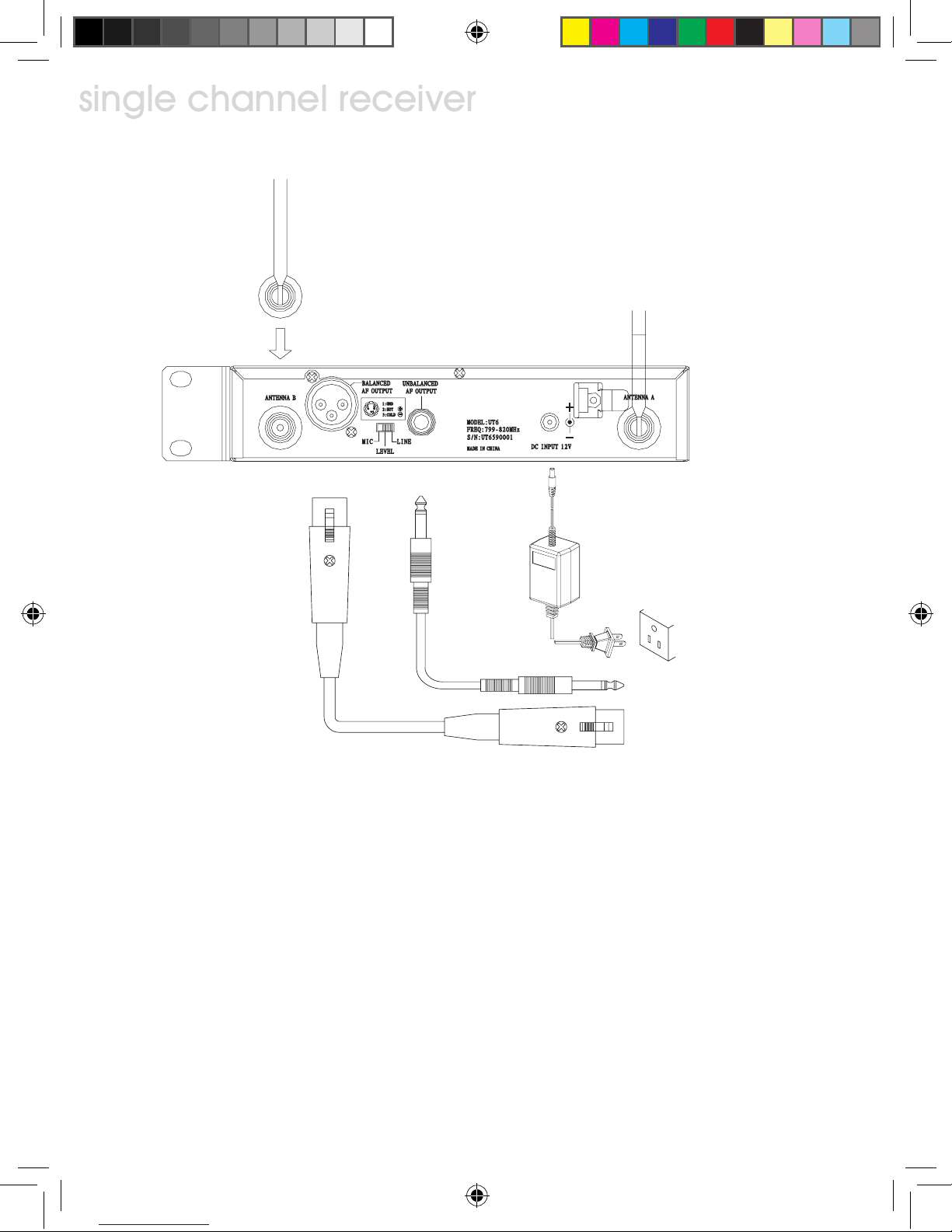

4.1 Connect both antenna to rear panel socket ⑥and ⑪as illustration 3.

4.2 Connect power adapter output to receiver ⑩and plug into power line (Caution:

check power source specification, make sure the power adapter matches the

source spec.

4.3 Audio connections:

4.3.1 Level switch ⑧, when un-balanced output socket is connected to mixers or

amplifiers’ line level input, switch the output level to “LINE” position. When

connected to mixers or amplifiers’ mic level input, switch the output level

to “MIC” position. Mis-match level setting, will result distortion or high

noise. When used with guitar, keep the level at “LINE” position.

Illustration 3

single channel receiver

UT6_UM.indd 6 2009/5/7 �� 04:20:35

Page. 7

single channel receiver

4.3.2 Un-balanced connection: When receiver and mixer are positioned

at short distance, 6.3mm phone type plugs can be used with un-

balanced connection.

4.3.3 Balanced connection: When receiver is located at a remote loca-

tion from mixer, balanced XLR cable shall be used. Pin 2 hot at

receiver output.

4.3.4 When electric guitar is in used, connect PHONE output to guitar

amp input and level switch to “LINE”.

Ground

Signal +

Signal

Illustration 4

UT6_UM.indd 7 2009/5/7 �� 04:20:35

Page. 8

single channel receiver

5. Receiver Operation

5.1 Set mixer/amplifier input level to minimum or mute the channel. Turn on the

receiver, the indicator shall be lighted to show the operation status.

5.2 Power up the matched channel transmitter, the RF level indication shall be

lighted.

5.3 Adjust the mixer/amplifier level to optimum and test the microphone/transmit-

ter with normal talking or instrument playing. The AF level indicators shall show

the AF signal.

Notes:

If audio signal doesn’t show or go through the mixer/amplifier, check the signal

chain, connections, level settings...

Wireless microphone level controlled only on mixer/amplfier, the only setting of the

receiver is “MIC/LINE” position.

single channel receiver

UT6_UM.indd 8 2009/5/7 �� 04:20:35
