E205U

USB CONDENSER

MICROPHONE

E205U

USB CONDENSER MICROPHONE

DESCRIPTION

The E205U is a high quality condenser micro-

phone with an advanced A/D and USB interface

which gives you digital recording capabilities

instantly with no external digital interface or

software driver required. It is USB compatible

with Mac, Windows, and most DAW software

programs, including GarageBand. The E205U

offers premium quality audio recording with ease

and mobility, and with its pivoting stand mount

and 9.8 ft. (3-meter) USB cable, the E205U is a

valuable kit for any project studio.

FEATURES

• Smooth, at frequency response.

• Plug in and start recording, no drivers required.

• Up to 16 bit / 48 kHz sampling.

• Powered by USB power, no external power

required.

• Headphone output and volume control.

SPECIFICATIONS

Type Back Electret Condenser

Polar Pattern Supercardioid

Frequency Response 30-18,000 Hz

Sensitivity (at 1k Hz Open Circuit Voltage) -38 dBV/Pa (12.6 mV)

Max. SPL >135 dB SPL

Power Requirements USB 5V, 30 mA

Resolution Up to 16 bit/48k Hz sampling rate

Finish Champagne silver

Connectors USB B-TYPE, 1/8”(3.5mm) phone connector

Dimensions Ø54 × 150 mm (Ø2.13” × 5.9”)

Net Weight 422 g (14.9 oz)

*Note:Specications are subject to change.

E205U FREQUENCY RESPONSE (SUPERCARDIOID)

YA2 threaded

adapter

HM85 pivoting

stand mount

Pouch 3-meter

cable

DS01

Table stand

FURNISHED ACCESSORIES

SYSTEM REQUIREMENTS

USB

USB 1.1 or 2.0, powered

OPERATING SYSTEM

Microsoft Windows 7

Microsoft Windows 10

Microsoft Windows 2000 Professional Edition

Microsoft Windows XP Home / Professional Edition

(service pack 1.0 or later, or use the USB audio driver update from Microsoft)

Microsoft Windows Vista™ Business Edition

Apple Computer Mac OS X 10.0 or later Edition

Apple Computer Mac OS X 10.1 or later Edition

RAM

64MB RAM (minimum)

VOLUME

E205U

VOLUME

E205U

Unit:mm/inch

USB Power Indicator

When it is lit up, it means the USB connec-

tion is done and E205U get the power from

USB interface.

Headphone Volume Control

Pop-out level control to adjust the overall

volume of the Headphone output.

Headphone Output Jack

1/8-inch (3.5mm) stereo jack for connect-

ing headphones or studio monitors.

USB connector

E205U involves a USB B-type connector,

it is allowed to connect to laptop with USB

A-type jack.

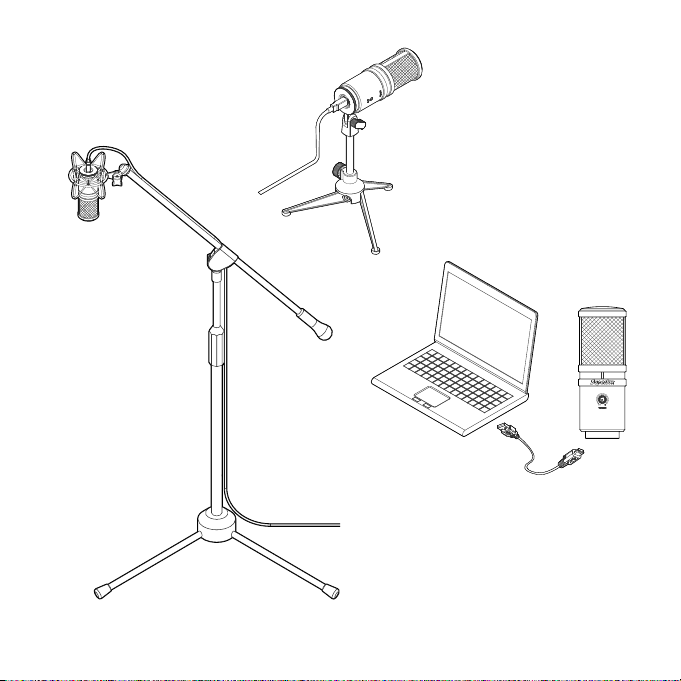

FUNCTION DESCRIPTION

ON A TABLE

Through optional table stand

HM6, You may put the E205U

on a table and do recording.

ON A STAND

By using a micro-

phone stand, the

E205U can be

mounted on it for

recording. CONNECTIONS USB CONNECTOR

A separated 3-meter cable with USB

A-type connector allowed to be connected

to a computer with USB port.

*Notice: The included USB cable is for laptop with A-type

connector. For computer with another connector type (ex.

C-type), please use connector adaptor.

INSTALLATION

Next, launch your DAW, turn down the

main output level and select the E205U

for the input.

Next, put on your headphones that is

connected to the headphone output of

E205U, position the E205U to the sound

source then adjust the volume control until

you reach a comfortable listening level.

Now, setup the level of the E205U and

there are few ways to do this depending

on your computer system. You can set

the microphone’s input level in the Sound

playback in Windows or in the Sound

dialog box in the System Preferences if

you are using the MAC OS.

Set up a mono record track in your DAW.

Set level of the microphone by raising the

Input level control in your DAW or system

to about half way up.

Now, follow the instructions of your DAW software to enable the track for recording and

you’re ready to record.

*Notice: If the microphone level of E205U are too loud or not enough, please check your DAW software or refer to Trou-

bleshooting page in this manual to adjust the level in Windows and Mac computer system.

Now, plug the other end of the USB cable

into an available powered USB port on

your computer.

QUICK START

You can position the E205U on an option-

al stand by using included accessories.

Plug the B type connector of the included

USB cable into the USB socket on the

bottom of the E205U.

Be sure to position the side of grille net to

the sound source and keep the Superlux

logo and LED indicator face the direction

of sound source.

*Notice: Be sure to check the USB audio device driver

setup for Windows and Mac OS to confirm your computer

has recognized the E205U.

Hit “Control Panel” >> Hit “Hardware and Sound”

WINDOWS OPERATING SYSTEM

USB AUDIO EQUIPMENT DRIVER

If you encounter a problem, please check whether driver has been setup successfully.

Sound >> Hit “Manage audio devices”

Hit “Recording” tab >> Click “Superlux E205U” >> Click “Set Default” to select

Superlux E205U as the default microphone.

*Notice: If there is already the green tick next to the E205U microphone symbol and the “Set Default” button is not able

to be hit (dark gray color), the Superlux E205U has been selected as the default device successfully.
