Sunjoy 037-0700 Manual de usuario

Country of Origin: China Production Number:xxxxxxxx

10*20 CAR SHELTER

SKU#：037-0700

If you have any issues with the product, do not return

the product back to the store

For any questions or issues about our product

Call Sunjoy Customer Service

1(866) 578-6569

anytime 24 hours / 7 days a week

For further assistance, please write to us at

ctc@sunjoygroup.com

Country of Origin: China Call 1(866) 578-6569 for assistance.

Or visit us at www.sunjoyonline.com

2/ 37

Safety Information

Two people are required for this assembly.

Some parts may contain sharp edges. Wear

protective gloves.

When assembling and using this product,

basic safety precautions should always be

followed to reduce the risk of personal

injury and damage to equipment. Please read

all instructions before assembly and usage.

WHAT IS COVERD?

The limited warranty is extended to the original purchaser and applies to material and manufacturer’s defect provided

the item is maintained with care and used only for personal, residential purposes.

Warranty: 1 Year

IMPORTANT

KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.

CAUTION: Do not climb on top of the

gazebo. Falling off the gazebo can

result in serious injury.

NOTICE:

For outdoor use only.

DANGER:

This unit is heavy! Do not assemble

this item alone.

WARNING:

Keep all flame and heat sources

away from this gazebo fabric. This Gazebo is

made with fabric that meets CPAI-84

specifications for flame resistance. It is not fire

proof. The fabric will burn if left in continuous

contact with any flame source. The application

of any foreign substance to the gazebo fabric

may render the flame-resistant properties

ineffective.

Please check with your local governing authority / local municipal codes regarding installation of structures

before assembly.

Country of Origin: China Call 1(866) 578-6569 for assistance.

Or visit us at www.sunjoyonline.com

3/ 37

TOOLS NEEDED

IMPORTANT

How many people needed for the installation work

Provided in hardware pack

Country of Origin: China Call 1(866) 578-6569 for assistance.

Or visit us at www.sunjoyonline.com

4/ 37

EXPLODED DRAWING

Country of Origin: China Call 1(866) 578-6569 for assistance.

Or visit us at www.sunjoyonline.com

5/ 37

Parts List

Label

Part Number

Description

Qty

Part Image

P11132B01106

Post 1（left）

P11133B01106

Post 1（Right）

P11134B01106

Post 2（left）

P11135B01106

Post 2（Right）

P11130B01106

Post 3（left）

P11131B01106

Post 3（Right）

P11013C01147

Support Brace 1

P11011C01147

Support Brace 2

P11014C01147

Support Brace 3

P11012C01147

Support Brace 4

P11469A01147

Beam Connection

P11015C01106

Long Cross Beam

P10462A01147

Middle Beam 1

P10463A01147

Middle Beam 2

P10464A01147

Edge Beam 1

P10465A01147

Edge Beam 2

P11876A01147

Support Brace 5

Country of Origin: China Call 1(866) 578-6569 for assistance.

Or visit us at www.sunjoyonline.com

6/ 37

P11877A01147

Support Brace 6

P11878A01106

Support Brace 7

P13087A01147

Big Top Beam 1

P13088A01147

Big Top Beam 2

P12718A01147

Big Top Beam 3

P13090A01147

Bottom Pipe for

Big Roof (Long)

P13091A01147

Bottom Pipe for

Big Roof (Middle)

P13089A01147

Upper Pipe for

Big Roof (Middle)

P11874A01147

Support Brace 1

For Small Top

P11875A01147

Support Brace 2

For Small Top

P12717A01147

Top Beam

P13086A01147

Bottom Pipe for

Small Roof

P12040A01147

Small Cover Plate

P12041A01147

Big Cover Piece

P11536A01106

Base Cover

P11645A01106

Base

P10622A01147

Side Pressure

Plate For Small

Roof

P10623A01147

tablet

compressing1

P10624A01147

tablet

compressing 2

Country of Origin: China Call 1(866) 578-6569 for assistance.

Or visit us at www.sunjoyonline.com

7/ 37

P14502A01106

Gate round

tube 1

P14503A01106

Gate round

tube 2

P11010C01147

Cloth tube For

Small Roof

P10031A01106

Finial

P11915B01147

Small Cover

Piece（Middle）

P11913B01147

Small Cover

Piece（Left）

P11914B01147

Small Cover

Piece（Right）

P11916B01147

Big Cover Piece

（Middle）

P11917B01147

Big Cover Piece 12

P12601A01147

Hook

P14601A01106

Roller Shutters

P14701A01106

Rocker

P00201T19039

Curtain 1

P00202T19039

Curtain 2

P00203T19039

Curtain 3

Country of Origin: China Call 1(866) 578-6569 for assistance.

Or visit us at www.sunjoyonline.com

8/ 37

Hardware Pack

Label Part Number Description Qty Add Part Image

AA H02015C11 Bolt M6*15 31832

BB H02055C11 Bolt M6*55 8 1

CC H09035C11 Bolt M6*35 14 1

DD H02040C11 Bolt M6*40 61

EE P90804A07001 Bolt M6*15 70 7

FF H19001C11 Flat washer M6 34635

GG P12402C01001 Stake Φ6*230 28 0

HH P12404A01001 Stake Φ8*260 32 0

II P14901A08009 Rope 2 0

YY H00001C12 Wrench M6 2 0

Actual Size

Actual Siz

Actual Size

JJ H19001C81 Flat washer M6

（Rubber）4 1

Country of Origin: China Call 1(866) 578-6569 for assistance.

Or visit us at www.sunjoyonline.com

9/ 37

STEP 1:Assembly of Post and Base andBase Cover

32x

1x 1x

2x 2x

8x 8x

32x

Country of Origin: China Call 1(866) 578-6569 for assistance.

Or visit us at www.sunjoyonline.com

10 / 37

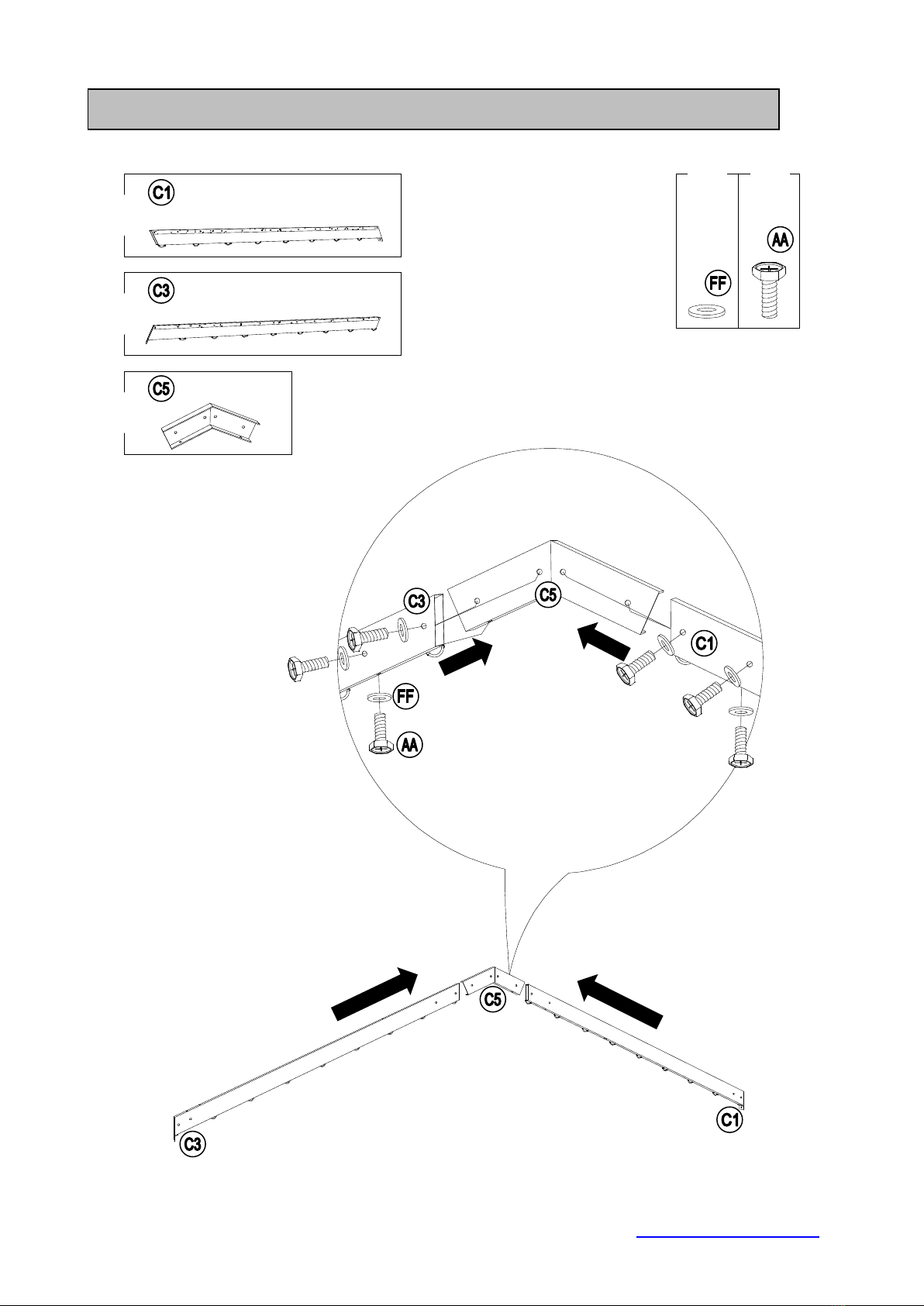

STEP 2:Assembly of Support Brace1、3 and Beam Connection

12x
