ST4950 Product Description
1
ST4950
Solar Asset Tracker
Suntech International Ltd.
ST4950 Product Description
2
Solar Asset Tracker with long life battery

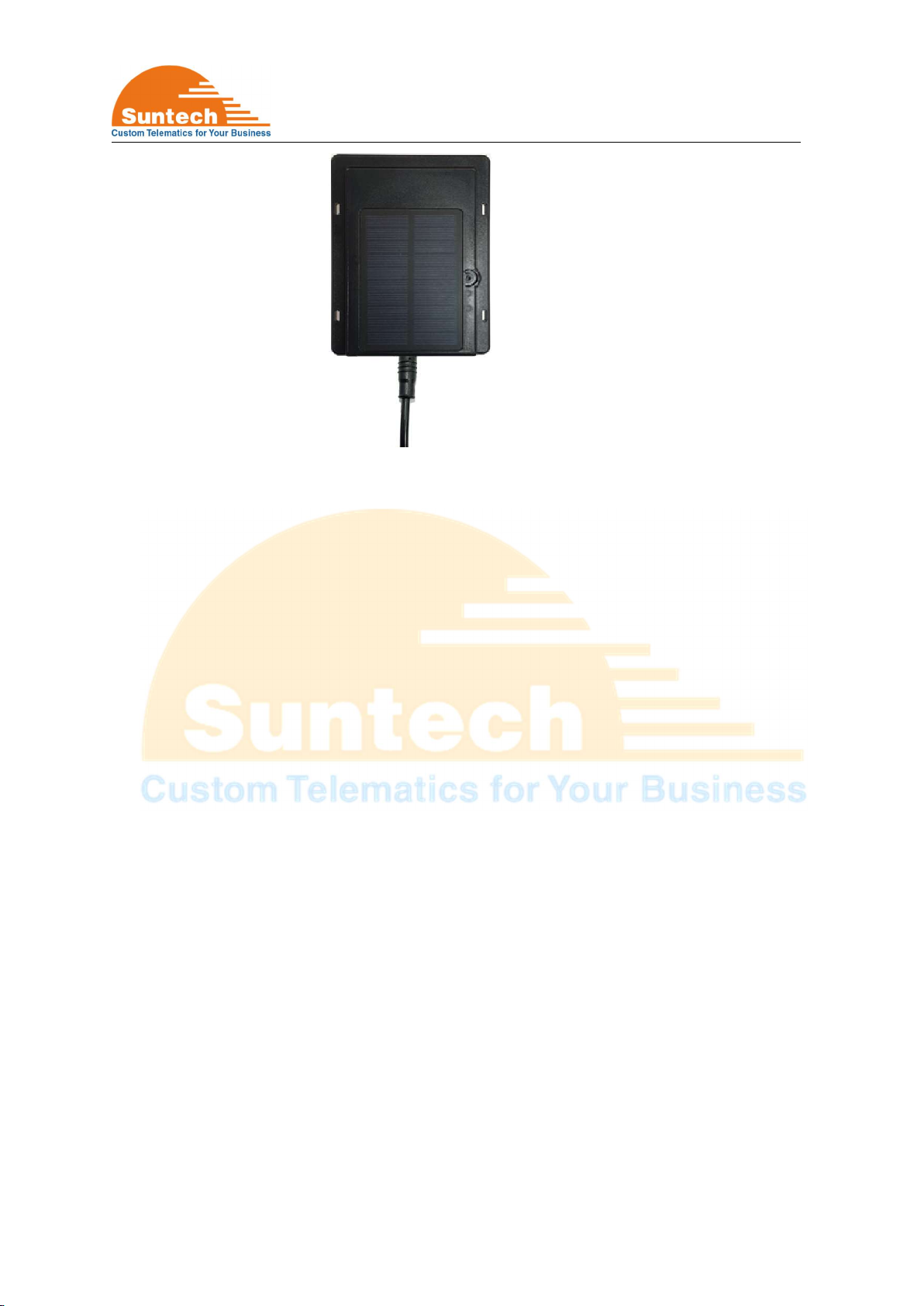

The ST4950 is a multi-purpose tracking device useful for varied applications such as trailer or container
management, vehicle tracking or any kind of valuable asset tracking. The ST4950 supports 4G LTE M1
networks and has a water resistant (IP67/IP65 compliant) rugged, hard-case. Designed to minimize
power consumption efficiently, the device incorporates a large battery suitable for longer-term usage.
Key Features
Network: LTE Cat. M1
Extremely Low Power Consumption
Low Battery Alert
Built-in 3-axis accelerometer
2G Quad band- Only use fallback
GNSS- GPS, GLONASS, SBAS Engine, AGPS
Maintenance Server Supported
Firmware upgradeable remotely (OTA)
Waterproof compliant: IP67 (without humidity sensor), IP65 (with humidity sensor)
ST4950 Product Description
3
EVENT CABLE
Event cable has 3 wires, among which 2 wires are for VCC, GND and the other line is for 1-wire for
temperature sensor.
Pin No. Wire Color Function Comments
1 Red Ext power (DC 12V~33V) For Charging
2 Black Ground
3 Yellow 1-wire for temperature sensor
Optional
GENERAL SPECIFICATION
Network Frequency LTE Cat M1, NB-IOT
4G : B2, B4, B5, B12, B13
2G: Only use fallback
Optional 2G Quad bands
Power Power Class 3 (23 dBm) for LTE category M1
Battery Battery: 3.6V, 5200mAh, lithium-ion Battery
Motion Sensor Built-in 3-axis accelerometer
Power Consumption Active mode : 30~60mA
Deep sleep mode : less than 10uA (without sensors)
Dust and water Resistant
IP67 (without humidity sensor), IP65 (with humidity sensor)
Temperature Range -20°C ~ +60°C
(Stop charging at 45°C)
AT Command GSM 07.07 , 07.05
LED Indicator LTE Network Status, Power
Packet Switched
data rate
LTE Category M1
Up to 375 kb/s UL
Up to 375 kb/s DL
ST4950 Product Description
4
PC Sync Track USB cable
Dimension 96(W) × 130(L) ×41.3(T) mm
Weight 300g
Approval FCC, IC, PTCRB, CE
Caution
Battery Use Information
Storage
1) The device with a battery should not be left a long time with
discharged status before delivered to the customer.
If you need to store our device for a long time, It is strongly
recommended that
•
checking the battery voltage level every 3 Months to avoid
efficiency reduction.
•
the battery voltage level is maintained above 3.0V by regular
charging.
(Please keep the voltage level range 3.7V~3.95V, not a
full level)
2) All batteries should be avoided to store with corrosive material,
fire, heat, and please keep clean and dry environment.
3) Please keep temperature range -
20°C~45°C and humidity less
than 75%.
Handling and Use
1) Please do not place or use batteries on hot surfaces, or near
conductive/flammable material, water, strong oxidizers and acids.
2) If you aware that batteries are deformed, please take off from
devices and never use it. (Such as swelling, odor by heating)
3) Please do not charge for much longer time than the normal
charging time. It can cause heating, fuming, deformation.
4) If batteries are leaking or smell, It may present a fire risk.
Disposal
1) Please dispose damaged or worn-
out batteries into a battery
recycle bin.
2) To check the general condition of you batteries, charge them,
let them rest for an hour, then measure the voltage. If you
ST4950 Product Description
5
batteries are close to 3.9V, batteries are in good condition.
GPS RECEIVER SPECIFICATION
Receiver Type GPS or Glonass
GPS L1 band(1575.42MHz), Glonass L1 band (1601.71MHz)
SBAS : WAAS, EGNOS, MASA
AGPS
Update Rate 1Hz
Accuracy1) Position 2.5m CEP
SBAS 2.0m CEP
Acquisition 2) Cold starts <35s
Aided start <1s
Hot start <1s
Sensitivity 3) Tracking -167dBm
Reacquisition -161dBm
Acquisition -149dBm
Antenna type Patch Antenna
*1) All SV @ –130 dBm
*2) It depends on aiding data connection speed and latency
*3) The 3 figures were measured with a good active antenna.
AVAILABLE OPERATION / FEATURES
Configuration either by 4G, GPRS, SMS or PC
Parameter Change either by 4G, GPRS, SMS or PC
Command /Control either by 4G, GPRS or SMS
Reporting either by GPRS or SMS (as a back up)
4G/GPRS
Communication
TCP/UDP
4G/GPRS Connection either always connected or upon needed
Basic Data reported NMEA location, GPS signal status, Message No, Speed
Data Storage up to 2,000 locations, in case of transmission failure or cost issue
ST4950 Product Description
6
Reports Possible to send location report periodically and be adjusted
the interval
within a limited range
(Parking/Driving/Power detection mode support)
Report Back up possible (IP address for backup server or Backup SMS reporting)
Power down Deep sleep (less than 7uA):
Firmware Upgrade by OTA (Over The Air ) or pc tool.
It is provided by using Scuti server for maintenance.
INSTALLATION, CONFIGURATION AND PROTOCOL
Most important point is to install the unit horizontally in order to have the top cover to see the sky
For the details of product handlings / installations, please refer to the attached pictures.
Note 1 : Do not take out SIM card when the power line is connected.
Before taking out SIM card, disconnect power line first.
Note 2 : Configuration or Parameter setting should be done before installation.
Configuration : Refer to separate document and software tool for configuration.
Protocol : Refer to separate document for the standard protocol
ST4950 Product Description
7
ST4950 installation guide
Perforation position indication
Hole processing 3mm Bracket installation Device binding
