Subaru H001ssC800 Manual de usuario

AUDIO VIDEO & NAVIGATION SYSTEM

OWNERS MANUAL

Item QtY DescrIptIon

1 1 AUDIO HEAD UNIT W/LABEL

2 1 AUDIO COVER

3 1 PORTABLE NAVI. DEVICE (PND)

4 1 POUCH FOR PND

5 1 MAIN HARNESS

6 1 SECONDARY HARNESS

7 1 RADIO ANTENNAADAPTER HARNESS

8 1 IPOD HARNESS (DOCK CABLE)

9 1 GPS ANTENNA W/ HARNESS

10 1 GPS ANTENNA SCREW

11 9 CABLE TIE

12 1 GROMMET FOR IPOD

13 1 INSTALLATION SPACER

14 8 M5 BOLT (4 IN KIT, 4 ON RADIO)

15 1 OWNERS MANUAL

16 1 FOAM TAPE

tom tom In-Box KIt

17 1 TOM TOM CD MANUAL

18 1 USB CABLE

19 1 PND BACK COVER

20 1 PND QUICK START GUIDE

ADDItIonAl reQuIreD Items (not In KIt)

21 1 USB/AUX MODULE (PN: H621SAJ220)

: Remove

: Install

: Disconnect

: Connect

: Location of Clip or Screw

: Tighten Torque

: Loosen

:Discard

: Reuse

1 “

10MM 1-1/4” (31.7MM)

PUNCH

1-1/4” (31.7MM)

HOLE SAW

NOT IN KIT

113

15 20

659

SUBARU OF AMERICA PAGE

1/21

DATE

10/22/10

ISSUE

FORESTER

installation instructions

PART NUMBER: H001SSC800

DESCRIPTION: FORESTER PND NAVI. AUDIO UNIT

KIT CONTENTS:

TOOLS REQUIRED:

MEANING OF CHARACTERS:

# pArt nAme

1 RADIO TRIM

2 RADIO COVER PLATE & POCKET

3 CENTER CONSOLE

4 GEAR SHIFT TRIM

5 IP TRIM

6 INSTRUMENT PANEL UNIT (IP UNIT)

Disconnect all correspondingnote:

Connectors as you disassemble.

#DescrIptIon

1 GPSANTENNA W/ BRACKET AND HARNESS

2 SECONDARY HARNESS

3 IPOD HARNESS (DOCK CABLE)

4 USB/AUX MODULE (AVAILABLE FROM SUBARU (PN: H621SAJ220)

5 RADIO ANTENNAADAPTER HARNESS

6 MAIN HARNESS

INSTALLATION OVERVIEW

DISASSEMBLY OVERVIEW

SUBARU OF AMERICA PAGE

2/21

DATE

10/22/10

ISSUE

FORESTER

Throughout this installationnote:

Before starting this installation make sure that the Vehicle is on a at surface. Failing to • do so could result in damages to the vehicle, to you, and/or others.

Take care of all disassembled vehicle components as they will be reinstalled (• ) into

the vehicle, unless noted ( ) and instructed differently. Use blankets, tape, and other

protective items to avoid scratching components that may/will come in contact with

tools or sharp surfaces.

After or during installation trim (• ) excess from the Cable Ties.

.1-1

.1-2

pre-InstAllI.

Afx the Installation Spacer [13] 1.

to the Audio Unit [1] as shown.

Apply pressure across the entire part to- seat the adhesive.

Do not touch the surfacecAutIon:

of the radio where the Spacer will be

adhered.

Align the edge of thecAutIon:

Spacer with the seam in the Audio

Unit.

2.5”

(2.5 cm)

2”

(5.08 cm)

2”

(5.08 cm)

Cut the Foam Tape [16] provided 2. in the kit as shown.

Do not discard any of the cut Foam-

Tape [16].

SUBARU OF AMERICA PAGE

3/21

DATE

10/22/10

ISSUE

FORESTER

.2-1 10MM

.2-3

4. Remove 4 Screws.

Remove the Radio Cover Plate5. and Pocket.

(1) (2)

Remove the Radio Trim.3.

Using the Nylon Pry Tool start by- releasing the bottom clips (1) and (2)

Avoid scratching the trimcAutIon:

and dash panel.

.2-2

DIsAssemBlYII.

Place the Vehicle into Park “P”1. with the Parking Brake set.

Disconnect the Negative Battery2. Terminal.

Note the battery cable position as it will- be reinstalled in the same position.

Do not touch the PositivecAutIon:

Battery Terminal.

SUBARU OF AMERICA PAGE

4/21

DATE

10/22/10

ISSUE

FORESTER

.2-5

Dislodge the Emergency Brake6. Trim.

Start by dislodging the front bottom clip- (1).

Remove the Rubber Mat9. (if equipped).

Remove 2 Screws.10.

.2-4

.2-6

Open the Console.7.

Remove any trays.8.

(1)

SUBARU OF AMERICA PAGE

5/21

DATE

10/22/10

ISSUE

FORESTER

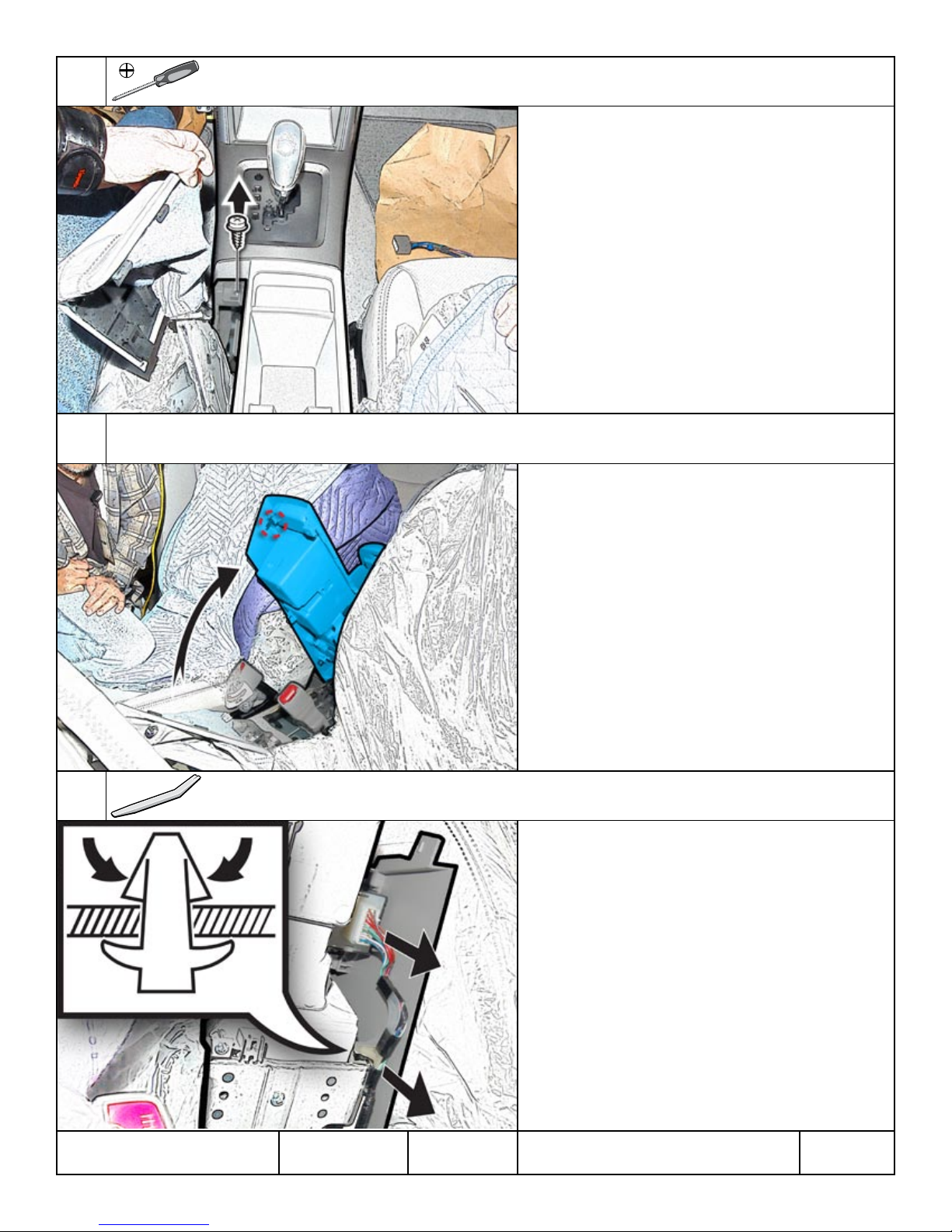

.2-9

Remove 1 Screw.11.

.2-8

Disconnect the Connectors from13.the bottom of the Console.

Disconnect the Harness Clamp.14.

.2-7

Dislodge the Center Console and12.tilt back.

SUBARU OF AMERICA PAGE

6/21

DATE

10/22/10

ISSUE

FORESTER

.2-10

Loosen the Harness Clips and15.dislodge the Vehicle Harness

from the bottom of the Console.

.2-12

Remove the Vehicle’s18.AUX ONLY Module.

Using the Nylon Panel Removal Tool,- dislodge the AUX Module’s 4 clips from

the bottom of the Center Console.

- Discard the Vehicle’sAUX Module.

Avoid scratching theCAUTION:

Center Console.

.2-11

Disconnect the remaining16.Connectors.

Remove the Center Console.17.

Avoid scratching theCAUTION:

Console or Vehicle upon removal.

SUBARU OF AMERICA PAGE

7/21

DATE

10/22/10

ISSUE

FORESTER

.2-13

Using the 1 1/4” (31.7mm) punch19.OR hole saw make a hole in the

Center Console as shown.

Return the Center Console to20.the Vehicle leaving it in the tilted

position.

1 ”

.2-15

.2-14

Remove the Gear Shift Trim23.

Lift to release the rear clips, then pull- rearwards to release.

Place the Vehicle back into “P.”24.

Remove the Insert covering the21.Shift Over Ride Button.

Make sure the Vehicle’scAutIon:

Parking Brake is set.

Depress the Shift Override22.Button and move the Shifter

to “D.”

SUBARU OF AMERICA PAGE

8/21

DATE

10/22/10

ISSUE

FORESTER

Remove the Instrument Panel25.Trim.

The Instrument Panel Trim isnote:

in 2 parts. Grip both pieces and

pull from the bottom to avoid

separating the parts.

Avoid scratching thecAutIon:

Instrument Trim or Panel.

.2-18

.2-17

Remove any clips that do not28.come off during the Instrument

Panel Trim removal in g. 2-16.

Re-attach them to the Instrument29.Panel Trim.

.2-16

Remove 2 Screws from the26.Instrument Panel.

Disconnect Instrument Panel27.connector from back side and

remove Instrument Panel from

the vehicle starting from the top.

SUBARU OF AMERICA PAGE

9/21

DATE

10/22/10

ISSUE

FORESTER

.3-1

Gps AntennA InstAllAtIon.III.

Route the GPS Antenna Harness1.

[9] from the Instrument Panel

Area to the Radio Area.

center consoleIV.

Connect the PND’s Secondary1.

Harness [6] to the Vehicle’s 24

Pin Connector (A: i50).

.3-2

.4-1

Install the GPS Antenna [9] and 2. Bracket using the GPS Antenna

Screw. [10]

- Torque the Screw to 13.2 in•lbf

(1.49 N•m)

Secure GPS Antenna Harness3.

[9] to the Vehicle by inserting the

Harness Clip into the Hole in

the Vehicle from the back side.

That the clip is properlyVerIFY:

seated and secure.

SUBARU OF AMERICA PAGE

10/21

DATE

10/22/10

ISSUE

FORESTER
