Sub-Zero 249R Instrucciones de uso

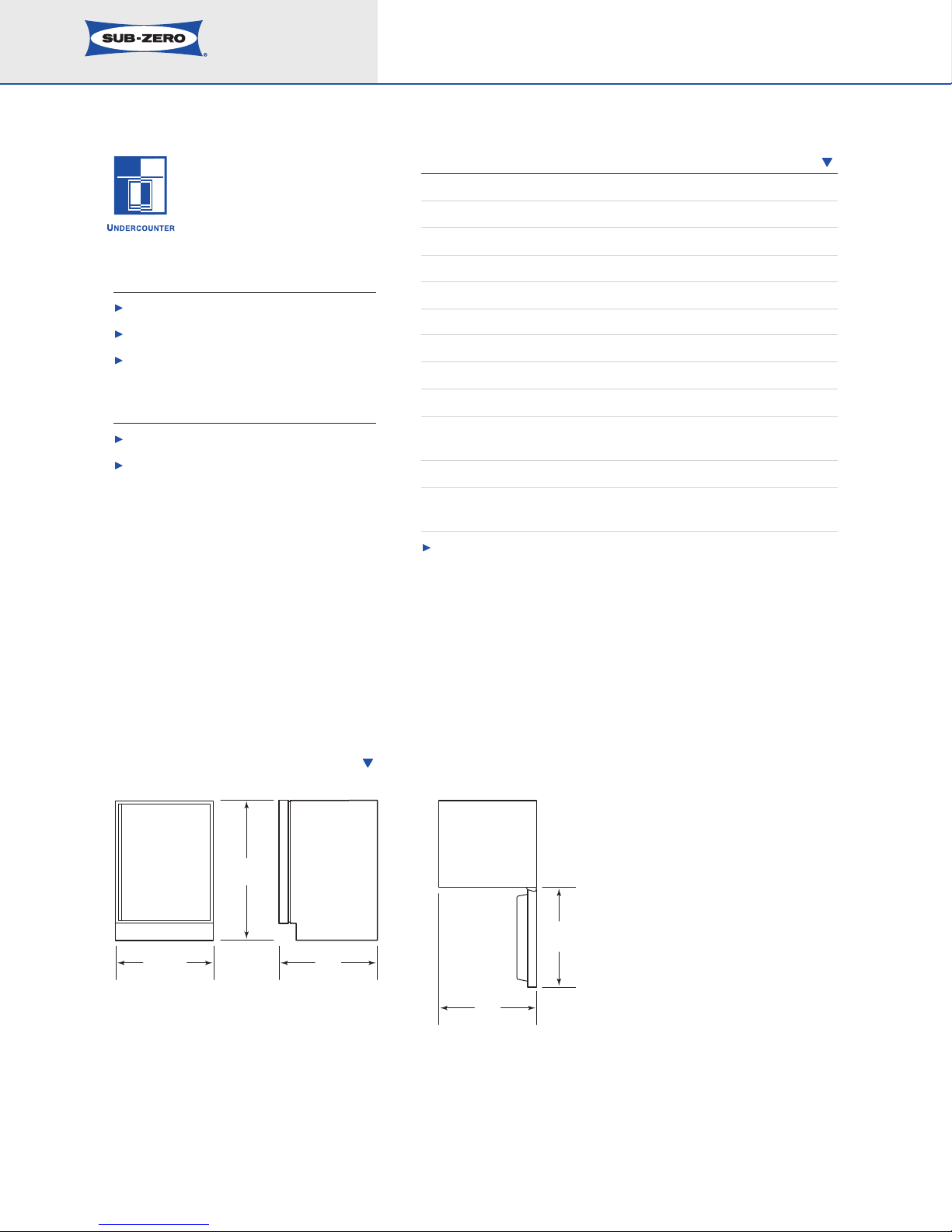

Planning Information

Undercounter Model 249R

Refrigerator / Freezer

Dimensions in parentheses are in

millimeters unless otherwise specified.

11/06

Removable wire

shelves

Interior light

Freezer compartment

Serial and model

number plate

Interchangeable

door hinge

Front venting with

removable kickplate

One piece interior Four-sided

magnetic gasket

Stationary door

shelves

MODEL 249R

Undercounter refrigerator/ freezer combination unit

24" (610) depth-true design for a complete built-in look

Door accepts custom panels

Smooth surface, easy-to-clean one piece interior

Freezer compartment has two ice cube trays

Manual defrost

Interchangeable hinge allows door swing to be reversed

in the field

Front venting with removable kickplate allows unit to be

serviced from the front

Solid core door with magnetic gasket and door closer

UL approved for US and Canada

Two, five and twelve year residential warranty—

exclusions apply; warranty information can be found on

our website,subzero.com

Model 249R

Door closer

Aside from the full-size units

Sub-Zero offers in its Built-In and

Integrated lines of refrigeration, we

round out our product line-up with

aline of traditional Undercounter

refrigeration which meets all of the

exacting standards you have

grown to expect from Sub-Zero.

If you cannot run water to the

space and still want to have the

capability of having some ice at

your disposal, this unit is for you.

It maximizes the refrigeration

space and keeps the freezer to a

minimum. Keep in mind, however,

that unit does not have automatic

defrost, but it may be just right for

your clients.

Planning Information

Undercounter Model 249R

Dimensions may vary by ± 1/8"(3).

Dimensions in parentheses are in

millimeters unless otherwise specified.

SPECIFICATIONS

Model 249R Undercounter Refrigerator/ Freezer

Overall Width 23 7/8"(606)

Overall Height 33 13/16"(859)

Overall Depth 24" (610)

Refrigerator Capacity 4.4 cu ft (125 L)

Freezer Capacity .7 cu ft (20 L)

Minimum Height Required 34 1/4"(870)

Door Swing Clearance 25 3/8"(645)

Electrical Requirements 115 V AC, 60 Hz, 15 amp circuit

Annual Energy Usage 354 kWh / $ 33

(based on 9.06 cents per kilowatt hour)

Shipping Weight 120 lbs (54 kg)

Special Note Door accepts custom wood panels

or panels are available as sales accessories

Specifications are subject to change without notice.

OPTIONAL DOOR PANELS

White Enamel Steel

Almond Enamel Steel

Classic Stainless Steel

ACCESSORIES

Hinge conversion kit

Overlaypanel conversion kit

Accessories are available through your

Sub-Zero dealer. To obtain local dealer

information, visit the Locator section of

our website,subzero.com.

237/8"

(606)

24"

(610)

253/8"

(645)

3313/16"

(859)

24"

(610)

OVERALL DIMENSIONS

Planning Information

Undercounter Model 249R

Dimensions in parentheses are in

millimeters unless otherwise specified. 3

INSTALLATION SPECIFICATIONS

DIMENSIONS

Finished Rough Opening Width 24" (610)

Finished Rough Opening Height 34 1/2"(876)

Finished Rough Opening Depth 24" (610)

Location of Electrical Within shaded area

See Installation Instructions shipped with unit for detailed specifications.

341/2"

(876)

ROUGH

OPENING

HEIGHT

24"(610)

ROUGH OPENING

WIDTH

101/2"(267)

(178)

E81/2"

(216)

24"

(610)

ROUGH

OPENING

DEPTH

TOP VIEW

FRONT VIEW

LOCATE ELECTRICAL

WITHIN SHADED AREA

Planning Information

Undercounter Model 249R

Dimensions in parentheses are in

millimeters unless otherwise specified. 4

INSTALLATION NOTES

Refer to the illustrations and specifications

for overall dimensions, finished rough opening

dimensions and installation specifics.

A115 V AC, 60 Hz, 15 amp fused electrical

supply is required. It is recommended that a

separate circuit, serving only this appliance, be

provided.

All Undercounter models are equipped with a

power supply cord with a 3-prong grounding

plug which must be plugged into a mating

3-prong grounding type wall receptacle. Locate

electrical within the shaded area shown in the

illustration on page 3.

You must follow all National Electrical Code

regulations. In addition, be aware of local codes

and ordinances when installing your service.

Refer to the Undercounter Installation

Instructions packed with the appliance, which

provides step-by-step procedures for making

sure the unit is installed properly.

Planning Information

Undercounter Model 249R

Dimensions in parentheses are in

millimeters unless otherwise specified. 5

FRAMED PANELS

Framed door panels must be 1/4"(6) thick around the

perimeter. If the panel is thicker than 1/4"(6), an edge must

be routed around the panel to ensure a proper fit. Refer to

the illustrations on this page.

IMPORTANT NOTE: The weight of the panel cannot

exceed 20 lbs (9 kg).

FRAMED PANEL DIMENSIONS

WIDTH HEIGHT

Door Panel 23 5/8"(600) 30 " (762)

Handle Recess Location (A) 15" (381)

Maximum Panel Weight 20 lbs (9 kg)

Framed door panel 1/4"(6) thick or less

Framed door panel thicker than 1/4" (6)

PANELS 1/4"(6) THICK OR LESS

1/4"(6) Panel

Trim reveal

1/4"(6) min

PANELS THICKER THAN 1/4"(6)

Trim reveal

1/4"(6) min

Rout to 1/4"(6)

thickness

Framed Door Panel

Planning Information

Undercounter Model 249R

Dimensions in parentheses are in

millimeters unless otherwise specified. 6

OVERLAY PANEL

The overlay door panel design allows for a decorative

panel to cover the door trim for a more seamless appear-

ance. To achieve this look, the most common way is to

work with three panels – the decorative 3/4"(19) thick

overlay panel, a 0.10" (3) thick spacer panel and a 1/4"(6)

thick backer panel. An accessory kit (OVERPAN) is required

in order to accommodate the proper installation of the

overlay panel. Additional specifications will be provided

with the accessory kit.

IMPORTANT NOTE: An area must be notched out on the

back edge of the overlay panel at both the top and bottom

hinges to avoid interference as shown in illustration on

this page.

Keep in mind that the Sub-Zero door panels have the

potential for hitting adjacent cabinets and/ or countertops

when they are opened. You need to be aware of your

surrounding cabinetry and space limitations when using

the overlay units. Refer to the full-scale illustration on

page 7.

You will need to follow the exact dimensions and panel

placement for your model to ensure a proper fit. Refer to

the overlaypanel specifications below.

IMPORTANT NOTE: The weight of the panel assembly

cannot exceed 20 lbs (9 kg).

IMPORTANT NOTE: The total thickness of all panels for an

overlay model must be at least 5/8"(16) thick.

OVERLAY PANEL DIMENSIONS

WIDTH HEIGHT

Door Panel 24" (610) 30 5/16"(770)

Door Spacer 23" (584) 29 3/8"(746)

Door Backer 23 5/8"(600) 30" (762)

Maximum Weight (panel assembly) 20 lbs (9 kg)

5/16"

(8)

Notch

Required

for Hinge

Clearance

(top and bottom)

(25)

OVERLAY PANEL

Rear View

1/8"(3)

Notch required for hinge clearance

Overlay Door Panel

Planning Information

Undercounter Model 249R

Dimensions in parentheses are in

millimeters unless otherwise specified. 7

*MODEL 249 OVERLAY

MUST EXTEND A MINIMUM

OF 1-13/16" (46) BEYOND

SURFACE OF ADJOINING

CABINETRY AND MUST BE

1" (25) FROM ADJACENT

CABINETRY TO ALLOW THE

MAXIMUM DOOR SWING

113/16"(46)

3/4"(19)

1"* (25)

DOOR CLOSED

DOOR PANEL

145˚*

DOOR PANEL

DOOR OPEN @ 145˚

145˚ DOOR OPENING

(TOP VIEW)

24" (610)

CABINETRY OPENING

OVERLAY PANEL
